series 28
HiPer-D Standard and High-Density Connectors

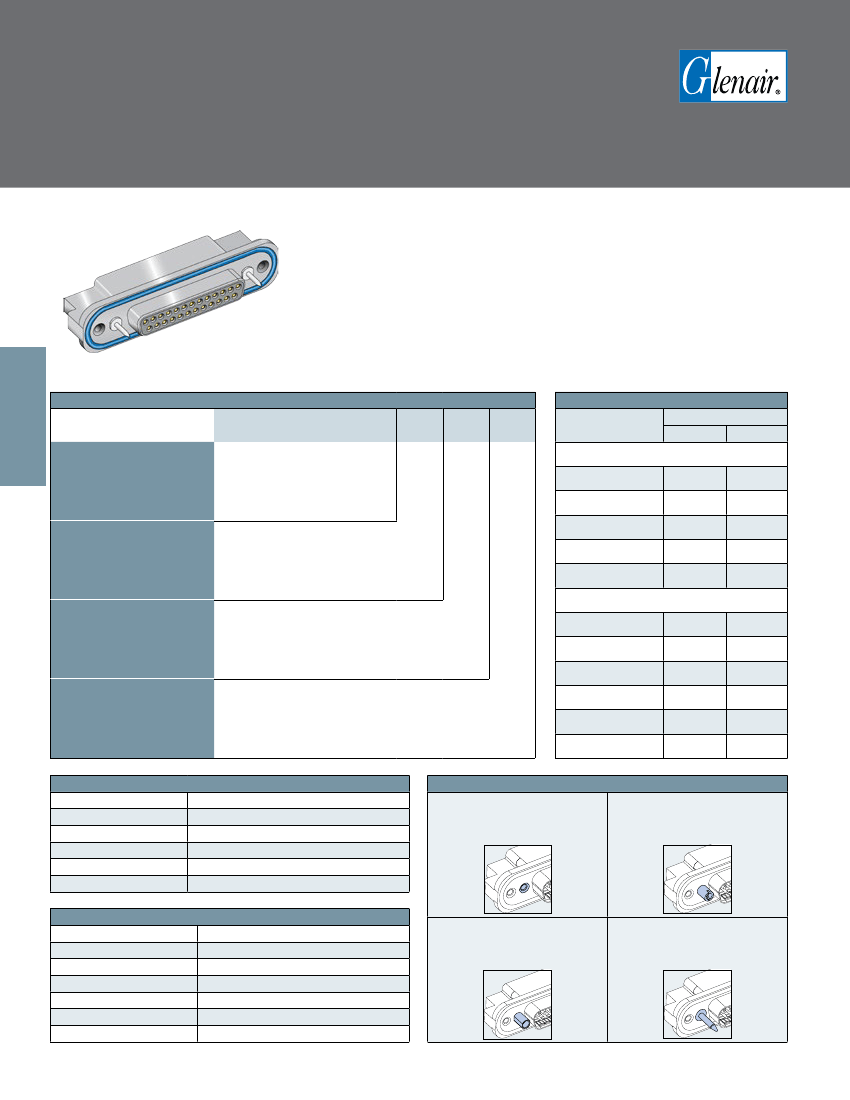

280-021S panel mount socket connectors with O-ring mounting flange,
crimp termination
Rear panel mount HiPer-D socket connectors feature crimp, rear-releaseable size #20
or #22 contacts and a flange O-ring for a watertight panel seal. Intermateable with
standard M24308-type D-Subminiature connectors, the HiPer-D features a rugged
machined aluminum shell and environmental sealing. #4-40 threaded mounting
holes simplify panel attachment. Threaded holes on the rear of the connector allow
attachment of HiPer-D EMI backshells. Contacts are packaged with connector.
Terminate contacts with crimp tools purchased separately. Glass-reinforced thermoset
epoxy insulators, copper alloy retention clips. Connector meets IP67 immersion
requirement (mated) . 1000 VAC, 5 Amps (#22) or 7.5 Amps (#20).
Ordering Information
Sample Part Number
B
Shell Size - Contact Arrangements
2H26
Z2
G
Shell Size-
Contact Arr.
Contact Size and Qty
#20
#22
280-021S
Standard Density
Basic Part Number
280-021S
1S9
2S15
3S25
Shell Size-
Contact Arrangement
Contact Arrangements are shown in the
adjacent table
ME
= Electroless Nickel (RoHS)
MT
= Nickel-PTFE (RoHS)
JF
= Cadmium with Yellow Chromate
Z2
= Gold (RoHS)
Z1
= Passivated Stainless Steel (RoHS)
N
= No Hardware (supplied with #8-32 tapped holes)
P
= #4-40 Female Jackposts
G
= Male Guide Pins
B
= Female Guide Bushings
4S37
5S50
9
15
25
37
50
High Density
1H15
2H26
3H44
4H62
5H78
6H104
15
26
44
62
78
104
Shell Finish
Mating hardware
Shell
Contacts
Insulators
Retention Clips
O-ring, Grommet
Hardware
Materials and Finishes
Aluminum alloy
Copper alloy, 50 microin. gold plated
Thermoset epoxy
Copper alloy
Fluorosilicone rubber
300 series stainless steel
Mating hardware
No Hardware
#8-32 tapped hole
N
#4-40 Female Jackposts
P
Specifications
Current Rating
#22 5 AMPS, #20 7.5 AMPS
Test Voltage
1000 VAC RMS
Insulation Resistance
5000 megohms minimum
Operating Temperature -65° C. to +200° C.
Ingress Protection
IP 67
Shock
300 g.
Vibration, Random
43.92 g.
B-10
Female Guide Bushings
B
Male Guide Pins
G
© 2013 Glenair, Inc • 1211 Air Way, Glendale, CA 91201 • 818-247-6000 • www.glenair.com • U.S. CAGE code 06324
series 28
HiPer-D Standard and High-Density Connectors
280-021S panel mount socket connectors with O-ring mounting flange,
crimp termination

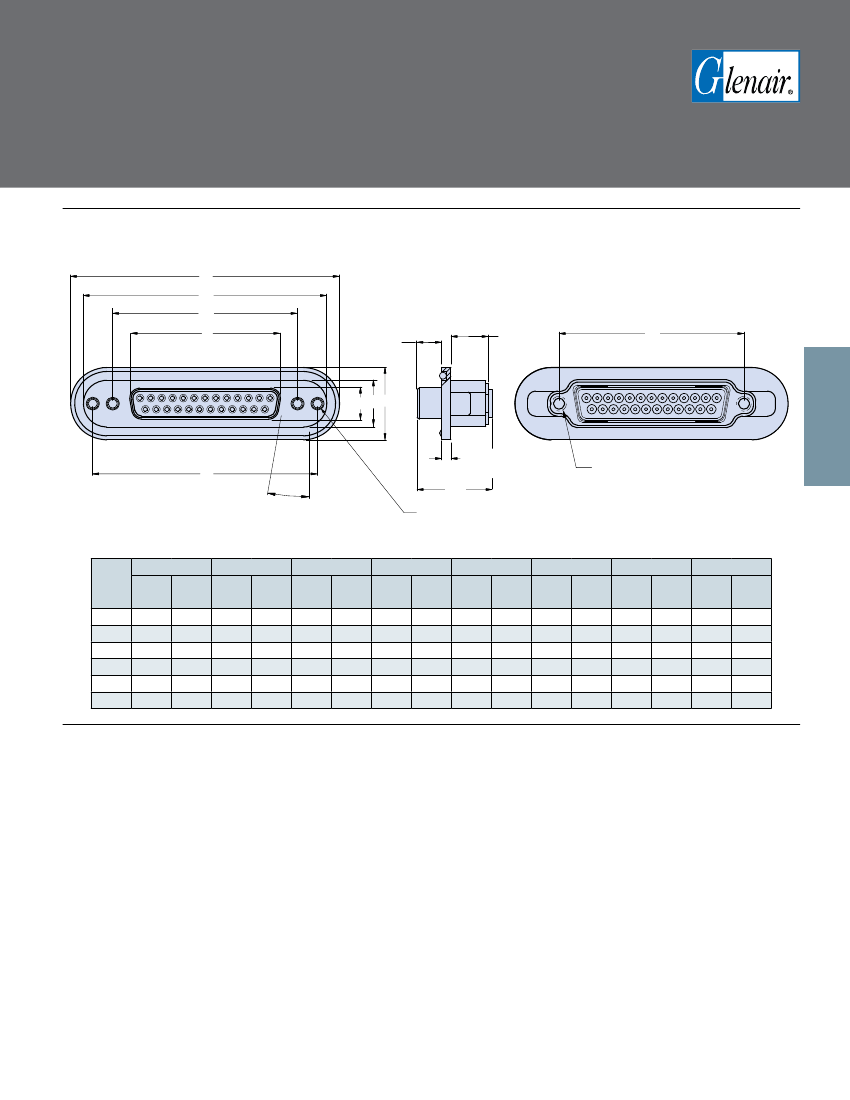

280-021S DIMENSIONS
A
H
C
D
.243±.003
(6.17±.0.08)
.390±.005
(9.91±0.13)
C
E GB
B
.094±.002
(2.39±0.05)
.765
(19.43)
4-40 UNC 2B TH'D
.150 (3.81) MIN. DEEP TYP 2 PLCS
4-40 UNC 2B TH'D
.150 (3.81) MIN. DEEP TYP 2 PLCS
F
10°
TYP 2 PL
Shell
Size
1
2
3
4
5
6
± .015
in
A
± 0.38
mm
± .015
in
B
± 0.38
mm
C Basic
in.
mm
± .005
in
D
± 0.13
mm
± .005
.311
.311
.311
.311
in
E
± 0.13
7.90
7.90
7.90
7.90
mm
F Basic
in
mm
± .015
.469
.469
.469
.469
in
G
± 0.38
11.91
11.91
11.91
11.91
mm
± .015
in
H
± 0.38
mm
1.865 47.37
2.200 55.88
2.736 69.49
3.385 85.98
3.289 83.54
3.383 85.93
.725 18.42
.725 18.42
.725 18.42
.725 18.42
.837 21.26
.899 22.83
.984 24.99
1.312 33.32
1.852 47.04
2.500 63.50
2.406 61.11
2.500 63.50
.643 16.33
.971 24.66
1.511 38.38
2.159 54.84
2.064 52.43
2.189 55.60
1.424 36.17
1.752 44.50
2.292 58.22
2.940 74.68
2.846 72.29
2.940 74.68
1.609 40.87
1.944 49.38
2.480 62.99
3.129 79.48
3.033 77.04
3.127 79.43
.423 10.74
.485 12.32
.581 14.76
.643 16.33
NOTES
1.
HiPer-D connectors are available with a wide variety of materials and finishes. See
About Series 28 HiPer-D Shell Plating Options
for
additional choices . Glenair offers the industry’s widest selection of plating and material choices with no setup charge, no minimum
order quantity and no schedule impact.
For panel cutout dimensions, refer to
Panel Cutouts and Printed Circuit Board Footprints.
Connectors are supplied with crimp contacts per M39029. Contacts are not installed. Refer to
HiPer-D Contacts and Crimp Tools
for
contact part numbers, specifications, crimp tool information, and insertion/extraction tools.
HiPer-D connectors meet the requirements of MIL-DTL-24308 and are intermateable with standard M24308-type D-Subminiature
connectors with corresponding contact arrangements and type.
Additional electrical, mechanical and environmental specifications are listed in
HiPer-D Product Specification.
2.
3.
4.
5.
B-11
