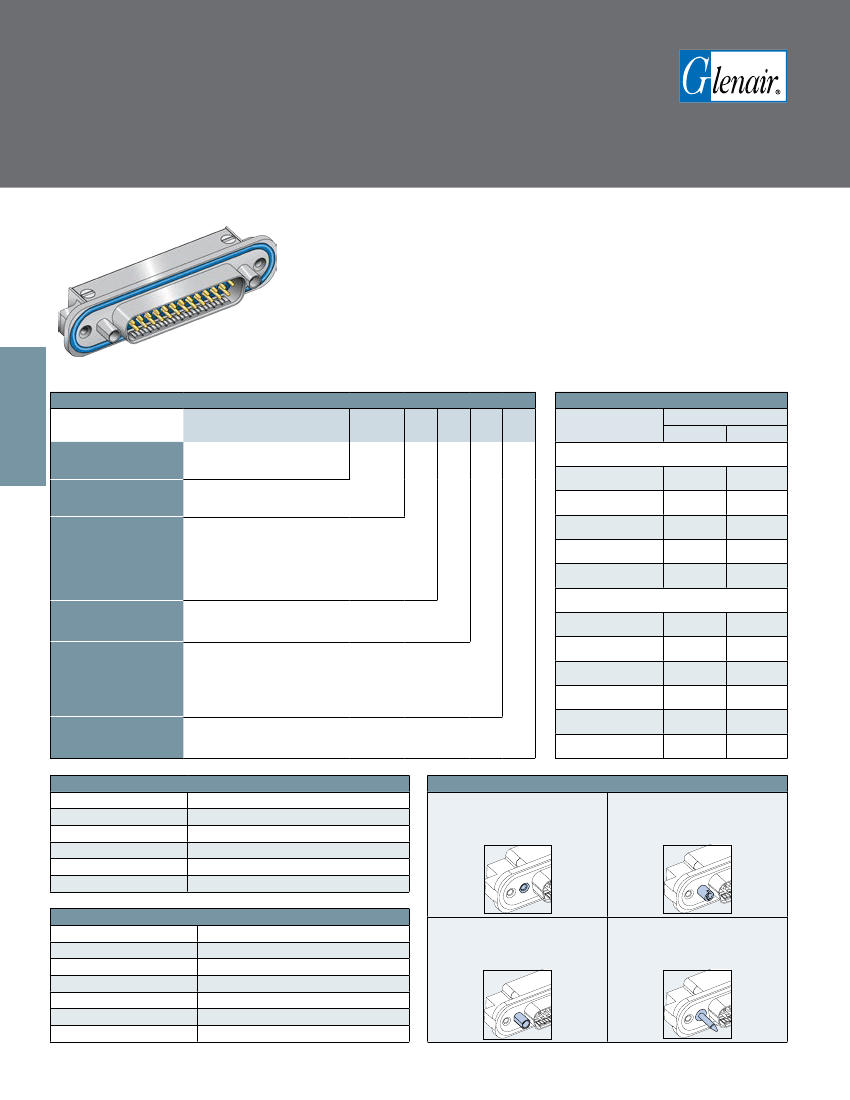

series 28
HiPer-D Standard and High-Density Connectors
280-024P right angle PC tail pin connectors with O-ring flange for
rear panel mounting
Right angle printed circuit board HiPer-D pin connectors feature rugged one-piece
machined aluminum shell and stainless steel shroud for improved EMI protection.
Contacts are non-removable size #20 or #22 PC tail contacts. Intermateable
with standard M24308-type D-Subminiature connectors, the HiPer-D features
environmental sealing and optional ground springs for improved resistance to
electromagnetic interference. #4-40 threaded mounting holes simplify panel
attachment. Threaded holes on the bottom of connector allow attachment to circuit
board. Contacts are potted with epoxy. Glass-reinforced thermoset epoxy insulators,
fluorosilicone face seal. 1000 VAC, 5 Amps (#22) or 7.5 Amps (#20).
how To Order
Sample Part Number
Basic Part Number
Shell Size-
Contact Arrangement
280-024P
Contact Arrangements are shown in the
adjacent table
ME
= Electroless Nickel (RoHS)
MT
= Nickel-PTFE (RoHS)
JF
= Cadmium with Yellow Chromate
Z2
= Gold (RoHS)
Z1
= Passivated Stainless Steel (RoHS)
G
= Supplied with EMI Ground Spring
N
= No Ground Spring
N
= No Hardware (supplied with #8-32 tapped holes)
P
= #4-40 Female Jackposts
G
= Male Guide Pins
B
= Female Guide Bushings
A
= .125 (3.18) Tail Length
B
= .250 (6.35) Tail Length
1S9
2S15
3S25
4S37
5S50
B
Shell Size - Contact Arrangements
4S37
Z2
N
B
B
Shell Size-
Contact Arr.
Contact Size and Qty
#20
#22
280-024P
Standard Density
9
15
25
37
50
High Density
1H15
2H26
3H44
4H62
5H78
6H104
15
26
44
62
78
104
Shell Finish
ground Spring
Mating hardware
PC Tail Length
Materials and Finishes
Shell
Aluminum alloy
Contacts
Copper alloy, 50 microin. gold plated
Insulators
Thermoset epoxy
Potting Compound
Epoxy
Face Seal and O-ring Fluorosilicone rubber
Hardware
300 series stainless steel
Specifications
Current Rating
#22 5 AMPS, #20 7.5 AMPS
Test Voltage
1000 VAC RMS
Insulation Resistance
5000 megohms minimum
Operating Temperature -65° C. to +200° C.
Ingress Protection
IP 67
Shock
300 g.
Vibration, Random
43.92 g.
B-16
Mating hardware
No Hardware
#8-32 tapped hole
N
#4-40 Female Jackposts
P
Female Guide Bushings
B
Male Guide Pins
G
© 2013 Glenair, Inc • 1211 Air Way, Glendale, CA 91201 • 818-247-6000 • www.glenair.com • U.S. CAGE code 06324
series 28
HiPer-D Standard and High-Density Connectors
280-024P right angle PC tail pin connectors with O-ring flange for
rear panel mounting

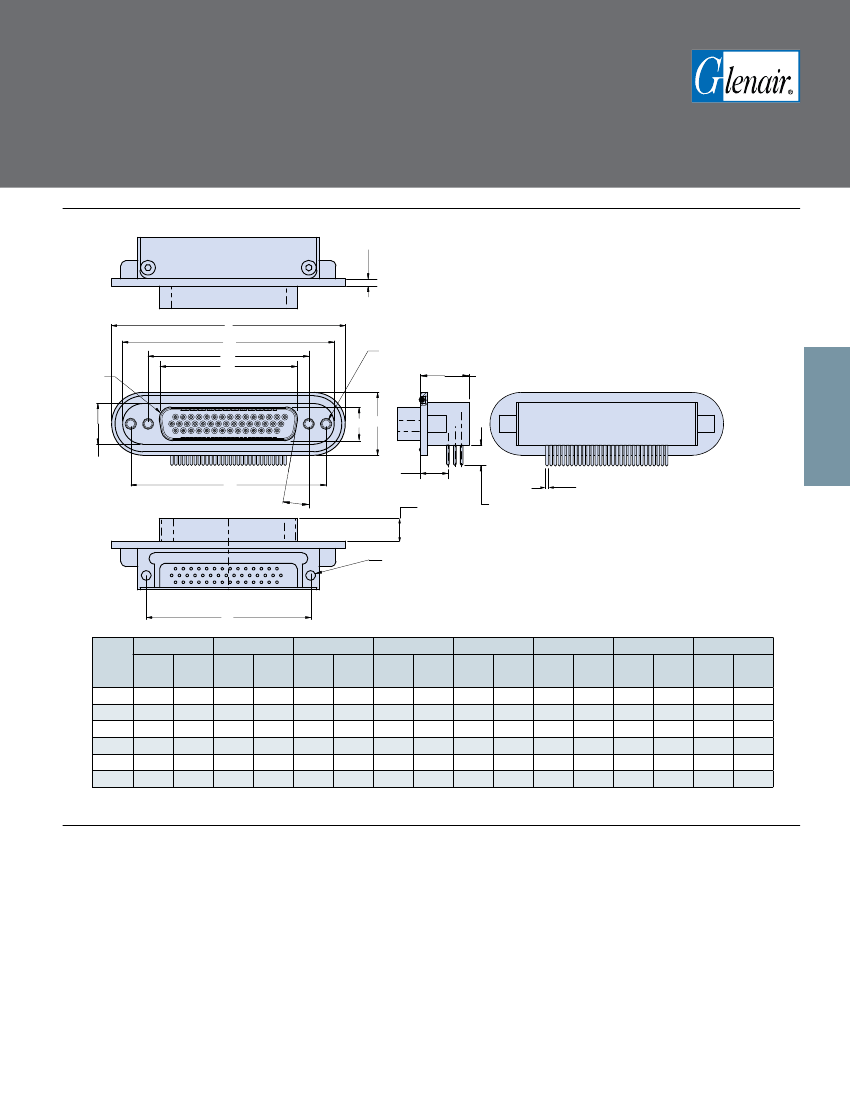

280-024P DIMENSIONS
.084±.002
(2.13±0.05)
A
H
C
D
4-40 UNC 2B TH'D
.150 (3.81) MIN. DEEP TYP 2PL
SEE PCB FOOTPRINTS
REF
R.134
(3.40)
E
B
B
.262±.003
(6.65±0.08)
PC TAIL LENGTH
± .015 (3.81)
STD DENSITY SIZE #20HD CONTACTS
.030±.002(0.76±0.05)
HI DENSITY SIZE #22D CONTACTS
.020±.002(0.51±0.05)
G
F
10° TYP
.318
(8.07)
4-40 UNC 2B TH'D
.150 (3.81) MIN. DEEP TYP 2PL
C
Shell
Size
1
2
3
4
5
6
± .015
in
A
± 0.38
mm
± .015
in
B
± 0.38
mm
C Basic
in.
mm
± .005
in
D
± 0.13
mm
± .005
.389
.389
.389
.389
in
E
± 0.13
9.88
9.88
9.88
9.88
mm
F Basic
in
mm
± .015
.469
.469
.469
.469
in
G
± 0.38
11.91
11.91
11.91
11.91
mm
± .015
in
H
± 0.38
mm
1.865 47.37
2.200 55.88
2.736 69.49
3.385 85.98
3.289 83.54
3.383 85.93
.725 18.42
.725 18.42
.725 18.42
.725 18.42
.837 21.26
.899 22.83
.984 24.99
1.312 33.32
1.852 47.04
2.500 63.50
2.406 61.11
2.500 63.50
.726 18.44
1.054 26.77
1.594 40.49
2.242 56.95
2.139 54.33
2.272 57.71
1.424 36.17
1.752 44.50
2.292 58.22
2.940 74.68
2.846 72.29
2.940 74.68
1.609 40.87
1.944 49.38
2.480 62.99
3.129 79.48
3.033 77.04
3.127 79.43
.501 12.73
.563 14.30
.581 14.76
.643 16.33
NOTES
1.
2.
Contacts are factory-installed, non-removable and are potted with epoxy.
HiPer-D connectors are available with a wide variety of materials and finishes. See
About Series 28 HiPer-D Shell Plating Options
for
additional choices . Glenair offers the industry’s widest selection of plating and material choices with no setup charge, no minimum
order quantity and no schedule impact.
For panel cutout dimensions, refer to
Panel Cutouts and Printed Circuit Board Footprints.
For printed circuit board mounting dimensions, refer to
Panel Cutouts and Printed Circuit Board Footprints.
HiPer-D connectors meet the requirements of MIL-DTL-24308 and are intermateable with standard M24308-type D-Subminiature
connectors with corresponding contact arrangements and type.
Additional electrical, mechanical and environmental specifications are listed in
HiPer-D Product Specification.
3.
4.
5.
6.
B-17
