Low Loss 12 dB N Unequal Tapper Optimized For Mobile
Networks From 380 MHz to 6 GHz Rated To 300 Watts
TECHNICAL DATA SHEET
PE-T2024
Low Loss 12 dB N Unequal Tapper Optimized For Mobile Networks From 380 MHz to 6 GHz Rated To
300 Watts
Pasternack’s Line of High Power Wideband Tappers have been designed to maintain a Split Ratio across all frequencies
between 380MHz and 6Ghz. There is minimal Insertion Loss, VSWR, and Low PIM. Mechanically the parts have no
solder joints inside the Aluminum Casing and are IP65 / IP67 rated allowing for placement in rugged environments. This
setup along with select bands optimization makes them ideal for Mobile Networks Infrastructure.
•
•
•
•
Split Ratios Ranging from 1:3 to 1:1000
Power Ratings up to 300 Watts
Low PIM (150dBc) Low VSWR (1.15)
Rugged Designs available with optional mounting brackets
Configuration
Design
Frequency Range, GHz
Input
Output
Sample Port
Number of Output Ports
Housing Material and Plating
Low Loss Tapper
0.38 to 6
N Female
N Female
N Female
2
Passivated Aluminum
Electrical Specifications
Number of Bands
Impedance, Ohms
Maximum Insertion Loss, dB *
Maximum Input Power, Watts
Maximum Input VSWR
Peak Input Power, KWatts
Passive Intermodulation (2 x 43 dBm), dBc
Band 1
Frequency, GHz
VSWR
Band 2
Frequency, GHz
VSWR
Band 3
Frequency, GHz
Coupling Tolerance, dB
VSWR
4
50
0.45
300
1.25:1
3
150
0.38 to 1.55
1.15
1.65 to 2.7
1.15:1
3.4 to 5.4
1
1.25:1
Click the following link (or enter part number in “SEARCH” on website) to obtain additional part information including price,
inventory and certifications:
Low Loss 12 dB N Unequal Tapper Optimized For Mobile Networks From 380 MHz to 6 GHz
Rated To 300 Watts PE-T2024
PE-T2024 REV 1.0
1
Low Loss 12 dB N Unequal Tapper Optimized For Mobile
Networks From 380 MHz to 6 GHz Rated To 300 Watts
TECHNICAL DATA SHEET
Band 4
Range, GHz
Coupling Tolerance, dB
VSWR
5 to 6
2
1.25:1
PE-T2024
Mechanical Specifications
Size
Length, in [mm]
Width, in [mm]
Height, in [mm]
.
6.23 [158.24]
1 [25.4]
2.1 [53.34]
0.75 [340.19]
IP65
Weight, lbs [g]
Humidity
Connector 1
Contact Material and Plating
Outer Conductor Material and Plating
Body Material and Plating
Connector 2
Contact Material and Plating
Outer Conductor Material and Plating
Body Material and Plating
Connector 3
Contact Material and Plating
Outer Conductor Material and Plating
Body Material and Plating
Brass, Silver
Brass, Silver
Brass, Silver
Brass, Silver
Brass, Silver
Brass, Silver
Brass, Silver
Brass, Silver
Brass, Silver
Compliance Certifications
(visit www.Pasternack.com for current document)
RoHS Compliant
Yes
Click the following link (or enter part number in “SEARCH” on website) to obtain additional part information including price,
inventory and certifications:
Low Loss 12 dB N Unequal Tapper Optimized For Mobile Networks From 380 MHz to 6 GHz
Rated To 300 Watts PE-T2024
PE-T2024 REV 1.0
2
Low Loss 12 dB N Unequal Tapper Optimized For Mobile
Networks From 380 MHz to 6 GHz Rated To 300 Watts
TECHNICAL DATA SHEET
Plotted and Other Data
PE-T2024
* Notes: • Values at 25 °C, sea level
• Main
line VSWR usable to DC
• Coupling Port usable to 148 MHz or less with acceptable roll-off.
• Insertion Loss = Dissipative Loss + Coupling Loss
• Resonant Free in listed operating bands, Resonance may occur outside specified operating bands.
• For Coupling Tolerance for Frequencies 1 and 2. + 0.2 dB / -0.6 dB
Low Loss 12 dB N Unequal Tapper Optimized For Mobile Networks From 380 MHz to 6 GHz Rated To 300 Watts from
Pasternack Enterprises has same day shipment for domestic and International orders. Our RF, microwave and fiber optic
products maintain a 99% availability and are part of the broadest selection in the industry.
Click the following link (or enter part number in “SEARCH” on website) to obtain additional part information including price,
inventory and certifications:
Low Loss 12 dB N Unequal Tapper Optimized For Mobile Networks From 380 MHz to 6 GHz Rated
To 300 Watts PE-T2024
URL:
http://www.pasternack.com/low-loss-12db-n-unequaltapper-380-mhz-6-ghz-300watts-pe-t2024-p.aspx
PE-T2024 REV 1.0
3
PE-T2024

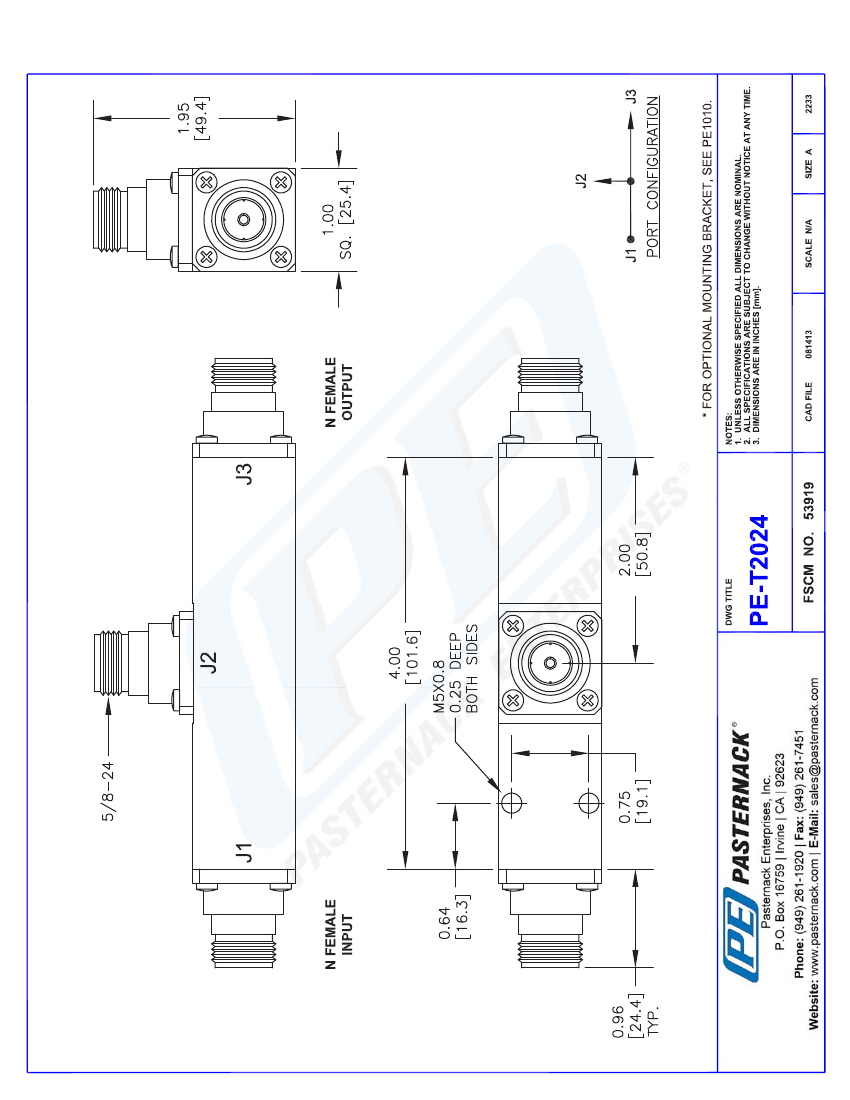

CAD Drawing
Low Loss 12 dB N Unequal Tapper Optimized For Mobile
Networks From 380 MHz to 6 GHz Rated To 300 Watts
© 2013 Pasternack Enterprises All Rights Reserved
PE-T2024 REV 1.0
4
