2.4mm Male to 1.85mm Male Precision Cable
Using 095 Series Coax, RoHS
TECHNICAL DATA SHEET
2.4mm Male to 1.85mm Male Precision Cable Using 095 Series Coax, RoHS
Configuration
Connector 1
Connector 2
Cable Type
2.4mm Male
1.85mm Male
095 Series
PE36676
Electrical Specifications
Frequency Range, GHz
Impedance, Ohms
Maximum VSWR
Velocity of Propagation, %
RF Shielding, dB
Maximum Operating Voltage, Vrms
Electrical Specification Notes:
DC to 50
50
1.4:1
69.5
90
700
Short lengths up to 24” long may exhibit VSWR
measurements up to 9% higher.
Mechanical Specifications
Cable Assembly
Cable Type
Temperature
Temperature Operating Range, deg C
.
095 Series
-48 to +204
0.5 [12.7]
One Time Minimum Bend Radius, in [mm]
Cable
Center Conductor Type
Cable Inner Conductor
No of Shields
Dielectric Type
Jacket Material
Jacket Diameter, in [mm]
Solid
Copper Clad Steel, Silver
2
PTFE
FEP
0.095 [2.41]
Connector 1
Type
Configuration
Inner Conductor Material and Plating
Coupling Nut Material and Plating
Hex Size, in.
Torque, in-lbs [Nm]
Body Material and Plating
Dielectric Type
2.4mm Male
Straight
Brass, Gold
Passivated Stainless Steel
5/16
8 [0.9]
Passivated Stainless Steel
Noryl
Click the following link (or enter part number in “SEARCH” on website) to obtain additional part information including price,
inventory and certifications:
2.4mm Male to 1.85mm Male Precision Cable Using 095 Series Coax, RoHS PE36676
PE36676 REV
1
2.4mm Male to 1.85mm Male Precision Cable
Using 095 Series Coax, RoHS
TECHNICAL DATA SHEET
Connector 2
Type
Configuration
Inner Conductor Material and Plating
Coupling Nut Material and Plating
Hex Size, in.
Torque, in-lbs [Nm]
Body Material and Plating
Dielectric Type
1.85mm Male
Straight
Copper Clad Steel, Silver
Passivated Stainless Steel
5/16
8 [0.9]
Passivated Stainless Steel
PTFE
PE36676
Compliance Certifications
(visit www.Pasternack.com for current document)
RoHS Compliant
Yes

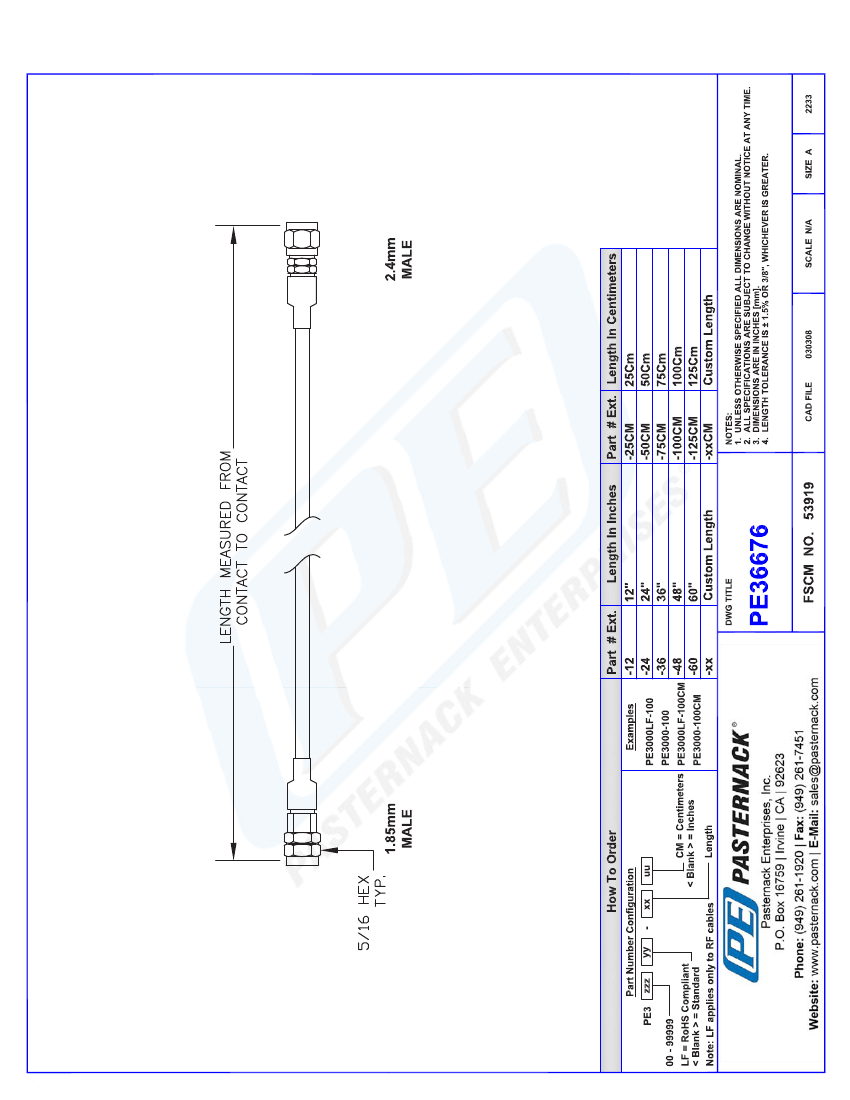

Plotted and Other Data
Notes:
Values at 25 °C, sea level
2.4mm Male to 1.85mm Male Precision Cable Using 095 Series Coax, RoHS from Pasternack Enterprises has same day
shipment for domestic and International orders. Our RF, microwave and fiber optic products maintain a 99% availability and
are part of the broadest selection in the industry.
Click the following link (or enter part number in “SEARCH” on website) to obtain additional part information including price,
inventory and certifications:
2.4mm Male to 1.85mm Male Precision Cable Using 095 Series Coax, RoHS PE36676
