USB SuperSeal™ D38999 Series III Type Connectors
Size 22 Pin or Socket Contacts to
USB 2.0 Type A Receptacle • Size 15
D38999 Type
USB Connectors
Basic
Number
Connector
Style
(See Below)
Insert
Arrangement
IAW
MIL-STD-1560
USB Type A
Rear Interface
Alternate Key Position
Per MIL-DTL-38999
A, B, C, D, E
N
= Normal
233-344
NF 00
-
15 35
Shell Size
15
2
USB 2.0
A
P
Contact
Style
P
= Pin
S
= Socket
N
Finish
NF
= Cadmium Olive Drab
M
= Electroless Nickel
MT
= Nickel PTFE
Connector Styles
00
= Receptacle, Wall Mount
with Slotted Holes
07
= Receptacle, Jam Nut Mount
G6
= Plug
Receptacle
Front View
Plug
Front View
All External Dimensions,
Features, etc. compliant with
D38999/20, /24 & /26.
Consult Factory for Additional
Information.
Size 17 shells also available.
Consult factory, refer to P/N 233-361.

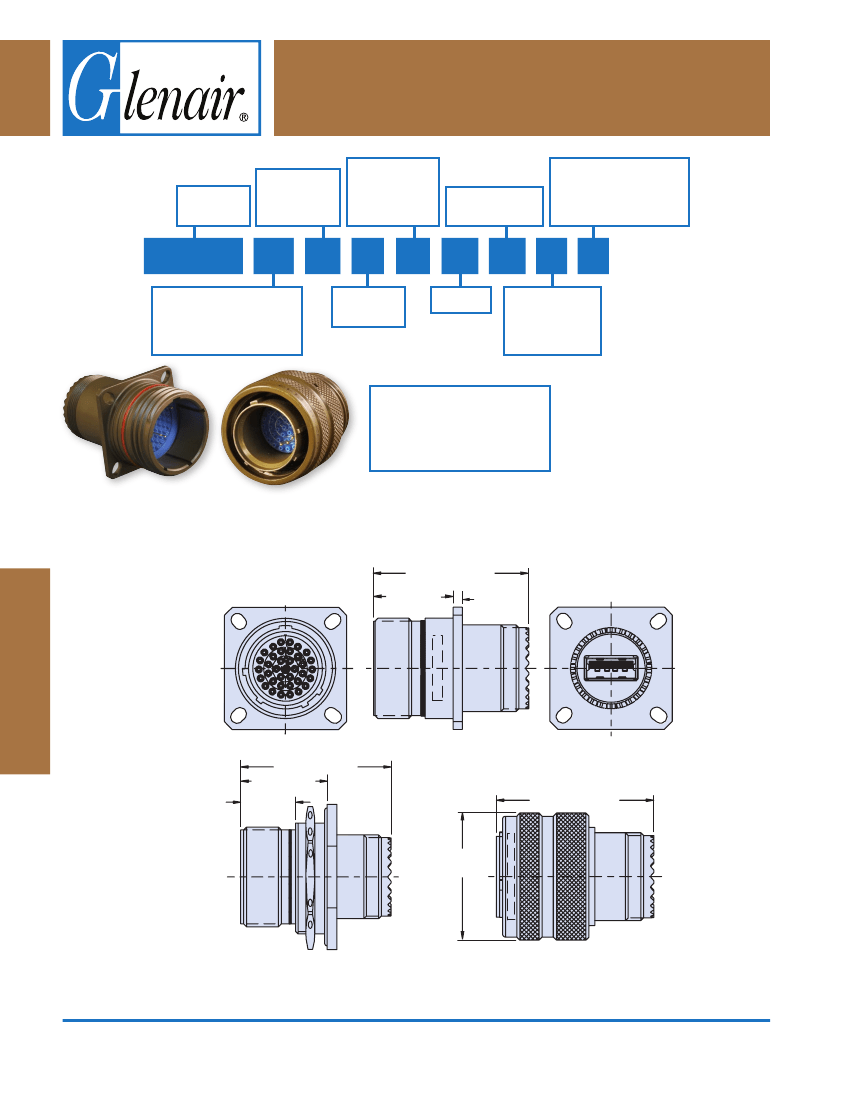

1.550 (39.37) Max
.823 (20.90)
.098 (2.49)
.768 (19.50)
.083 (2.11)
C
Square Flange Receptacle
1.550 (39.37) Max
.890 (22.61) Max
.579 (14.71)
.555 (14.10)
41
1.550 (22.61) Max
Ø1.280 (32.51
Max
Jam Nut
© 2013 Glenair, Inc.
U.S. CAGE Code 06324
Plug
Rev. 6-2014
Printed in U.S.A.
GLENAIR, INC.
•
1211 AIR WAY
•
GLENDALE, CA 91201-2497
•
818-247-6000
•
FAX 818-500-9912
www.glenair.com
C-10
