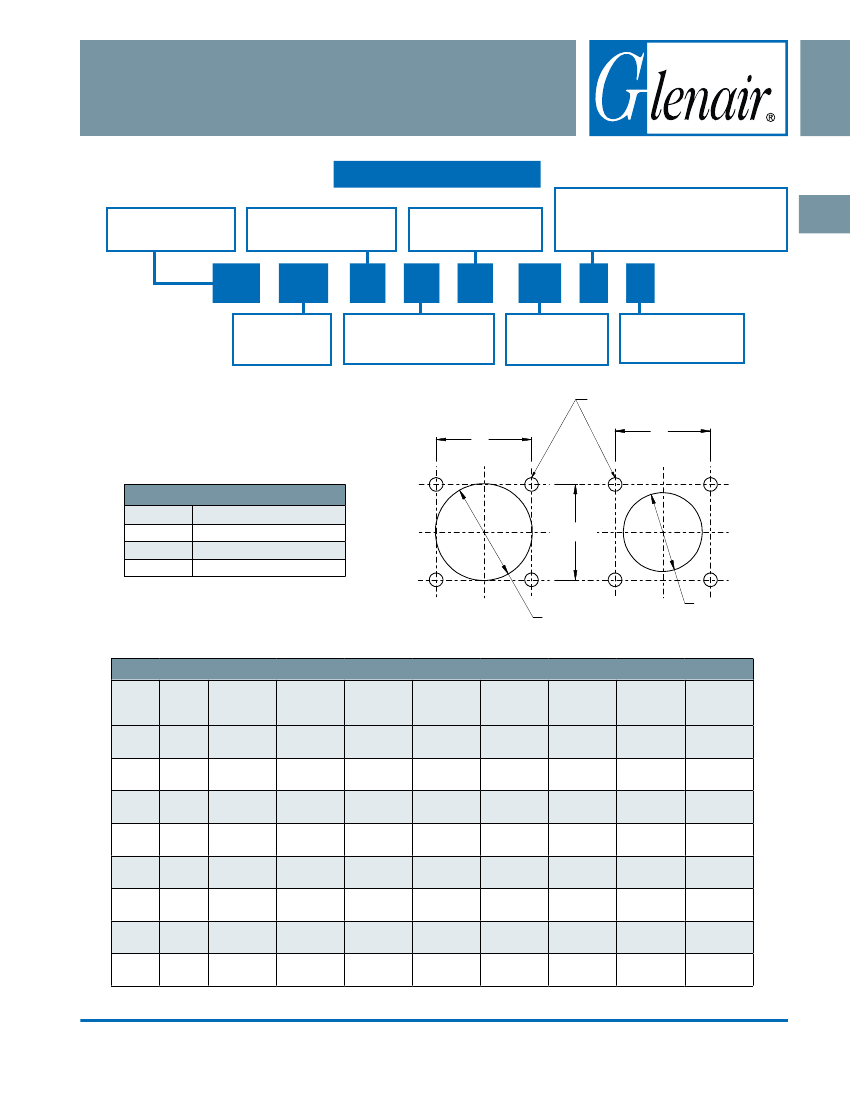

234-100-H2

Box Mount Hermetic Receptacle

MIL-DTL-38999 Series IV Type

How To Order:

Commercial

Connector Series

234

Series IV Type

Shell Style

- Hermetic Box Mount

Shell Size

11,13,15,17,19,21,23,25

Contact Termination

- Pin, Solder Cup

- Socket, Solder Cup

- Pin, Eyelet

- Socket, Eyelet

- Pin, PCB

- Socket, PCB

234

100

Connector Type

100

Hermetic

Receptacle

Alternate Key Position

A, B, C, D, K, L, M, R, U

(N = Normal)

Connector Material / Finish

- CRES, Nickel

- CRES, Passivated

Insert Arrangement

Per MIL-STD-1560;

See Pages B-2 - B-4

Mounting Hole

Dimensions

4X ø G Holes

HERMETIC LEAK RATE MOD CODES

Designator

–585A

–585B

–585C

Required Leak Rate

1 x 10

-10

cc Helium per second

1 x 10

-9

cc Helium per second

1 x 10

-8

cc Helium per second

ø J Min

Back Panel

Mounting

ø H Min

Front Panel

Mounting

TABLE I: CONNECTOR DIMENSIONS

SHELL

SIZE

CODE

SHELL

SIZE

1.051(26.7)

1.008(25.6)

1.145(29.1)

1.102(28.0)

1.240(31.5)

1.197(30.4)

1.334(33.9)

1.291(32.8)

1.460(37.1)

1.417(36.0)

1.583(40.2)

1.539(39.1)

1.709(43.4)

1.665(42.3)

1.835(46.6)

1.791(45.5)

BSC

.812(20.6)

.906(23.0)

.969(24.6)

1.062(27.0)

1.156(29.4)

1.250(31.8)

1.375(34.9)

1.500(38.1)

DIA

.793(20.1)

.778(19.8)

.919(23.3)

.904(23.0)

1.044(26.5)

1.029(26.1)

1.170(29.7)

1.155(29.3)

1.294(32.9)

1.279(32.5)

1.419(36.0)

1.404(35.7)

1.544(39.2)

1.529(38.8)

1.670(42.4)

1.654(42.0)

DIA

.138(3.5)

.122(3.1)

.138(3.5)

.122(3.1)

.138(3.5)

.122(3.1)

.138(3.5)

.122(3.1)

.138(3.5)

.122(3.1)

.138(3.5)

.122(3.1)

.157(4.0)

.142(3.6)

.157(4.0)

.142(3.6)

øG

HOLES

±.005(0.1)

.128(3.3)

.154(3.9)

øH

MIN

.781(19.8)

.921(23.4)

1.047(26.6)

1.218(30.9)

1.296(32.9)

1.421(36.1)

1.546(39.3)

1.672(42.5)

øJ

MIN

.625(15.9)

.750(19.1)

.906(23.0)

1.016(25.8)

1.142(29.0)

1.266(32.2)

1.375(34.9)

1.484(37.7)

±.005(0.1)

.812(20.6)

.906(23.0)

.968(24.6)

1.062(27.0)

1.156(29.4)

1.250(31.8)

1.375(34.9)

1.500(38.1)

Printed in U.S.A.

Dimensions in Inches (millimeters) are subject to change without notice.

U.S. CAGE Code 06324

GLENAIR, INC.

•

1211 AIR WAY

•

GLENDALE, CA 91201-2497

•

818-247-6000

•

FAX 818-500-9912

www.glenair.com

B-83

E-Mail: sales@glenair.com
