ECEA1APZ472C datasheet, PDF - EEWORLD Datasheet

EEWORLDEEWORLD

Datasheet

Datasheet> All Categories > Passive components> capacitor> ECEA1APZ472C

Preview

ECEA1APZ472C: DescriptionAluminum Electrolytic Capacitor, Polarized, Aluminum (wet), 10V, 20% +Tol, 20% -Tol, 4700uF, Through Hole Mount, RADIAL LEADED; CategoryPassive components capacitor; File Size155KB，4 Pages; ManufacturerPanasonic; Websitehttp://www.panasonic.co.jp/semicon/e-index.html; Environmental Compliance

Download Datasheet Parametric Compare View All

ECEA1APZ472C Overview

Aluminum Electrolytic Capacitor, Polarized, Aluminum (wet), 10V, 20% +Tol, 20% -Tol, 4700uF, Through Hole Mount, RADIAL LEADED

ECEA1APZ472C Parametric

Parameter Name	Attribute value
Is it Rohs certified?	conform to
package instruction	,
Reach Compliance Code	compliant
ECCN code	EAR99
capacitance	4700 µF
Capacitor type	ALUMINUM ELECTROLYTIC CAPACITOR
dielectric materials	ALUMINUM (WET)
JESD-609 code	e3
leakage current	0.47 mA
Installation features	THROUGH HOLE MOUNT
negative tolerance	20%
Number of terminals	2
Maximum operating temperature	85 °C
Minimum operating temperature	-40 °C
Package shape	CYLINDRICAL PACKAGE
polarity	POLARIZED
positive tolerance	20%
Rated (DC) voltage (URdc)	10 V
ripple current	1200 mA
surface mount	NO
Delta tangent	0.3
Terminal surface	Tin (Sn)
Terminal shape	WIRE

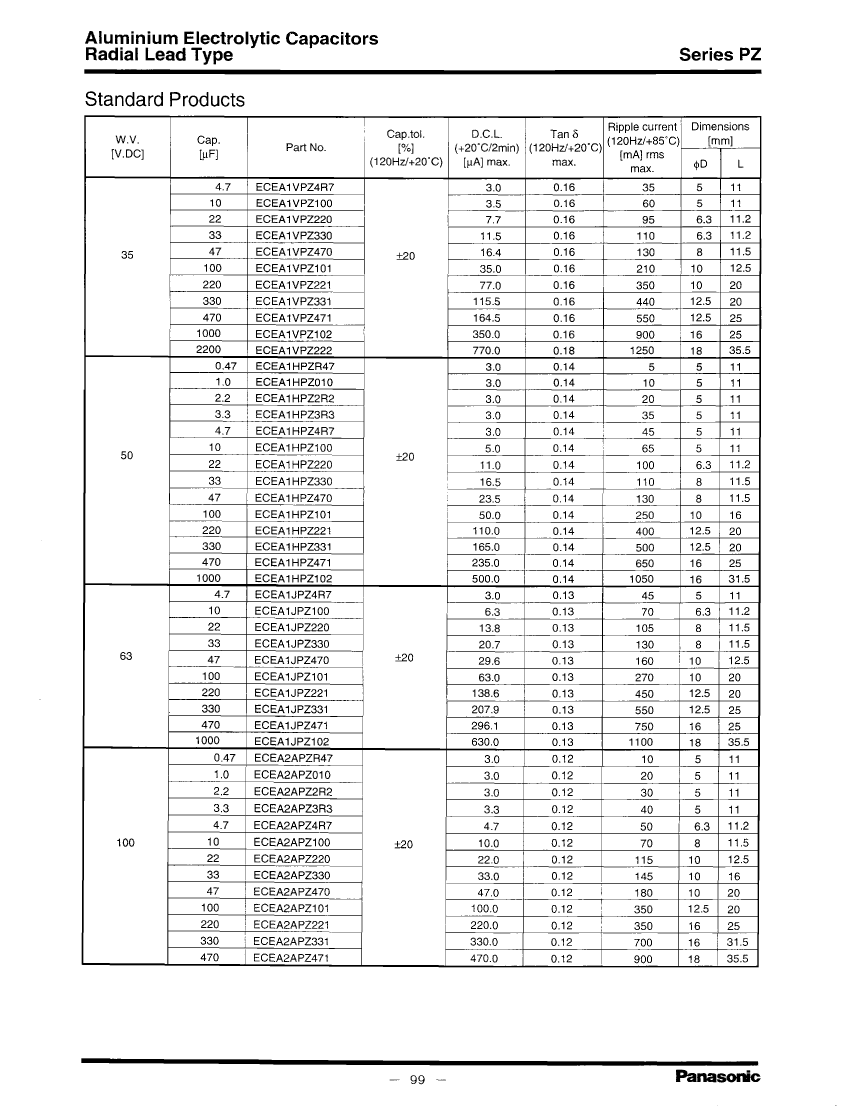

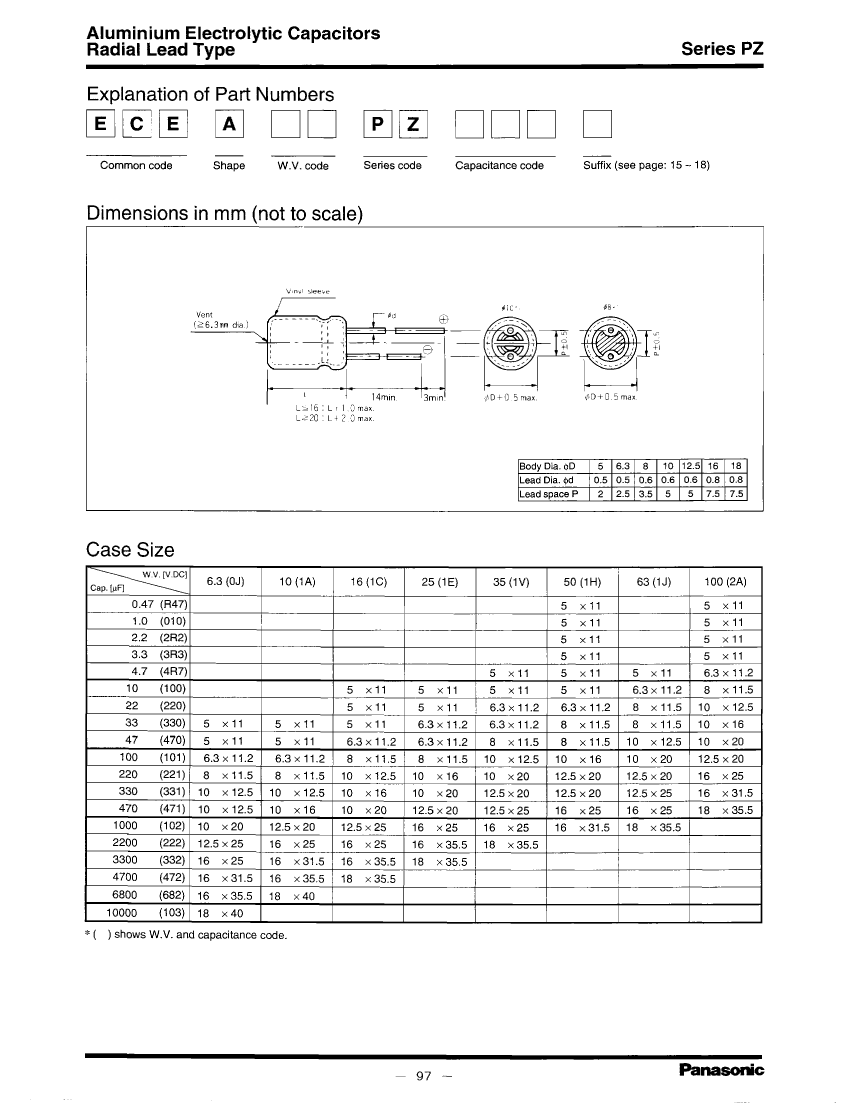

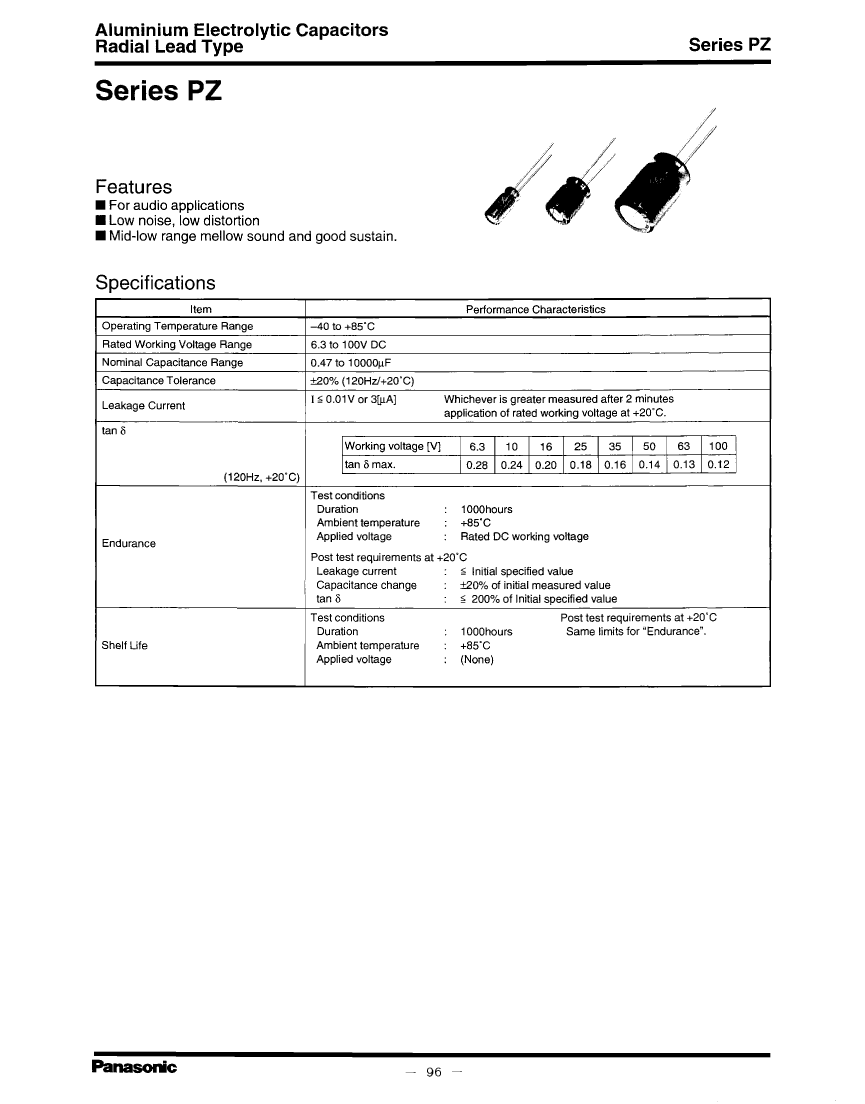

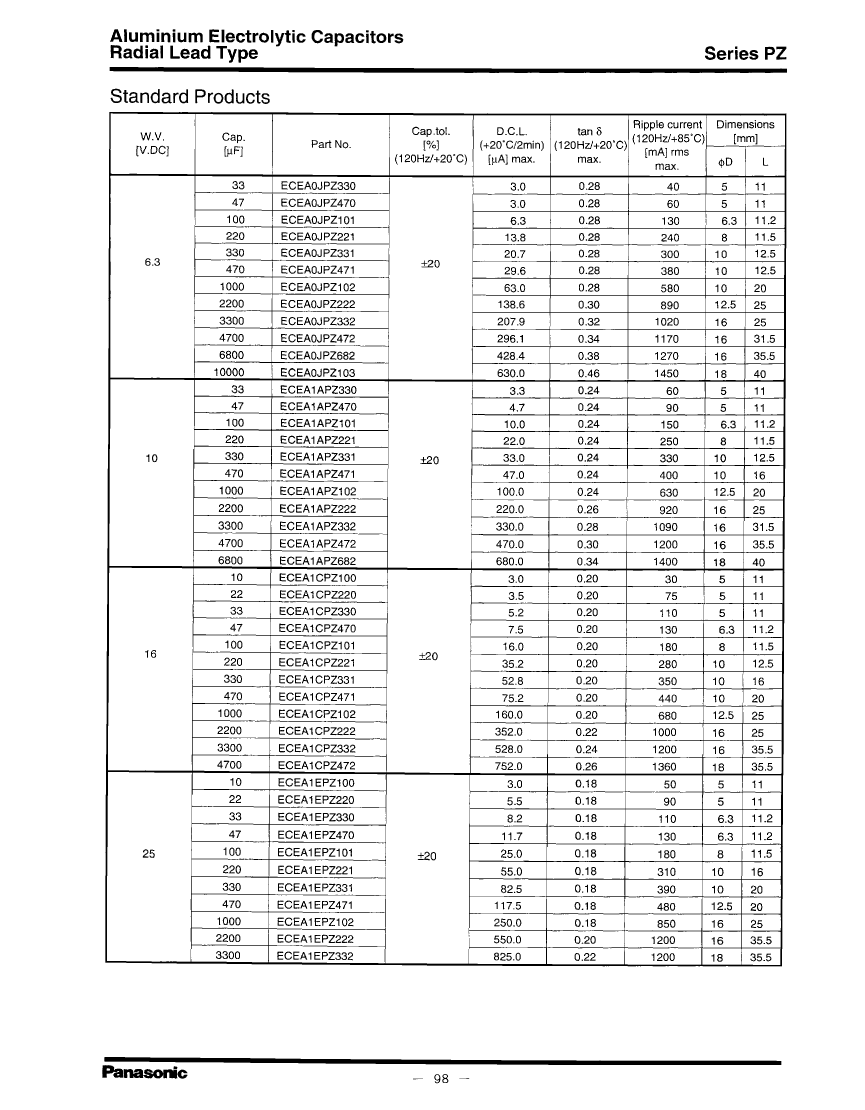

ECEA1APZ472C Preview

More (Only the first 5 pages are displayed. Please Download Datasheet to view the full content.) >

ECEA1APZ472C Related Products

	ECEA1APZ472C	ECEA1EPZ220(C)	ECEA2APZ010(C)	ECEA1JPZ221(C)	ECEA1HPZ010(C)	ECEA2APZ470C	ECEA1JPZ470C
Description	Aluminum Electrolytic Capacitor, Polarized, Aluminum (wet), 10V, 20% +Tol, 20% -Tol, 4700uF, Through Hole Mount, RADIAL LEADED	Aluminum Electrolytic Capacitor, Polarized, Aluminum (wet), 25V, 20% +Tol, 20% -Tol, 22uF, Through Hole Mount, RADIAL LEADED	Aluminum Electrolytic Capacitor, Polarized, Aluminum (wet), 100V, 20% +Tol, 20% -Tol, 1uF, Through Hole Mount, RADIAL LEADED	Aluminum Electrolytic Capacitor, Polarized, Aluminum (wet), 63V, 20% +Tol, 20% -Tol, 220uF, Through Hole Mount, RADIAL LEADED	Aluminum Electrolytic Capacitor, Polarized, Aluminum (wet), 50V, 20% +Tol, 20% -Tol, 1uF, Through Hole Mount, RADIAL LEADED	Aluminum Electrolytic Capacitor, Polarized, Aluminum (wet), 100V, 20% +Tol, 20% -Tol, 47uF, Through Hole Mount, RADIAL LEADED	Aluminum Electrolytic Capacitor, Polarized, Aluminum (wet), 63V, 20% +Tol, 20% -Tol, 47uF, Through Hole Mount, RADIAL LEADED
Is it Rohs certified?	conform to	conform to	conform to	conform to	conform to	conform to	conform to
Reach Compliance Code	compliant	compliant	compliant	compliant	compliant	compliant	compliant
ECCN code	EAR99	EAR99	EAR99	EAR99	EAR99	EAR99	EAR99
capacitance	4700 µF	22 µF	1 µF	220 µF	1 µF	47 µF	47 µF
Capacitor type	ALUMINUM ELECTROLYTIC CAPACITOR	ALUMINUM ELECTROLYTIC CAPACITOR	ALUMINUM ELECTROLYTIC CAPACITOR	ALUMINUM ELECTROLYTIC CAPACITOR	ALUMINUM ELECTROLYTIC CAPACITOR	ALUMINUM ELECTROLYTIC CAPACITOR	ALUMINUM ELECTROLYTIC CAPACITOR
dielectric materials	ALUMINUM (WET)	ALUMINUM (WET)	ALUMINUM (WET)	ALUMINUM (WET)	ALUMINUM (WET)	ALUMINUM (WET)	ALUMINUM (WET)
JESD-609 code	e3	e3	e3	e3	e3	e3	e3
leakage current	0.47 mA	0.0055 mA	0.003 mA	0.1386 mA	0.003 mA	0.047 mA	0.0296 mA
Installation features	THROUGH HOLE MOUNT	THROUGH HOLE MOUNT	THROUGH HOLE MOUNT	THROUGH HOLE MOUNT	THROUGH HOLE MOUNT	THROUGH HOLE MOUNT	THROUGH HOLE MOUNT
negative tolerance	20%	20%	20%	20%	20%	20%	20%
Number of terminals	2	2	2	2	2	2	2
Maximum operating temperature	85 °C	85 °C	85 °C	85 °C	85 °C	85 °C	85 °C
Minimum operating temperature	-40 °C	-40 °C	-40 °C	-40 °C	-40 °C	-40 °C	-40 °C
Package shape	CYLINDRICAL PACKAGE	CYLINDRICAL PACKAGE	CYLINDRICAL PACKAGE	CYLINDRICAL PACKAGE	CYLINDRICAL PACKAGE	CYLINDRICAL PACKAGE	CYLINDRICAL PACKAGE
polarity	POLARIZED	POLARIZED	POLARIZED	POLARIZED	POLARIZED	POLARIZED	POLARIZED
positive tolerance	20%	20%	20%	20%	20%	20%	20%
Rated (DC) voltage (URdc)	10 V	25 V	100 V	63 V	50 V	100 V	63 V
ripple current	1200 mA	90 mA	20 mA	450 mA	10 mA	180 mA	160 mA
surface mount	NO	NO	NO	NO	NO	NO	NO
Delta tangent	0.3	0.18	0.12	0.13	0.14	0.12	0.13
Terminal surface	Tin (Sn)	Tin (Sn)	Tin (Sn)	Tin (Sn)	Tin (Sn)	Tin (Sn)	Tin (Sn)
Terminal shape	WIRE	WIRE	WIRE	WIRE	WIRE	WIRE	WIRE
Is it lead-free?	-	Lead free	Lead free	Lead free	Lead free	-	-
Maker	-	Panasonic	Panasonic	Panasonic	Panasonic	Panasonic	-

Recommended Resources

Capacitive sensing detection circuit

Microprocessor circuit with HT1621B display system

Application of TL494 as current regulator

Passive light emitting diode output level indication circuit

Senlan Almighty King SB60 inverter one to four plus soft starter

4017 Basic Demonstration Circuit
