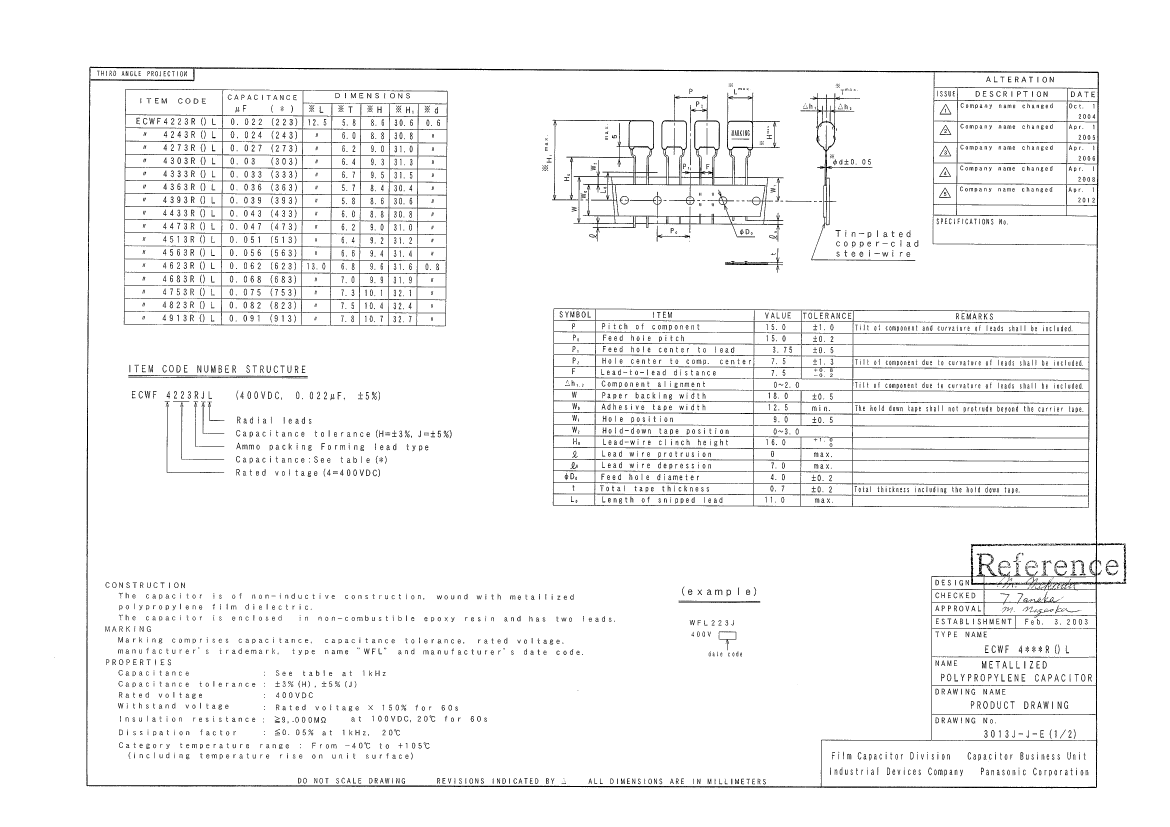

Preview

ECWF4363RJL: DescriptionFilm Capacitor, Polypropylene, 400V, 5% +Tol, 5% -Tol, 0.036uF, Through Hole Mount, 4922, RADIAL LEADED, ROHS COMPLIANT; CategoryPassive components capacitor; File Size348KB，6 Pages; ManufacturerPanasonic; Websitehttp://www.panasonic.co.jp/semicon/e-index.html; Environmental Compliance

Download Datasheet Parametric Compare View All

ECWF4363RJL Overview

Film Capacitor, Polypropylene, 400V, 5% +Tol, 5% -Tol, 0.036uF, Through Hole Mount, 4922, RADIAL LEADED, ROHS COMPLIANT

ECWF4363RJL Parametric

Parameter Name	Attribute value
Is it lead-free?	Lead free
Is it Rohs certified?	conform to
package instruction	, 4922
Reach Compliance Code	compliant
ECCN code	EAR99
Factory Lead Time	15 weeks
capacitance	0.036 µF
Capacitor type	FILM CAPACITOR
dielectric materials	POLYPROPYLENE
high	13.4 mm
JESD-609 code	e3
length	12.5 mm
Manufacturer's serial number	ECWF(L)
Installation features	THROUGH HOLE MOUNT
negative tolerance	5%
Number of terminals	2
Maximum operating temperature	105 °C
Minimum operating temperature	-40 °C
Package shape	RECTANGULAR PACKAGE
Package form	Radial
method of packing	AMMO PACK
positive tolerance	5%
Rated (DC) voltage (URdc)	400 V
series	ECW-F(L)
size code	4922
surface mount	NO
Terminal surface	Tin (Sn)
Terminal pitch	7.5 mm
Terminal shape	WIRE
width	5.7 mm

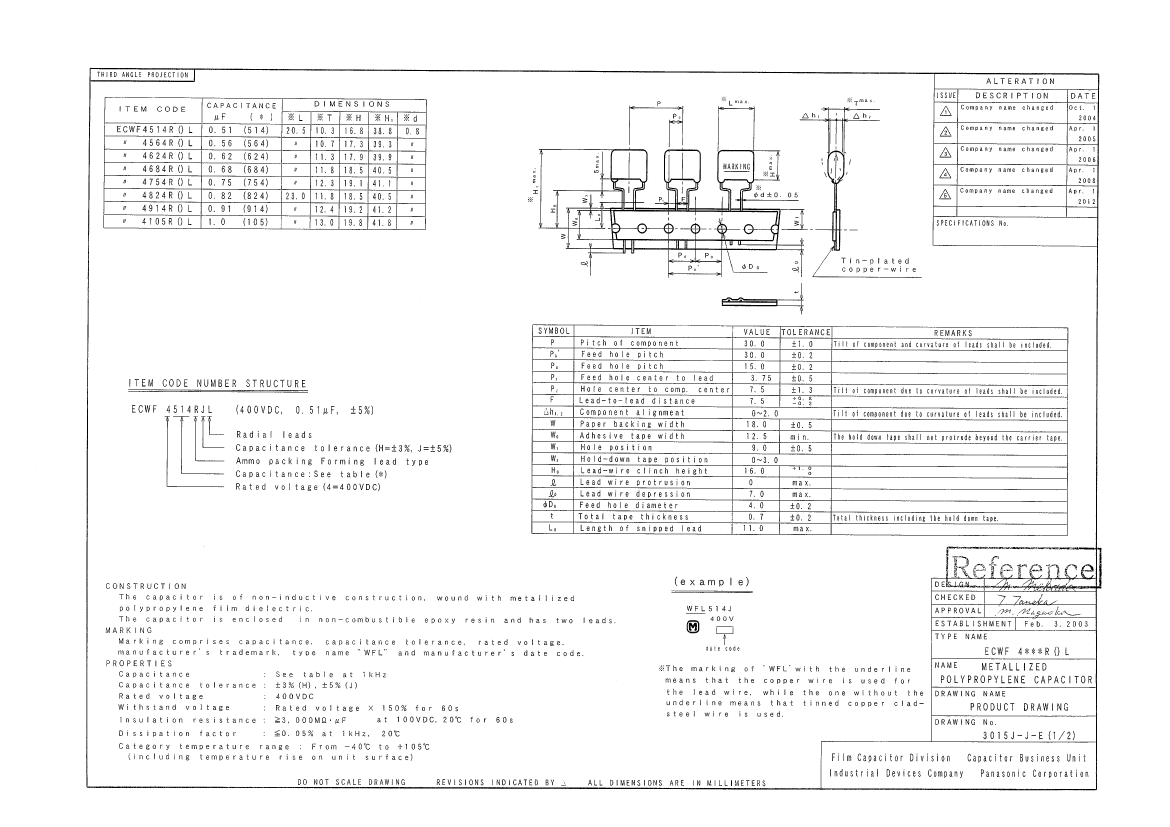

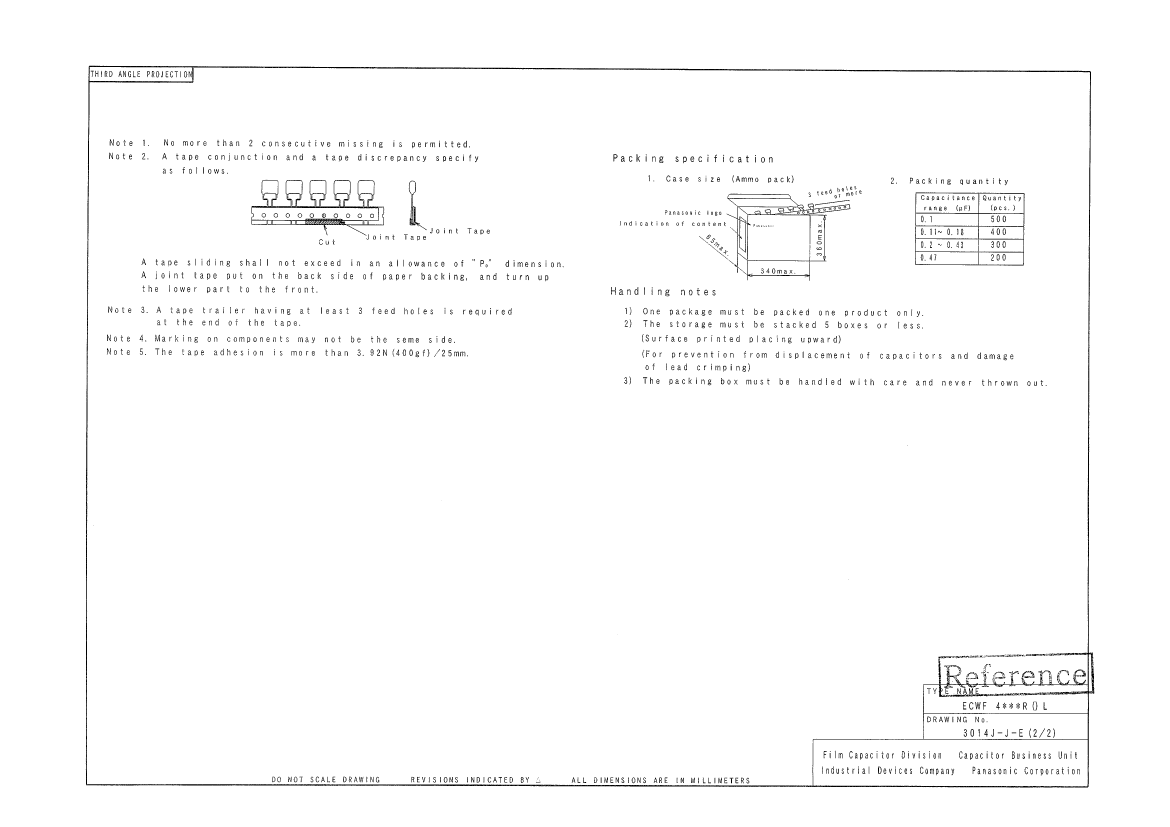

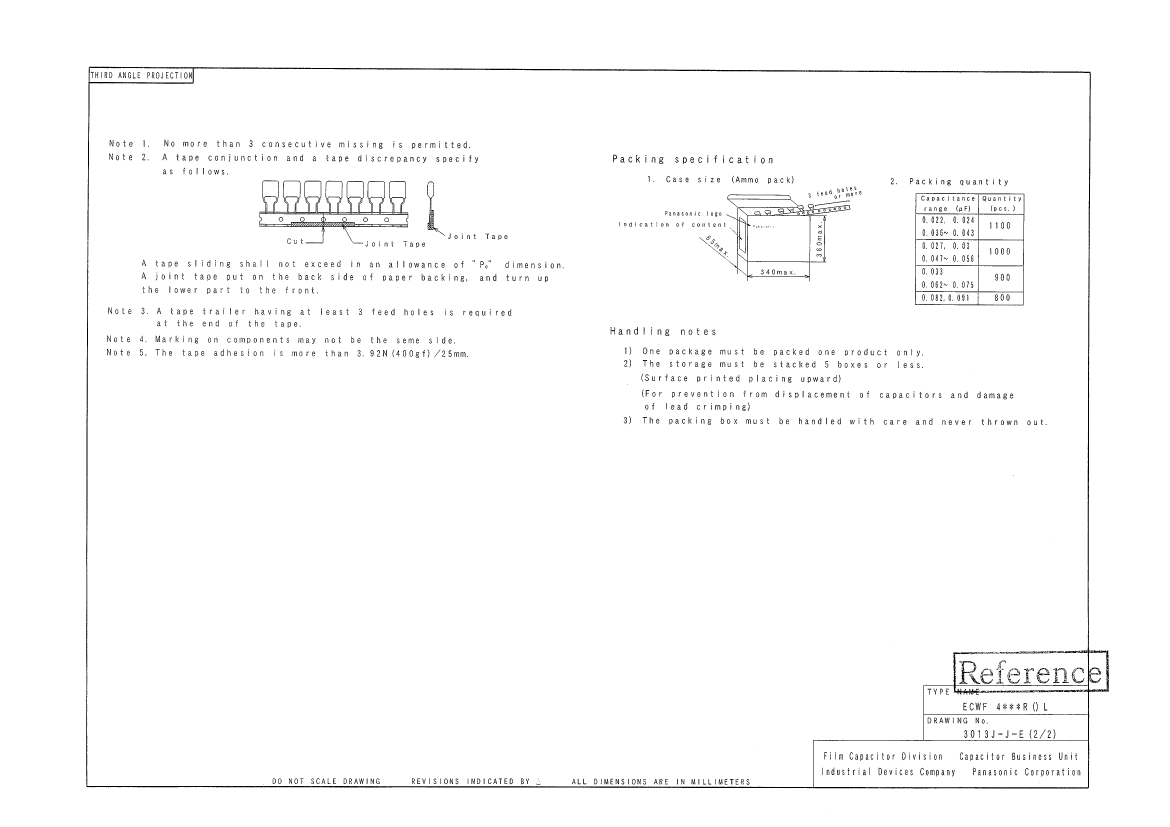

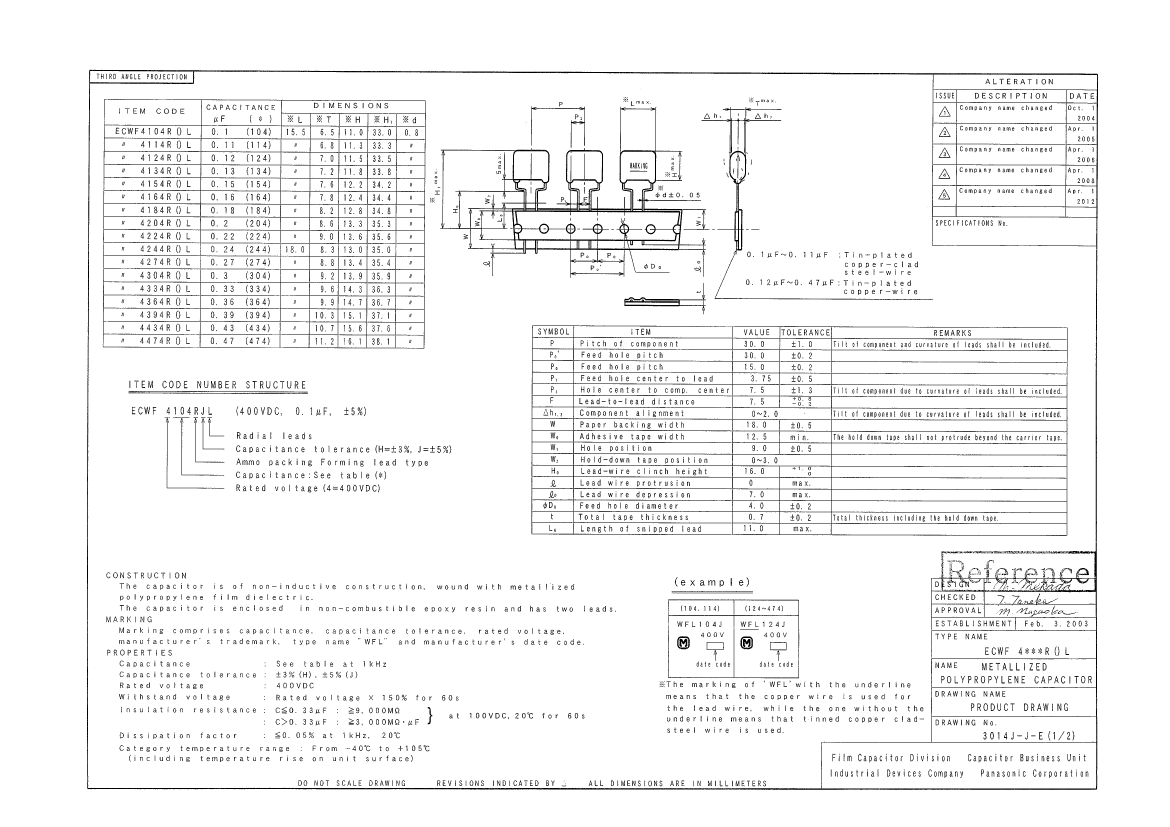

Preview

Download Datasheet

View All

ECWF4363RJL Related Products

	ECWF4363RJL	ECWF4304RHL	ECWF4394RHL	ECWF4683RJL	ECWF4154RJL	ECWF4394RJL	ECWF4184RJL
Description	Film Capacitor, Polypropylene, 400V, 5% +Tol, 5% -Tol, 0.036uF, Through Hole Mount, 4922, RADIAL LEADED, ROHS COMPLIANT	Film Capacitor, Polypropylene, 400V, 3% +Tol, 3% -Tol, 0.3uF, Through Hole Mount, 7136, RADIAL LEADED	Film Capacitor, Polypropylene, 400V, 3% +Tol, 3% -Tol, 0.39uF, Through Hole Mount, 7141, RADIAL LEADED	Film Capacitor, Polypropylene, 400V, 5% +Tol, 5% -Tol, 0.068uF, Through Hole Mount, 5128, RADIAL LEADED, ROHS COMPLIANT	Film Capacitor, Polypropylene, 400V, 5% +Tol, 5% -Tol, 0.15uF, Through Hole Mount, 6130, RADIAL LEADED	Film Capacitor, Polypropylene, 400V, 5% +Tol, 5% -Tol, 0.39uF, Through Hole Mount, 7141, RADIAL LEADED	Film Capacitor, Polypropylene, 400V, 5% +Tol, 5% -Tol, 0.18uF, Through Hole Mount, 6132, RADIAL LEADED
Is it lead-free?	Lead free	Lead free	Lead free	Lead free	Lead free	Lead free	Lead free
Is it Rohs certified?	conform to	conform to	conform to	conform to	conform to	conform to	conform to
package instruction	, 4922	, 7136	, 7141	, 5128	, 6130	, 7141	, 6132
Reach Compliance Code	compliant	compliant	compliant	compliant	compli	compli	compliant
ECCN code	EAR99	EAR99	EAR99	EAR99	EAR99	EAR99	EAR99
Factory Lead Time	15 weeks	15 weeks	15 weeks	15 weeks	15 weeks	15 weeks	15 weeks
capacitance	0.036 µF	0.3 µF	0.39 µF	0.068 µF	0.15 µF	0.39 µF	0.18 µF
Capacitor type	FILM CAPACITOR	FILM CAPACITOR	FILM CAPACITOR	FILM CAPACITOR	FILM CAPACITOR	FILM CAPACITOR	FILM CAPACITOR
dielectric materials	POLYPROPYLENE	POLYPROPYLENE	POLYPROPYLENE	POLYPROPYLENE	POLYPROPYLENE	POLYPROPYLENE	POLYPROPYLENE
high	13.4 mm	18.9 mm	20.1 mm	14.9 mm	17.2 mm	20.1 mm	17.8 mm
JESD-609 code	e3	e3	e3	e3	e3	e3	e3
length	12.5 mm	18 mm	18 mm	13 mm	15.5 mm	18 mm	15.5 mm
Manufacturer's serial number	ECWF(L)	ECWF	ECWF	ECWF(L)	ECWF	ECWF	ECWF
Installation features	THROUGH HOLE MOUNT	THROUGH HOLE MOUNT	THROUGH HOLE MOUNT	THROUGH HOLE MOUNT	THROUGH HOLE MOUNT	THROUGH HOLE MOUNT	THROUGH HOLE MOUNT
negative tolerance	5%	3%	3%	5%	5%	5%	5%
Number of terminals	2	2	2	2	2	2	2
Maximum operating temperature	105 °C	105 °C	105 °C	105 °C	105 °C	105 °C	105 °C
Minimum operating temperature	-40 °C	-40 °C	-40 °C	-40 °C	-40 °C	-40 °C	-40 °C
Package shape	RECTANGULAR PACKAGE	RECTANGULAR PACKAGE	RECTANGULAR PACKAGE	RECTANGULAR PACKAGE	RECTANGULAR PACKAGE	RECTANGULAR PACKAGE	RECTANGULAR PACKAGE
Package form	Radial	Radial	Radial	Radial	Radial	Radial	Radial
method of packing	AMMO PACK	AMMO PACK	AMMO PACK	AMMO PACK	AMMO PACK	AMMO PACK	AMMO PACK
positive tolerance	5%	3%	3%	5%	5%	5%	5%
Rated (DC) voltage (URdc)	400 V	400 V	400 V	400 V	400 V	400 V	400 V
series	ECW-F(L)	ECW-F(L)	ECW-F(L)	ECW-F(L)	ECW-F(L)	ECW-F(L)	ECW-F(L)
size code	4922	7136	7141	5128	6130	7141	6132
surface mount	NO	NO	NO	NO	NO	NO	NO
Terminal surface	Tin (Sn)	Tin (Sn)	Tin (Sn)	Tin (Sn)	Tin (Sn)	Tin (Sn)	Tin (Sn)
Terminal pitch	7.5 mm	7.5 mm	7.5 mm	7.5 mm	7.5 mm	7.5 mm	7.5 mm
Terminal shape	WIRE	WIRE	WIRE	WIRE	WIRE	WIRE	WIRE
width	5.7 mm	9.2 mm	10.3 mm	7 mm	7.6 mm	10.3 mm	8.2 mm
Maker	-	Panasonic	Panasonic	Panasonic	Panasonic	Panasonic	Panasonic
