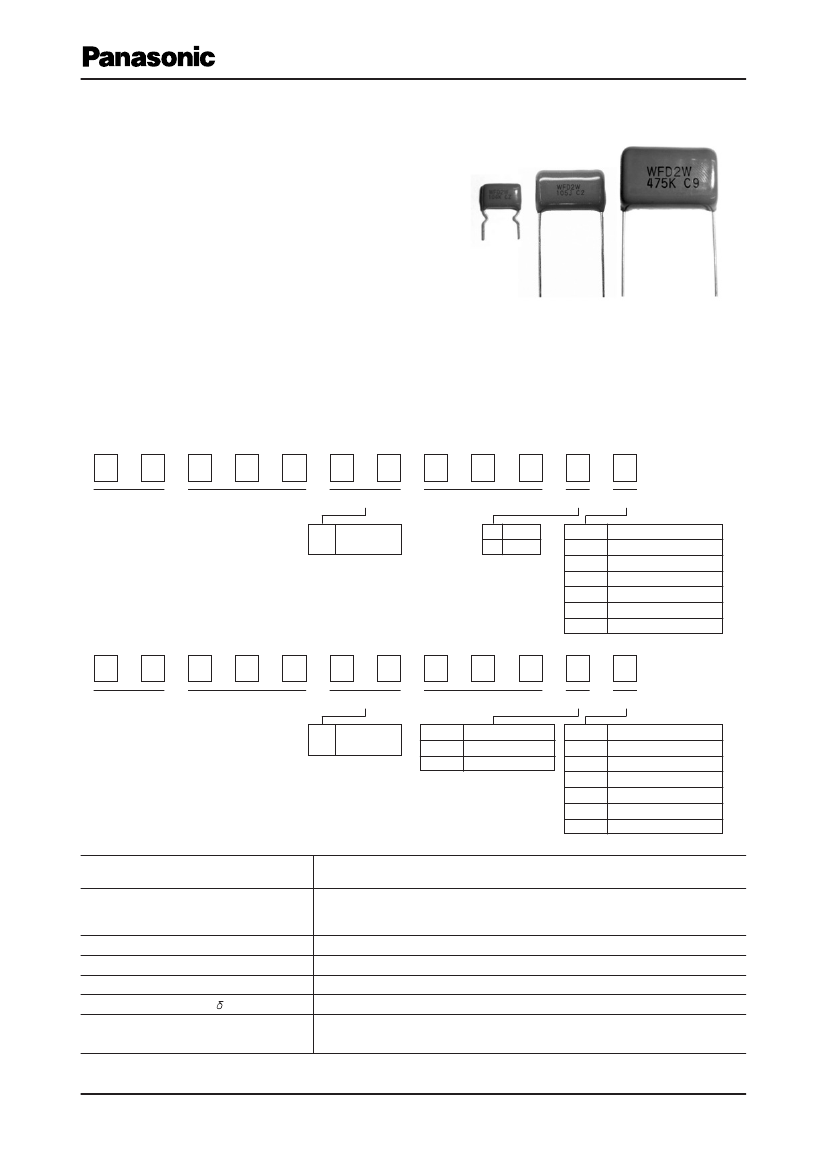

Plastic Film Capacitors
Metallized Polypropylene Film Capacitor
Type :
ECWFD
Non-inductive construction using metalized Polypropylene
film with flame retardant epoxy resin coating.
■Features
•
Small size
•
Excellent frequency characteristics
•
Low loss
•
Flame-retardant epoxy resin coating
•
Low Hum Sound Noise
•
RoHS directive compliant
■Recommended
Applications
•
Activ filter circuits
•
High frequency and high current circuits
■Explanation
of Part Numbers
•
Standard Product
3
1
2
E
C
W
Product code
4
5
6
7
8
9
10
11
12
F
Dielectric &
construction
D
Rated vol.
Capacitance
J ±5 %
K ±10 %
Cap. Tol. Suffix
Suffix
Lead Form
Blank
Straight
Crimped lead
B
Crimped lead
Q
Cut lead
C
Crimped taping (Ammo)
3
Odd size taping
4
11
12
2W 450 VDC
Product (0.47 µF,0.68 µF,1.0 µF)
•
Short Lead
2
Space
3
1
4
5
6
7
8
9
10
E
C
W
F
Dielectric &
construction
D
Rated vol.
Capacitance
Suffix
P
Q
Cap. Tol.
±5 %（J）
±10 %（K）
Suffix 1 Suffix 2
Suffix
Lead Form
1
Straight
Crimped lead
B
Crimped lead
Q
Cut lead
C
Crimped taping (Ammo)
3
Odd size taping
4
Product code
2W 450 VDC
■Specifications
Category temp. range
(Including temperature-rise on unit surface)
Rated voltage
Capacitance range
Capacitance tolerance
Withstand voltage
Dissipation factor (tan )
Insulation resistance (IR)
−40
℃
to
＋110
℃
450 VDC (Derating of rated voltage by 0.62%/˚C at more than 85˚C
Peak to peak voltage applied on the capacitor should be less than
240Vp-p, and zero to peak voltage should be less than 450V.
0.1 µF to 4.7 µF
±5
%(J),
±10
%(K)
Between terminals:Rated voltage (VDC)
×
150 % 60 s
tanδ≦0.1 % (20 ˚C,1 kHz)
C≦0.33 µF:IR≧30,000MΩ
C＞0.33 µF:IR≧10,000MΩ µF
・
(20
℃,100
VDC,60 s)
❈
In case of applying voltage in alternating current (50 Hz or 60 Hz sine wave) to a capacitor with DC rated voltage,
please refer to the page of “Permissible voltage (R.M.S) in alternating current corresponding to DC rated voltage”.
Design, Specifications are subject to change without notice.
Ask factory for technical specifications before purchase and/or use.
Whenever a doubt about safety arises from this product, please inform us immediately for technical consultation without fail.
− FC58 −
Plastic Film Capacitors

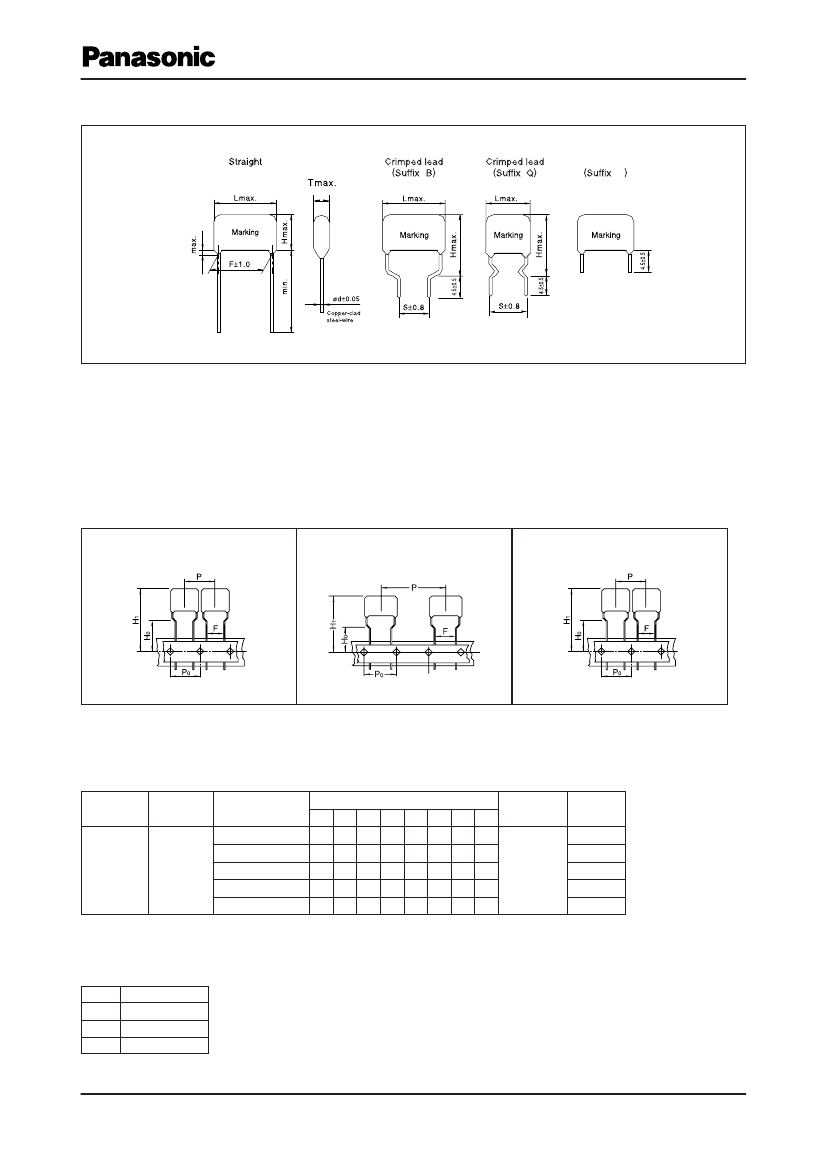

■Dimensions
in mm (not to scale)
(Dimensions : mm)
Cut lead
C
G
■Packaging
Specification for Bulk Package
Packing quantity: 100 pcs./bag
●Taping
style
■Taping
Specifications for Automatic Insertion
20
Style AB
Style E
Style F
●Packaging
Specifications
Type
Rated
voltage.
Cap. range
(μF)
Taping style
AD AS AB B
○
○
C
D
E
F
Packing
suffix
0.10 to 0.39
ECWFD
450 VDC
0.47, 0.68, 1.0
0.10 to 0.39
0.47, 0.68, 1.0
0.47 to 2.2
3
○
○
○
Ammo
P3/Q3
4
P4/Q4
4
❈Refer
to the page of taping specifications.
●Lead
Spacing
Style Lead Spacing
AB
5.0 mm
E
7.5 mm
F
7.5 mm
Design, Specifications are subject to change without notice.
Ask factory for technical specifications before purchase and/or use.
Whenever a doubt about safety arises from this product, please inform us immediately for technical consultation without fail.
− FC59 −
Plastic Film Capacitors
■Rating,
Dimensions& Quantity/Ammo Box
●
Type ECWFD
Rated voltage : 450 VDC
Dimensions (mm)
Part No.
ECWFD2W104
□
( )
ECWFD2W124
□
( )
ECWFD2W154
□
( )
ECWFD2W184
□
( )
ECWFD2W224
□
( )
ECWFD2W274
□
( )
ECWFD2W334
□
( )
ECWFD2W394
□
( )
ECWFD2W474 P ( )
★
ECWFD2W474Q ( )
ECWFD2W474
□
( )
ECWFD2W564
□
( )
ECWFD2W684 P ( )
★
ECWFD2W684Q ( )
ECWFD2W684
□
( )
ECWFD2W824
□
( )
ECWFD2W105 P ( )
★
ECWFD2W105Q ( )
ECWFD2W105
□
( )
ECWFD2W125
□
( )
ECWFD2W155
□
( )
ECWFD2W185
□
( )
ECWFD2W225
□
( )
ECWFD2W275
□
( )
ECWFD2W335
□
( )
ECWFD2W395
□
( )
ECWFD2W475
□
( )
↑↑
Min. order Q'ty
S
Taping
Bulk
Crimped
lead
Cap.
(μF)
0.10
0.12
0.15
0.18
0.22
0.27
0.33
0.39
0.47
0.47
0.56
0.68
0.68
0.82
1.0
1.0
1.2
1.5
1.8
2.2
2.7
3.3
3.9
4.7
H
L
max
12.6
12.6
12.6
12.6
12.6
12.6
12.6
12.6
12.6
17.5
17.5
12.6
17.5
17.5
12.6
17.5
17.5
17.5
17.5
17.5
25.3
25.3
25.3
25.3
T
max
4.5
4.6
4.6
4.8
5.0
5.3
5.6
6.0
6.5
5.8
6.2
7.7
6.7
7.2
9.2
7.8
8.5
9.3
10.1
11.1
9.0
9.8
10.7
11.7
Straight
max.
Crimped lead Crimped lead
(Suffix B) (Suffix Q)
F
max.
Crimped lead Crimped lead
G
φd
0.6
0.6
0.6
0.6
0.6
0.6
0.6
0.6
(Suffix B)
(Suffix Q)
5.0mm 7.5mm Straight
―
13.9
14.0
14.1
14.3
14.6
15.0
15.4
15.7
16.2
14.0
14.4
17.4
14.9
15.4
18.9
16.0
16.6
17.5
18.3
19.3
18.7
19.6
20.4
21.4
13.9
14.0
14.1
14.3
14.6
15.0
15.4
15.7
―
7.5
7.5
7.5
7.5
7.5
7.5
7.5
7.5
7.5
7.5
7.5
7.5
7.5
7.5
7.5
7.5
7.5
7.5
7.5
7.5
15.0
15.0
15.0
15.0
10.0
10.0
10.0
10.0
10.0
10.0
10.0
10.0
10.0
15.0
15.0
10.0
15.0
15.0
10.0
15.0
15.0
15.0
15.0
15.0
22.5
22.5
22.5
22.5
1500 1400
1400
1300
―
―
1200
1300
1200 1100
1100 1000
900
500
700
400
600
400
300
―
200
1000
1000
11.2
9.0
9.4
12.4
9.9
10.4
13.9
11.0
11.6
12.5
13.3
14.3
13.7
14.6
15.4
16.4
16.2 10.0
16.0 15.0
16.4 15.0
17.4 10.0
16.9 15.0
17.4 15.0
18.9 10.0
18.0
18.6
19.5
20.3
21.3
20.7
21.6
22.4
23.4
15.0
15.0
15.0
15.0
15.0
22.5
22.5
22.5
22.5
1.5
1.5
1.5
1.5
1.5
1.5
1.5
1.5
1.5
1.5
1.5
1.5
1.5
1.5
1.5
1.5
0.6 1000
0.8
0.8
0.6
0.8
0.8
0.6
0.8
0.8
0.8
0.8
0.8
0.8
0.8
0.8
0.8
―
―
800
―
―
700
―
800
600
600
Suffix for lead crimped
Capacitance tolerance code
Note) Part Number marked with
★
is Short Lead Space Product.
Design, Specifications are subject to change without notice.
Ask factory for technical specifications before purchase and/or use.
Whenever a doubt about safety arises from this product, please inform us immediately for technical consultation without fail.
− FC60 −
ECWFD Type
DC450V series
(Metallized Polypropylene Film)

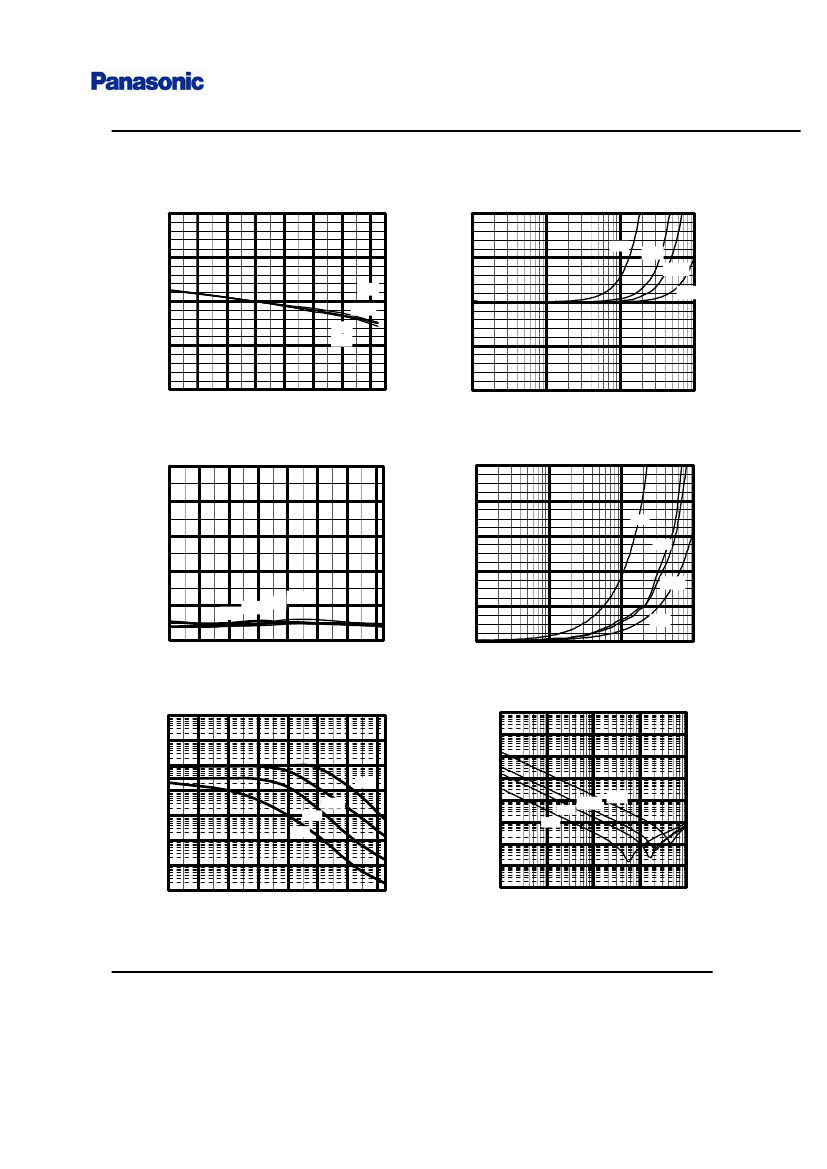

Frequency Characteristics
10
Electrical Characteristics <Typical Data >
Temperature Characteristics
10
at 1kHz
Capacitance change(%)
Capacitance change(%)
4.7uF
5
0.1uF
5
0
-5
-10
1.0uF
0.47uF
0.1uF
0
1.0uF
4.7uF
0.47uF
-5
-10
-40
-20
0
Temperature(℃)
20
40
60
80
100
1
10
Frequency(kHz)
100
1000
0.5
at 1kHz
10
Dissipation factor(%)
Dissipation factor(%)
0.4
0.3
0.2
0.1
0.0
-40
-20
0
0.1uF
0.47uF
1.0uF
4.7uF
8
4.7uF
6
4
1.0uF
0.47uF
2
0.1uF
0
Temperature(℃)
20
40
60
80
100
1
10
Frequency(kHz)
100
1000
Insulation resistance(ohm)
1.E+14
1.E+13
1.E+12
1.E+11
at DC100V
100000
10000
Impedance(ohm)
1000
100
10
1
0.1
0.01
0.001
1.0uF
4.7uF
0.47uF
0.1uF
0.1uF
0.47uF
1.E+10
1.E+09
1.E+08
1.E+07
-40
-20
0
20
40
1.0uF
4.7uF
Temperature(℃)
60
80
100
1
10
Frequency(kHz)
100
1000
10000
ECWFD Type
DC450V series
(Metallized Polypropylene Film)
Applicable Specifications
Permissible Current
7.0
6.0
4.7μF
Permissible Current Derating by Temperature
Permissible Voltage
Percentage Effective value
to the permissible current
100
0.1uF to 4.7uF
Effective value (Arms)
5.0
4.0
2.2μF
80
2.7μF
1.0μF(10pitch)
60
3.0
2.0
1.0μF
0.68μF(10pitch)
0.47μF(10pitch)
40
0.47μF
20
1.0
0.1μF
0.0
10
0
Frequency(kHz)
100
1000
-40
-20
0
20
40
60
80
100
Temperature of capacitor surface (℃)
Pulse Handling Capability (dv/dt)
(Max 10000cycles)
Voltage Derating by Temperature
Percentage to the rated voltage (%)
110
Rated
Voltage
Pitch
(mm)
Capacitance
Code
(μF)
0.10
0.15
0.22
0.47
0.68
1.00
0.47
1.0
1.5
2.2
2.7
4.7
104
154
224
474
684
105
474
105
155
225
275
475
dV/dt
(V/μs)
Current
(Ao-p)
4.2
6.2
41.6
9.2
19.6
28.3
41.6
11.4
24.3
24.3
36.4
53.4
14.3
38.7
67.3
100
0.1uF to 4.7uF
10.0
90
DC
450V
15.0
80
70
22.5
60
50
-40
-20
0
20
40
60
80
100
Temperature of capacitor surface (℃)
*Please consult Panasonic if your condition exceeds the above
*P When you use this product, peak voltage must not exceed DC rated voltage.
*The current(0-P) value is calculated using nominal capacitance.
