EETEE2W271JA datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > Passive components> capacitor> EETEE2W271JA

EETEE2W271JA: DescriptionCAPACITOR, ALUMINUM ELECTROLYTIC, NON SOLID, POLARIZED, 450V, 270uF, THROUGH HOLE MOUNT, RADIAL LEADED, ROHS COMPLIANT; CategoryPassive components capacitor; File Size153KB，3 Pages; ManufacturerPanasonic; Websitehttp://www.panasonic.co.jp/semicon/e-index.html; Environmental Compliance

Download Datasheet Parametric View All

EETEE2W271JA Overview

CAPACITOR, ALUMINUM ELECTROLYTIC, NON SOLID, POLARIZED, 450V, 270uF, THROUGH HOLE MOUNT, RADIAL LEADED, ROHS COMPLIANT

EETEE2W271JA Parametric

Parameter Name	Attribute value
Is it lead-free?	Lead free
Is it Rohs certified?	conform to
package instruction	,
Reach Compliance Code	unknown
ECCN code	EAR99
capacitance	270 µF
Capacitor type	ALUMINUM ELECTROLYTIC CAPACITOR
dielectric materials	ALUMINUM (WET)
ESR	1228 mΩ
JESD-609 code	e3
leakage current	1.04571 mA
Manufacturer's serial number	TS-EE
Installation features	THROUGH HOLE MOUNT
negative tolerance	20%
Number of terminals	2
Maximum operating temperature	105 °C
Minimum operating temperature	-25 °C
Package shape	CYLINDRICAL PACKAGE
polarity	POLARIZED
positive tolerance	20%
Rated (DC) voltage (URdc)	450 V
ripple current	1740 mA
surface mount	NO
Delta tangent	0.2
Terminal surface	Tin (Sn)
Terminal shape	SNAP-IN

Preview

Download Datasheet

View All

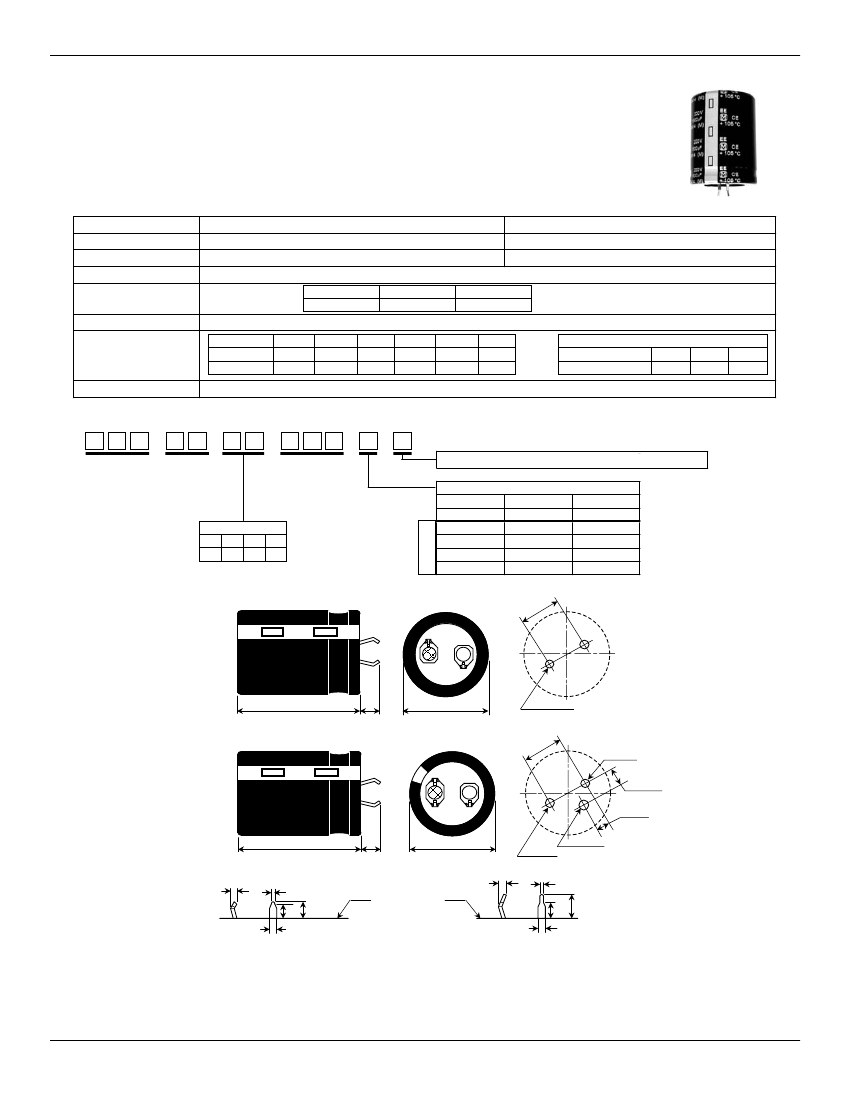

Panasonic Industrial Company

Aluminum Electrolytic Capacitors

TS-EE Series

105°C, 3000 hours

Highest ripple current capability for demanding inverter applications

Suitable for high ambient temperatures and continuous operation

RoHS compliant PVC and RoHS compliant PET sleeve options

RoHS

Compliant

Rated Working Voltage:

Operating Temperature:

Nominal Capacitance:

Capacitance Tolerance:

Dissipation Factor:

(120 Hz, +20°C)

Leakage Current:

Ripple Current Multipliers:

200 ~ 250 VDC

-40 ~ +105°C

220~1800 µF

± 20%

WV (V):

D.F.(%):

Frequency(Hz):

200~250WV:

400~450WV:

0.75

0.80

100~120

1.0

400 ~ 450 VDC

-25 ~ +105°C

75 ~ 560µF

200~400

15 max.

500

1.20

1.25

450

20 max.

3 CV (µA) max. after 5 minutes;

C = Capacitance in µF, V = WV

10k

1.30

1.40

Ripple Current Ambient Temperature Factors*

Temperature (°C): 105°C

85°C

70°C

Multiplier:

1.0

1.42

1.6

Endurance:

3000 hours at +105°C with maximum specified ripple current (see page 4)

*Use of temperature ripple current multipliers may limit life to the hours specified for the maximum operating temperature.

Part Number System

Capacitance

Code

Sleeving Options: See Part Number listings

Diameter / Terminal Code

# of pins:

pin length "T": 4.0±0.5mm

4.0±0.5mm

22mm

25mm

30mm

35mm

Common

Code

Series

Code

Dimensions in millimeters

2 Pin Mounting Style

Diameter

Voltage Code

2D 2E 2G 2W

200 250 400 450

10.0±0.1

Circuit Board Mounting Holes

L+2 max.

D+1 max.

2 x Ø2.0±0.1

10.0±0.1

Circuit Board Mounting Holes

Ø2.0±0.1

4.75±0.1

3.3±0.1

3 Pin Mounting Style

L+2 max.

D+1 max.

Ø2.0±0.1

Ø2.5 min.

Pin Dimensions

2.0 max.

0.8

-0.1

3.5

1.5±0.2

+0.2

2.0 max.

0.8

-0.1

+0.2

Top of Capacitor Body

4.0±0.5

1.5±0.2

4.0

6.3±1.0

4mm Length: Standard on 2 and 3 Pin Mounting Styles

6.3mm Length: Available on 2 Pin Mounting Style Only

Design and speciﬁcations are subject to change without notice.

Contact the factory or your sales representative for technical speciﬁcations before purchase and/or use.

When safety concerns arise, please contact Panasonic immediately for technical consultation.
