227-162H Overview

Hermetic Receptacle with Triangular Flange Mount

Preview

Download Datasheet

View All

Geo-Marine

Custom Applications

227-162H

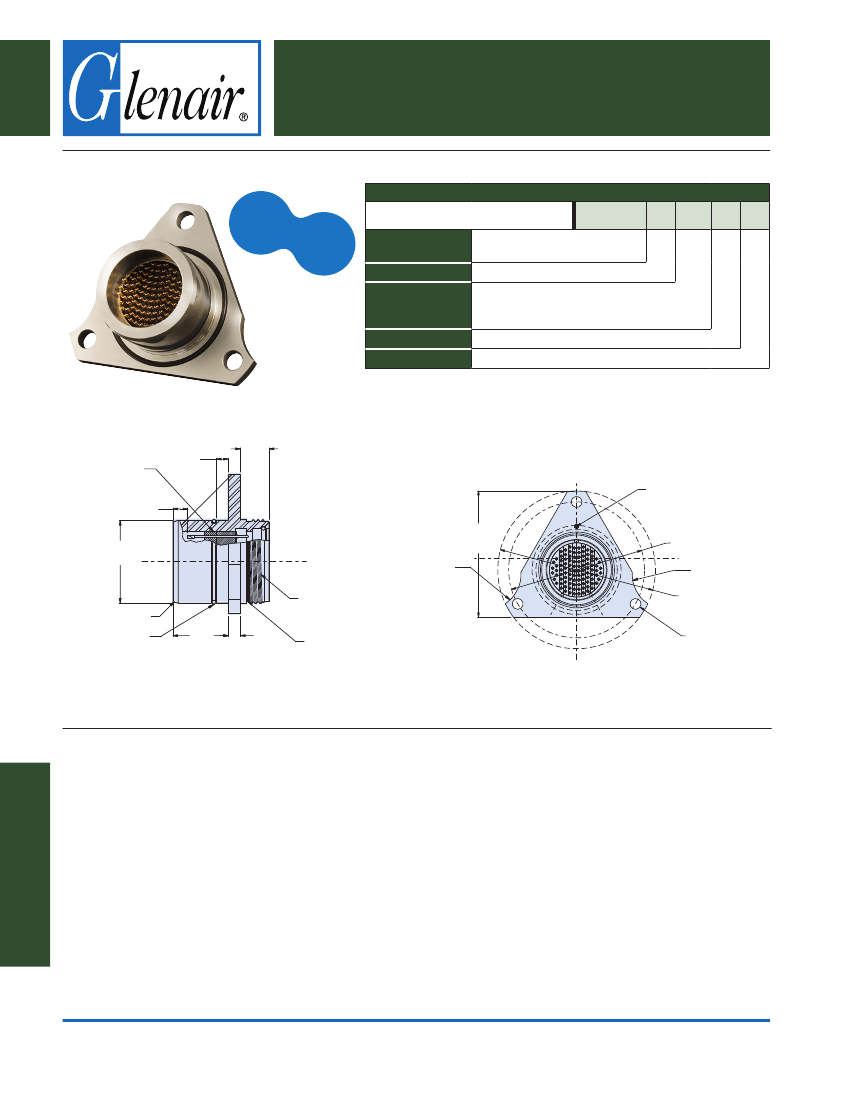

Hermetic Receptacle with Triangular Flange Mount

RECEPTACLE CONNECTOR WITH SPECIAL TRIANGULAR FLANGE

How To Order

MATES

WITH

Sample Part Number

227-162H

-100

227-

166

Series -

Shell Style

Shell size

Insert

Arrangement

Dash No.

Contact Syle

Polarization

227-162H

-100

= Pin

N, 1, 2, 3 or 4

See note 2

.240

.595

.590

.30 TYP

MASTER KEY INDICATOR

(ROTATES W/ KEY FOR

ALTERNATE POSITIONS)

3.040

(77.22)

See note 1

1.750-.1P-.1L 2A

QUICK COUPLING

THREAD

FULL-MATE

INDICATOR

ø1.748

1.747

ø 3.120

(79.25)

See note 1

ø 3.740

(95) See note 4

ø .335

(8.5) See note 4

.03 X 15°

2-030

O-RING

1.181

(30.0)

.276

(7.0)

Notes

1. Clearance for 1 inch hex socket wrench.

2. Prepot with epoxy.

3. Mates with glenair 227-166 plug connector.

4. Dimensions per V0GEE0017A, Rev. B.

5. Assembly to be identified with manufacturer's name, part

number and date code.

6. Performance capabilities:

Current rating:

• 4 power contacts - 2.0 Amps @ 660 vac, continuous

• 96 Signal contacts- 1.5 Amps @ 200VDC max., continuous

DWV and IR:

• DWV- 1500 vac between pin to pin and pins to shell.

• Insulation resistance- 100 megohms min @ 1000/250VDC pin to

pin and pins to shell

Pressure and hermeticity:

• Hydrostatic pressure rating: - 5800 PSI, open face, in both

directions.

• hermeticity - 1x10

-6

ccHe/sec @ 1 atm. diff.

NOTE: electrical safety limits to be set by user. Peak voltages,

switching surges, transients, etc. Should be used to determine

safe application of product. Glenair is not liable if the voltage and

current exceed the limit set forth.

7. Material/finish:

• Shell- 316L/passivate

• Contacts- 52 ni alloy/gold plated

• Insulator- full glass with epoxy backfill/n.a.

• Interfacial and o-ring seals- nitrile/n.a.

NOTE: unless otherwise stated

Series 22 Geo-Marine

U.S. CAGE Code 06324

Printed in U.S.A.

GLENAIR, INC.

•

1211 AIR WAY

•

GLENDALE, CA 91201-2497

•

818-247-6000

•

FAX 818-500-9912

www.glenair.com

D-12

E-Mail: sales@glenair.com
