Sav-Con
®
connector savers
MIL-DTL-38999 Series III
233-213 SuperNine
®
Threaded Coupling

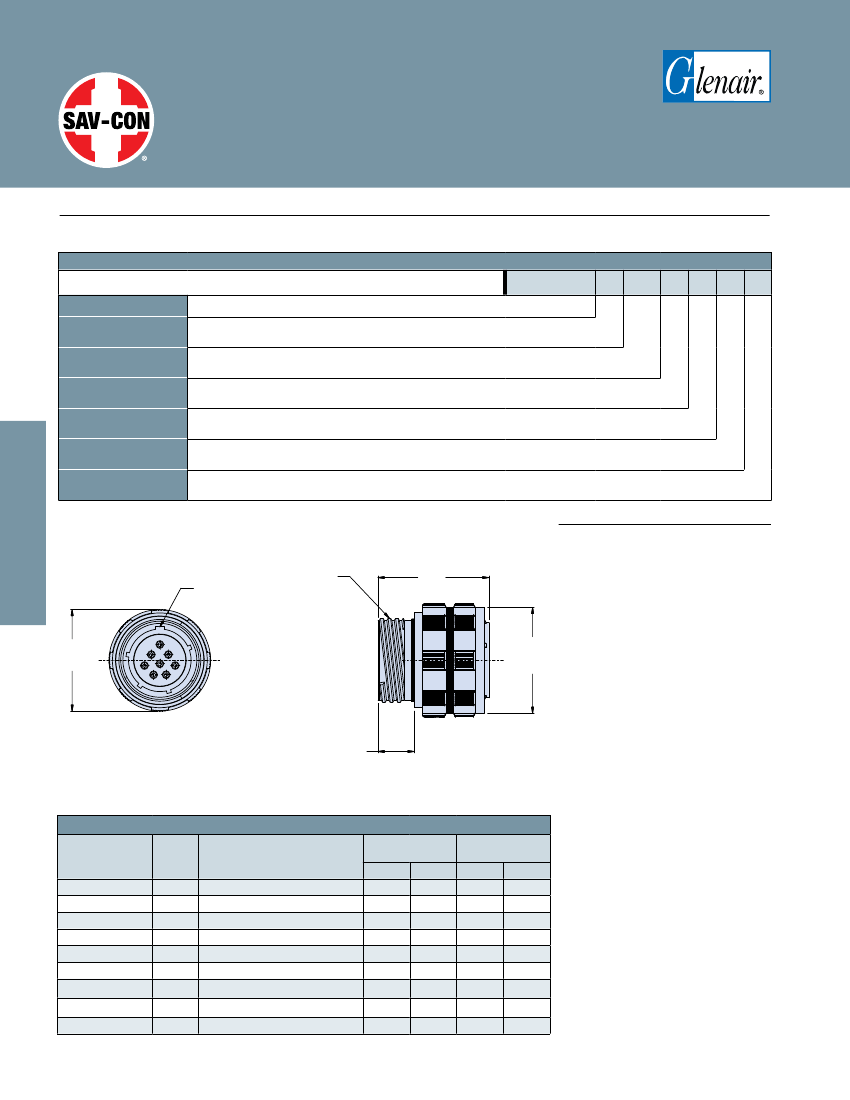

233-213 HIGH RELIABILITY WITH THREADED COUPLING
How To Order
Sample Part Number
Series / Basic Part No.
Finish
Shell Size - Insert
Arrangement
Contact Style (Plug
Side)
Alternate Polarization
(Plug Side)
Contact Style
(Receptacle Side)
Alternate Polarization
(Receptacle Side)
233-213
NF
= Cadmium Olive Drab
ME
= Electroless Nickel
MT
= Nickel PTFE
ZR
= Black Zinc Nickel
See Table I for Additional Finishes
See Table II
P
= Pin, gold, 500 cyles
S
= Socket, gold, 500 cycles
See Notes 3 and 4
A, B, C, D, E, N
= Normal,
U
= Universal; See Note 6
See Table III
P
= Pin, gold, 500 cyles
S
= Socket, gold, 500 cycles
See Notes 3 and 4
A, B, C, D, E, N
= Normal,
U
= Universal; See Note 6
See Table III
233-213
-NF 17-8
P
N
S
N
B
Master
Key
A Thread
1.65
(41.91) Max
NOTES
1. Glenair's 233-213 connector savers
are designed to meet or exceed the
mechanical dimensional, electrical,
and environmentsl, requirements
of MIL-DTL-38999, D38999/20,
D38999/26, and MIL-STD-1560 except
as shown and /or noted.
2. Glenair connector savers mate
with any QPL manufacturer's
MIL-DTL-38999, series III plugs and
receptacles that have the same
shell size, insert arrangement, and
polarization.
3. For pin/pin and socket/socket,
symmetrical insert layouts only.
4. Power to a given contact on one
end will result in power to a contact
directly opposite, regardless of
identification letter.
5. Electrical safety limits must be
established by user. Peak voltage,
switching surge, transient, etc. should
be used to determine the safety
application.
6. Alternate polarization 'U' (universal)
is a non-standard/non-mill-spec
option intened for test lab use only
which allows for mating to any QPL
manufacturer's MIL-DTL-38999, series
III connector having the same shell
size, insert arrangement, and mating
contact size.
A
ØC
Max
G
B
C
F
E
D
ØB
Max
.510 (12.95) Max
Fully Mated
Indicator Band
Color: Red
Dimensions
Shell Size Code
A
B
C
D
E
F
G
H
J
10
Shell
Size
9
11
13
15
17
19
21
23
25
A Thread
.6250 – 0.1P – 0.3L – TS-2A
.7500 – 0.1P – 0.3L – TS-2A
.8750 – 0.1P – 0.3L – TS-2A
1.0000 – 0.1P – 0.3L – TS-2A
1.1875 – 0.1P – 0.3L – TS-2A
1.2500 – 0.1P – 0.3L – TS-2A
1.3750 – 0.1P – 0.3L – TS-2A
1.5000 – 0.1P – 0.3L – TS-2A
1.6250 – 0.1P – 0.3L – TS-2A
ØB
Max
In
0.811
0.929
1.110
1.232
1.358
1.469
1.594
1.720
1.843
mm
20.60
23.60
28.19
31.29
34.49
37.31
40.49
43.69
46.81
In
0.858
0.984
1.157
1.280
1.406
1.516
1.642
1.768
1.890
ØC
Max
mm
21.79
24.99
29.39
32.51
35.71
38.51
41.71
44.91
48.01
© 2015 Glenair, Inc • 1211 Air Way, Glendale, CA 91201 • 818-247-6000 • www.glenair.com • U.S. CAGE code 06324 • Series 94 Sav-Con® Catalog
Dimensions in Inches (millimeters) are subject to change without notice.
Sav-Con
®
connector savers
MIL-DTL-38999 Series III
Reference Information

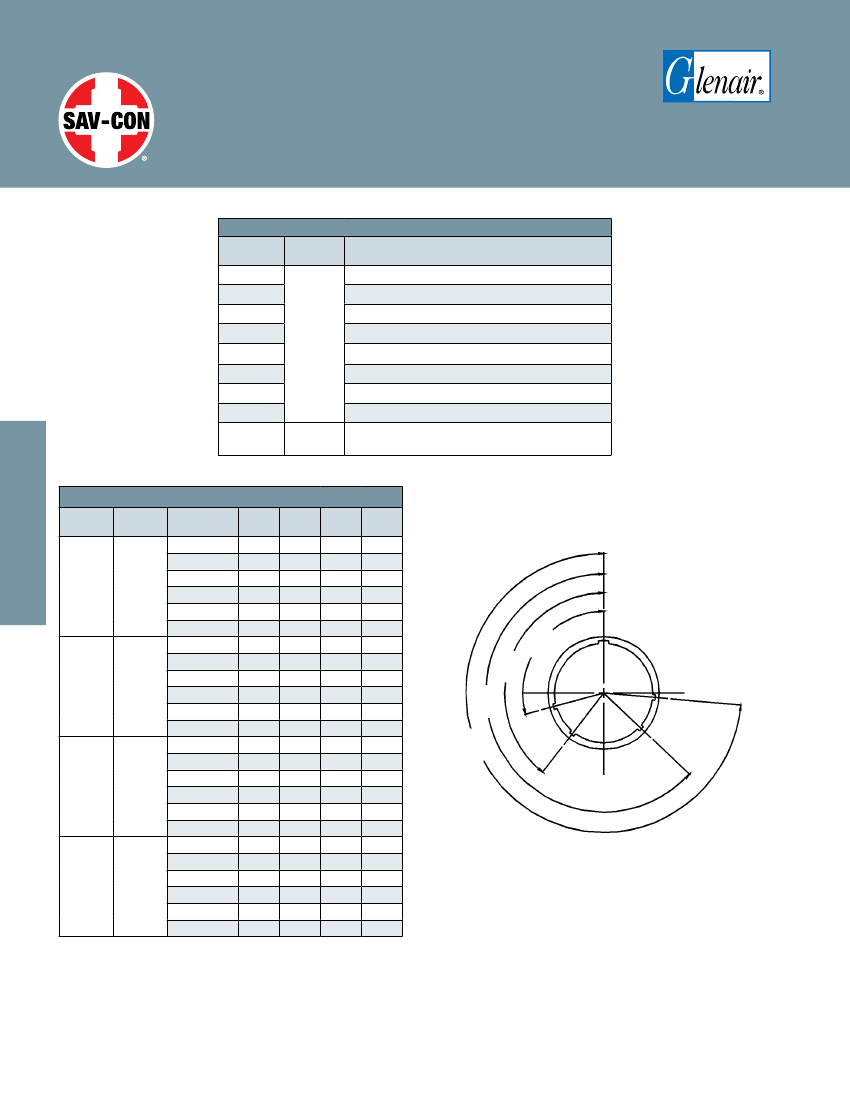

Table I: Material and Finish
Plating
Code
M
B
NC
ZN
MT
ZR
ME
ZL
Stainless
Steel
Aluminum
NF
Material
Electroless Nickel
Cad Plate, Olive Drab
Cadmium Plate Olive Drab over Electroless Nickel
Zinc-Cobalt
Olive Drab Zinc-Nickel
Ni-PTFE 1000 Hour Grey™ (Nickel Flourocarbon Polymer)
Zinc NIckel, Black
Electroless Nickel (RoHS)
Electro-Deposited Nickel
Finish
B
Table III: Manin and Alternate Keyway Positions
Shell Size
Shell Size
Code Ref
Alt. Keyway
Code
N
A
B
C
D
E
N
A
B
C
D
E
N
A
B
C
D
E
N
A
B
C
D
E
AR°
105
102
80
35
64
91
95
113
90
53
119
51
80
135
49
66
62
79
80
135
49
66
62
79
BR°
140
132
118
140
155
131
141
156
145
156
146
141
142
170
169
140
145
153
142
170
169
140
145
153
CR°
215
248
230
205
234
197
208
182
195
220
176
184
196
200
200
200
180
197
196
200
200
200
180
197
DR°
265
320
312
275
304
240
236
292
252
255
298
242
293
310
244
257
280
272
293
310
244
257
280
272
CR°
DR°
BR°
C
L
A
9
AR°
B
C
D
11
13
15
E
F
17
19
G
H
J
21
23
25
FACE VIEW
RECEPTACLE INSERT
8
© 2015 Glenair, Inc • 1211 Air Way, Glendale, CA 91201 • 818-247-6000 • www.glenair.com • U.S. CAGE code 06324 • Series 94 Sav-Con® Catalog
Dimensions in Inches (millimeters) are subject to change without notice.
