for Glenair Front Release Pin Terminus 181-012
180-065
D-Subminiature Fiber Optic Receptacle
Glenair Front
Release System
D
4-40 UNC-2B
8

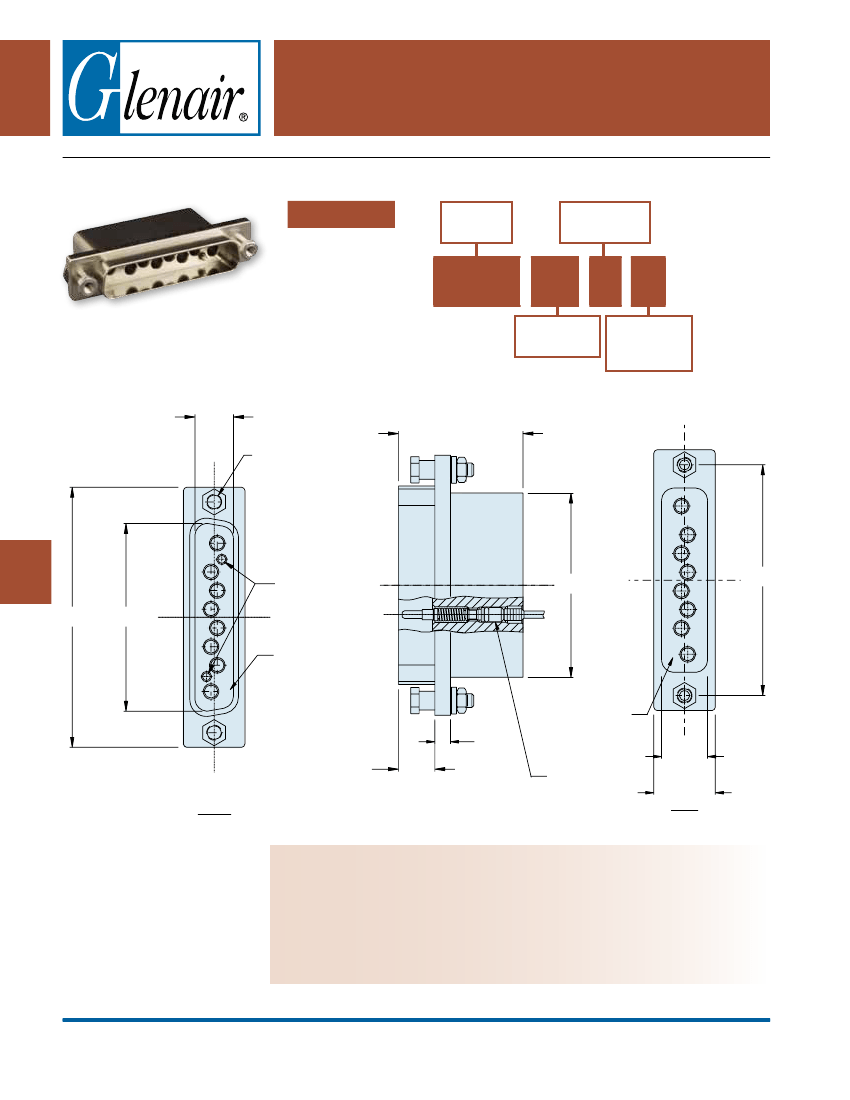

D-subminiature GFR fiber optic receptacle
How To Order
Basic
Number
No. F/O Pins
(Table I)
180-065
-
15
-
5
-
M
Shell Size
(See Table I)
Material/
Finish Code
(See Table II)
25-8 Shown
1.000
(25.4)
8
G
A
B
Alignment Pins
G
C
Cavity
Identification
No.1 Location
1
Cavity Identification
No.1 Location
.125
.233
(5.9)
FRONT
(181-012
Pin Terminus)
1
F
E
REAR
Material and Finish
Shell: See Table II
Misc. hardware: stainless steel/passivate
Notes
Fiber Optic Pin Terminus to be ordered separately (see Glenair drawing 181-012).
Backshell to be ordered separately (consult Glenair for available Backshell).
For mating plug connector, see Glenair drawing 180-066.
© 2012 Glenair, Inc.
U.S. CAGE Code 06324
Printed in U.S.A.
GLENAIR, INC.
•
1211 AIR WAY
•
GLENDALE, CA 91201-2497
•
818-247-6000
•
FAX 818-500-9912
www.glenair.com
G-10
E-Mail: sales@glenair.com
for Glenair Front Release Pin Terminus 181-012
Table I: Shell Size
Shell
Size
9
15
25
50
A
±.010 (0.25)
1.213 (30.8)
1.545 (39.2)
2.090 (53.1)
2.640 (67.1)
B
±.010 (0.25)
.666 (16.9)
.994 (25.2)
1.535 (39.0)
2.133 (54.2)
C
±.005 (0.13)
.984 (25.0)
1.312 (33.3)
1.852 (47.0)
2.406 (61.1)
D
±.010 (0.25)
.330 (8.4)
.330 (8.4)
.330 (8.4)
.490 (12.4)
E
±.010 (0.25)
.498 (12.6)
.498 (12.6)
.498 (12.6)
.610 (15.5)
F
±.010 (0.25)
.369 (9.4)
.369 (9.4)
.369 (9.4)
.500 (12.7)
G
±.010 (0.25)
.650 (16.5)
.932 (23.7)
1.479 (37.6)
2.000 (50.8)
Max
F.O. Pin
4
5
8
12
Table II: Material/Finish
Code
C
M
NF
ZN
Z1
Stainless Steel
Aluminum
Alloy
Material
Finish
Anodize, Black
Electroless Nickel
Cadmium, Olive Drab,
Over Electroless Nickel
Zinc-Nickel, Olive Drab,
Over Electroless Nickel
Passivate
