Radial Leads/SkyCap
®

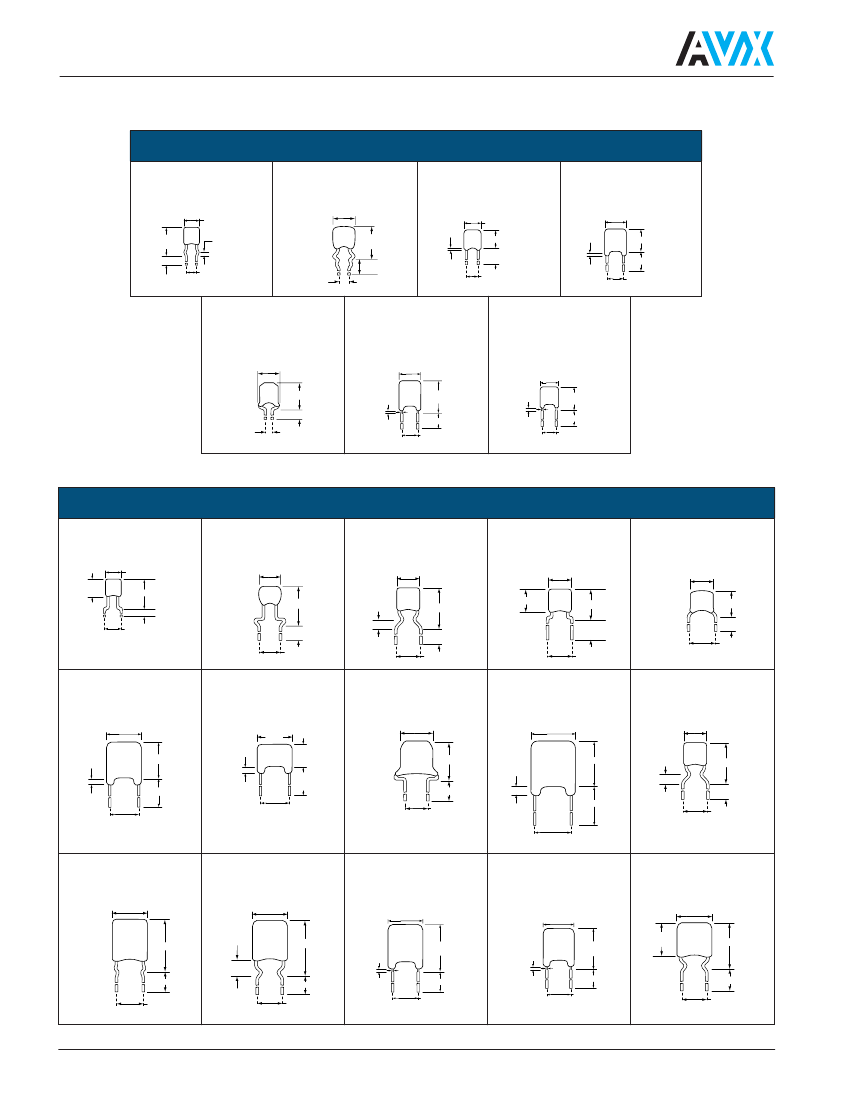

GENERAL INFORMATION
Dimensions: Millimeters (Inches)
W
Max.
H Max.
H Max.
W
Max.
AVX SR Series
Conformally Coated Radial Leaded MLC
Temperature Coefficients:
C0G (NP0), X7R, Z5U
1.0" Min.
LD
Nom.
T
Max.
1.52/.060
Max.
L.S.
±.762/.030
Styles SR15, SR20,
SR30, SR40, SR50
H Max.
LD
Nom.
W
Max.
Styles SR22, SR27
1.0" Min.
LD
Nom.
T
Max.
See Note
200, 100, 50 Volts (300V, 400V & 500V also available)
Case Material:
Epoxy
Lead Material:
Solderable
L.S.
±.762/.030
T
Max.
See Note
1.0" Min.
L.S.
±.762/.030
Note: Coating clean .784/.031 min.
above seating plane
Style SR21
HOW TO ORDER
AVX Styles: SR15, SR20, SR21, SR22, SR27, SR30, SR40, SR50
Part Number Example
AVX Style
Voltage
Temperature Coefficient
Sig. Figures of Capacitance
Multiplier (Additional no. of zeros)
Capacitance Tolerance
Failure Rate Not Applicable
Leads
Part Number Codes
Voltages:
50V = 5, 100V = 1, 200V = 2,
300V = 9, 400V = 8, 500V = 7
Temp. Coefficient:
C0G (NP0) = A, X7R = C, Z5U = E
Sig. Figures of Capacitance and Multiplier:
First two digits are the significant figures of capacitance.
Third digit indicates the additional number of zeros. For
example, order 100,000 pF as 104. (For values below
10pF, use “R” in place of decimal point, e.g., 1R4 = 1.4 pF).
Capacitance Tolerances:
C0G (NP0): C = ±.25pF, D = ±.5pF, F = ±1.0% (>50 pF only)
G = ±2.0% (>25 pF only), J = ±5%, K = ±10%
X7R: J = ±5%, K = ±10%, M = ±20%
Z5U: M = ±20%, Z = +80%,-20%
Failure Rate:
A = Not Applicable
Leads:
T = Trimmed Leads, .230" ± .030"
A = Long Leads, 1.0" minimum
(Other lead lengths are available, contact AVX)
SR21
5
E
10
4
M
A
A
MARKING
FRONT
XXX
X X X
Capacitance Code
Tolerance Code
Voltage Code
Temp. Char. Code
BACK
XXX
A XX
3 Digit Date Code
Lot Code
AVX Logo
PACKAGING REQUIREMENTS
SR15, 20, 21, 22, 27, 30
SR40, 50
Quantity per Bag
1000 Pieces
500 Pieces
Note: SR15, SR20, SR21, SR30, and SR40 available on tape and reel per EIA
specifications RS-468. See Pages 24 and 25.
14
Radial Leads/SkyCap
®
C0G (NP0) Dielectric
SIZE AND CAPACITANCE SPECIFICATIONS
EIA Characteristic
Dimensions: Millimeters (Inches)
AVX Style
AVX “Insertable”
Width
(W)
SR15
SR07
3.81
(.150)
SR20
SR29
5.08
(.200)
SR21
SR59
5.08
(.200)
SR22
N/A
5.08
(.200)
SR27
N/A
6.604
(.260)
SR30
SR65
7.62
(.300)
7.62
(.300)
3.81
(.150)
5.08
(.200)
.508
(.020)
WVDC
100
50
SR40
SR75
10.16
(.400)
10.16
(.400)
3.81
(.150)
5.08
(.200)
.508
(.020)
WVDC
100 50
SR50
N/A
12.70
(.500)
12.70
(.500)
5.08
(.200)
10.16
(.400)
.635
(.025)
WVDC
100 50
Cap. in.*
pF
1.0-9.9
10
15
22
33
39
47
68
100
150
220
330
390
470
680
1000
1500
2200
3900
4700
6800
8200
10,000
15,000
22,000
33,000
39,000
47,000
68,000
100,000
Height
3.81
5.08
5.08
(H)
(.150)
(.200)
(.200)
Thickness
2.54
3.175
3.175
(T)
(.100)
(.125)
(.125)
Lead Spacing
2.54
2.54
5.08
(L.S.)
(.100)
(.100)
(.200)
Lead Diameter
.508
.508
.508
(L.D.)
(.020)
(.020)
(.020)
Industry Preferred
WVDC
WVDC
WVDC
Values in Blue 200 100 50 200 100 50 200 100 50
SR151A1R0DAA
SR151A100KAA
SR-----A150KAA
SR-----A220KAA
SR-----A330KAA
SR-----A390KAA
SR-----A470KAA
SR-----A680KAA
SR151A101KAA
SR-----A151KAA
SR-----A221KAA
SR-----A331KAA
SR-----A391KAA
SR-----A471KAA
SR-----A681KAA
SR211A102KAA
SR-----A152KAA
SR-----A222KAA
SR-----A392KAA
SR-----A472KAA
SR-----A682KAA
SR-----A822KAA
SR305A103KAA
SR-----A153KAA
SR-----A223KAA
SR-----A333KAA
SR-----A393KAA
SR-----A473KAA
SR-----A683KAA
SR-----A104KAA
5.08
6.35
(.200)
(.250)
3.175
4.06
(.125)
(.160)
6.35
7.62
(.250)
(.300)
.508
.508
(.020)
(.020)
WVDC
WVDC
200 100 50 200 100 50
For other styles, voltages, tolerances and lead lengths see Part No. Codes or contact factory.
*Other capacitance values available upon special request.
= Industry preferred values
= SR20 only
NOTE:
Capacitance Ranges available for SR12
SR62
SR64
SR89
same
same
same
same
as
as
as
as
SR15
SR21
SR30
SR21
15
Radial Leads/SkyCap
®
X7R Dielectric
SIZE AND CAPACITANCE SPECIFICATIONS
EIA Characteristic
Dimensions: Millimeters (Inches)
AVX Style
AVX “Insertable”
SR15
SR07
SR20
SR29
5.08
(.200)
5.08
(.200)
3.175
(.125)
2.54
(.100)
.508
(.020)
WVDC
200 100 50
SR21
SR59
5.08
(.200)
5.08
(.200)
3.175
(.125)
5.08
(.200)
.508
(.020)
WVDC
100 50
SR22
N/A
SR27
N/A
SR30
SR65
7.62
(.300)
7.62
(.300)
3.81
(.150)
5.08
(.200)
.508
(.020)
WVDC
200 100 50
SR40
SR75
10.16
(.400)
10.16
(.400)
3.81
(.150)
5.08
(.200)
.508
(.020)
WVDC
200 100 50
SR50
N/A
12.70
(.500)
12.70
(.500)
5.08
(.200)
10.16
(.400)
.635
(.025)
WVDC
200 100 50
Cap. in.*
pF
470
1000
1500
2200
3300
4700
6800
10,000
15,000
22,000
33,000
47,000
68,000
100,000
150,000
220,000
330,000
390,000
470,000
1.0 µF
2.2 µF
2.7 µF
4.7 µF
Width
3.81
(W)
(.150)
Height
3.81
(H)
(.150)
Thickness
2.54
(T)
(.100)
Lead Spacing
2.54
(L.S.)
(.100)
Lead Diameter
.508
(L.D.)
(.020)
Industry Preferred
WVDC
Values in Blue 200 100 50
SR-----C471KAA
SR155C102KAA
SR-----C152KAA
SR-----C222KAA
SR-----C332KAA
SR-----C472KAA
SR-----C682KAA
SR215C103KAA
SR-----C153KAA
SR-----C223KAA
SR-----C333KAA
SR-----C473KAA
SR-----C683KAA
SR215C104KAA
SR-----C154KAA
SR215C224KAA
SR-----C334KAA
SR-----C394KAA
SR305C474KAA
SR305C105KAA
SR405C225KAA
SR505C275KAA
SR505C475KAA
5.08
6.604
(.200)
(.260)
5.08
6.35
(.200)
(.250)
3.175
4.06
(.125)
(.160)
6.35
7.62
(.250)
(.300)
.508
.508
(.020)
(.020)
WVDC
WVDC
100 50 100 50
For other styles, voltages, tolerances and lead lengths see Part No. Codes or contact factory.
*Other capacitance values available upon special request.
= Industry preferred values
= SR20 only
NOTE:
Capacitance Ranges available for SR12
SR62
SR64
SR89
same
same
same
same
as
as
as
as
SR15
SR21
SR30
SR21
16
Radial Leads/SkyCap
®
Z5U Dielectric
SIZE AND CAPACITANCE SPECIFICATIONS
EIA Characteristic
Dimensions: Millimeters (Inches)
AVX Style
AVX “Insertable”
Width
(W)
Height
(H)
Thickness
(T)
Lead Spacing
(L.S.)
Lead Diameter
(L.D.)
Industry Preferred
Values in Blue
SR155E103ZAA
SR-----E473ZAA
SR215E104ZAA
SR-----E154ZAA
SR215E224ZAA
SR215E334ZAA
SR215E474ZAA
SR-----E684ZAA
SR
-----
105ZAA
SR30E155ZAA
SR30E225ZAA
SR30E335ZAA
SR30E475ZAA
SR15
SR07
3.81
(.150)
3.81
(.150)
2.54
(.100)
2.54
(.100)
.508
(.020)
WVDC
100
50
SR20
SR29
5.08
(.200)
5.08
(.200)
3.175
(.125)
2.54
(.100)
.508
(.020)
WVDC
100
50
SR21
SR59
5.08
(.200)
5.08
(.200)
3.175
(.125)
5.08
(.200)
.508
(.020)
WVDC
100
50
SR22
N/A
5.08
(.200)
5.08
(.200)
3.175
(.125)
6.35
(.250)
.508
(.020)
WVDC
100
50
SR27
N/A
6.604
(.260)
6.35
(.250)
4.06
(.160)
7.62
(.300)
.508
(.020)
WVDC
100
50
SR30
SR65
7.62
(.300)
7.62
(.300)
3.81
(.150)
5.08
(.200)
.508
(.020)
WVDC
100 50
SR40
SR75
10.16
(.400)
10.16
(.400)
3.81
(.150)
5.08
(.200)
.508
(.020)
WVDC
100 50
SR50
N/A
12.70
(.500)
12.70
(.500)
5.08
(.200)
10.16
(.400)
.635
(.025)
WVDC
100
50
Cap. in.*
pF
10,000
47,000
100,000
150,000
220,000
330,000
470,000
680,000
1.0 µF
1.5 µF
2.2 µF
3.3 µF
4.7 µF
For other styles, voltages, tolerances and lead lengths see Part No. Codes or contact factory.
*Other capacitance values available upon special request.
= Industry preferred values
= SR20 only
AVX 500 VOLT SKYCAPS**
MAXIMUM CAPACITANCE VALUE
STYLE*
SR29
SR20
SR28
SR59
SR13
SR21
SR30
SR61
SR65
SR40
SR75
SR22
SR27
SR76
SR50
*Consult pages 18 and 19 for style sizes.
**Voltage rating based on DWV of 150% of rated voltage.
C0G (NP0)
900 pF
1800 pF
900 pF
1800 pF
7200 pF
.015 µF
1800 pF
1800 pF
.015 µF
.036 µF
X7R
.015 µF
.033 µF
.015 µF
.033 µF
.12 µF
.27 µF
.033 µF
.033 µF
.27 µF
.59 µF
17
