SM10PCR070 datasheet, PDF - EEWORLD Datasheet

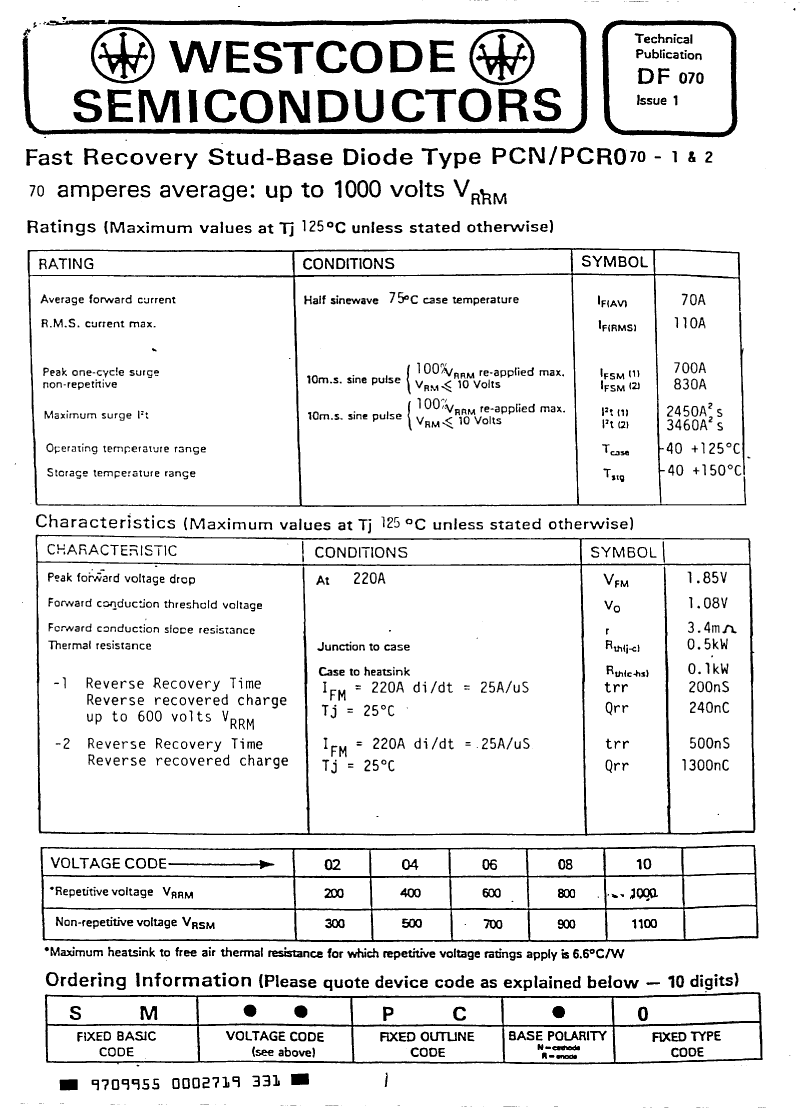

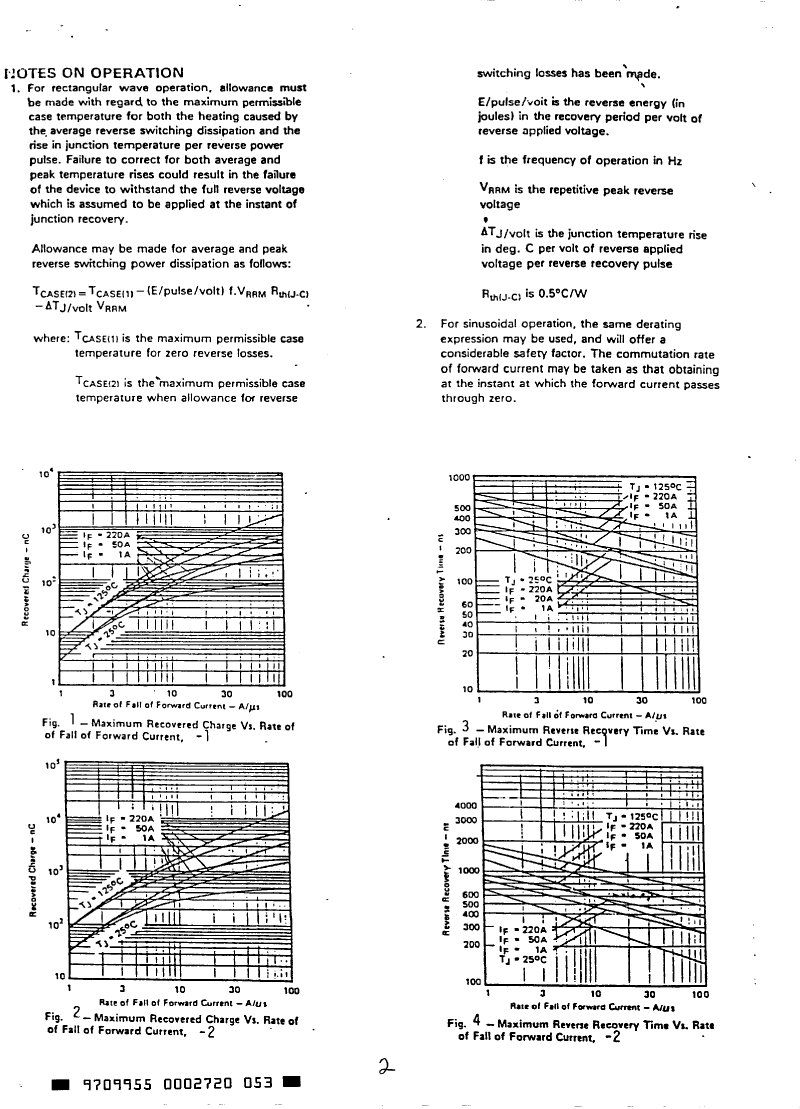

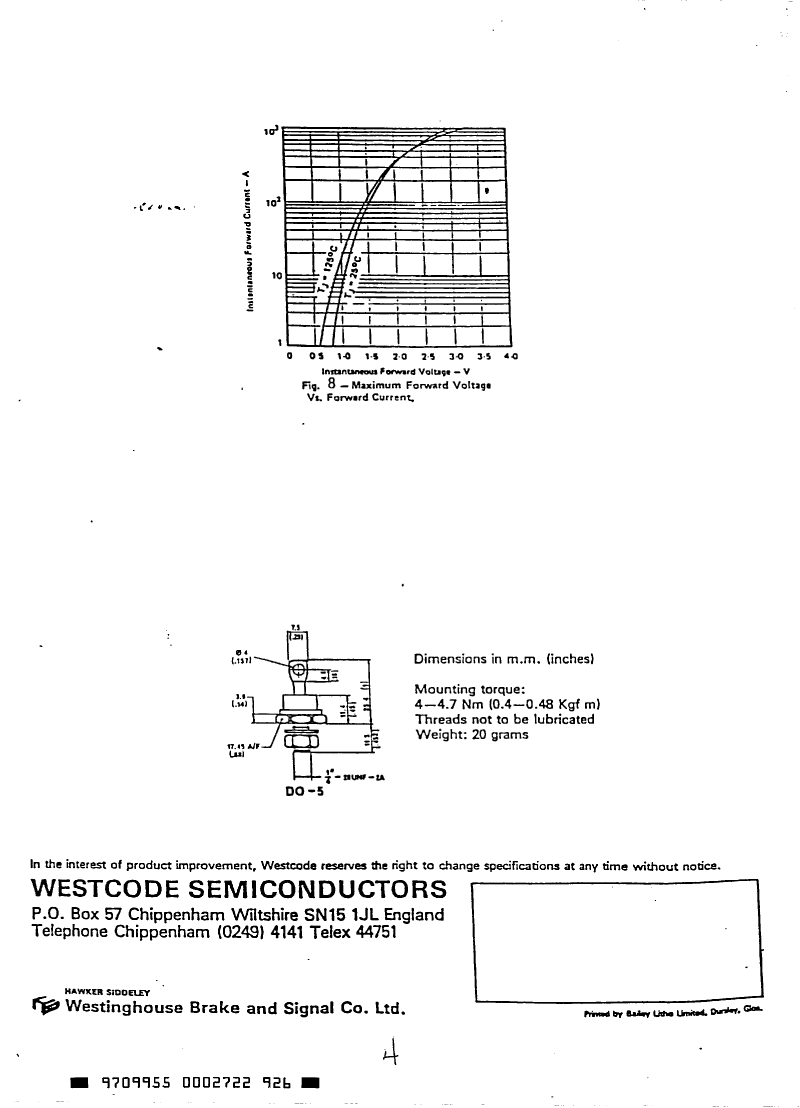

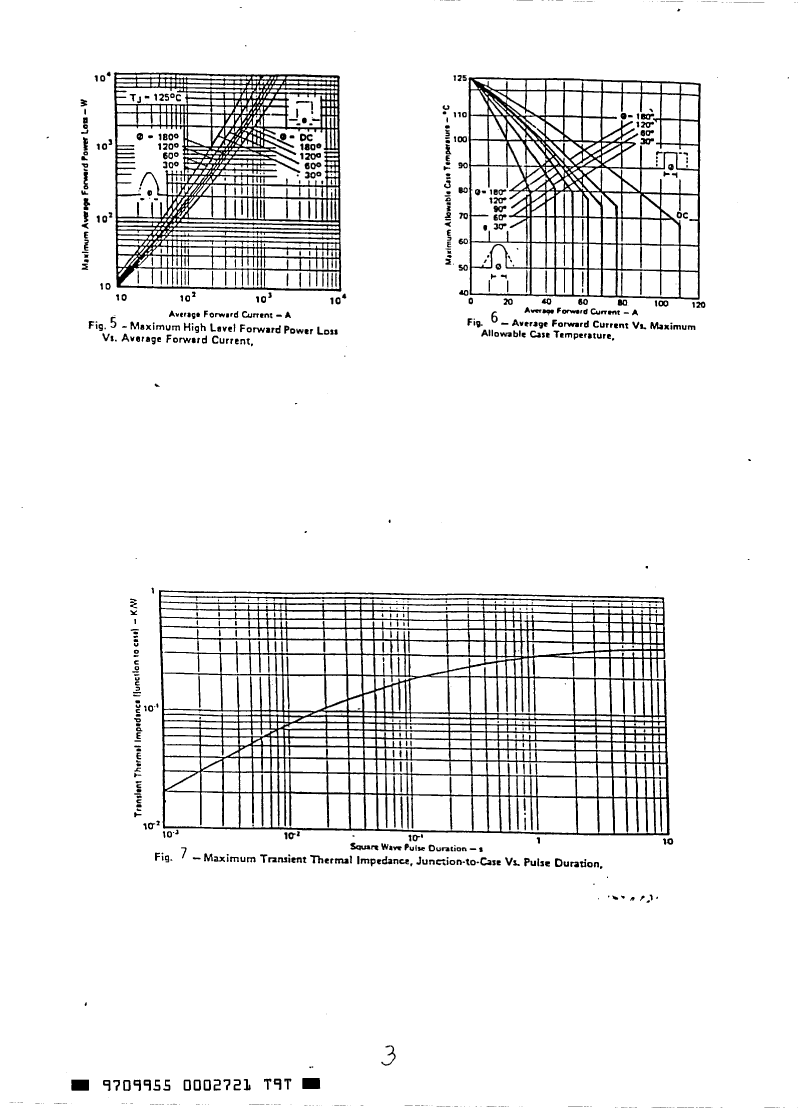

SM10PCR070: DescriptionRectifier Diode, 1 Element, 70A, 1000V V(RRM),; CategoryDiscrete semiconductor diode; File Size328KB，4 Pages; ManufacturerIXYS

Download Datasheet Parametric Compare View All

SM10PCR070 Overview

Rectifier Diode, 1 Element, 70A, 1000V V(RRM),

Parameter Name	Attribute value
Reach Compliance Code	compliant
ECCN code	EAR99
Configuration	SINGLE
Diode type	RECTIFIER DIODE
Maximum forward voltage (VF)	1.9 V
Maximum non-repetitive peak forward current	700 A
Number of components	1
Maximum operating temperature	125 °C
Maximum output current	70 A
Maximum repetitive peak reverse voltage	1000 V
Maximum reverse recovery time	0.2 µs
surface mount	NO

	SM10PCR070	SM04PCR070	SM06PCR070
Description	Rectifier Diode, 1 Element, 70A, 1000V V(RRM),	Rectifier Diode, 1 Element, 70A, 400V V(RRM),	Rectifier Diode, 1 Element, 70A, 600V V(RRM),
Reach Compliance Code	compliant	compliant	compliant
Configuration	SINGLE	SINGLE	SINGLE
Diode type	RECTIFIER DIODE	RECTIFIER DIODE	RECTIFIER DIODE
Maximum forward voltage (VF)	1.9 V	1.9 V	1.9 V
Maximum non-repetitive peak forward current	700 A	700 A	700 A
Number of components	1	1	1
Maximum operating temperature	125 °C	125 °C	125 °C
Maximum output current	70 A	70 A	70 A
Maximum repetitive peak reverse voltage	1000 V	400 V	600 V
Maximum reverse recovery time	0.2 µs	0.2 µs	0.2 µs
surface mount	NO	NO	NO
