Datasheet> All Categories > Power management> transformer> 51575R

Preview

51575R: DescriptionTelecom Transformer, ROHS COMPLIANT; CategoryPower management transformer; File Size86KB，1 Pages; ManufacturerWurth Elektronik; Environmental Compliance

Download Datasheet Parametric Compare View All

51575R Overview

Telecom Transformer, ROHS COMPLIANT

51575R Parametric

Parameter Name	Attribute value
Is it lead-free?	Lead free
Is it Rohs certified?	conform to
package instruction	ROHS COMPLIANT
Reach Compliance Code	compliant
ECCN code	EAR99
Other features	BREADTH DIM INCLUDE TERMINAL ALSO, COMPATIBLE WITH SOCRATES, TURNS RATIO IS: 3.2:1
Certification	IEC
Maximum DC unbalanced current	100 mA
high	12.7 mm
length	13.97 mm
Manufacturer's serial number	51575R
Installation features	THROUGH HOLE MOUNTED
Maximum operating temperature	85 °C
Minimum operating temperature	-40 °C
physical size	L13.97XB13.97XH12.7 (mm)
main impedance	135 OHMS
surface mount	NO
Transformer type	TELECOM TRANSFORMER
width	13.97 mm

Preview

Download Datasheet

View All

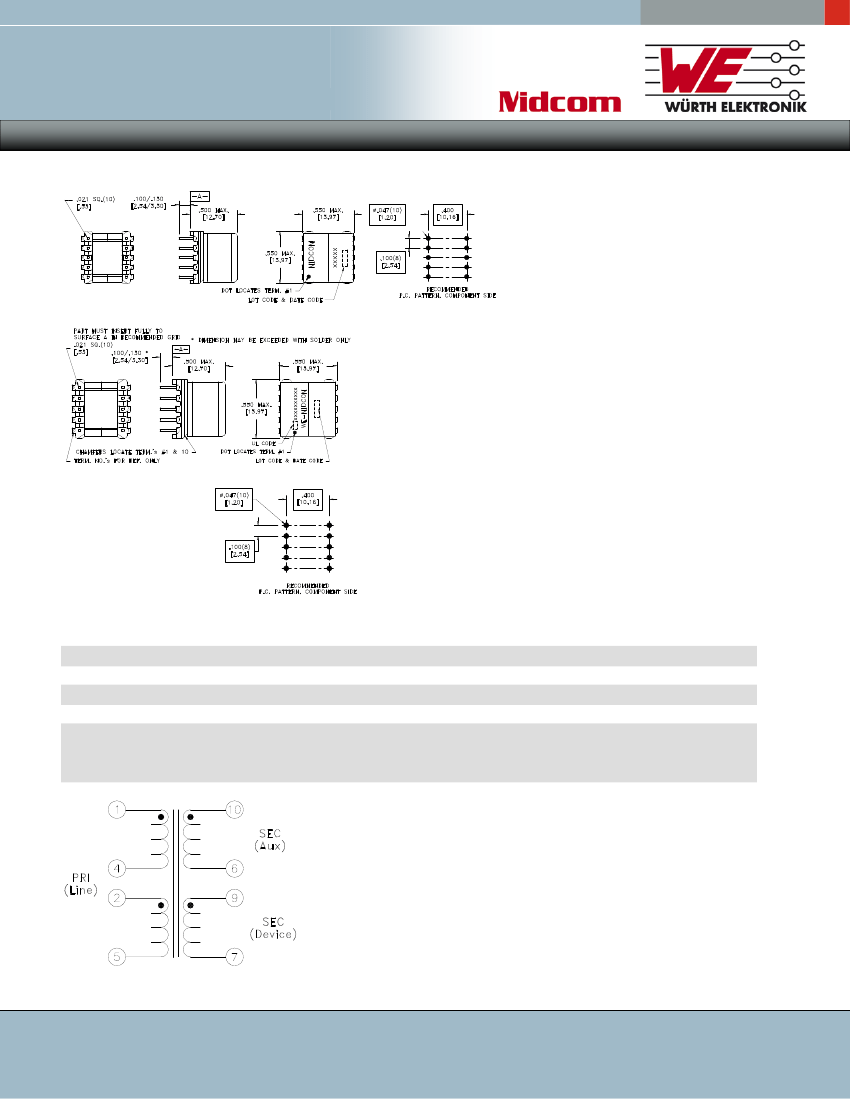

more than you expect

Infineon HDSL recommendations

DigitalTelecom

Mechanical 1

Features

•

RoHS compatible

Compatible with Infineon chip-

sets

Designed to meet IEC950 re-

quirements

Good total harmonic distortion

characteristics

Optimized for size and perform-

ance

135 ohm line impedance

Customization available

For IC approval status, contact

Midcom

Mechanical 2

Part Number IC Number

51262R

Socrates

51241

Socrates

51575R

Socrates

50921

Socrates

PEB22622

750510041 PEF22623

PEF24622

Application

Optimized for low frequency

Optimized for high frequency

SHDSL Chipset

Turns Ratio

PRI:SEC

3.2:1

IEC950

Mechanical

Supplementary

1

Supplementary

1

Supplementary

1

Supplementary

1

Supplementary

2

Schematic

Wurth Electronics Midcom, Inc.

121 Airport Drive—PO Box 1330

Watertown, SD 57201

T: 605.886.4385 ~ 605.886.4486

www.we-online.com ~ email: sales@midcom-inc.com

30-Dec-08

1/1
