UNISONIC TECHNOLOGIES CO., LTD
2SB834
HIGH VOLTAGE TRANSISTOR
DESCRIPTION
Low frequency power amplifier applications.
PNP SILICON TRANSISTOR

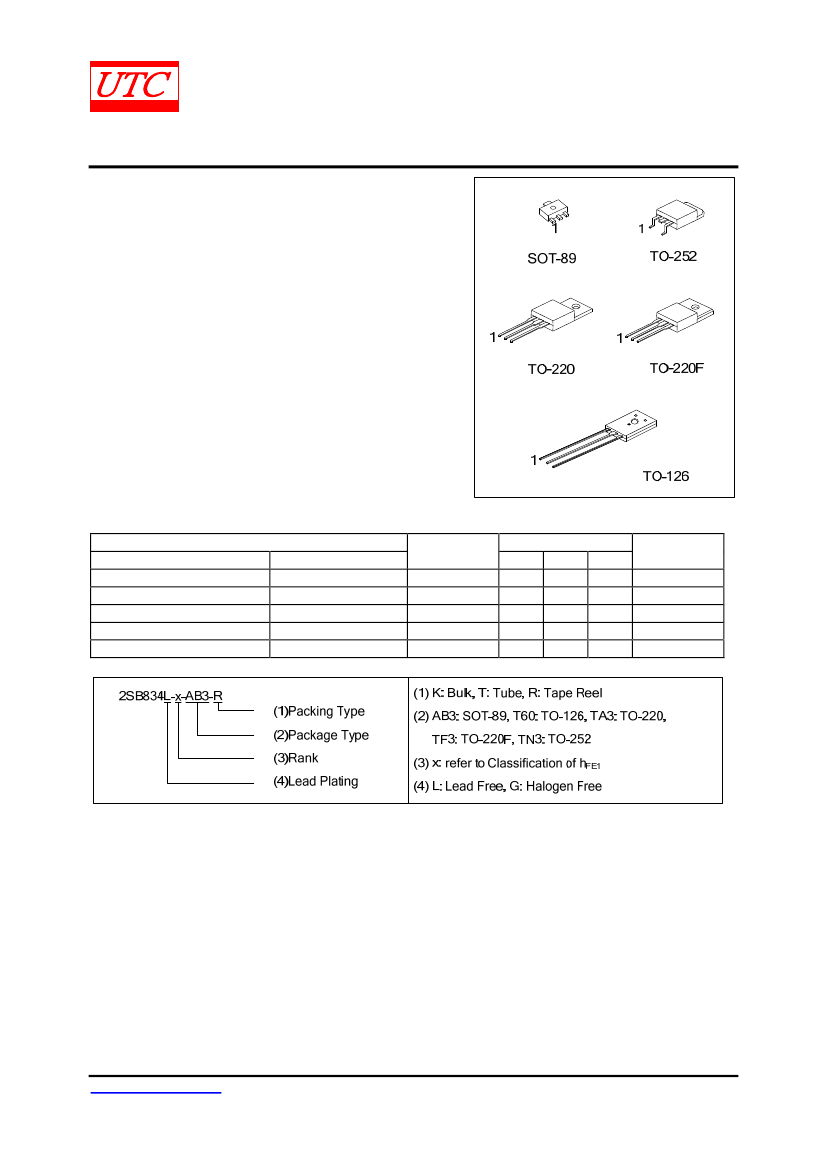

ORDERING INFORMATION
Pin Assignment
1
2
3
B
C
E
E
C
B
B
C
E
B
C
E
B
C
E
Packing
Tape Reel
Bulk
Tube
Tube
Tape Reel
Ordering Number
Package
Lead Free
Halogen Free
SOT-89
2SB834L-x-AB3-R
2SB834G-x-AB3-R
2SB834L-x-T60-K
2SB834G-x-T60-K
TO-126
2SB834L-x-TA3-T
2SB834G-x-TA3-T
TO-220
2SB834L-x-TF3-T
2SB834G-x-TF3-T
TO-220F
2SB834L-x-TN3-R
2SB834G-x-TN3-R
TO-252
Note: Pin Assignment: B: Base
C: Collector
E: Emitter
www.unisonic.com.tw
Copyright © 2014 Unisonic Technologies Co., Ltd
1 of 5
QW-R204-018.F
2SB834
MARKING INFORMATION
PACKAGE
PNP SILICON TRANSISTOR
MARKING
SOT-89
TO-220
TO-220F
TO-252
TO-126
UNISONIC TECHNOLOGIES CO., LTD
www.unisonic.com.tw
2 of 5
QW-R204-018.F
2SB834
PARAMETER
Collector-Base Voltage
Collector-Emitter Voltage
Emitter-Base Voltage
Collector Current
Base Current
Power Dissipation (T
C
=25°C)
SOT-89
TO-220
TO-252
TO-126/TO-220F
SYMBOL
V
CBO
V
CEO
V
EBO
I
C
I
B
P
D
PNP SILICON TRANSISTOR
ABSOLUTE MAXIMUM RATINGS
(Operating temperature range applies unless otherwise specified )
RATINGS
-60
-60
-7
-3
-0.5
3
30
26
25
UNIT
V
V
V
A
A
W
W
W
W
Junction Temperature
T
J
+125
°C
Storage Temperature
T
STG
-40 ~ +150
°C
Note: Absolute maximum ratings are those values beyond which the device could be permanently damaged.
Absolute maximum ratings are stress ratings only and functional device operation is not implied.
ELECTRICAL CHARACTERISTICS
(T
A
=25°C, unless otherwise specified)
SYMBOL
BV
CEO
I
CBO
I
EBO
V
CE(SAT)
V
BE(ON)
h
FE1
h
FE2
f
T
TEST CONDITIONS
I
C
=-50mA
V
CB
=-60V
V
EB
=-7V
I
C
=-3A, I
B
=0.3A
V
CE
=-5V, I
C
=-0.5A
I
C
=-0.5A, V
CE
=-5V
I
C
=-3A, V
CE
=-5V
V
CE
=-5V, I
C
=-0.5A
MIN
-60
TYP
MAX
-100
-100
-1
-1
300
UNIT
V
μA
μA
V
V
PARAMETER
Collector-Emitter Breakdown Voltage
Collector Cut-Off Current
Emitter Cut-Off Current
Collector-Emitter Saturation Voltage
Base-Emitter On Voltage
DC Current Gain
Current Gain Bandwidth Product
-0.7
60
20
9
MHZ
CLASSIFICATION of h
FE1
RANK
RANGE
O
60-120
Y
100-200
GR
150-300
UNISONIC TECHNOLOGIES CO., LTD
www.unisonic.com.tw
3 of 5
QW-R204-018.F
2SB834

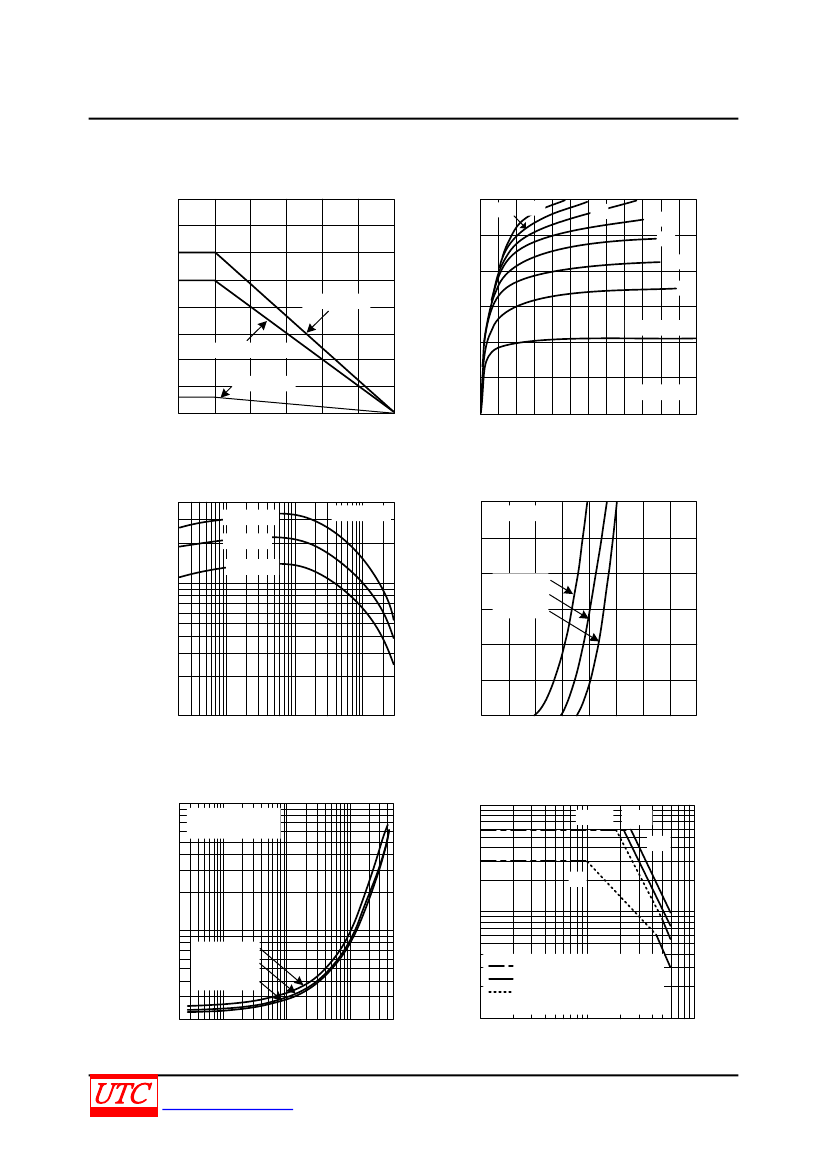

TYPICAL CHARACTERISTICS
Power Derating
40
35
-3.0
PNP SILICON TRANSISTOR
Collector Current vs.
Collector-Emitter Voltage
-70 -80
-60
-50
-40
-30
-20
I
B
= -10mA
Power Dissipation, P
D
(W)
30
25
20
15
10
5
0
0
25
50
Collector Current, I
C
(A)
-2.0
TO-220
TO-126/TO-220F
SOT-89
75
100
125
150
-1.0
T
C
=25°C
0
-1.0
-2.0
-3.0
-4.0
-5.0
-6.0
Temperature, T
C
(°C)
DC Current Gain
300
Collector-Emitter Voltage, V
CE
(V)
Collector Current vs.
Base-Emitter Voltage
-3.0
V
CE
= 5.0V
Collector Current, I
C
(A)
T
C
=100°C
T
C
=25°C
V
CE
= 5.0V
DC Current Cain, h
FE
T
C
=-25°C
100
50
30
-2.0
T
C
=100°C
25°C
-25°C
-1.0
10
-2
-5 -10 -20
-50 -100 -200 -500 -1k
-3k
0
-0.4
-0.8
-1.2
-1.6
Collector Current, I
C
(mA)
Collector-Emitter Saturation Voltage
vs. Collector Current
-1.0
Common Emitter
-0.4
I
C
/I
B
= 10
Collector Current, I
C
(A)
Base-Emitter Voltage, V
BE
(V)
Active-Region Safe Operating AREA
(SOA)
100ms 10ms
1ms
DC
Collector-Emitter Saturation Voltage,
V
CE(SAT)
(V)
-10
-5.0
-2.0
-1.0
-0.5
-0.2
-0.1
-0.05
T
C
=100°C
25°C
-25°C
-0.2
-0.1
-1.0
-0.02
-2
Bonding Wire Limit
Second Breakdown Limit
Thermally Limited
at T
C
=25°C(Single Pulse)
-2.0
-5.0-7.0-10
-20
-50-70-100
-5 -10 -20 -50-100-200 -500 -1k -2k -3k
Collector Current, I
C
(mA)
Collector Emitter Voltage, V
CE
(V)
4 of 5
QW-R204-018.F
UNISONIC TECHNOLOGIES CO., LTD
www.unisonic.com.tw
2SB834
PNP SILICON TRANSISTOR
UTC assumes no responsibility for equipment failures that result from using products at values that
exceed, even momentarily, rated values (such as maximum ratings, operating condition ranges, or
other parameters) listed in products specifications of any and all UTC products described or contained
herein. UTC products are not designed for use in life support appliances, devices or systems where
malfunction of these products can be reasonably expected to result in personal injury. Reproduction in
whole or in part is prohibited without the prior written consent of the copyright owner. The information
presented in this document does not form part of any quotation or contract, is believed to be accurate
and reliable and may be changed without notice.
UNISONIC TECHNOLOGIES CO., LTD
www.unisonic.com.tw
5 of 5
QW-R204-018.F
