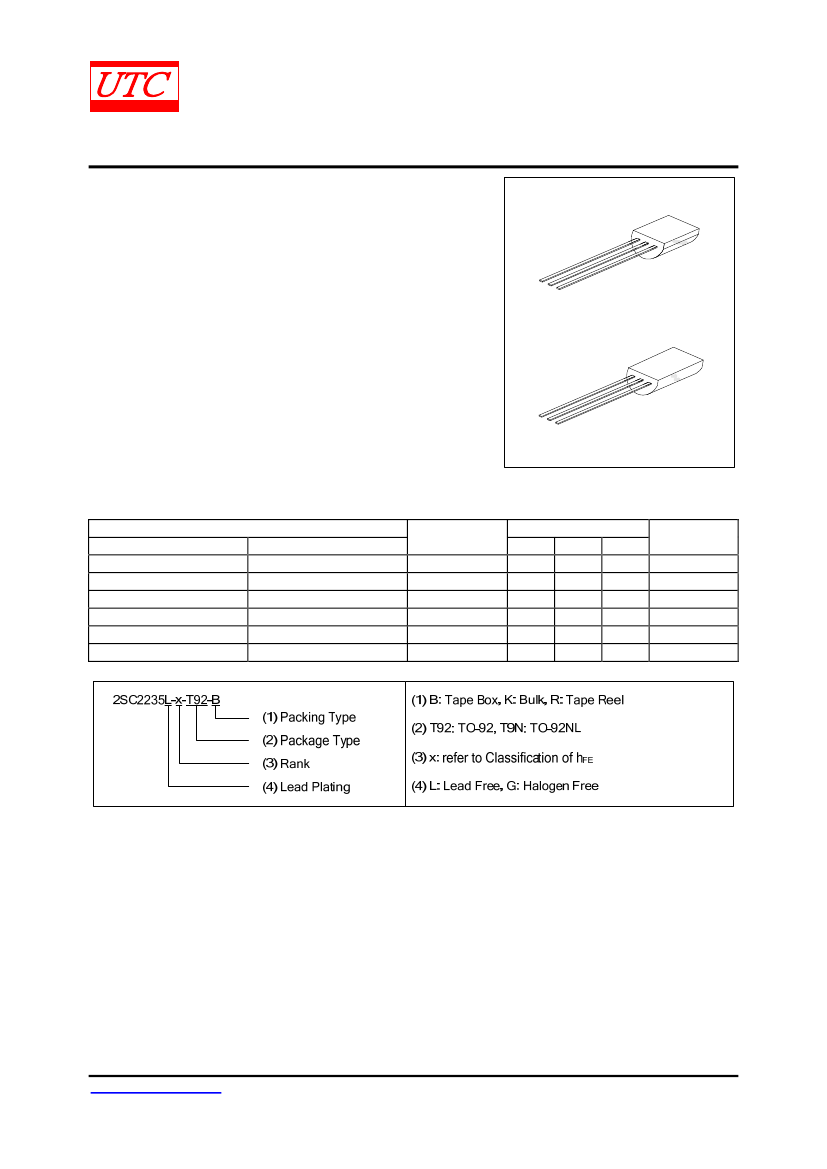

UNISONIC TECHNOLOGIES CO., LTD
2SC2235
AUDIO POWER AMPLIFIER
APPLICATIONS DRIVER STAGE
AMPLIFIER APPLICATIONS
FEATURES
NPN SILICON TRANSISTOR
1
TO-92
* Complimentary to UTC 2SA965
1
TO-92NL
ORDERING INFORMATION
Pin Assignment
1
2
3
E
C
B
E
C
B
E
C
B
E
C
B
E
C
B
E
C
B
Packing
Tape Box
Bulk
Tape Reel
Tape Box
Bulk
Tape Reel
Ordering Number
Package
Lead Free
Halogen Free
TO-92
2SC2235L-x-T92-B
2SC2235G-x-T92-B
TO-92
2SC2235L-x-T92-K
2SC2235G-x-T92-K
TO-92
2SC2235L-x-T92-R
2SC2235G-x-T92-R
2SC2235L-x-T9N-B
2SC2235G-x-T9N-B
TO-92NL
2SC2235L-x-T9N-K
2SC2235G-x-T9N-K
TO-92NL
2SC2235L-x-T9N-R
2SC2235G-x-T9N-R
TO-92NL
Note: Pin Assignment: B: BASE C: COLLECTOR E: EMITTE
www.unisonic.com.tw
Copyright © 2014 Unisonic Technologies Co., Ltd
1 of 4
QW-R211-012.C
2SC2235
NPN SILICON TRANSISTOR
ABSOLUTE MAXIMUM RATING
( T
A
=25°C, unless otherwise specified)
PARAMETER
SYMBOL
RATINGS
UNIT
Collector-Base Voltage
V
CBO
120
V
Collector-Emitter Voltage
V
CEO
120
V
Emitter-Base Voltage
V
EBO
5
V
Collector Current
I
C
800
mA
Emitter Current
I
E
-800
mA
Collector Power Dissipation
P
C
600
mW
Junction Temperature
T
J
150
°C
Storage Temperature
T
STG
-55 ~ +150
°C
Note: Absolute maximum ratings are those values beyond which the device could be permanently damaged.
Absolute maximum ratings are stress ratings only and functional device operation is not implied.
ELECTRICAL CHARACTERISTICS
(T
A
=25°C, unless otherwise specified)
SYMBOL
VB
CEO
VB
EBO
I
CBO
I
EBO
h
FE
V
CE(SAT)
V
BE
f
T
C
ob
TEST CONDITIONS
I
C
=10mA, I
B
=0
I
E
=1mA, I
C
=0
V
CB
=120V, I
E
=0
V
EB
=5V, I
C
=0
V
CE
=5V, I
C
=100mA
I
C
=500mA, I
B
=50mA
V
CE
=5V, I
C
=500mA
V
CE
=5V, I
C
=100mA
V
CB
=10V, I
E
=0,f=1MHz
MIN
120
5
TYP MAX UNIT
V
V
100
nA
100
nA
240
1.0
V
1.0
V
120
MHz
30
pF
PARAMETER
Collector-Emitter Breakdown Voltage
Emitter-Base Breakdown Voltage
Collector Cut-off Current
Emitter Cut-off Current
DC Current Gain
Collector-Emitter Saturation Voltage
Base-Emitter Voltage
Transition Frequency
Collector Output Capacitance
80
CLASSIFICATION OF h
FE
RANK
RANGE
Y
120-240
O
80-160
UNISONIC TECHNOLOGIES CO., LTD
www.unisonic.com.tw
2 of 4
QW-R211-012.C
2SC2235

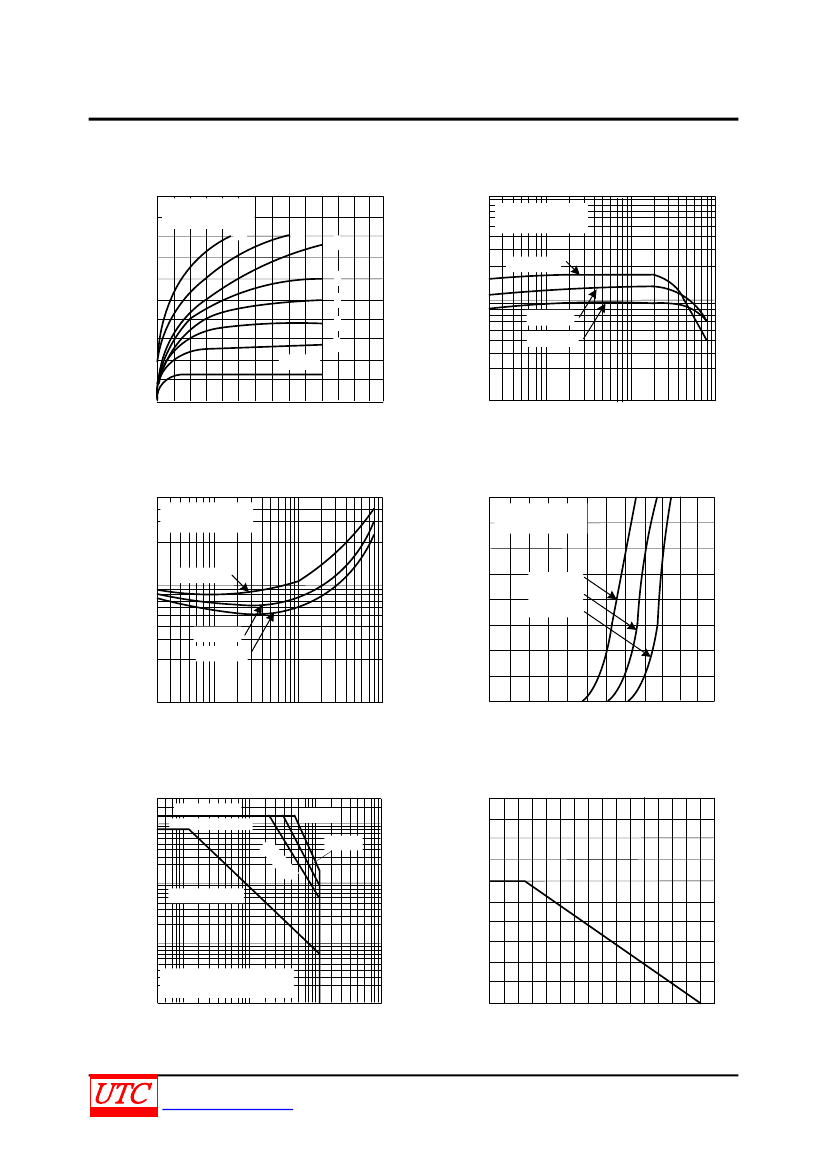

TYPICAL CHARACTERISTICS
Collector Current vs. Collector Emitter
Voltage
10
NPN SILICON TRANSISTOR
DC Current Gain vs. Collector Current
1000
500
DC Current Gain, h
FE
Common Emitter
V
CE
=5V
T
A
=100°C
1000
Collector Current, Ic (mA)
Common Emitter
T
A
=25°C
15
800
7
5
4
300
600
400
200
0
I
B
=1mA
0
0
2
4
6
8
10
100
50
30
3
2
T
A
=25°C
T
A
=-25°C
12
14
10
3
10
30
100
300
1000
Collector Emitter Voltage, V
CE
(V)
Collector Emitter Saturation Voltage vs.
Collector Current
Collector Current, Ic (mA)
Collector Current vs. Base Emitter
Voltage
Common Emitter
V
CE
=5V
0.5
Collector Emitter Saturation
Voltage, V
CE(SAT)
Collector Current, Ic (mA)
Common Emitter
0.3 Ic/I
B
=10
800
600
T
A
=100°C
T
A
=25°C
T
A
=-25°C
0.1
0.05
0.03
T
A
=100°C
400
T
A
=25°C
T
A
=-25°C
200
0.01
3
10
30
100
300
1000
0
0
0.2
0.4
0.6
0.8
1.0
1.2
Collector Current, Ic (mA)
Base Emitter Voltage, V
BE
(V)
Collector Power Dissipaton vs. Ambient
Temperature
Safe Operating Area
3000
Collector Current, Ic (mA)
1000
500
300
100
50
30
10
5
3
*Single Nonrepetitive Pulse T
A
=25°C
Curve must be derated linearly with
increase in temperature
Ic Max.(Pulse) *
Ic Max. (Continous)
1000
Collector Power Dissipaton, Pc
(mW)
1ms *
10ms *
s*
0m
10
800
600
400
200
0
DC Operation
1
0.5 1
3 5
10 30 50 100 300 5001000
0
20
40
60
80
100 120 140 160
Collector Emitter Voltage, V
CE
(V)
Ambient Temperature, T
A
(°C)
UNISONIC TECHNOLOGIES CO., LTD
www.unisonic.com.tw
3 of 4
QW-R211-012.C
2SC2235
NPN SILICON TRANSISTOR
UTC assumes no responsibility for equipment failures that result from using products at values that
exceed, even momentarily, rated values (such as maximum ratings, operating condition ranges, or
other parameters) listed in products specifications of any and all UTC products described or contained
herein. UTC products are not designed for use in life support appliances, devices or systems where
malfunction of these products can be reasonably expected to result in personal injury. Reproduction in
whole or in part is prohibited without the prior written consent of the copyright owner. The information
presented in this document does not form part of any quotation or contract, is believed to be accurate
and reliable and may be changed without notice.
UNISONIC TECHNOLOGIES CO., LTD
www.unisonic.com.tw
4 of 4
QW-R211-012.C
