BRS-04-HPD-14-A-SG30 datasheet, PDF

EEWORLDEEWORLD

Datasheet

Datasheet> All Categories > The connector> The connector> BRS-04-HPD-14-A-SG30

Preview

BRS-04-HPD-14-A-SG30: DescriptionBoard Connector, 14 Contact(s), 2 Row(s), Female, Right Angle, 0.079 inch Pitch, Solder Terminal, Plug; CategoryThe connector The connector; File Size107KB，1 Pages; ManufacturerCentral Semiconductor; Environmental Compliance

Download Datasheet Parametric View All

BRS-04-HPD-14-A-SG30 Overview

Board Connector, 14 Contact(s), 2 Row(s), Female, Right Angle, 0.079 inch Pitch, Solder Terminal, Plug

BRS-04-HPD-14-A-SG30 Parametric

Parameter Name	Attribute value
Is it Rohs certified?	conform to
Reach Compliance Code	unknown
Other features	ROHS COMPLIANT
body width	0.191 inch
subject depth	0.283 inch
body length	0.571 inch
Body/casing type	PLUG
Connector type	BOARD CONNECTOR
Contact to complete cooperation	AU
Contact completed and terminated	TIN
Contact point gender	FEMALE
Contact material	COPPER ALLOY
contact mode	RECTANGULAR
Contact resistance	20 mΩ
Contact style	SQ PIN-SKT
Dielectric withstand voltage	500VAC V
Durability	500 Cycles
Insulation resistance	1000000000 Ω
Manufacturer's serial number	BRS
Plug contact pitch	0.079 inch
Match contact row spacing	0.079 inch
Installation method	RIGHT ANGLE
Installation type	BOARD
Number of connectors	ONE
PCB row number	2
Number of rows loaded	2
Maximum operating temperature	105 °C
Minimum operating temperature	-40 °C
PCB contact pattern	RECTANGULAR
PCB contact row spacing	2.0066 mm
Plating thickness	30u inch
Rated current (signal)	2 A
Guideline	UL
reliability	COMMERCIAL
Terminal length	0.1 inch
Terminal pitch	2.0066 mm
Termination type	SOLDER
Total number of contacts	14

Preview

Download Datasheet

View All

1

2

3

4

5

6

7

8

9

A

B

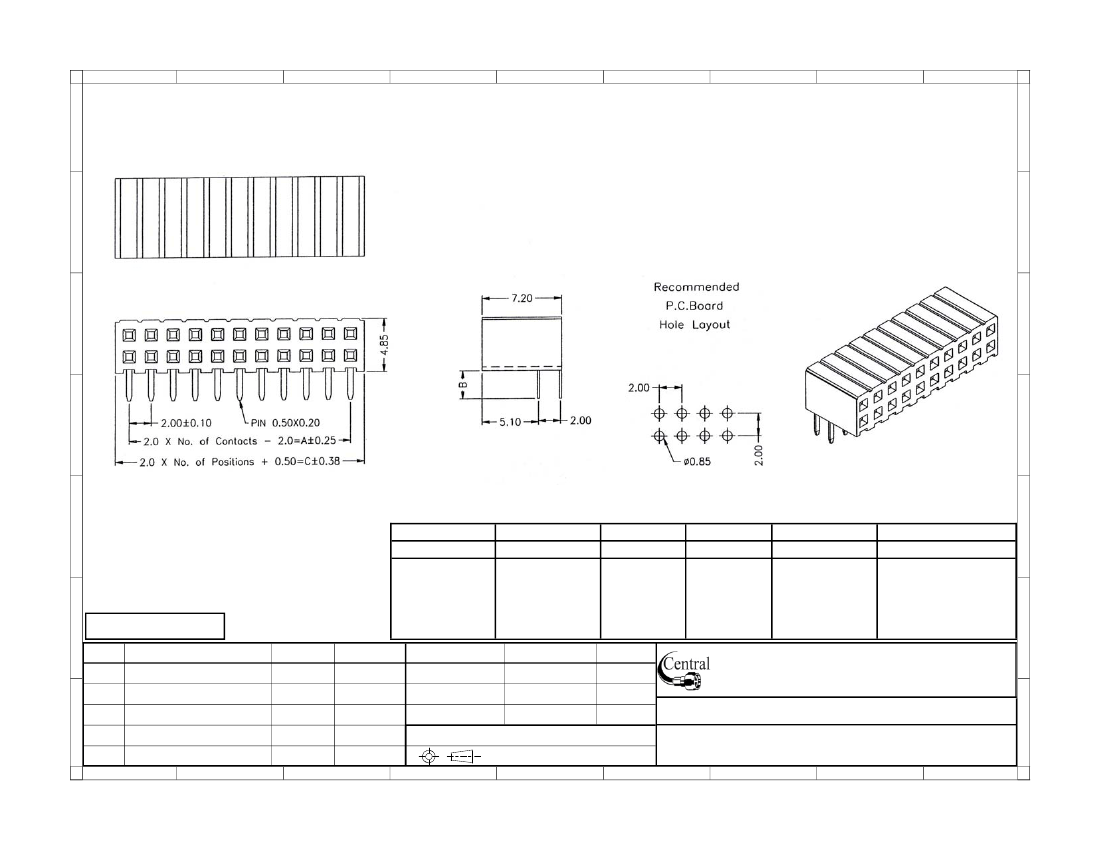

SPECIFICATIONS

Current Rating:

Contact Material:

Contact Resistance:

Insulation Material:

Insulation Resistance:

Withstanding:

Operating Temp:

2 Amps

Copper Alloy

20mΩ Max.

Polyester, Ul94V-0, Nylon 6T

1000MΩ Min.

500V AC

-40ºC to +105ºC

A

B

C

D

E

Series

BRS

2mm Receptacle

Strip

Rows

04

04=2 rows R/A

Profile

HPD

HPD=7.2mm

HPA=6.7mm

Contacts

XX

02-40

Tail Length

A

A=2.55mm

B=2.8mm

Others available

Plating

XX

TN=Tin

SGXX=Selective Gold

GDXX=Gold

XX=Flash if blank,

10,15,30 u”

E

F

RoHS compliant

Rev.

Description

Date

Approved

Drawing

Name

Approved Howard

Checked Lizzy

Drawn Tina

0.0 ± 0.35

1

2

3

4

F

Date

02/15/02

02/15/02 Part No.:

Central Components Manufacturing

440 Lincoln Blvd., Middlesex, New Jersey 08846

Phone 732 469-5720 888 288-5152 Fax 732 469-1919

BRS-04-HPD-XX-A-XX

G

7

8

9

G

0.00 ± 0.20 Angles ± 3’

UNIT: mm

5

6

Description: Female Header, Side Entry, Right Angle Type
