PLKBPHE010C301: DescriptionAC Input 90-264Vac; File Size103KB，2 Pages; ManufacturerLinkCom; Websitehttp://www.linkcom.com.tw

Download Datasheet View All

PLKBPHE010C301 Overview

AC Input 90-264Vac

Preview

Download Datasheet

View All

LinkCom Manufacturing Co., Ltd

Model NO.

Part NO.

BPHE010C301

PLKBPHE010C301

Model Name

SIZE

LED Driver

97.5 * 40 * 30.5 mm【3.84 * 1.57 * 1.2 inch】

FEATURES

◆

AC Input 90~264Vac

◆

Protection: SCP / OTP / OVP

◆

High Operating ambient Temp: -20℃ ~ +60℃

◆

Safety: UL / TUV

◆

EMC: CE

◆

Comply with Indoor/Outdoor Waterproof (IP 67)

◆

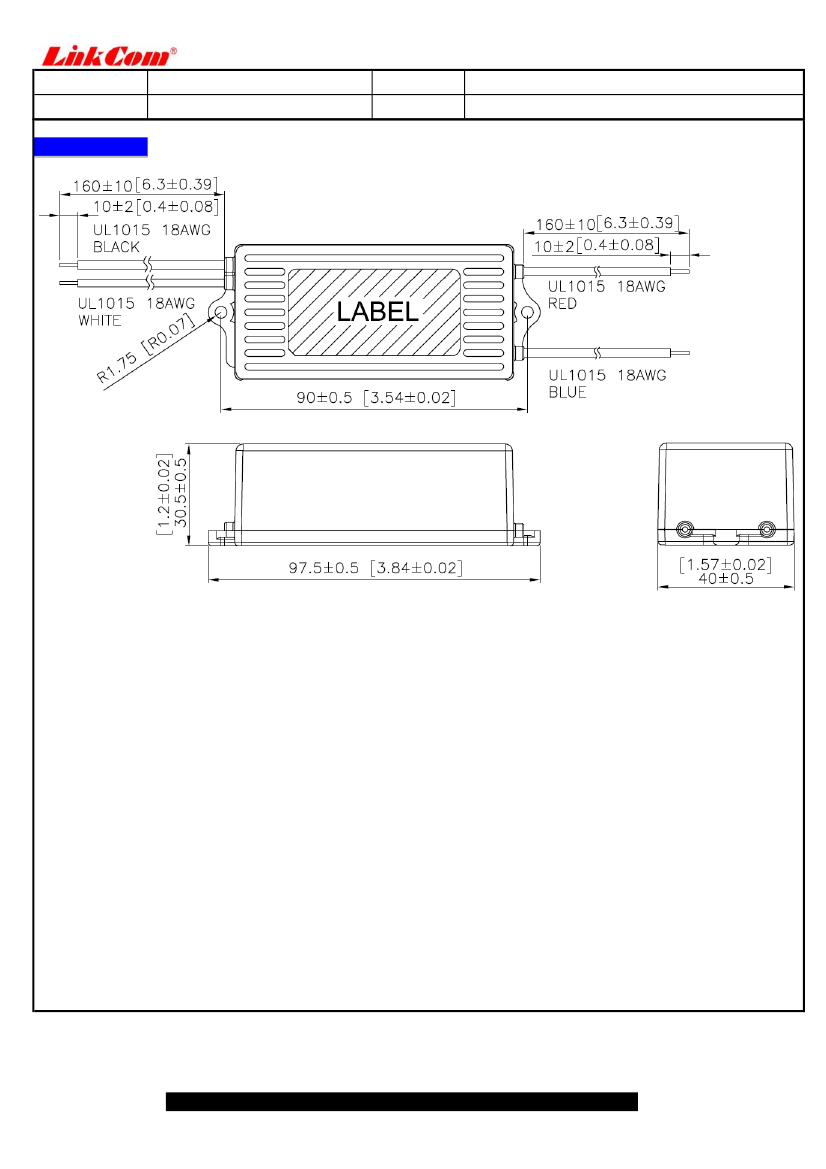

Dimension (L*W*H): 97.5 * 40 * 30.5 mm

◆

Dimension (L*W*H): 3.84 * 1.57 * 1.2 inch

◆

ROHS Compliant

Module : BPHE010C301

*(9)

MODEL

SPECIFICATION

DC OUTPUT VOLTAGE (V)

PRESET ACCURACY (%) *(8)

OUTPUT CURRENT(A) *(5)

O/P NOISE (P-P, V) *(3)

LINE REGULATION (%) *(7)

LOAD REGULATION (%) *(6)

DC OUTPUT POWER

EFFICIENCY(typ @Full Load)

TURN ON DELAY TIME, Softstart

INPUT VOLTAGE RANGE

INPUT FREQUENCY

INRUSH CURRENT (typ)

AC CURRENT

LEAKAGE CURRENT

SHORT CIRCUIT PROTECTION

OVER TEMP. PROTECTION

OVER V, PROTECTION

SCP, OTP, OVP will restart automatically after the fault condition is removed

-20 to +60℃@full load

-40 to +80℃

10 to +95%

0.03% /

℃

(0-50℃, typ)

UL1310 / TUV EN61347-2-13

CE EN55015

97.5 * 40 * 30.5 mm【3.84 * 1.57 * 1.2 inch】

min.

norm.

0.32

0.25

10.2 W

70%

3200ms,2000ms at full load 115VAC/230VAC

90-264VAC, 127-373VDC, Normal：100-240VAC

Range:47-63Hz, Normal：50-60Hz

COLD START 40A @ 230VAC

0.25A/115VAC

<0.7mA/264VAC

*,# =SEE NOTES BELOW

BPHE010C301

max.

OPERATING TEMP.*(4)

STORAGE TEMPERATURE

RELATIVE HUMIDITY

TEMP. COEFFICIENT

SAFETY

EMI

DIMENSIONS(L*W*H)

NOTES：(1)All parameters not specially mentioned are measured 230VAC input.

(2)All specifications Typical @25℃, unless otherwise noted, at normal line and load.

(3)Ripple and Noise measured directly at pins/terminals at nom. load, @20MHz bandwidth.

(4)Specified for free-air convection cooling.

(5)Minimum load is NOT required for proper operation .

(6)Load regulation measured from 20% to Full load.

(7)Line regulation measured from 100VAC to 240VAC.

(8)Preset accuracy measured at normal load, 120VAC input.

(9)100% Production Tested.

※

Reference

www.linkcom.com.tw

For more information, please contact with: sales@linkcom.com.tw
