Product Specification
www.jmnic.com
Silicon NPN Darlington Power Transistors
2SD2493
DESCRIPTION
・With
TO-3PN package
・Complement
to type 2SB1624
APPLICATIONS
・Audio
,regulator and general purpose
PINNING
PIN
1
2
3
Base
Collector;connected to
mounting base
Emitter

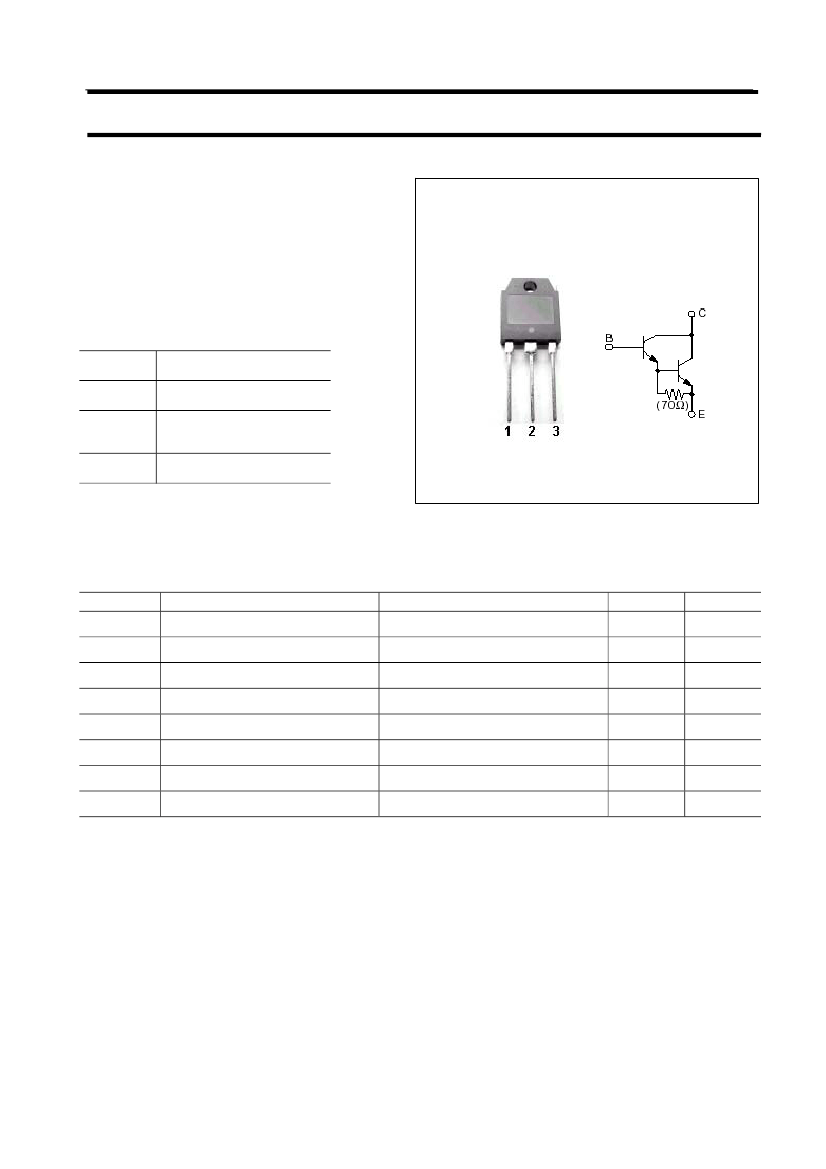

Fig.1 simplified outline (TO-3PN) and symbol
DESCRIPTION
Absolute maximum ratings(Ta=
℃)
SYMBOL
V
CBO
V
CEO
V
EBO
I
C
I
B
P
C
T
j
T
stg
PARAMETER
Collector-base voltage
Collector-emitter voltage
Emitter-base voltage
Collector current
Base current
Collector power dissipation
Junction temperature
Storage temperature
T
C
=25℃
CONDITIONS
Open emitter
Open base
Open collector
VALUE
110
110
5
6
1
60
150
-55~150
UNIT
V
V
V
A
A
W
℃
℃
JMnic
Product Specification
www.jmnic.com
Silicon NPN Darlington Power Transistors
CHARACTERISTICS
Tj=25℃ unless otherwise specified
SYMBOL
V
CEO
V
CEsat
V
BEsat
I
CBO
I
EBO
h
FE
C
ob
f
T
PARAMETER
Collector-emitter breakdown voltage
Collector-emitter saturation voltage
Base-emitter saturation voltage
Collector cut-off current
Emitter cut-off current
DC current gain
Output capacitance
Transition frequency
CONDITIONS
I
C
=30mA ;I
B
=0
I
C
=5A ;I
B
=5mA
I
C
=5A ;I
B
=5mA
V
CB
=110V; I
E
=0
V
EB
=5V; I
C
=0
I
C
=5A ; V
CE
=4V
I
E
=0 ; V
CB
=10V;f=1MHz
I
C
=2A ; V
CE
=12V
5000
55
60
MIN
110
TYP.
2SD2493
MAX
UNIT
V
2.5
3.0
100
100
V
V
μA
μA
pF
MHz
Switching times
t
on
t
s
t
f
Turn-on time
Storage time
Fall time
I
C
=5A;R
L
=6Ω
I
B1
=- I
B2
=5mA
V
CC
=30V
0.8
6.2
1.1
μs
μs
μs
h
FE
Classifications
O
5000-12000
P
6500-20000
Y
15000-30000
JMnic
Product Specification
www.jmnic.com
Silicon NPN Darlington Power Transistors
PACKAGE OUTLINE
2SD2493

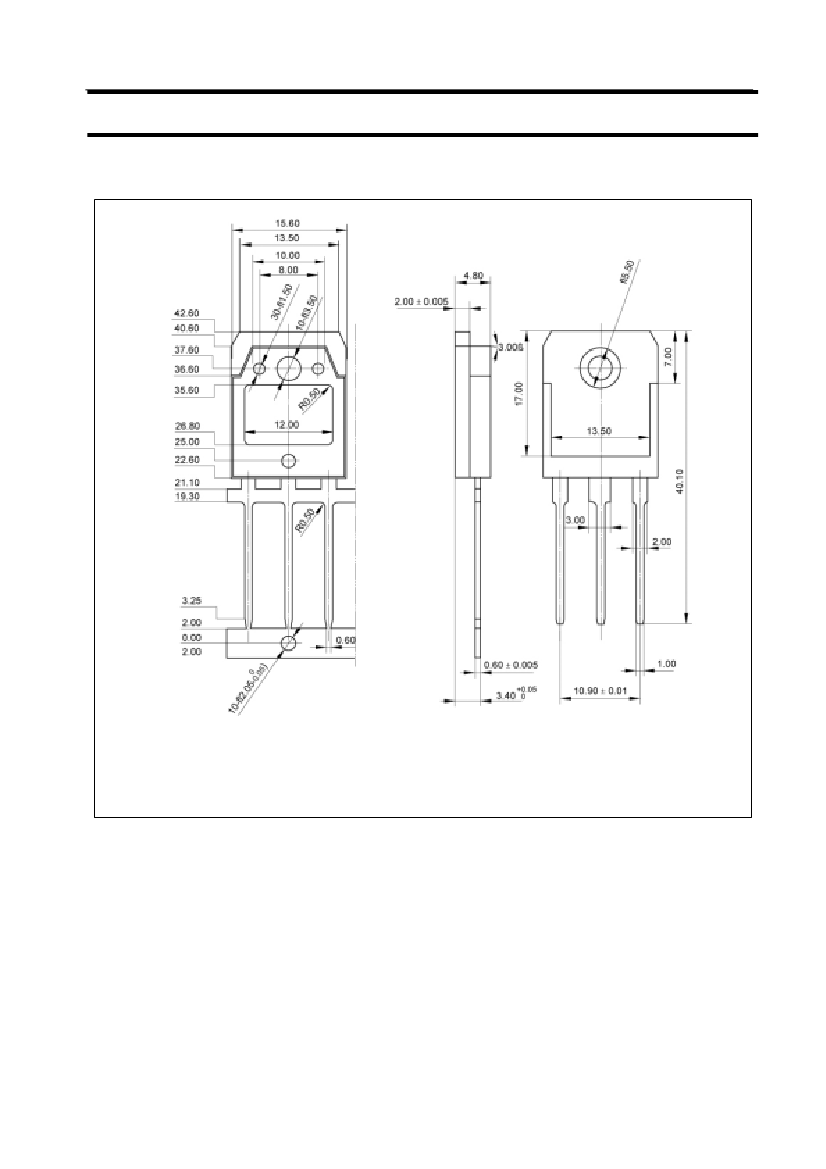

Fig.2 outline dimensions (unindicated tolerance:±0.1mm)
