CHP6013-SRF
L-band Phase Shifter
GaAs Monolithic Microwave IC
in surface mount ceramic-metal package
Description
The CHP6013 is a L-band monolithic 6-bit
phase shifter.
The circuit is manufactured with a
standard 0.7µm MESFET process: via
holes through the substrate, air bridges
and electron beam gate lithography. It is
supplied in surface mount ceramic-metal
package
Main Features
■
Frequency range : 1.2 to 1.4GHz
■
5.625° phase step
■
64 states
■
0/-6V control voltage
■
Surface mount package
3
■

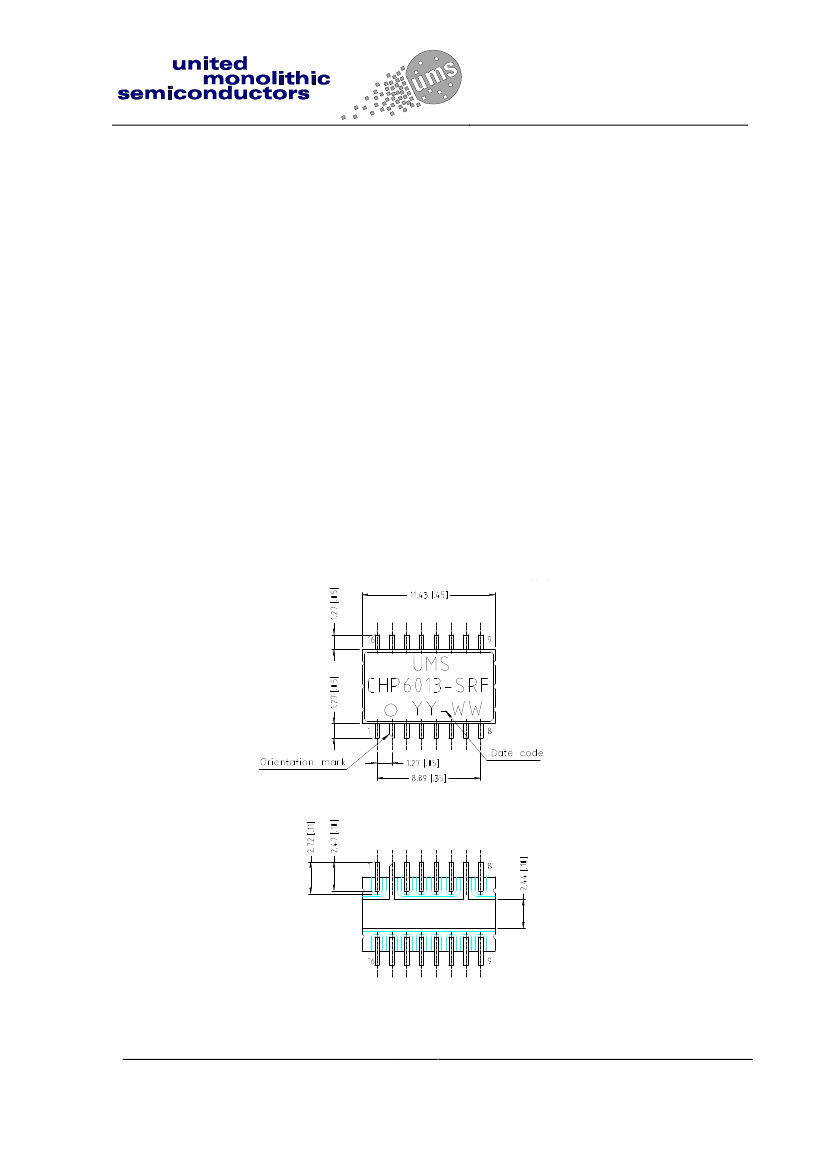

dimension: 11.43 x 8.89 x 1.9 mm

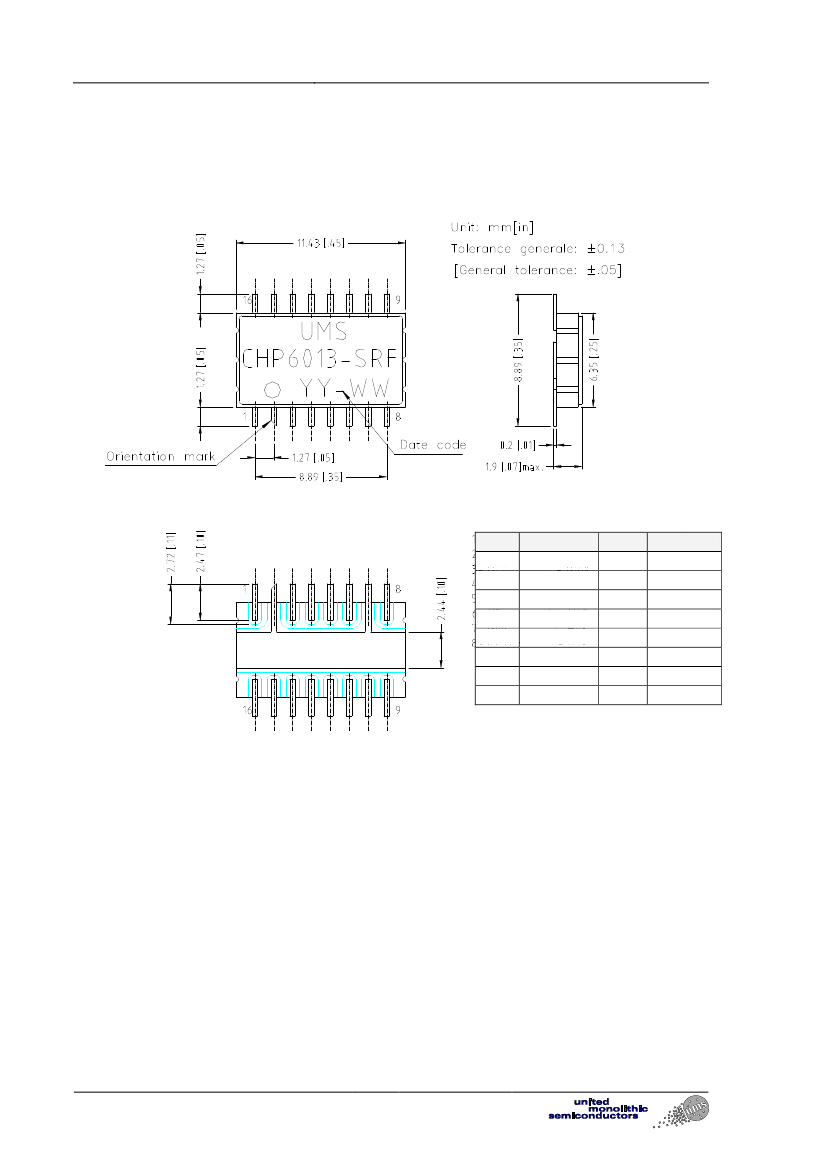

Surface mount ceramic-metal package :
Ref. : DSCHP60134254 - 10 Sep 04
1/4
Specifications subject to change without notice
United Monolithic Semiconductors S.A.S.
Route Départementale 128 - B.P.46 - 91401 Orsay Cedex France
Tel. : +33 (0)1 69 33 03 08 - Fax : +33 (0)1 69 33 03 09
CHP6013-SRF
Electrical Characteristics
•
•
•
L-band Phase Shifter
Tamb = +25°
C
Test conditions: Pin
≤
0dBm, Low level control voltage = -6V, High level control voltage = 0V
Specifications for the main bit states: 0, 1, 2, 4, 8, 16, 32 and 63
Symbol
Fop
AV
PPE
IL
ILm
Ipm
VSWRin
Parameter
Operating frequency range
Amplitude variation
Peak Phase Error
Insertion loss
Insertion loss match at state 0 unit to unit
(1)
Insertion phase match at state 0 unit to unit
(1)
Input VSWR
Min
1.2
Max
1.4
±
1
±
5
8.5
±
0.25
±
7
2:1
2.3:1
Unit
GHz
dB
°
dB
dB
°
VSWRout Ouput VSWR
(1) Average value defined by production lot.
ESD Protections : Electrostatic discharge sensitive device observe handling precautions !
Peak Phase Error (PPE) definition:
PPE(i)=measured_phase(S21)@state(i) – measured_phase(S21)@state(0) – theoretical_phase
value@state(i)
(i) = 0, 1, 2, 4, 8, 16, 32, 63 = main bit states.
Amplitude variation (AV) definition:
AV(i) = measured_dB(S21)@state(i) – measured_dB(S21)@state(0)
(i) = 0, 1, 2, 4, 8, 16, 32, 63 = main bit states.
Absolute Maximum Ratings
Tamb = +25°
C
Operation of this device above anyone of these paramaters may cause permanent damage.
Symbol
Vgi
Pin
Top
Parameter
Phase shifter control voltage
Maximum peak input power overdrive (1)
Operating temperature range
Values
-7.5
+30
-40 to +85
-55 to +125
Unit
V
dBm
°
C
°
C
Tstg
Storage temperature range
(1) Duration < 1s.
Ref. : DSCHP60134254 - 10 Sep 04
2/4
Specifications subject to change without notice
Route Départementale 128 , B.P.46 - 91401 ORSAY Cedex - FRANCE
Tel.: +33 (0)1 69 33 03 08 - Fax : +33 (0)1 69 33 03 09
L-band Phase Shifter
Phase Shifter Control Interface
CHP6013-SRF
Control voltages (V)
B45 B22 B11 B5 H18
0
0
0
0
-6
0
0
0
-6
-6
0
0
-6
0
-6
0
0
-6
-6
-6
0
-6
0
0
-6
0
-6
0
-6
-6
0
-6
-6
0
-6
0
-6
-6
-6
-6
-6
0
0
0
-6
-6
0
0
-6
-6
-6
0
-6
0
-6
-6
0
-6
-6
-6
-6
-6
0
0
-6
-6
-6
0
-6
-6
-6
-6
-6
0
-6
-6
-6
-6
-6
-6
0
0
0
0
-6
0
0
0
-6
-6
0
0
-6
0
-6
0
0
-6
-6
-6
0
-6
0
0
-6
0
-6
0
-6
-6
0
-6
-6
0
-6
0
-6
-6
-6
-6
-6
0
0
0
-6
-6
0
0
-6
-6
-6
0
-6
0
-6
-6
0
-6
-6
-6
-6
-6
0
0
-6
-6
-6
-6
0
-6
-6
-6
-6
-6
-6
0
0
0
0
0
0
0
0
-6
0
0
0
-6
0
0
0
0
-6
-6
0
0
-6
0
0
0
0
-6
0
-6
0
0
-6
-6
0
0
0
-6
-6
-6
0
-6
0
0
0
0
-6
0
0
-6
0
-6
0
-6
0
0
-6
0
-6
-6
0
-6
-6
0
0
0
-6
-6
0
-6
0
-6
-6
-6
0
0
-6
-6
-6
-6
0
0
0
0
0
0
0
0
0
-6
0
0
0
-6
0
0
0
0
-6
-6
0
0
-6
0
0
0
0
-6
0
-6
0
0
-6
-6
0
0
0
-6
-6
-6
0
-6
0
0
0
0
-6
0
0
-6
0
-6
0
-6
0
0
-6
0
-6
-6
0
-6
-6
0
0
0
-6
-6
0
-6
0
-6
-6
-6
0
0
-6
-6
-6
-6
0
3/4
The 6-bit phase shifter command is actuated by 12 voltage control leads.
BIT
STATE
0
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
52
53
54
55
56
57
58
59
60
61
62
63
Theoretical
phase state (°
)
0
5,625
11,25
16,875
22,5
28,125
33,75
39,375
45
50,625
56,25
61,875
67,5
73,125
78,75
84,375
90
95,625
101,25
106,875
112,5
118,125
123,75
129,375
135
140,625
146,25
151,875
157,5
168,75
174,375
180
185,625
191,25
196,875
202,5
208,125
213,75
219,375
225
230,625
236,25
241,875
247,5
253,125
258,75
264,375
270
275,625
281,25
286,875
292,5
298,125
303,75
309,375
315
320,625
326,25
331,875
337,5
343,125
348,75
354,375
B18
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
-6
-6
-6
-6
-6
-6
-6
-6
-6
-6
-6
-6
-6
-6
-6
-6
-6
-6
-6
-6
-6
-6
-6
-6
-6
-6
-6
-6
-6
-6
-6
-6
B90
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
-6
-6
-6
-6
-6
-6
-6
-6
-6
-6
-6
-6
-6
-6
-6
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
-6
-6
-6
-6
-6
-6
-6
-6
-6
-6
-6
-6
-6
-6
-6
-6
H90
-6
-6
-6
-6
-6
-6
-6
-6
-6
-6
-6
-6
-6
-6
-6
-6
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
-6
-6
-6
-6
-6
-6
-6
-6
-6
-6
-6
-6
-6
-6
-6
-6
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
H45
-6
-6
-6
-6
-6
-6
-6
-6
0
0
0
0
0
0
0
0
-6
-6
-6
-6
-6
-6
-6
-6
0
0
0
0
0
0
0
-6
-6
-6
-6
-6
-6
-6
-6
0
0
0
0
0
0
0
0
-6
-6
-6
-6
-6
-6
-6
-6
0
0
0
0
0
0
0
0
H22
-6
-6
-6
-6
0
0
0
0
-6
-6
-6
-6
0
0
0
0
-6
-6
-6
-6
0
0
0
0
-6
-6
-6
-6
0
0
0
-6
-6
-6
-6
0
0
0
0
-6
-6
-6
-6
0
0
0
0
-6
-6
-6
-6
0
0
0
0
-6
-6
-6
-6
0
0
0
0
H11
-6
-6
0
0
-6
-6
0
0
-6
-6
0
0
-6
-6
0
0
-6
-6
0
0
-6
-6
0
0
-6
-6
0
0
-6
0
0
-6
-6
0
0
-6
-6
0
0
-6
-6
0
0
-6
-6
0
0
-6
-6
0
0
-6
-6
0
0
-6
-6
0
0
-6
-6
0
0
H5
-6
0
-6
0
-6
0
-6
0
-6
0
-6
0
-6
0
-6
0
-6
0
-6
0
-6
0
-6
0
-6
0
-6
0
-6
-6
0
-6
0
-6
0
-6
0
-6
0
-6
0
-6
0
-6
0
-6
0
-6
0
-6
0
-6
0
-6
0
-6
0
-6
0
-6
0
-6
0
Ref. : DSCHP60134254 - 10 Sep 04
Specifications subject to change without notice
Route Départementale 128 , B.P.46 - 91401 ORSAY Cedex - FRANCE
Tel.: +33 (0)1 69 33 03 08 - Fax : +33 (0)1 69 33 03 09
CHP6013-SRF
Package information
L-band Phase Shifter
Pin
1
2
3
4
5
6
7
8
Function
RF in
Gnd
H22
B22
B5
H5
Gnd
RF out
Pin
9
10
11
12
13
14
15
16
Function
H11
B11
H180
B180
B45
H45
H90
B90
Ordering Information
Package form
:
CHP6013-SRF/23
Information furnished is believed to be accurate and reliable. However,
United Monolithic Semiconductors
S.A.S.
assumes no responsibility for the consequences of use of such information nor for any infringement of
patents or other rights of third parties, which may result from its use. No license is granted by implication or
otherwise under any patent or patent rights of
United Monolithic Semiconductors S.A.S..
Specifications
mentioned in this publication are subject to change without notice. This publication supersedes and replaces all
information previously supplied.
United Monolithic Semiconductors S.A.S.
products are not authorised for use
as critical components in life support devices or systems without express written approval from
United
Monolithic Semiconductors S.A.S.
Ref. : DSCHP60134254 - 10 Sep 04
4/4
Specifications subject to change without notice
Route Départementale 128 , B.P.46 - 91401 ORSAY Cedex - FRANCE
Tel.: +33 (0)1 69 33 03 08 - Fax : +33 (0)1 69 33 03 09
