CONSMA011-R58

Description
SMA FEMALE CABLE END CRIMP FOR RG58 CABLE
File Size110KB,1 Pages
ManufacturerETC2
Download Datasheet View All

CONSMA011-R58 Online Shopping

Suppliers Part Number Price MOQ In stock
CONSMA011-R58 - - View Buy Now

CONSMA011-R58 Overview

SMA FEMALE CABLE END CRIMP FOR RG58 CABLE

1
2
3
4
Description
Body
Socket
Insulation
Crimp Ring
D
Material
Brass
BE CU
Teflon
Brass
Finish
Nickel
Gold
Teflon
Nickel
D

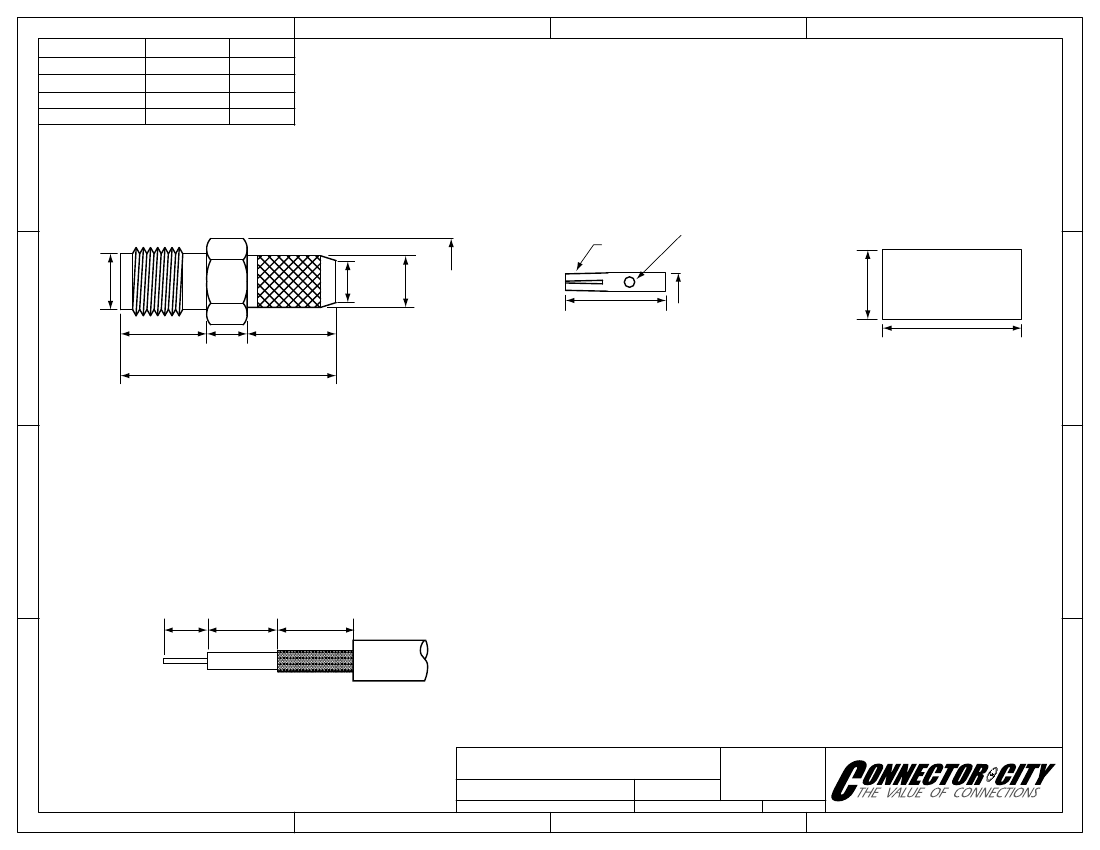

SIDE VIEW
1/4"-36UNS-2B
THREADS
Ø0.209
(5.30)
C
SOCKET
0.2x2x2 GROOVE
PIN CHUCK
Ø0.024
(0.60)
CRIMP RING
Ø0.252
(6.40)
C
Ø0.126 Ø0.177
(3.20) (4.50)
H0.248
(6.30)
0.367
(9.32)
0.252
(6.40)
0.122
(3.10)
0.650
(16.50)
0.276
(7.00)
Ø0.049
(1.25)
0.500
(12.70)
B
B
RECOMMENDED CABLE STRIPPING DIMENSIONS
0.098
(2.50)
0.077
(1.95)
0.256
(6.50)
CONSMA011-R58 ASSEMBLY INSTRUCTIONS
1.
2.
3.
Solder the socket to the center conductor.
Insert the socket, center conductor, and insulator into the body.
Wrap the braid around the tail of the body and crimp the ring with a
hex crimp tool.
RG-58 Cable
A
Title
Part No.
Dimensions:
CONNECTOR CITY
159 ORT LANE
MERLIN, OR 97532
PH (541)-471-6256
FAX (541)-471-6251
A
SMA FEMALE CABLE END
CRIMP FOR RG58 CABLE
CONSMA011-R58
INCHES (mm)
Revision:
1.0
Date:
6/2/2006
Sheet 1 of 1
