LR340-5/630: DescriptionThree Phase EMI Filter,; CategoryAnalog mixed-signal IC filter; File Size362KB，2 Pages; ManufacturerBlock USA Inc.

Download Datasheet Parametric View All

LR340-5/630 Overview

Three Phase EMI Filter,

LR340-5/630 Parametric

Parameter Name	Attribute value
Reach Compliance Code	compliant
Certification	CSA; EN; IEC; UL
filter type	THREE PHASE EMI FILTER
high	372 mm
length	480 mm
Installation type	PANEL MOUNT
working frequency	50-60Hz Hz
Maximum operating temperature	40 °C
Minimum operating temperature	-10 °C
Rated current	630 A
Rated voltage	690 V
width	155 mm

Preview

Download Datasheet

View All

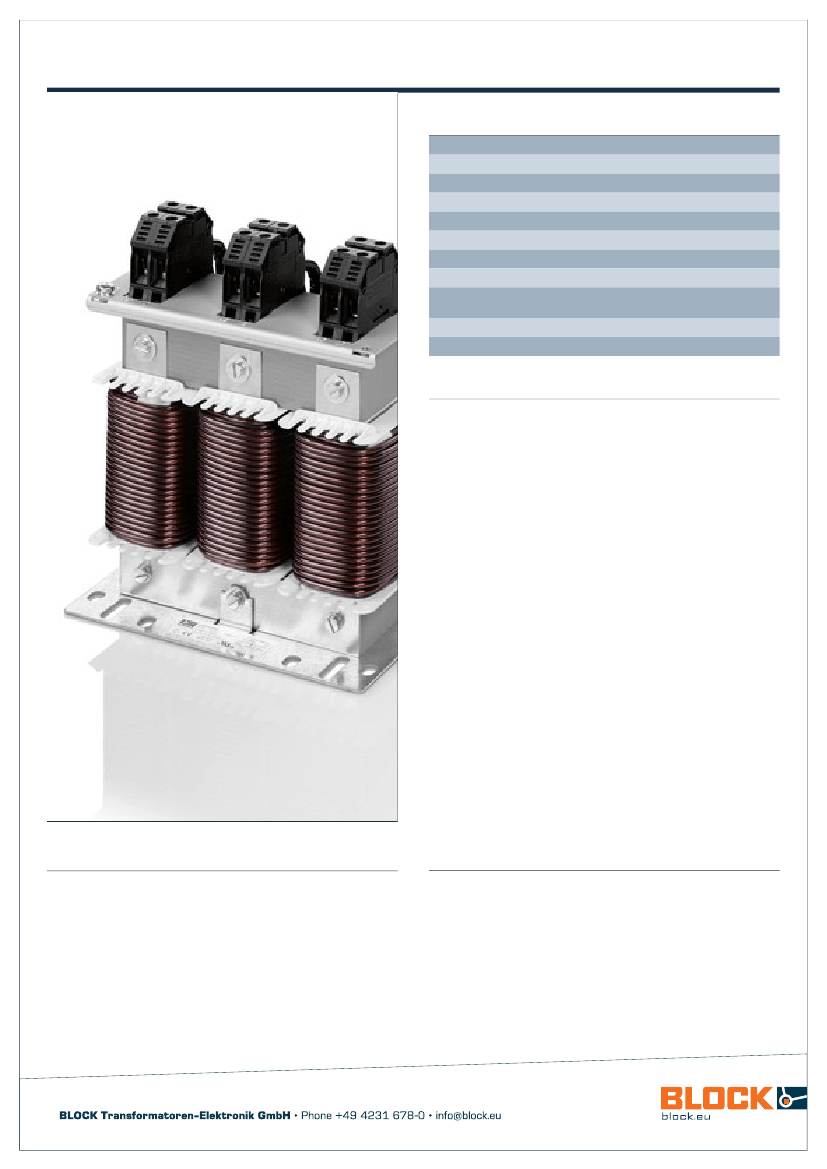

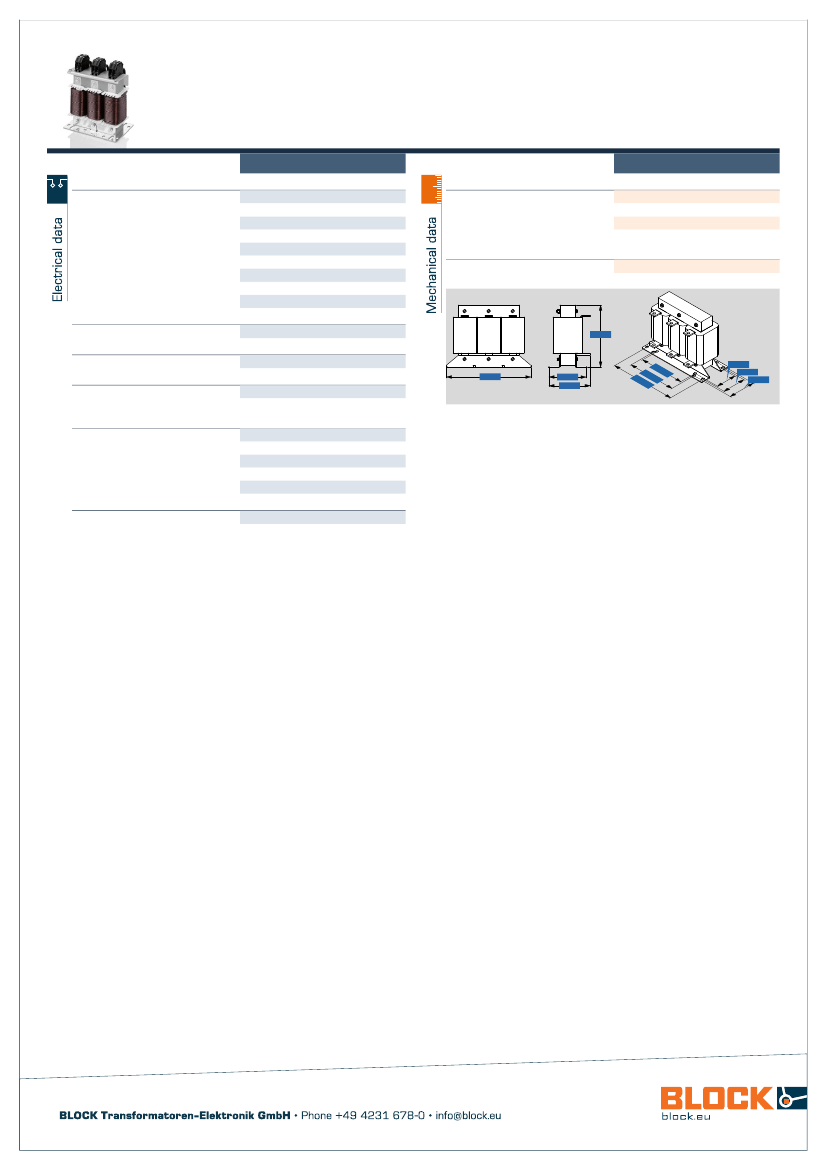

Line reactor, three-phase

LR3 40-5/630

Advantages

Use as line reactor, commutating reactor or PFC reactor

Ensuring the short-circuit voltage of 3, 4 or 5 % to the mains

Power harmonic damping

Starting current limitation

Increases the service life of consumers

Low ripple

Bridging voltage dips

Peak current limitation

Very good corrosion protection and low noise thanks to vacuum

impregnation

Integrated lifting rings

Multifunctional fixing rails

Applications

Line reactor to minimise mains pollution, to reduce the reactive-power

components and charging currents in the DC link capacitor and to improve the

cos(phi).

Picture shows LR3 40-4/63

Standards

Z

Approvals

UL 506, CSA 22.2

W ß

Z

Line- and commutation reactor to

DIN EN 61558-2-20, IEC 61558-2-20, UL 506, CSA 22.2
