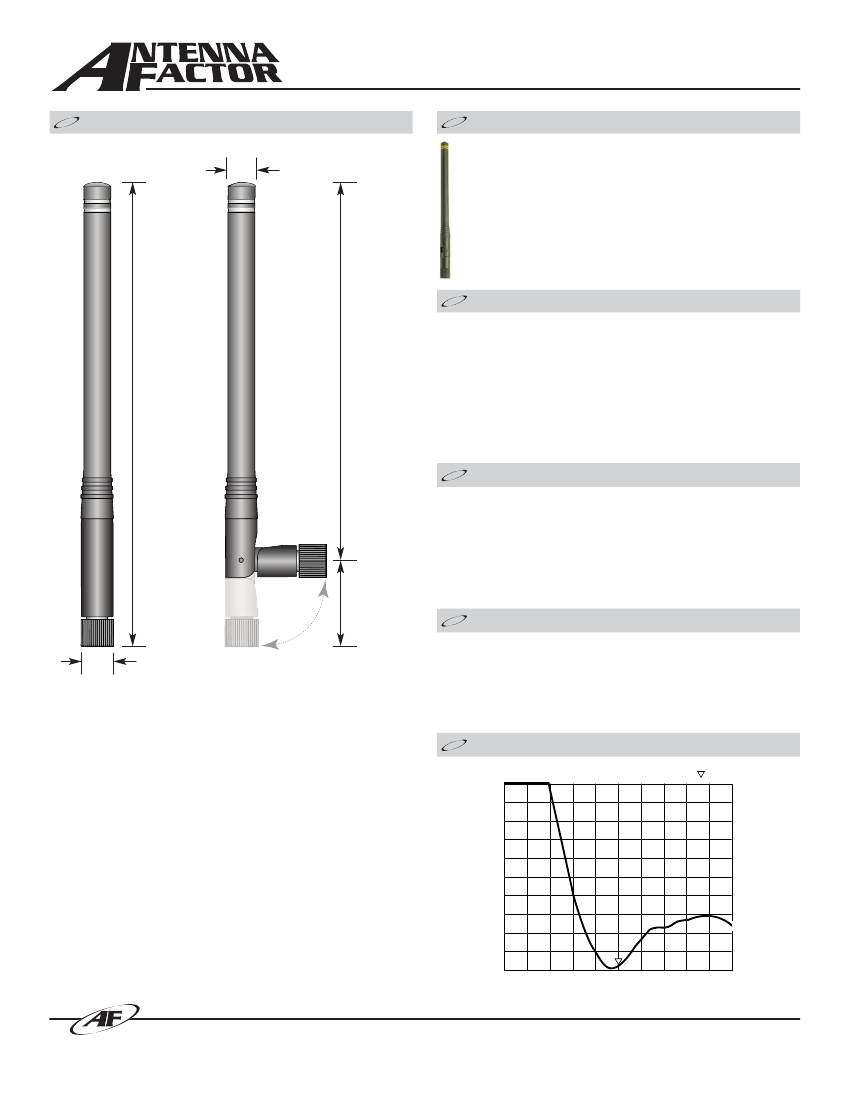

ANT-916-CW-HWR-xxx DATA SHEET
Product Dimensions
0.32”
(8.2)
Description
HWR Series 1/2-wave center-fed dipole antennas deliver
outstanding performance in a rugged and cosmetically
attractive package. The articulating base allows the
antenna to tilt 90 degrees and rotate 360 degrees. The
antenna's internal counterpoise eliminates external ground
plane dependence and maximizes performance. HWR
Series antennas attach via a standard SMA or Part 15
compliant RP-SMA connector. Custom colors and
connectors are available for volume OEM customers.
Features
•
•
•
•
•
•
•
•
•
Internal counterpoise
Low cost
Tilts and rotates
Omni-directional pattern
Outstanding VSWR
Rugged & damage-resistant
Standard SMA or Part 15 compliant RP-SMA connector
Custom colors and terminations for volume OEMs
Internal O-ring seal on connector
5.59”
(142.0)
4.57”
(116.0)
Electrical Specifications
•
•
•
•
•
•
1.02”
(26.0)
0.39”
(10.0)
Center Freq.
Recmd. Freq. Range
Wavelength
VSWR
Impedance
Connector
916MHz
900-930MHz
1/2-wave
<2.0 typ. at center
50 ohms
RP-SMA or SMA
Electrical specifications and plots measured on 4.00” x 4.00” reference ground plane
Ordering Information
•
ANT-916-CW-HWR-RPS (with RP-SMA connector)
•
ANT-916-CW-HWR-SMA (with SMA connector)
Polar Plot & Gain Information
S11 SWR
1.282
CENTER 916.000MHz
SPAN 200.000MHz
Typical VSWR
Antenna Factor
159 Ort Lane Merlin, OR 97532
www.antennafactor.com
541-956-0931 (phone) 541-471-6251 (fax)
Rev 07-26-10
