4846.SMBA.1M10.009

Description
RF SMB Connector, 1 Contact(s), Male, Board Mount, Surface Mount Terminal, Locking, Plug
CategoryThe connector    The connector

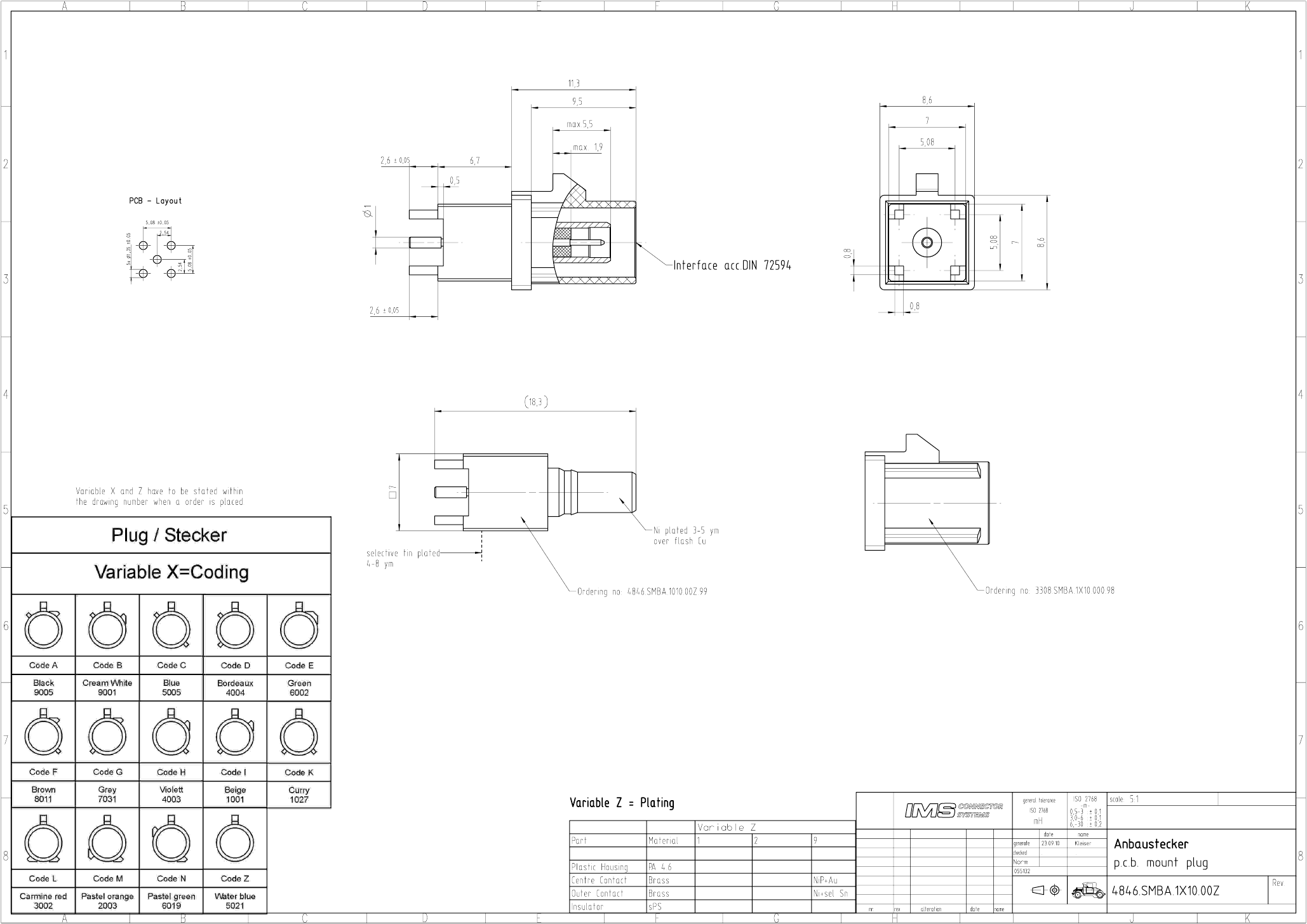

File Size424KB,1 Pages
ManufacturerIMS Connector Systems Gmbh
Download Datasheet Parametric View All

4846.SMBA.1M10.009 Overview

RF SMB Connector, 1 Contact(s), Male, Board Mount, Surface Mount Terminal, Locking, Plug

4846.SMBA.1M10.009 Parametric

Parameter NameAttribute value
Reach Compliance Codecompliant
ECCN codeEAR99
Other featuresROHS COMPLIANT
body width0.339 inch
subject depth0.445 inch
body length0.339 inch
Body/casing typePLUG
Characteristic impedance50 Ω
Connector typeRF SMB CONNECTOR
Contact to complete cooperationNOT SPECIFIED
Contact point genderMALE
Contact resistance5 mΩ
Contact styleCOAX
Coupling typeSNAP
DIN complianceNO
Dielectric withstand voltage750VDC V
Durability50 Cycles
Filter functionNO
IEC complianceNO
maximum insertion force24.9088 N
Insertion loss0.1 dB
Insulation resistance1000000000 Ω
insulator materialSPS
MIL complianceNO
Manufacturer's serial number4846.SMBA
Installation option 1LOCKING
Installation methodSTRAIGHT
Installation typeBOARD
Number of ports1
Maximum operating frequency6 GHz
Maximum operating temperature105 °C
Minimum operating temperature-40 °C
OptionsGENERAL PURPOSE
Panel mountingNO
Rated current (signal)1 A
Terminal length0.102 inch
Termination typeSURFACE MOUNT
Total number of contacts1
Evacuation force-minimum value2.0016 N
