550663U6R3AH2B datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > 550663U6R3AH2B

Preview

550663U6R3AH2B: DescriptionHigh Ripple, Long Life, Computer Grade; File Size391KB，8 Pages; ManufacturerCDE [ CORNELL DUBILIER ELECTRONICS ]

Download Datasheet View All

550663U6R3AH2B Overview

High Ripple, Long Life, Computer Grade

Preview

Download Datasheet

View All

Type 550

105 °C High Ripple, Long-life, Inverter Grade, Aluminum

High Ripple, Long Life, Computer Grade

High Value, High Ripple Current

Type 550 is the original Inverter Grade capacitor for continuous

operation at up to 105 °C and it now is available in low voltages too.

For best value its load life test is 2000 hours instead of the 5000

hours of the Type 550C. While less than half the life capability of

the Type 550C, it is lower cost and easily lasts more than 10 years

in typical industrial applications.

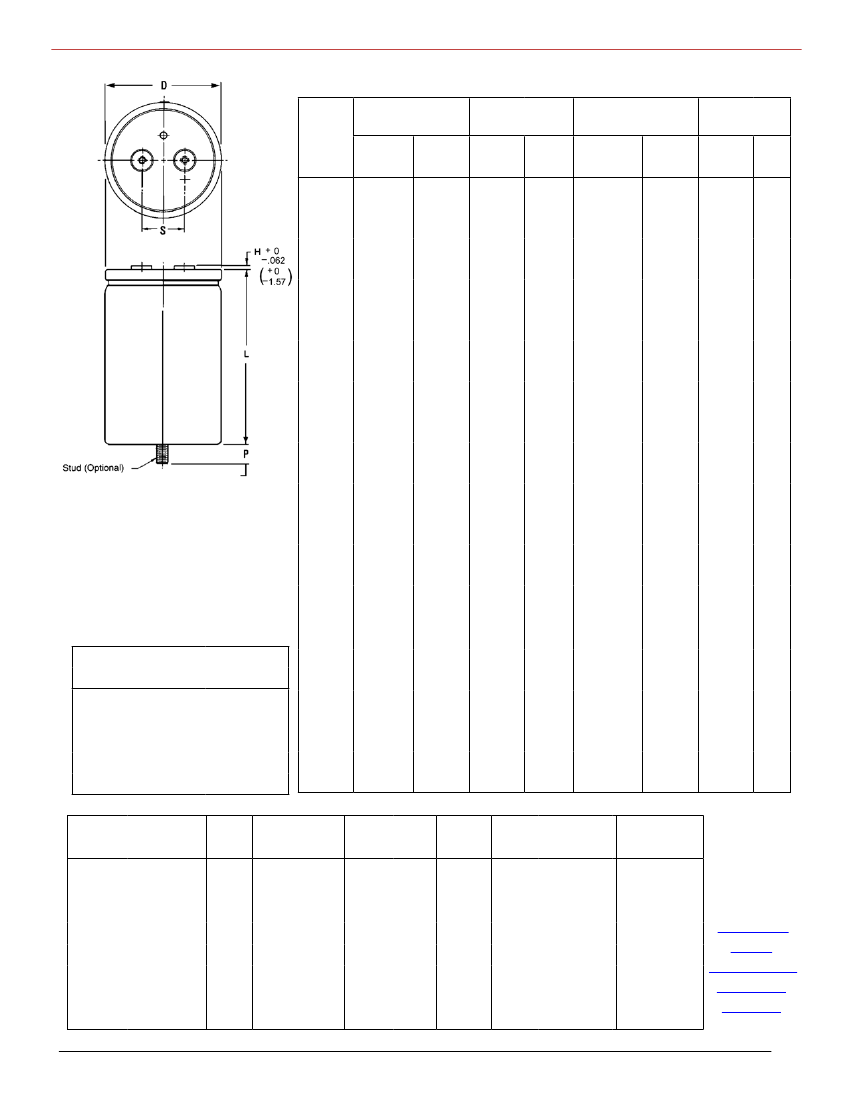

click here to see hardware and mounting options

Highlights

2,000 hour load life

Ripple current to >50 amps

ESRs to 2.5 mΩ

RoHS Compliant

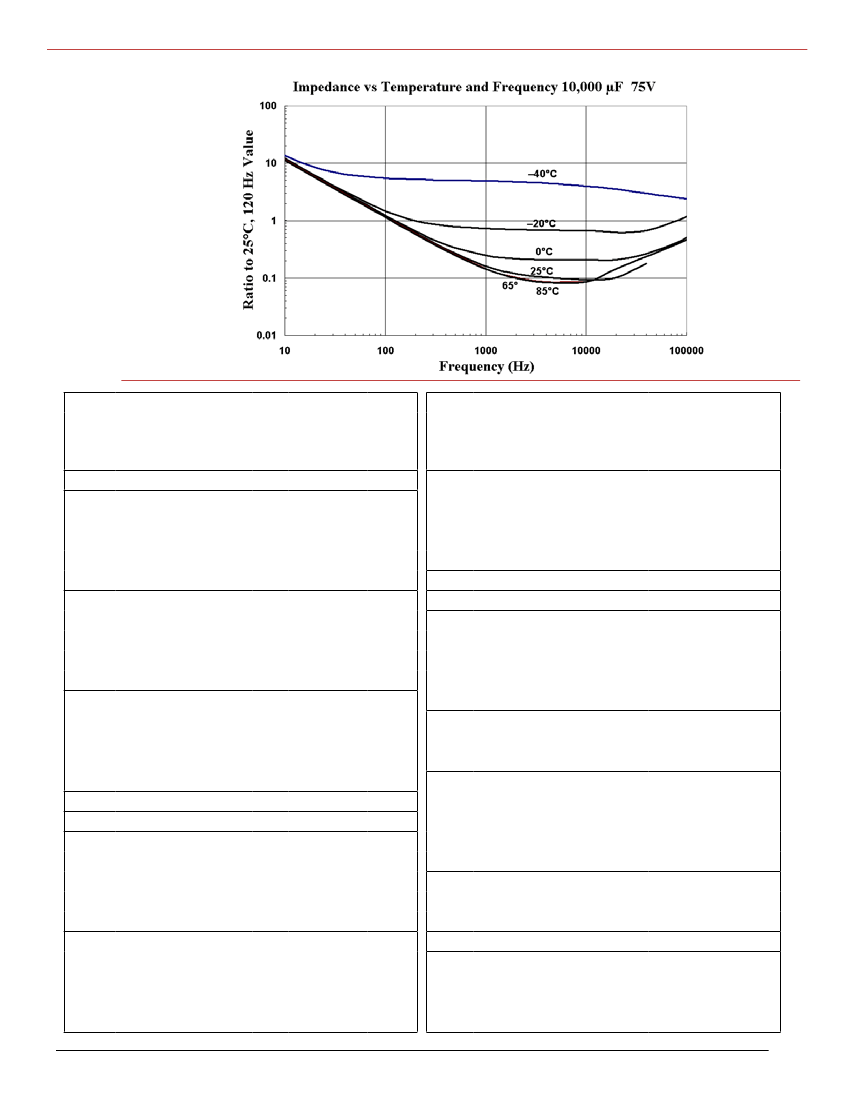

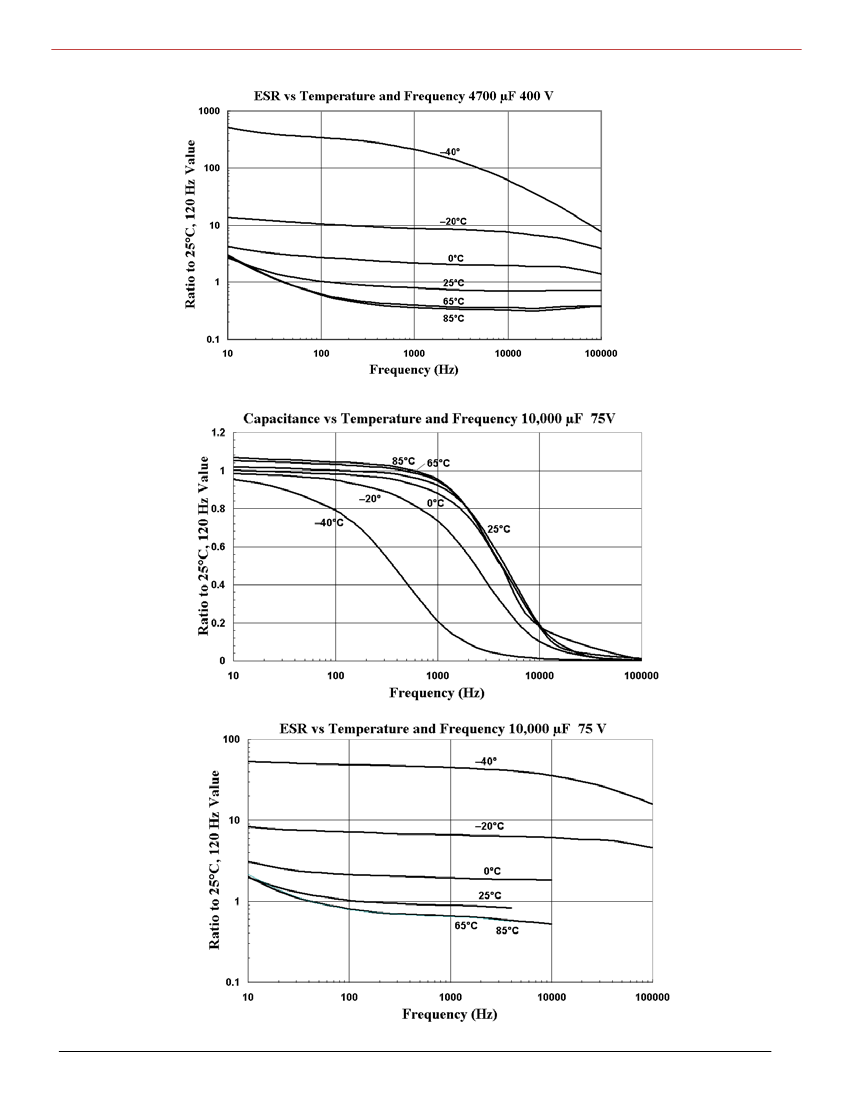

Specifications

Operating Temperature:

–40 °C to +105 °C

Rated Voltage:

6.3 to 450 Vdc

Capacitance:

90 µF to 1.5 F

Capacitance Tolerance:

Vdc ≤ 150 V: –10 +75%, Vdc > 150 V: –10 +50%

DCLeakage Current:

≤3√CV µA (4 mA max.)

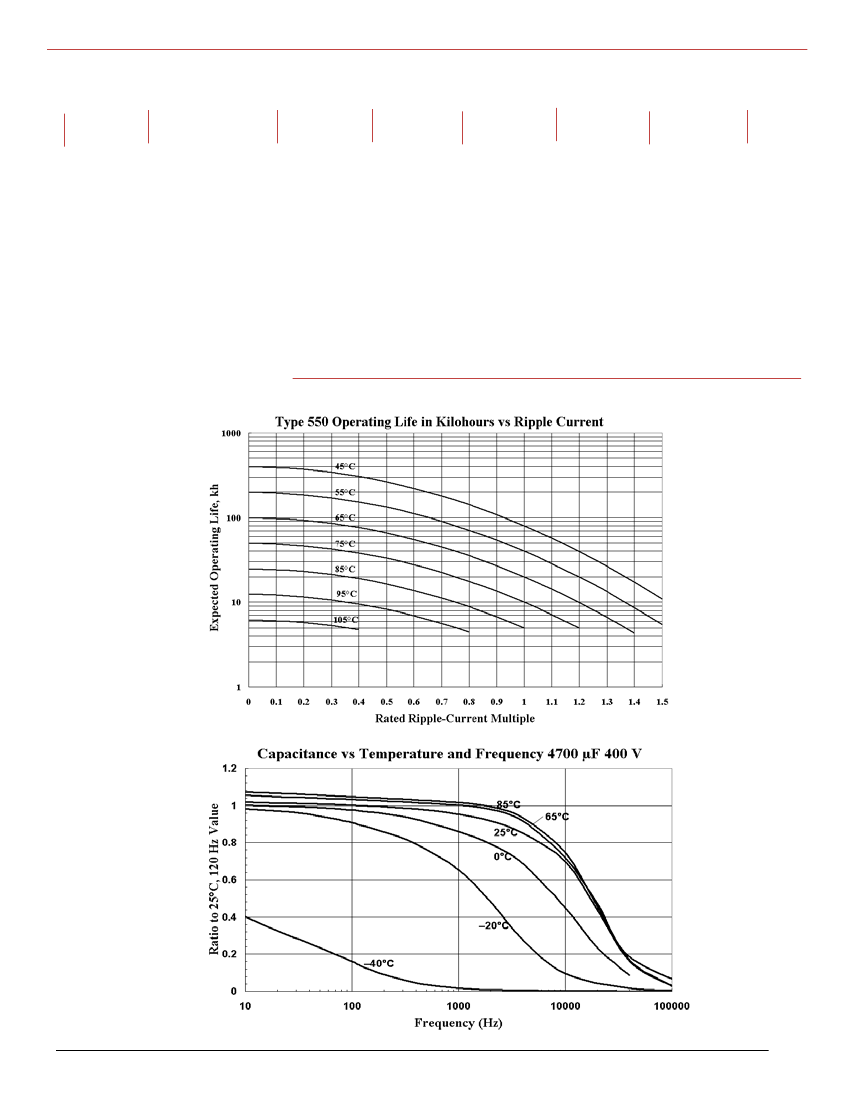

Ripple Current Multipliers:

Ambient Temperature

45 °C

1.73

55 °C

1.58

65 °C

1.41

75 °C

1.22

85 °C

1.00

95 ºC

0.71

105 ºC

0.57

•

Frequency

10 kHz

50 Hz 60 Hz 120 Hz 360 Hz 1 kHz 5 kHz @ up

1⅜ and 2 inch diameter

≤ 50 V

51–299 V

≥300 V

2½ and 3 inch diameter

≤ 50 V

51–299 V

≥300 V

Load Life:

Shelf Life:

Vibration:

0.77

0.75

0.72

0.81

0.72

0.85

0.83

0.80

0.90

0.80

1.00

1.05

1.15

1.30

1.02

1.07

1.25

1.08

1.20

1.40

1.02

1.07

1.35

1.08

1.20

1.40

1.02

1.07

1.35

1.08

1.20

1.40

1.02

1.07

1.35

2,000 h at full load @ 105 °C

500 h @ 105 °C, Capacitance, ESR and DCL, initial

requirements.

0 to 55 Hz, 0.06” and 10 g max, 1.5 h each of 2 axis

CDM Cornell Dubilier

•

140 Technology Place

•

Liberty, SC 29657

•

Phone: (864)843-2277

•

Fax: (864)843-3800

•

www.cde.com
