24.890MHZXOP90100UDT datasheet, PDF

Datasheet> All Categories > Passive components> oscillator> 24.890MHZXOP90100UDT

24.890MHZXOP90100UDT: DescriptionCMOS/TTL Output Clock Oscillator, 24.89MHz Nom, ROHS COMPLIANT, PLASTIC, SMD, 4 PIN; CategoryPassive components oscillator; File Size105KB，1 Pages; ManufacturerEuroquartz; Websitehttp://www.euroquartz.co.uk/; Environmental Compliance

Download Datasheet Parametric View All

24.890MHZXOP90100UDT Overview

CMOS/TTL Output Clock Oscillator, 24.89MHz Nom, ROHS COMPLIANT, PLASTIC, SMD, 4 PIN

24.890MHZXOP90100UDT Parametric

Parameter Name	Attribute value
Is it lead-free?	Lead free
Is it Rohs certified?	conform to
package instruction	Programmable Oscill
Reach Compliance Code	compli
Other features	ENABLE/DISABLE FUNCTION
maximum descent time	4 ns
Frequency Adjustment - Mechanical	NO
frequency stability	100%
Installation features	SURFACE MOUNT
Number of terminals	4
Nominal operating frequency	24.89 MHz
Maximum operating temperature	70 °C
Minimum operating temperature	-20 °C
Oscillator type	CMOS/TTL
Output load	50 pF
Package body material	PLASTIC/EPOXY
Encapsulate equivalent code	SMDIP4,.4,200
physical size	14.0mm x 8.65mm x 4.7mm
longest rise time	4 ns
Maximum slew rate	25 mA
Maximum supply voltage	5.25 V
Minimum supply voltage	4.75 V
Nominal supply voltage	5 V
surface mount	YES
maximum symmetry	45/55 %
Base Number Matches	1

Preview

Download Datasheet

View All

EURO

QUARTZ

Features

Very quick delivery

Industry-standard SMD package

Supply Voltage 2.7V, 3.3V or 5.0Volts

Enable/Disable or Power Down options

XOP90 Programmable Oscillators

Freq: 1.0MHz to 133.0MHz

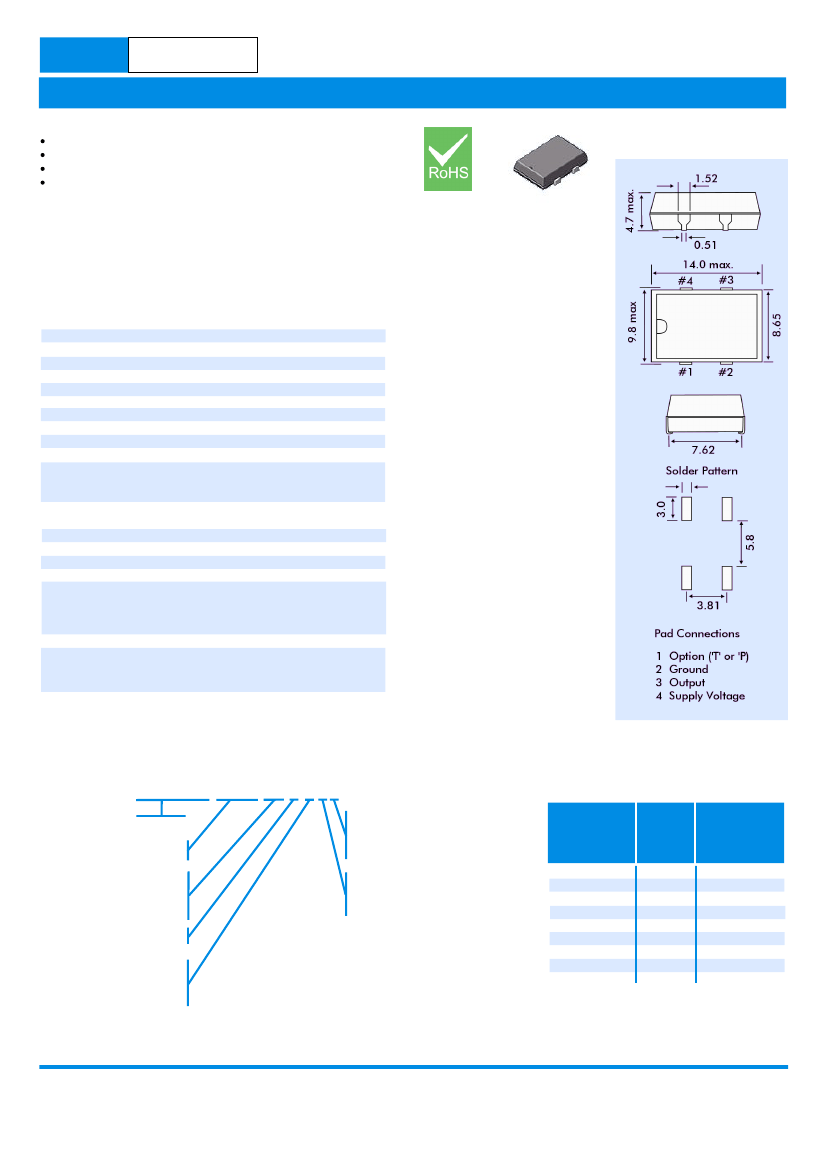

OUTLINE & DIMENSIONS

14 x 9.8mm Plastic Encapsulated SMD

Description

XOP90 programmable oscillators provide custom frequency

and specification oscillators with a very quick delivery time.

Jitter, general performance and specification is comparable

to discrete frequency oscillators.

Electrical Specification

Frequency Range:

Frequency stability:

Operating Temperature Range:

0° ~ +70°C

-20° ~ +70°C

-40° ~ +85°C

Storage Temperature Range:

Ageing:

Packaging:

Output Levels:

Maximum Output Loads:

1.000MHz ~ 133.0MHz

from ±25ppm to ±100ppm

Operating Load Conditions

Maximum Capacitive Load TTL

5.0 Volt Supply

1.0MHz to 40MHz:

40.0MHz ~ 133MHz:

50pF

25pF

Part Code 'C'

Part Code 'D'

Part Code 'I'

-55° ~ +125°C

±5ppm per year max.

Bulk packed or Tubed

CMOS or TTL

Below 40MHz: 30pF

Above 40MHz: 15pF

(See note opposite)

Duty Cycle:

Below 40MHz: 45/55% min.

Above 40MHz: 40/60% min.

Rise/Fall Times:

4ns max.

Supply Current:

25mA (unloaded)

Standby Current:

10µA typical, 50µA max.

Start-up Time:

10ms max.

Power Down and Disable Delay Time

Synchronous:

T/2ns typical, T +10ns typical

Asynchronous:

10ns typical, 15ns maximum

(T - frequency period)

Output Enable Time:

100ns maximum

RMS Jitter:

1MHz ~ 33MHz:

50ps maximum

33MHz ~ 133MHz:

40ps maximum

Maximum Capacitive Load CMOS

5.0 Volt Supply

1.0MHz to 66MHz:

50pF

66.1MHz to 133MHz: 25pF

3.3 Volt/2.7 Volt Supply

1.0MHz to 40MHz:

30pF

40.0MHz to 100MHz: 15pF

Model Selection Guide

Part Number Example: 24.890MHz XOP90100UCTA (see

Part Numbers table)

24.890MHz XOP90100 U C T A

Frequency

Series Designation

XOP90

Stability over Temp.

100 = ±100ppm

050 = ±50ppm

025 = ±25ppm

U = CMOS/TTL Output

Operating Temp. Range

C = 0° ~ +70°C

D = -20° ~ +70°C

I = -40° ~+85°C

Synchronous/Asynchronous

By default, Euroquartz produce Enable/Disable

and Power Down function oscillators as

ASYNCHRONOUS. If SYNCHRONOUS operation

is required (see above specification for details,)

append 'SYNC' to part number.

Supply Voltage

Blank = 5.0 Volts ±5%

A = +3.3 Volts ±5%

B = +2.7 Volts ±5%

Output Option

T = Enable/Disable or

P = Power Down

Part Numbers

Operating

Temperature

Range

0° ~ +70°C

-20° ~ +70°C

-40° ~ +85°C

Model

Number

XOP90100UC

XOP90050UC

XOP90025UC

XOP90100UD

XOP90050UD

XOP90025UD

XOP90100UI

XOP90050UI

XOP90025UI

Stability

±100

±50

±25

±100

±50

±25

±100

±50

±25

EUROQUARTZ LIMITED Blacknell Lane CREWKERNE Somerset UK TA18 7HE
