1A-20-1%-3W datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > Passive components> The resistor> 1A-20-1%-3W

1A-20-1%-3W: DescriptionFixed Resistor, Wire Wound, 3W, 20ohm, 200V, 1% +/-Tol, 20ppm/Cel, Through Hole Mount, AXIAL LEADED; CategoryPassive components The resistor; File Size2MB，1 Pages; ManufacturerPacific Resistor Co

Download Datasheet Parametric Compare View All

1A-20-1%-3W Overview

Fixed Resistor, Wire Wound, 3W, 20ohm, 200V, 1% +/-Tol, 20ppm/Cel, Through Hole Mount, AXIAL LEADED

1A-20-1%-3W Parametric

Parameter Name	Attribute value
Is it lead-free?	Contains lead
Is it Rohs certified?	incompatible
package instruction	AXIAL LEADED
Reach Compliance Code	unknown
ECCN code	EAR99
Other features	PRECISION
Installation features	THROUGH HOLE MOUNT
Number of terminals	2
Maximum operating temperature	275 °C
Package shape	TUBULAR PACKAGE
Rated power dissipation(P)	3 W
resistance	20 Ω
Resistor type	FIXED RESISTOR
surface mount	NO
technology	WIRE WOUND
Temperature Coefficient	20 ppm/°C
Terminal shape	WIRE
Tolerance	1%
Operating Voltage	200 V

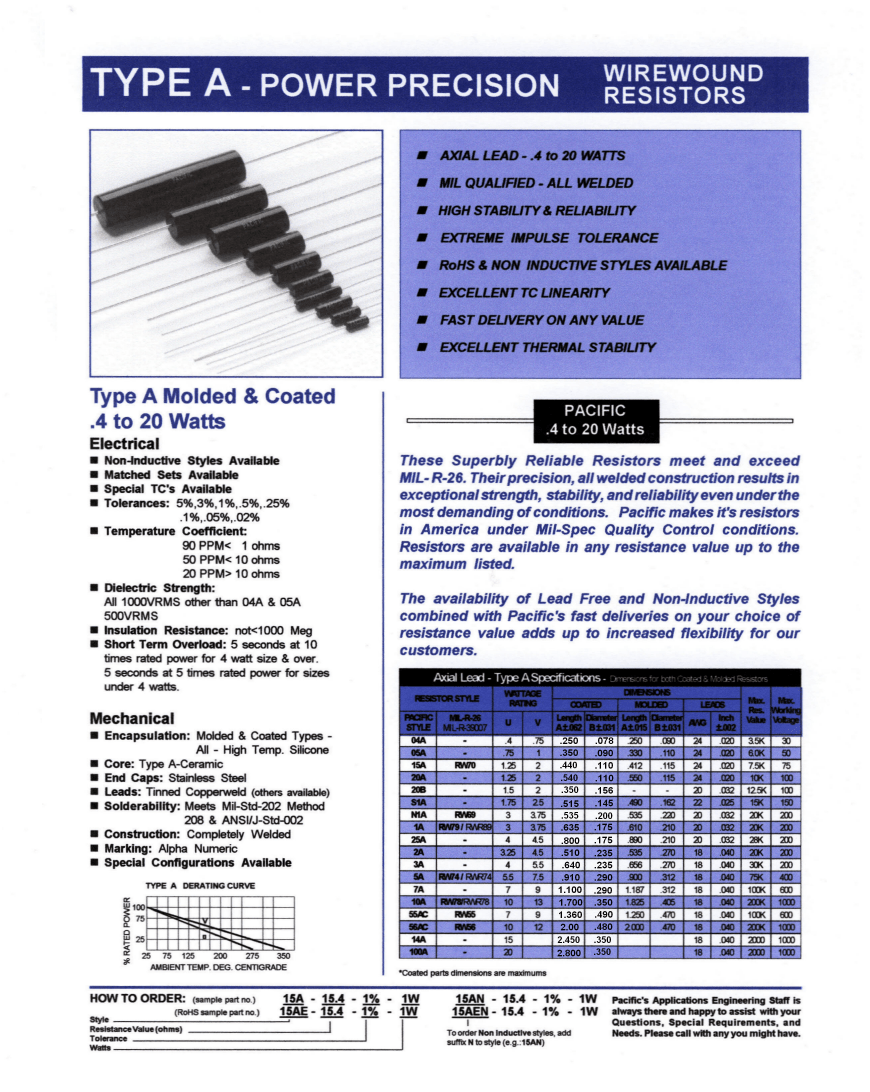

Preview

Download Datasheet

View All

1A-20-1%-3W Related Products

	1A-20-1%-3W	1A-17.5-3%-3W	1A-50-1%-3W	1A-560-1%-3W	1A-1.5K-3%-3W	1A-390-3%-3W	5A-12-3%-5W
Description	Fixed Resistor, Wire Wound, 3W, 20ohm, 200V, 1% +/-Tol, 20ppm/Cel, Through Hole Mount, AXIAL LEADED	Fixed Resistor, Wire Wound, 3W, 17.5ohm, 200V, 3% +/-Tol, 20ppm/Cel, Through Hole Mount, AXIAL LEADED	Fixed Resistor, Wire Wound, 3W, 50ohm, 200V, 1% +/-Tol, 20ppm/Cel, Through Hole Mount, AXIAL LEADED	Fixed Resistor, Wire Wound, 3W, 560ohm, 200V, 1% +/-Tol, 20ppm/Cel, Through Hole Mount, AXIAL LEADED	Fixed Resistor, Wire Wound, 3W, 1500ohm, 200V, 3% +/-Tol, 20ppm/Cel, Through Hole Mount, AXIAL LEADED	Fixed Resistor, Wire Wound, 3W, 390ohm, 200V, 3% +/-Tol, 20ppm/Cel, Through Hole Mount, AXIAL LEADED	Fixed Resistor, Wire Wound, 5.5W, 12ohm, 400V, 3% +/-Tol, 20ppm/Cel, Through Hole Mount, AXIAL LEADED
Is it lead-free?	Contains lead	Contains lead	Contains lead	Contains lead	Contains lead	Contains lead	Contains lead
Is it Rohs certified?	incompatible	incompatible	incompatible	incompatible	incompatible	incompatible	incompatible
package instruction	AXIAL LEADED	AXIAL LEADED	AXIAL LEADED	AXIAL LEADED	AXIAL LEADED	AXIAL LEADED	AXIAL LEADED
Reach Compliance Code	unknown	unknown	unknown	unknown	unknow	unknown	unknown
Other features	PRECISION	PRECISION	PRECISION	PRECISION	PRECISION	PRECISION	PRECISION
Installation features	THROUGH HOLE MOUNT	THROUGH HOLE MOUNT	THROUGH HOLE MOUNT	THROUGH HOLE MOUNT	THROUGH HOLE MOUNT	THROUGH HOLE MOUNT	THROUGH HOLE MOUNT
Number of terminals	2	2	2	2	2	2	2
Maximum operating temperature	275 °C	275 °C	275 °C	275 °C	275 °C	275 °C	275 °C
Package shape	TUBULAR PACKAGE	TUBULAR PACKAGE	TUBULAR PACKAGE	TUBULAR PACKAGE	TUBULAR PACKAGE	TUBULAR PACKAGE	TUBULAR PACKAGE
Rated power dissipation(P)	3 W	3 W	3 W	3 W	3 W	3 W	5.5 W
resistance	20 Ω	17.5 Ω	50 Ω	560 Ω	1500 Ω	390 Ω	12 Ω
Resistor type	FIXED RESISTOR	FIXED RESISTOR	FIXED RESISTOR	FIXED RESISTOR	FIXED RESISTOR	FIXED RESISTOR	FIXED RESISTOR
surface mount	NO	NO	NO	NO	NO	NO	NO
technology	WIRE WOUND	WIRE WOUND	WIRE WOUND	WIRE WOUND	WIRE WOUND	WIRE WOUND	WIRE WOUND
Temperature Coefficient	20 ppm/°C	20 ppm/°C	20 ppm/°C	20 ppm/°C	20 ppm/°C	20 ppm/°C	20 ppm/°C
Terminal shape	WIRE	WIRE	WIRE	WIRE	WIRE	WIRE	WIRE
Tolerance	1%	3%	1%	1%	3%	3%	3%
Operating Voltage	200 V	200 V	200 V	200 V	200 V	200 V	400 V
Maker	-	Pacific Resistor Co	Pacific Resistor Co	Pacific Resistor Co	Pacific Resistor Co	Pacific Resistor Co	-
