NOTE: All specifications in this datasheet are measured at an ambient temperature of 25°C, humidity<75%, nominal input voltage and at rated output load
unless otherwise specified
www.aimtec.com
F 051e R12.E
Tel: +1 514 620 2722
2 of 4
Toll free: + 1 888 9 AIMTEC
(924 6832)
North America only
Series AM1A-Z
1 Watt | DC-DC Converter
Safety Specifications
Parameters
Agency Approval & Safety
CE, UL
UL60950-1
EN 55022: 2010+AC: 2011, Class A (external reference circuit below)
EN 55024: 2010
IEC 61000-4-2: 2008
IEC 61000-4-3: 2010
IEC 61000-4-4: 2012*
IEC 61000-4-5: 2005*
IEC 61000-4-6: 2008
IEC 61000-4-8: 2009
*External filter capacitor for 5Vin 330µF/100V EEC & all other models 220µF/100V EEC

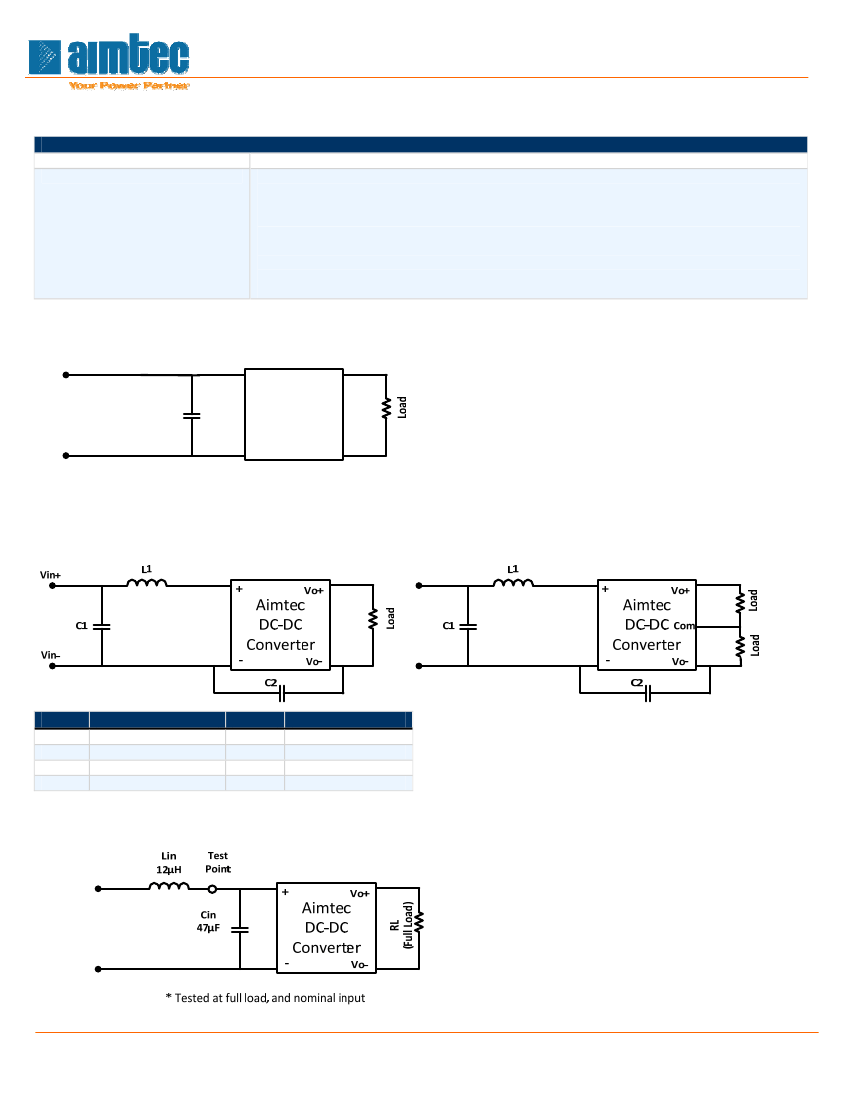

Recommended Surge Protective Circuit
Vin+
+
C1
Vin-
Aimtec
DC-DC
Converter
-
Vo+
Vo-
C1: 5V input models = 330 µF / 100V, all other models = 220 µF / 100V
Recommended Circuits for Conducted Emissions
Single Output
Dual Output
Model
5 Vin
12 Vin
24 Vin
48 Vin
C1
MLCC 4.7 µF / 50V
MLCC 4.7 µF / 50V
MLCC 4.7 µF / 50V
MLCC 4.7 µF / 100V
L1
4.7 µH
4.7 µH
18 µH
18 µH
C2
MLCC 220pF / 3kV
MLCC 220pF / 3kV
MLCC 220pF / 3kV
MLCC 220pF / 3kV
Input Reflected Ripple Test Circuit
www.aimtec.com
F 051e R12.E
Tel: +1 514 620 2722
3 of 4
Toll free: + 1 888 9 AIMTEC
(924 6832)
North America only
Series AM1A-Z
1 Watt | DC-DC Converter
Pin Out Specifications
Pin
1
2
4
5
6

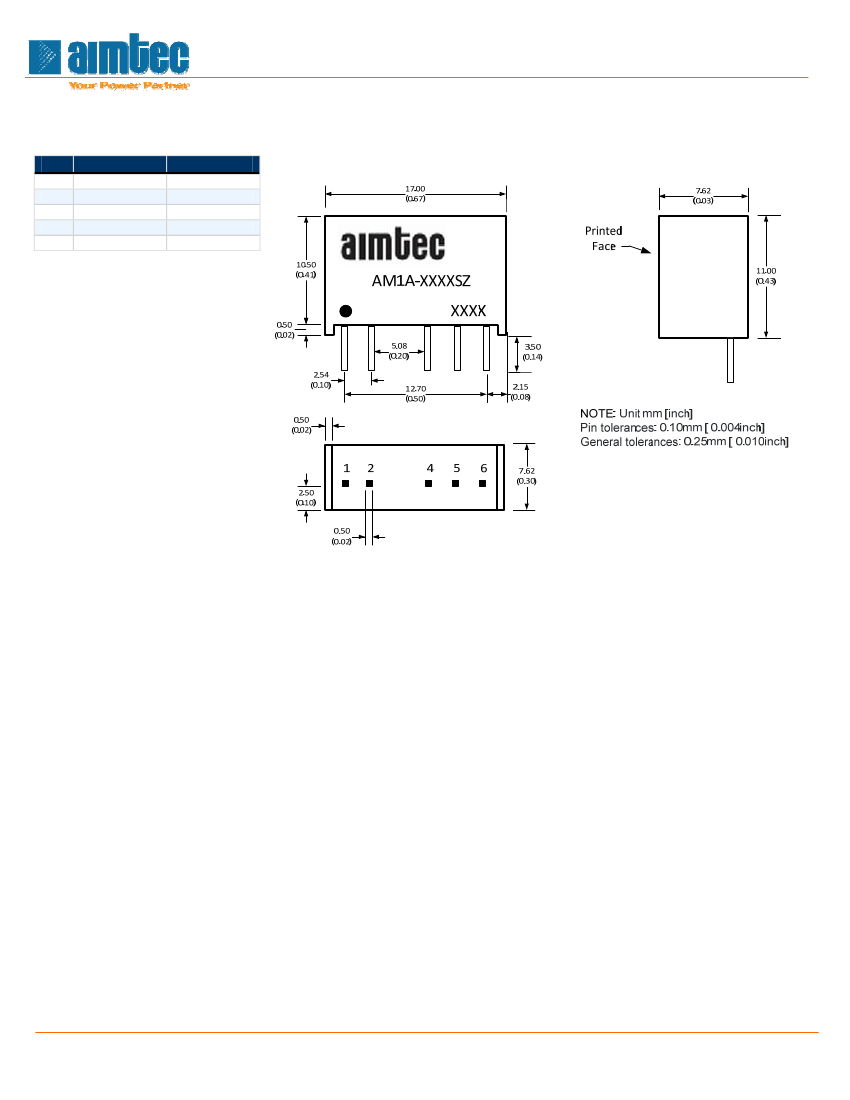

Dimensions
Single
- V Input
+ V Input
+ V Output
No pin
- V Output
Dual
- V Input
+ V Input
+ V Output
Common
- V Output
NOTE: 1.
Datasheets are updated as needed and as such, specifications are subject to change without notice. Once printed or downloaded, datasheets are no longer controlled
by Aimtec; refer to www.aimtec.com for the most current product specifications.
2.
Product labels shown, including safety agency certifications on labels, may vary based on the
date manufactured.
3.
Mechanical drawings and specifications are for reference only.
4.
All specifications are measured at an ambient temperature of 25°C, humidity<75%,
nominal input voltage and at rated output load unless otherwise specified.
5.
Aimtec may not have conducted destructive testing or chemical analysis on all internal components
and chemicals at the time of publishing this document. CAS numbers and other limited information are considered proprietary and may not be available for release.
6.
This
product is not designed for use in critical life support systems, equipment used in hazardous environments, nuclear control systems or other such applications which necessitate
specific safety and regulatory standards other the ones listed in this datasheet.
7.
Warranty is in accordance with Aimtec’s standard Terms of Sale available at www.aimtec.com.
