NICHIA STS-DA1-3562A <Cat.No.150602>
NICHIA CORPORATION
SPECIFICATIONS FOR WHITE LED
NVSW119CT
●
Pb-free Reflow Soldering Application
●
Built-in ESD Protection Device
●
RoHS Compliant
NICHIA STS-DA1-3562A <Cat.No.150602>
SPECIFICATIONS
(1) Absolute Maximum Ratings
Item
Forward Current
Pulse Forward Current
Allowable Reverse Current
Power Dissipation
Operating Temperature
Storage Temperature
Junction Temperature
Symbol
I
F
I
FP
I
R
P
D
T
opr
T
stg
T
J
Absolute Maximum Rating
1800
2400
85
5.94
-40~100
-40~100
150
Unit
mA
mA
mA
W
°C
°C
°C
* Absolute Maximum Ratings at T
S
=25°C.
* I
FP
conditions with pulse width
≤10ms
and duty cycle
≤10%.
(2) Initial Electrical/Optical Characteristics
Item
Forward Voltage
Luminous Flux
Rnn
Luminous Intensity
Color Rendering Index
Luminous Flux
R70
Luminous Intensity
Color Rendering Index
Luminous Flux
R8000
Luminous Intensity
Color Rendering Index
Chromaticity Coordinate
Thermal Resistance
* Characteristics at T
S
=25°C.
* Luminous Flux value as per CIE 127:2007 standard.
* Chromaticity Coordinates as per CIE 1931 Chromaticity Chart.
* R
θJS
is Thermal Resistance from junction to T
S
measuring point.
x
y
Symbol
V
F
Φ
v
I
v
R
a
Φ
v
I
v
R
a
Φ
v
I
v
R
a
-
-
R
θJS
Condition
I
F
=700mA
I
F
=350mA
I
F
=700mA
I
F
=350mA
I
F
=700mA
I
F
=350mA
I
F
=700mA
I
F
=700mA
I
F
=350mA
I
F
=700mA
I
F
=350mA
I
F
=700mA
I
F
=700mA
I
F
=350mA
I
F
=700mA
I
F
=350mA
I
F
=700mA
I
F
=700mA
I
F
=700mA
-
Typ
2.98
2.83
325
179
93
61
-
322
174
92
60
73
280
151
83
55
83
0.3447
0.3553
4.2
Max
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
6.4
Unit
V
lm
cd
-
lm
cd
-
lm
cd
-
-
-
°C/W
1
NICHIA STS-DA1-3562A <Cat.No.150602>
RANKS
Item
M1
Forward Voltage
L2
L1
D320
D300
Luminous Flux
D280
D260
D240
Rnn
Color Rendering Index
R70
R8000
R
a
R
a
R
a
R
9
I
F
=700mA
I
F
=700mA
I
F
=700mA
Rank
Condition
Min
3.1
2.9
2.7
320
300
280
260
240
-
70
80
0
Max
3.3
3.1
2.9
340
320
300
280
260
-
-
-
-
-
-
-
-
lm
V
Unit
Color Ranks
The color rank has a chromaticity range within a 3-step MacAdam ellipse.
Rank
sm503
Center Point
Minor Axis
Major Axis
Ellipse Rotation Angle
x
y
a
b
Φ
0.3447
0.3553
0.003555
0.008418
-31.78
Rank
sm573
0.3287
0.3417
0.003087
0.007809
-31.56
Rank
sm653
0.3123
0.3282
0.002709
0.006561
-32.35
The color rank has a chromaticity range within a 5-step MacAdam ellipse.
Rank
sm505
Center Point
Minor Axis
Major Axis
Ellipse Rotation Angle
x
y
a
b
Φ
0.3447
0.3553
0.005925
0.014030
-31.78
Rank
sm575
0.3287
0.3417
0.005145
0.013015
-31.56
Rank
sm655
0.3123
0.3282
0.004515
0.010935
-32.35
The color rank has a chromaticity range within a 7-step MacAdam ellipse.
Rank
sm507
Center Point
Minor Axis
Major Axis
Ellipse Rotation Angle
* Ranking at T
S
=25°C.
* Forward Voltage Tolerance: ±0.05V
* Luminous Flux Tolerance: ±7%
* Color Rendering Index R
a
Tolerance: ±2
* Color Rendering Index R
9
Tolerance: ±6.5
* The R
9
value for the above rank shall be greater than 0.
* Chromaticity Coordinate Tolerance: ±0.005
* LEDs from the above ranks will be shipped.
The rank combination ratio per shipment will be decided by Nichia.
x
y
a
b
Φ
0.3447
0.3553
0.008295
0.019642
-31.78
Rank
sm577
0.3287
0.3417
0.007203
0.018221
-31.56
Rank
sm657
0.3123
0.3282
0.006321
0.015309
-32.35
2
NICHIA STS-DA1-3562A <Cat.No.150602>
Luminous Flux Ranks by Color Rank, Color Rendering Index Rank
Ranking by
Luminous Flux
Ranking by
Color Coordinates,
Color Rendering Index
sm503,sm505,sm507
sm573,sm575,sm577,
sm653,sm655,sm657
Rnn,R70
R8000
R70
D240
D260
D280
D300
D320
3
NICHIA STS-DA1-3562A <Cat.No.150602>

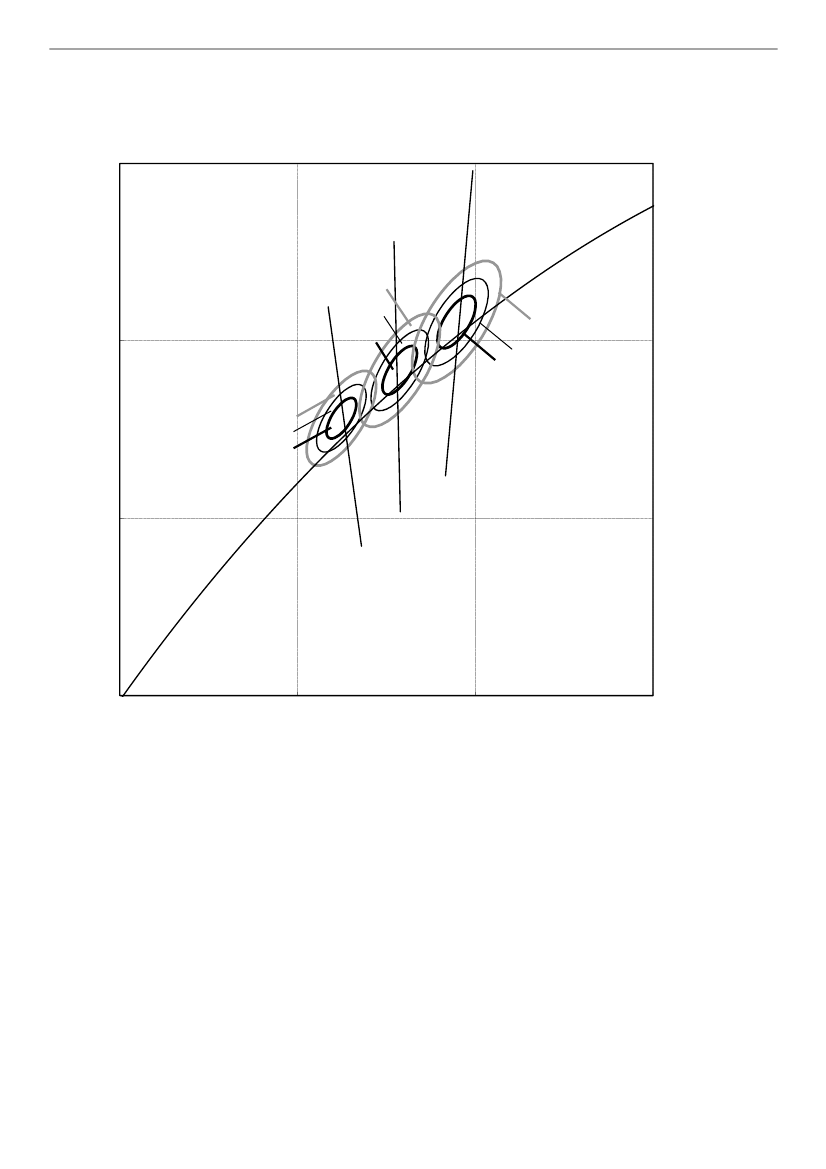

CHROMATICITY DIAGRAM
0.40
黒½放射軌跡
Blackbody Locus
sm577
sm575
0.35
sm573
sm503
sm507
sm505
sm657
sm655
sm653
5000K
0.30
5700K
6500K
y
0.25
0.25
0.30
x
0.35
0.40
4
