N Male to N Female Low Loss Test Cable 36 Inch
Length Using PE-P300LL Coax, RoHS
TECHNICAL DATA SHEET
PE331-36
Low Loss N Male to N Female Test Cable Using 83% VoP PE-P300LL Coax operating to 18 GHz
The PE330 high performance test cable’s 0.3 inch diameter and 83% phase velocity offer very low loss performance up to
18 GHz. The durable stainless steel connectors and FEP jacket provide a cost effective design ideal for test environments
where a rugged cable assembly is required. The series is offered with Type N, TNC, and SMA connectors all rated to 18
GHz. A heavy Duty boot provides improved strain relief and adds to the durability of the cable assemblies. These cable
assemblies are built using a double shielded flexible cable, providing excellent shielding effectiveness of greater than 95
dB. All PE330 cable assemblies are 100% Continuity, Hi-POT, and RF tested to published specifications. Custom lengths
are built to order and shipped same day.
•
•
•
•
•
•
•
•
83% Velocity of Propagation
Shielding effectiveness > 95 dB
Maximum VSWR is < 1.35:1 to 18 GHz
Minimum Bend Radius of 1.5 inches
Operating Temperature range of -55 to +125 °C
ROHS and REACH Compliant
Same day shipment of custom lengths
100% Continuity, Hi-Pot, and RF tested
Configuration
Connector 1
Connector 2
Connector 2 Specification
Cable Type
N Male
N Female
MIL-STD-348, Figure 304-2.
PE-P300LL
Electrical Specifications
Frequency Range, GHz
Impedance, Ohms
Maximum VSWR
Velocity of Propagation, %
RF Shielding, dB
Typical Performance by Frequency
Frequency 1
Frequency, MHz
Insertion Loss
Power Handling, KWatts
Frequency 2
Frequency, MHz
Insertion Loss
Power Handling, KWatts
400
0.03 dB/ft [0.1 dB/m ]
2.9
1000
0.05 dB/ft [0.16 dB/m ]
1.8
DC to 18
50
1.35:1
83
95
Click the following link (or enter part number in “SEARCH” on website) to obtain additional part information including price,
inventory and certifications:
N Male to N Female Low Loss Test Cable 36 Inch Length Using PE-P300LL Coax, RoHS
PE331-36
PE331-36 REV 1.0
1
N Male to N Female Low Loss Test Cable 36 Inch
Length Using PE-P300LL Coax, RoHS
TECHNICAL DATA SHEET
Frequency 3
Frequency, GHz
Insertion Loss
Power Handling, KWatts
Frequency 4
Frequency, GHz
Insertion Loss
Power Handling, KWatts
Frequency 5
Frequency, GHz
Insertion Loss
Power Handling, Watts
Frequency 6
Frequency, GHz
Insertion Loss
Power Handling, Watts
Frequency 7
Frequency, GHz
Insertion Loss
Power Handling, Watts
Electrical Specification Notes:
2
0.07 dB/ft [0.23 dB/m ]
1.2
3
0.08 dB/ft [0.26 dB/m ]
1.05
5
0.11 dB/ft [0.36 dB/m ]
850
10
0.16 dB/ft [0.52 dB/m ]
600
18
0.22 dB/ft [0.72 dB/m ]
400
Power handling values are calculated based on Cable
properties. Power handling will vary based on the actual
VSWR of the cable assembly.
PE331-36
Mechanical Specifications
Cable Assembly
Cable Type
Temperature
Temperature Operating Range, deg C
Size
Length, in [mm]
Diameter, in [mm]
.
PE-P300LL
-55 to +125
36 [914.4]
0.875 [22.23]
0.1 [45.36]
Green
1 [25.4]
Weight, lbs [g]
Cable Color
Repeated Minimum Bend Radius, in [mm]
Click the following link (or enter part number in “SEARCH” on website) to obtain additional part information including price,
inventory and certifications:
N Male to N Female Low Loss Test Cable 36 Inch Length Using PE-P300LL Coax, RoHS
PE331-36
PE331-36 REV 1.0
2
N Male to N Female Low Loss Test Cable 36 Inch
Length Using PE-P300LL Coax, RoHS
TECHNICAL DATA SHEET
Cable
Cable Inner Conductor
No of Shields
Cable Outer Conductor
Dielectric Type
Jacket Material
Jacket Diameter, in [mm]
Copper, Silver
2
Copper, Silver
PTFE
FEP
0.3 [7.62]
PE331-36
Connector 1
Type
Configuration
Inner Conductor Material and Plating
Inner Conductor Plating Specification
Outer Conductor Material and Plating
Outer Conductor Plating Specification
Coupling Nut Material and Plating
Coupling Nut Plating Specification
Hex Size, Inch
Torque, in-lbs [Nm]
Body Material and Plating
Body Plating Specification
Dielectric Type
N Male
Straight
Beryllium Copper, Gold
ASTM-B488 50µ In.
Passivated Stainless Steel
SAE-AMS-2700
Passivated Stainless Steel
SAE-AMS-2700
3/4
14 [1.58]
Passivated Stainless Steel
SAE-AMS-2700
PTFE
Connector 2
Type
Configuration
Inner Conductor Material and Plating
Inner Conductor Plating Specification
Outer Conductor Material and Plating
Outer Conductor Plating Specification
Body Material and Plating
Body Plating Specification
Dielectric Type
N Female
Straight
Beryllium Copper, Gold
ASTM-B488 50µ In.
Passivated Stainless Steel
SAE-AMS-2700
Passivated Stainless Steel
SAE-AMS-2700
PTFE
Compliance Certifications
(visit www.Pasternack.com for current document)
RoHS Compliant
Yes
Click the following link (or enter part number in “SEARCH” on website) to obtain additional part information including price,
inventory and certifications:
N Male to N Female Low Loss Test Cable 36 Inch Length Using PE-P300LL Coax, RoHS
PE331-36
PE331-36 REV 1.0
3
N Male to N Female Low Loss Test Cable 36 Inch
Length Using PE-P300LL Coax, RoHS
TECHNICAL DATA SHEET
Plotted and Other Data
Notes:
Values at 25 °C, sea level
PE331-36
N Male to N Female Low Loss Test Cable 36 Inch Length Using PE-P300LL Coax, RoHS from Pasternack Enterprises
has same day shipment for domestic and International orders. Our RF, microwave and fiber optic products maintain a 99%
availability and are part of the broadest selection in the industry.
Click the following link (or enter part number in “SEARCH” on website) to obtain additional part information including price,
inventory and certifications:
N Male to N Female Low Loss Test Cable 36 Inch Length Using PE-P300LL Coax, RoHS
PE331-36
URL:
http://www.pasternack.com/n-male-n-female-pe-p300ll-cable-assembly-pe331-36-p.aspx
PE331-36 REV 1.0
4
N Male to N Female Low Loss Test Cable 36 Inch Length Using PE-P300LL Coax, RoHS
PE331-36

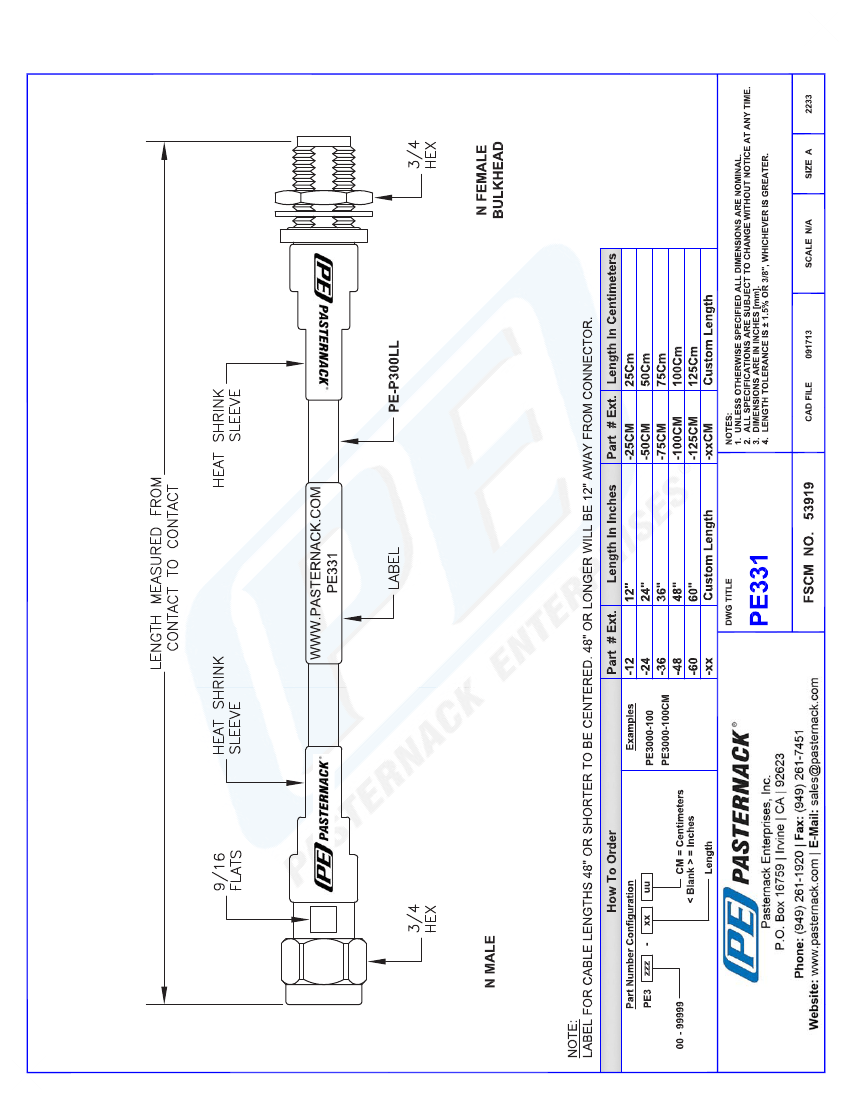

CAD Drawing
© 2013 Pasternack Enterprises All Rights Reserved
PE331-36 REV 1.0
5
