3.5 dB NF, 13.5 dBm P1dB, 26.5 GHz to 40 GHz, Low
Noise Broadband Amplifier, 22 dB Gain, 22 dBm IP3, K
TECHNICAL DATA SHEET
PE15A3261
The PE15A3261 is a 13.5 dBm power amplifier designed for operation in the 26.5 GHz to 40 GHz frequency range. The
amplifier provides an IP3 of 22 dBm Typ and 22 dB of Gain Min over the operating frequency range. The amplifier requires
only +12 VDC power supply.
Features
•
26.5 GHz to 40 GHz Frequency Range
•
P1dB 13.5 dBm min.
•
IP3 22 dBm typ.
•
Gain 22 dB typ.
•
Gain Flatness +/-0.75 dB
Applications
•
Medium Power Amplifier
•
Driver Amp
•
Military Communications
•
Test & Measurement

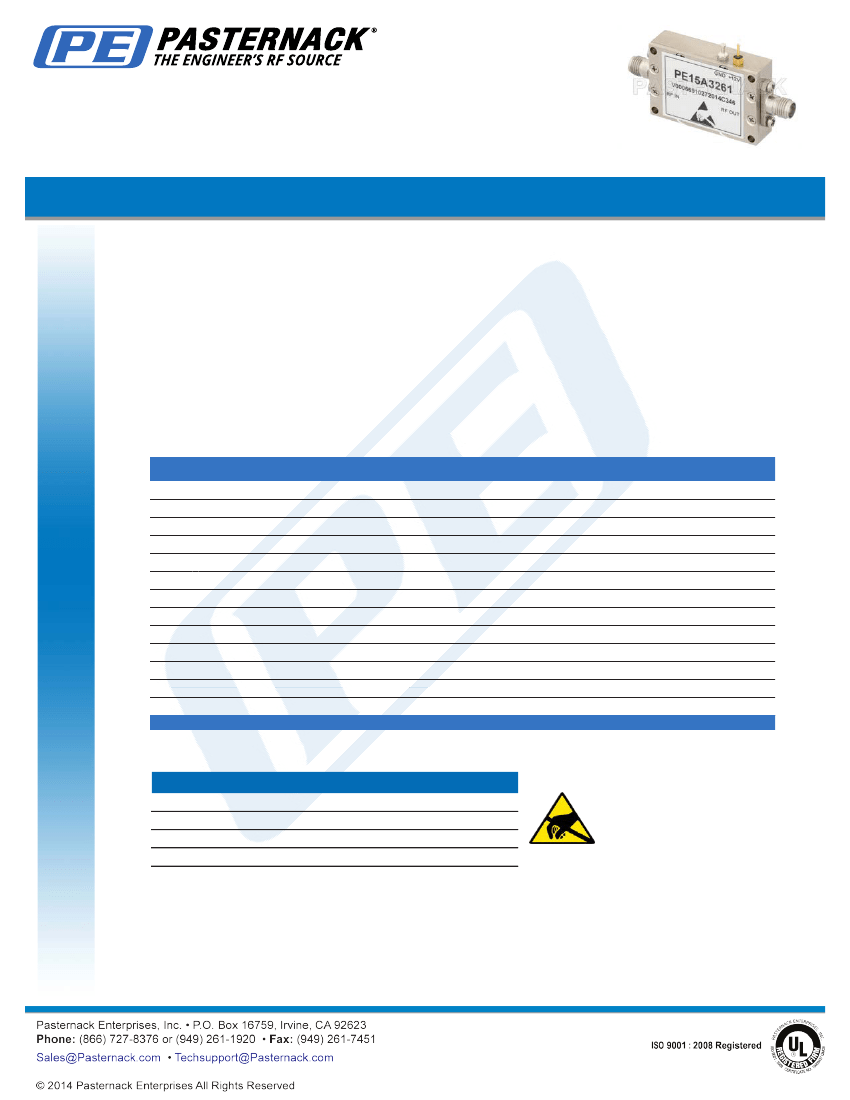

Electrical Specifications
(TA = +25°C, DC Voltage = 12Volts, DC Current = 125mA)
Description
Frequency Range
Gain
Gain Flatness
Output at 1 dB Compression Point
Output 3
rd
Intercept Point
Reverse Isolation
Spurious
Noise Figure
Input VSWR
Output VSWR
Operating DC Voltage
Operating DC Current
Operating Temperature Range (OTR)
..
8
110
-40
+12
+20
Minimum
26.5
20
Typical
22
±0.75
+13.5
+22
45
-60
3.5
1.7:1
1.7:1
12
125
Maximum
40
25
±1.25
Units
GHz
dB
dB
dBm
dBm
dB
dBc
4.5
2.5:1
2.5:1
15
150
+75
dB
Volts
mA
°C
Absolute Maximum Rating
Parameter
Source Voltage
RF input Power
Operating Temperature (base-plate)
Storage Temperature
Rating
+18
+10
-40 to +75
-55 to +125
Units
Volts
dBm
°C
°C
ESD Sensitive Material,
Transport material in
Approved ESD bags.
Handle only in approved
ESD Workstation.
.
Click the following link (or enter part number in “SEARCH” on website) to obtain additional part information including price,
inventory and certifications:
3.5 dB NF, 13.5 dBm P1dB, 26.5 GHz to 40 GHz, Low Noise Broadband Amplifier, 22 dB
Gain, 22 dBm IP3, K
PE15A3261
PE15A3261 REV 1.0
1
3.5 dB NF, 13.5 dBm P1dB, 26.5 GHz to 40 GHz, Low
Noise Broadband Amplifier, 22 dB Gain, 22 dBm IP3, K
TECHNICAL DATA SHEET
Environmental Specifications
Temperature
Operating Range
Storage Range
.
PE15A3261
-40 to +75 deg C
-45 to +125 deg C
Compliance Certifications
(visit www.Pasternack.com for current document)
RoHS Compliant
Plotted and Other Data
Notes:
•
Values at +25 °C, sea level
•
ESD Sensitive Material, Transport material in Approved ESD bags. Handle only in approved ESD Workstation.
Click the following link (or enter part number in “SEARCH” on website) to obtain additional part information including price,
inventory and certifications:
3.5 dB NF, 13.5 dBm P1dB, 26.5 GHz to 40 GHz, Low Noise Broadband Amplifier, 22 dB
Gain, 22 dBm IP3, K
PE15A3261
PE15A3261 REV 1.0
2
3.5 dB NF, 13.5 dBm P1dB, 26.5 GHz to 40 GHz, Low
Noise Broadband Amplifier, 22 dB Gain, 22 dBm IP3, K
TECHNICAL DATA SHEET

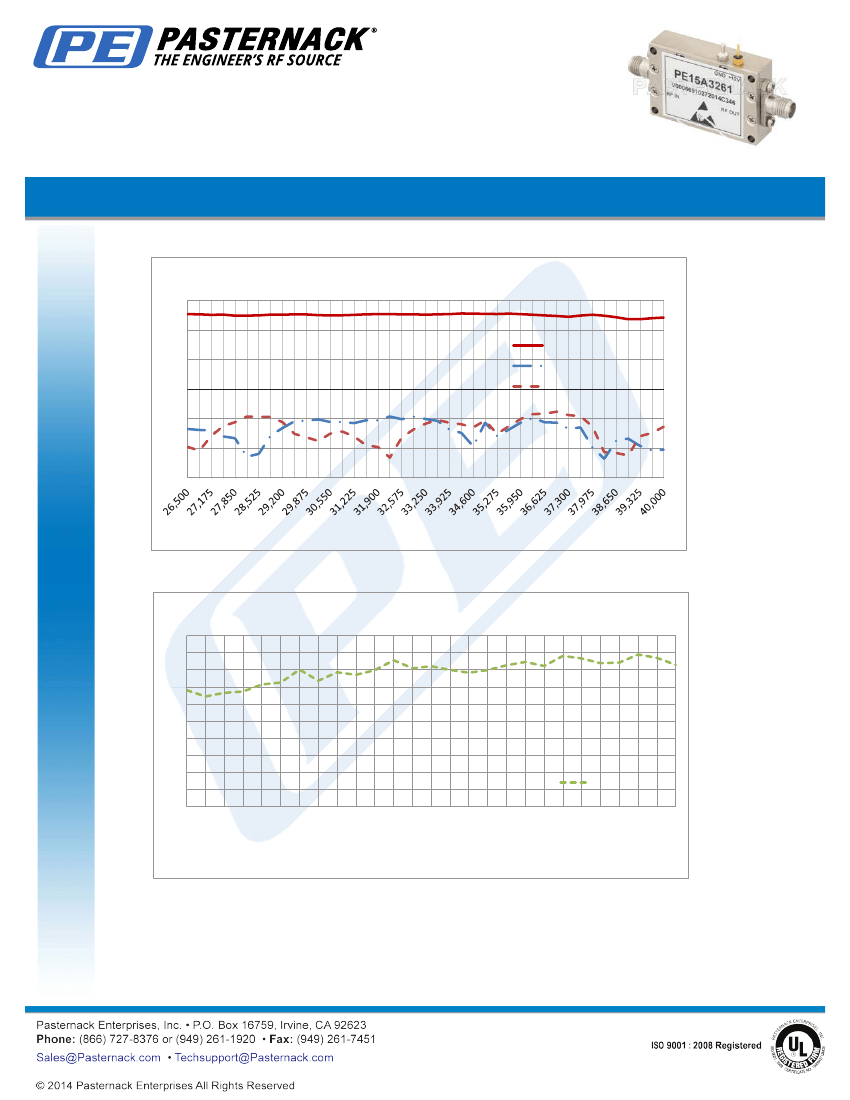

Typical Performance Data
PE15A3261
dB
30
20
10
0
-10
-20
-30
Gain, Input Return Loss and Output Return Loss
Gain(dB) 25 C
IN_Return Loss(dB)
OUT_Return Loss(dB)
Freq.(MHz)
dB
5
4.5
4
3.5
3
2.5
2
1.5
1
0.5
0
Noise Figure
Noise Figure
27,000
31,500
35,500
Freq.(MHz)
Click the following link (or enter part number in “SEARCH” on website) to obtain additional part information including price,
inventory and certifications:
3.5 dB NF, 13.5 dBm P1dB, 26.5 GHz to 40 GHz, Low Noise Broadband Amplifier, 22 dB
Gain, 22 dBm IP3, K
PE15A3261
PE15A3261 REV 1.0
40,000
27,500
28,000
28,500
29,000
29,500
30,000
30,500
31,000
32,000
32,500
33,000
33,500
34,000
34,500
35,000
36,000
36,500
37,000
37,500
38,000
38,500
39,000
39,500
3
3.5 dB NF, 13.5 dBm P1dB, 26.5 GHz to 40 GHz, Low
Noise Broadband Amplifier, 22 dB Gain, 22 dBm IP3, K
TECHNICAL DATA SHEET
PE15A3261
3.5 dB NF, 13.5 dBm P1dB, 26.5 GHz to 40 GHz, Low Noise Broadband Amplifier, 22 dB Gain, 22 dBm IP3, K from Pasternack
Enterprises has same day shipment for domestic and International orders. Our RF, microwave and millimeter wave products
maintain a 99% availability and are part of the broadest selection in the industry.
Click the following link (or enter part number in “SEARCH” on website) to obtain additional part information including price,
inventory and certifications:
3.5 dB NF, 13.5 dBm P1dB, 26.5 GHz to 40 GHz, Low Noise Broadband Amplifier, 22 dB Gain,
22 dBm IP3, K
PE15A3261
URL:
http://www.pasternack.com/4.5-db-40-ghz-low-noise-broadband-amplifier-22-db-gain-k-pe15a3261-p.aspx
PE15A3261 REV 1.0
4
3.5 dB NF, 13.5 dBm P1dB, 26.5 GHz to 40 GHz, Low Noise
Broadband Amplifier, 22 dB Gain, 22 dBm IP3, K
PE15A3261

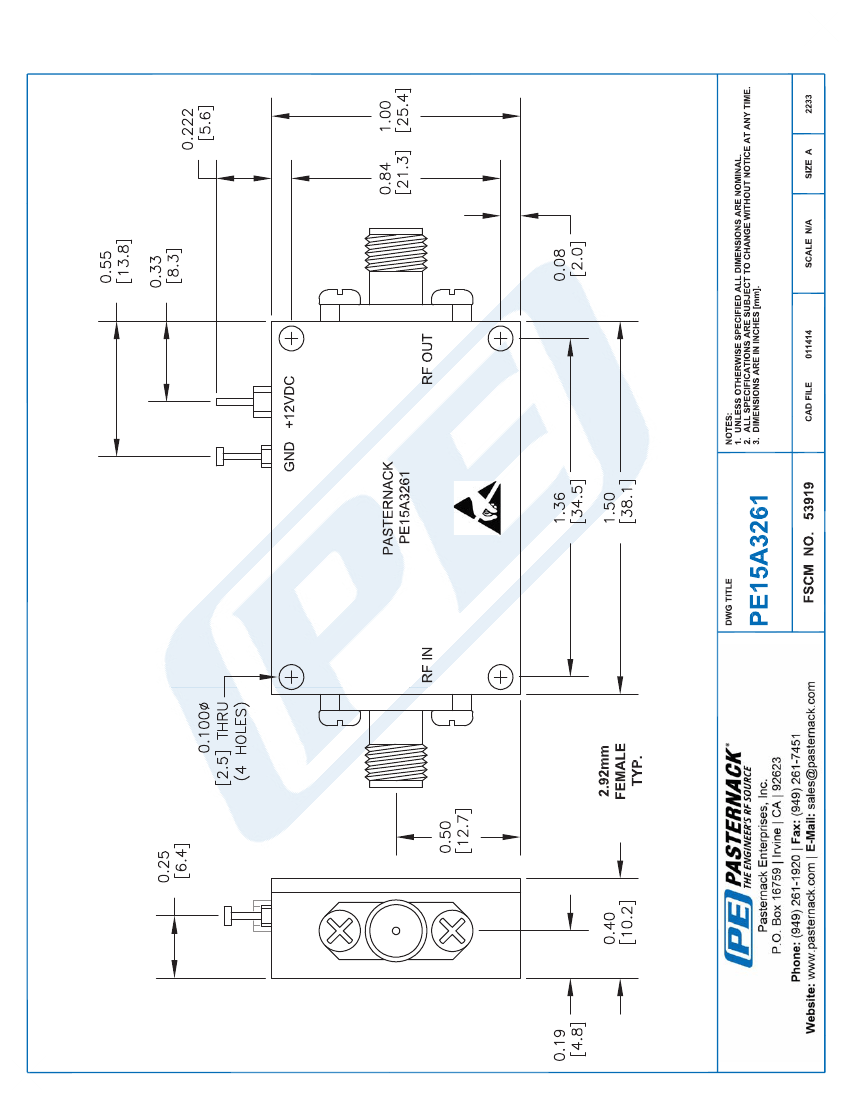

CAD Drawing
© 2013 Pasternack Enterprises All Rights Reserved
PE15A3261 REV 1.0
