N Female Bulkhead to UMCX 2.5 Plug
Cable Using RG178 Coax, RoHS
TECHNICAL DATA SHEET
PE3CA1011
Pasternack’s UMCX 2.5 series ultra-miniature coaxial cable assemblies (also called 2.5mm UMCX) have a mated connection
height of only 2.5mm. They are constructed using a flexible micro-coax cable and are compatible with ultra-miniature products
from companies such as Hirose, IPEX, and other UMCX connector and cable manufactures. Our UMCX 2.5 plug connectors
are comparable in design to the Hirose U.FL series of connectors and the IPEX MHF series connectors. Pasternack also
provides three additional connector options for our between-series 0.81mm micro-coax jumper cables including UMCX 2.5,
WMCX 1.6 and HMCX32 1.2 low profile connectors with differing form factors and mated heights.
Our UMCX 2.5 between series cables can be ordered with Female Bulkhead versions of SMA, Reverse Polarity SMA and
Type N connectors as well as an SMA Male option. These cables provide a convenient connector interface for applications
that require and RF signal to be routed to an external RF component such as an antenna or to provide a test point for the RF
printed circuit board. Other coax cable options include 1.13mm, 1.37mm, RG178, and RG178-DS (double shielded). These
U.FL and MHF compatible UMCX 2.5 cable assemblies are available from stock in standard lengths, and custom lengths are
available upon request. Standard length UMCX 2.5 cables ship the same day they are ordered.
Features
•
1.2mm, 1.6mm, 2.1mm and 2.5mm mated assembly
height’s
•
Operate from DC to 6GHz
•
100% RF and Continuity tested
•
Compatible with Hirose U.FL and IPEX MHF products
•
Available in 0.81mm, 1.13mm, 1.37mm, RG178 and
RG178-DS shielded coax
•
Small foot print with easy snap on/off mating
Applications
•
Wireless LAN, Mini PCI
•
Mobile Antenna/GPS/Radio
Systems
•
PDA/PCS/Cellular Handset
applications
• Wireless Communications
systems (LAN,GSM,PCS,
WCDMA, UMTS)
Configuration
Connector 1
Connector 2
Cable Type
N Female Bulkhead
UMCX 2.5 Plug
RG178
Electrical Specifications
Frequency Range
Impedance
Max VSWR
DC to 3 GHz
50 Ohms
1.35:1
Performance by Frequency
Frequency 1
Frequency
VSWR
Return Loss
Insertion Loss
Frequency 2
Frequency
VSWR
250 MHz
1.35:1
16.54 dB
0.44 dB/ft [1.44 dB/m]
500 MHz
1.35:1
Click the following link (or enter part number in “SEARCH” on website) to obtain additional part information including price,
inventory and certifications:
N Female Bulkhead to UMCX 2.5 Plug Cable Using RG178 Coax, RoHS PE3CA1011
PE3CA1011 REV 1.1
1
N Female Bulkhead to UMCX 2.5 Plug
Cable Using RG178 Coax, RoHS
TECHNICAL DATA SHEET
Return Loss
Insertion Loss
Frequency 3
Frequency
VSWR
Return Loss
Insertion Loss
Frequency 4
Frequency
VSWR
Return Loss
Insertion Loss
Frequency 5
Frequency
VSWR
Return Loss
Insertion Loss
16.54 dB
0.54 dB/ft [1.77 dB/m]
1000 MHz
1.35:1
16.54 dB
0.74 dB/ft [2.43 dB/m]
2.5 GHz
1.35:1
16.54 dB
0.95 dB/ft [3.12 dB/m]
3 GHz
1.35:1
16.54 dB
1.08 dB/ft [3.54 dB/m]
PE3CA1011
Mechanical Specifications
Temperature
Temperature Operating Range
Size
.
-55 to +125 deg C
Cable
Cable Type
Inner Conductor Type
Cable Inner Conductor
No of Shields
Cable Outer Conductor 1
Dielectric Type
Jacket Material
Jacket Diameter
Connector 1
Type
Configuration
Mount Method
Inner Conductor Material and Plating
Body Material and Plating
Connector 2
Type
RG178
Stranded
Copper, Silver
1
Tinned Copper
FEP
FEP
0.07 in [1.78 mm]
N Female Bulkhead
Straight
Bulkhead
Phosphor Bronze, Gold
Brass, Nickel
UMCX 2.5 Plug
Click the following link (or enter part number in “SEARCH” on website) to obtain additional part information including price,
inventory and certifications:
N Female Bulkhead to UMCX 2.5 Plug Cable Using RG178 Coax, RoHS PE3CA1011
PE3CA1011 REV 1.1
2
N Female Bulkhead to UMCX 2.5 Plug
Cable Using RG178 Coax, RoHS
TECHNICAL DATA SHEET
Configuration
Straight
PE3CA1011
Compliance Certifications
(visit www.Pasternack.com for current document)
RoHS Compliant
REACH Compliant
Yes
12/19/2011

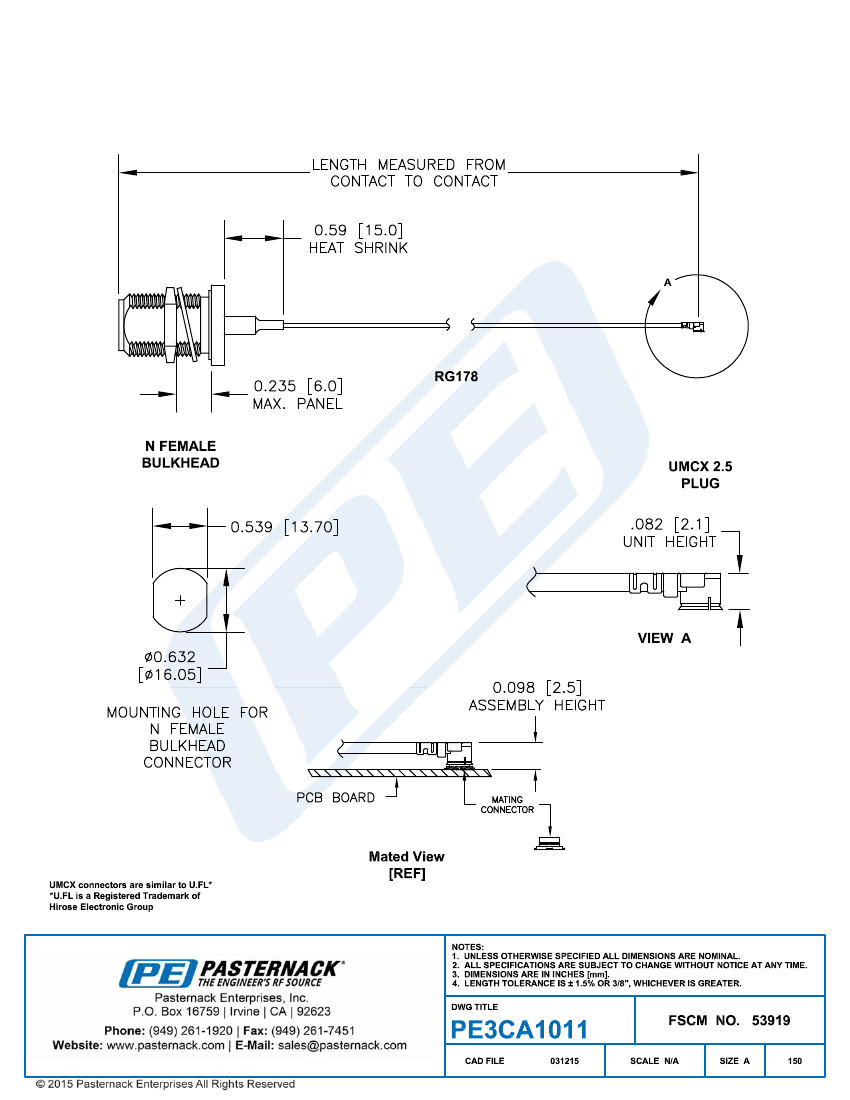

Plotted and Other Data
Notes:
•
Values at +25 °C, sea level
How to Order
Part Number Configuration:
PE3CA1011
|
|
- xx
|
|
uu
|
Unit of Measure:
cm = Centimeters
<blank> = Inches
Length
Base Number
|
|
Example:
PE3CA1011-12 = 12 inches long cable
PE3CA1011-100cm = 100 cm long cable
|
|
N Female Bulkhead to UMCX 2.5 Plug Cable Using RG178 Coax, RoHS from Pasternack Enterprises has same day
shipment for domestic and International orders. Our RF, microwave and millimeter wave products maintain a 99% availability
and are part of the broadest selection in the industry.
Click the following link (or enter part number in “SEARCH” on website) to obtain additional part information including price,
inventory and certifications:
N Female Bulkhead to UMCX 2.5 Plug Cable Using RG178 Coax, RoHS PE3CA1011
URL:
http://www.pasternack.com/n-female-umcx-2.5-plug-rg178bu-cable-assembly-pe3ca1011-p.aspx
PE3CA1011 REV 1.1
