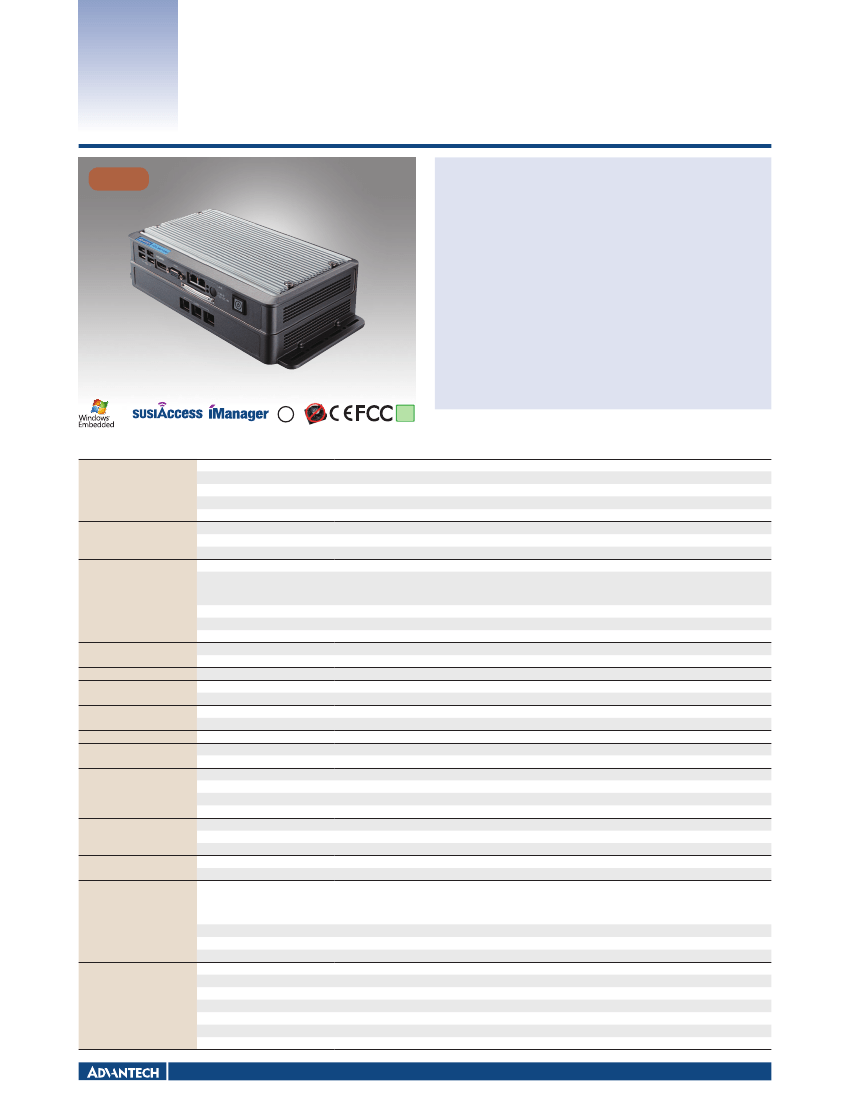

MIOS-5250DS8-C0A1E

Description
Intel® Atom™ N2600/D2550 Fanless Embedded Box PC with Multiple I/O Extension Module
File Size900KB,2 Pages
ManufacturerAdvantech
Websitehttp://www.advantech.com/
Download Datasheet Compare View All

MIOS-5250DS8-C0A1E Overview

Intel® Atom™ N2600/D2550 Fanless Embedded Box PC with Multiple I/O Extension Module

MIOS-5250
NEW
Intel
®
Atom™ N2600/D2550 Fanless Embedded
Box PC with Multiple I/O Extension Module
Features
ƒ
Intel
®
Atom™ N2600 1.6 GHz/D2550 1.86 GHz Fanless Embedded Box PC,
DDR3 memory supports up to 4 GB
ƒ
Rich I/O expansion possibilities through modularized design
ƒ
Various extension modules for selection: multiple serial-port / GbE, CAN
Bus, PoE
ƒ
Optimized thermal design to maximize heat dissipation
ƒ
Fast customization for module, I/O bracket, color and logo
ƒ
12~24V / 12V only DC power input for choice
ƒ
Wire clip design to prevent adapter cable losing
ƒ
Supports iManager, SUSIAccess and embedded software APIs
LISTED
C
UL
®
RoHS
US
COMPLIANT
2002/95/EC
E180881
Specifications
Processor System
CPU
Max. Speed
L2 Cache
System Chipset
BIOS
Technology
Max. Capacity
Socket
Chipset
Graphic Engine
Graphics
VGA
HDMI
Dual Display
GbE1
GbE2
Interface
Serial Ports
USB Interface
Digital IO
Watchdog timer
Mini PCIe
HDD
mSATA
MIOe-210
MIOe-220
MIOe-3674
MIOe-3680
Power Type
Power Input Votage
Minimum Power Input
Typical
Max.
Construction
Mechanical
Mounting
Dimensions (W x H x D)
Weight
Operating Temperature
Storage Temperature
Relative Humidity
Vibration During Operation
Shock During Operation
EMC
Safety Certifications
Intel Atom Dual Core N2600 1.6 GHz/D2550 1.86 GHz
Dual Core 1.6 GHz/1.86 GHz
1 MB
Intel Atom N2600/D2550 + Intel NM10
AMI EFI 16Mbit
DDR3 1066 MHz (D2550), DDR3 800 MHz (N2600)
4 GB
1 x 204-pin SO-DIMM
Intel Atom N2600/D2550
DirectX 9 and OpenGL3.0 support
Hardware decode H/W acceleration: MPEG2
H/W Decode/Acceleration: H.264/VC1/WMV9
Up to 1920 x 1200
Supports 1920 x 1200, Max data rate: up to 1.65 Gb/s, supports HDMI v1.3 Up to 1080p support
Yes, VGA + HDMI
10/100/1000 Mbps Intel 82583V Ethernet controller, support Wake On Lan
10/100/1000 Mbps Intel 82583V Ethernet controller, support Wake On Lan
Realtek ALC892, High Definition Audio. Line-out,Mic-in,Line-in
4 x RS-232 Ports with ESD protection : Air gap ±15kV, Contact ±8kV
6 x USB ports, USB 2.0 compliant
8-bits
255 levels timer interval, setup by software
1 x full size Mini PCIe with SIM holder
Supports one drive bay for SATA 2.5" HDD (Compatible with 9mm height HDD)
1 (Support either mSATA or full size miniPCIe, selected by BIOS, default support miniPCIe)
4 x RS232/422/485, 2 x RS422/485
3 x Intel Gigabit Ethernet
4 x Gigiabit Ethernet with PoE ports
2 x CAN Bus
AT/ATX
24 V
DC
(Phoenix plug in rear side) / 12 V
DC
(DC Jack in front side)
12 V ~ 24 V, 3.0 A ~ 1.5 A
15 Watt (with Intel Atom D2550 at 1.8 GHz)
18 Watt (with Intel Atom D2550 at 1.8 GHz)
Plastic Part: PC+ABS (LG5001RFP) Chassis: SECC
Bottom Cover: Aluminum
Heatsink: Aluminum 6063-T5
Metal Parts: SECC
Din-Rail mounting, Desk/wall-mounting, VESA mounting
284.6 x 151.6 x 74.5 mm (11.2" x 5.96" x 2.9")
2.3 kg (5.07 lb), with HDD, MIOe-210 and Wifi module inside)
0 ~ 45° C (32 ~ 113° F) with 0.7m/s air flow
- 40 ~ 85° C ( -40 ~ 185° F)
95% @ 40° C (non-condensing)
With SSD: 3 Grms, IEC 60068-2-64, random, 5 ~ 500 Hz, 1 hr/axis.
With SSD: 10 G, IEC 60068-2-27, half sine, 11 ms duration
CE/FCC Class A, CCC
UL, CCC, CB
Memory
Ethernet
Audio
IO Interface
Other
Internal Expansion
Storage
Supported Extension Modules
Power Requirements
Power Consumption
Environment

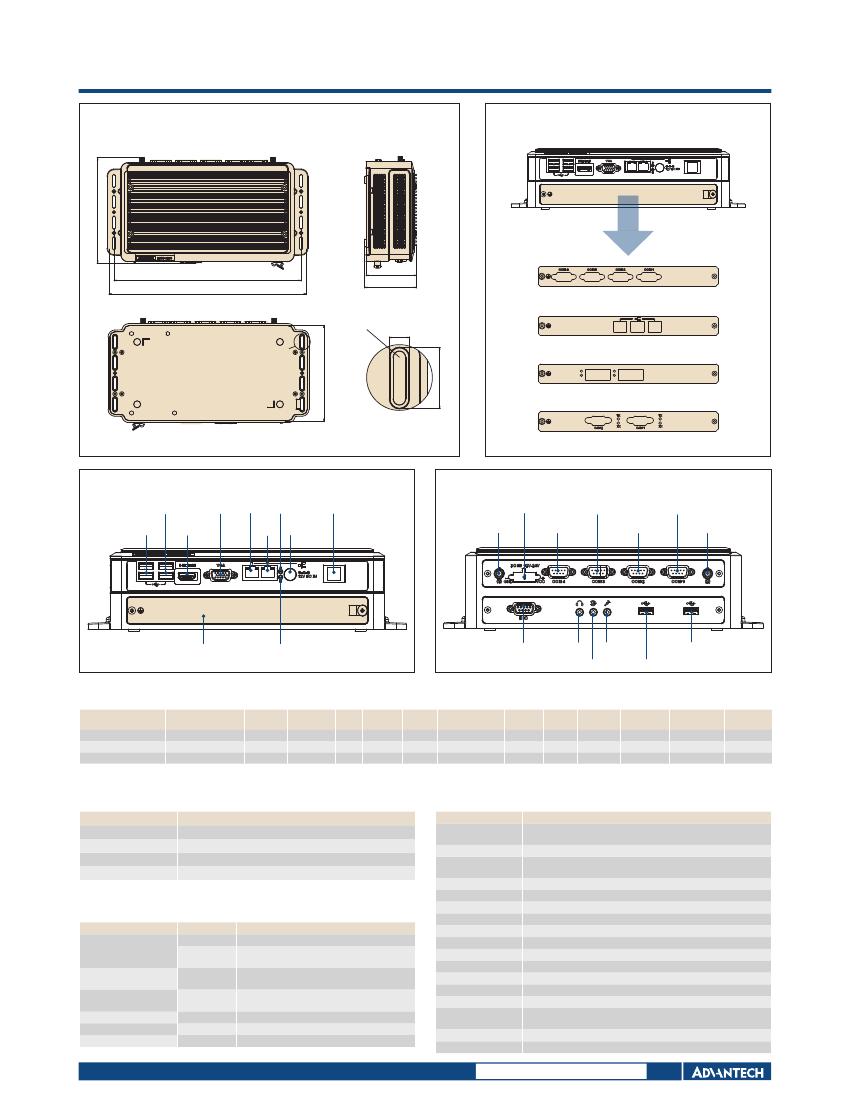

MI/O Extension SBCs, Modules and Chassis
All product specifications are subject to change without notice
Last updated : 14-Aug-2014
