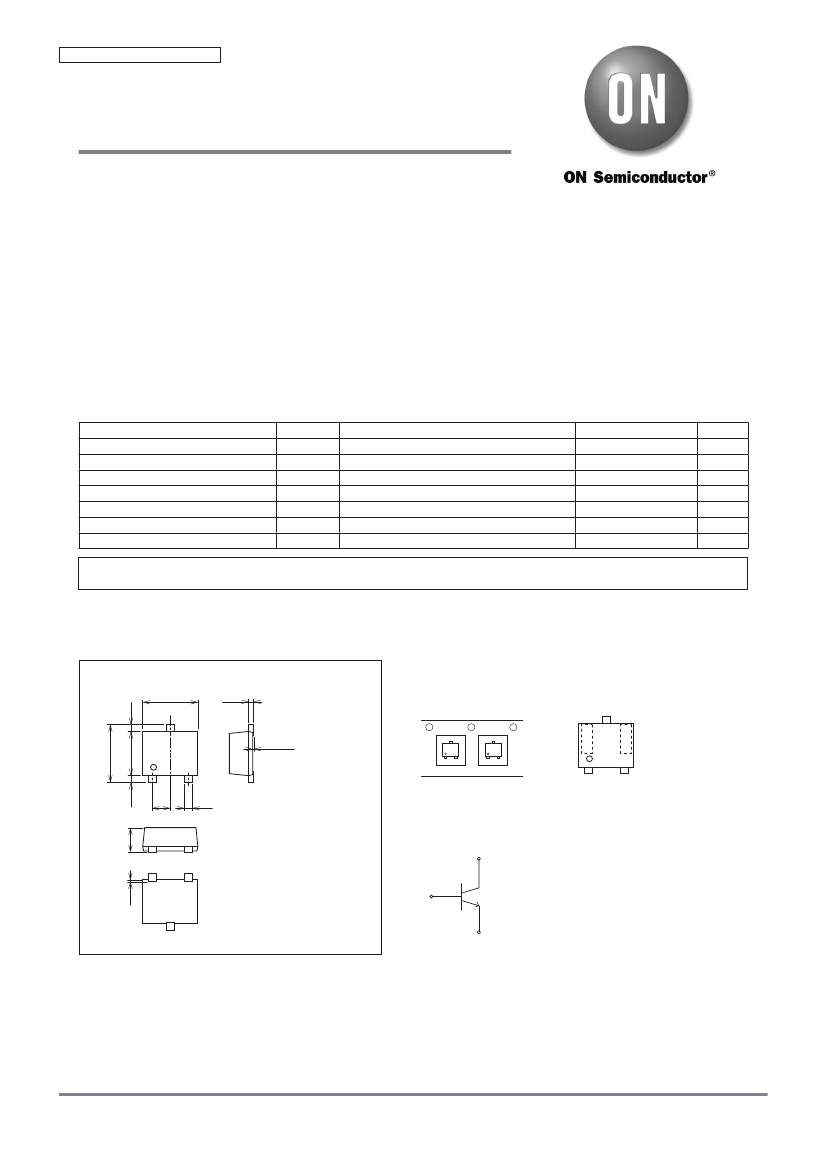

Ordering number : ENA1925A
MCH3007
RF Transistor
12V, 30mA, fT=8GHz, NPN Single MCPH3
Features
•
•
•
•
http://onsemi.com
Low-noise use
: NF=1.2dB typ (f=1GHz)
High cut-off frequency : fT=8GHz typ (VCE=5V)
High gain
:
|
S21e
|
2
=12dB typ (f=1GHz)
Halogen free compliance
Specifications
Absolute Maximum Ratings
at Ta=25°C
Parameter
Collector-to- Base Voltage
Collector-to-Emitter Voltage
Emitter-to-Base Voltage
Collector Current
Collector Dissipation
Junction Temperature
Storage Temperature
Symbol
VCBO
VCEO
VEBO
IC
PC
Tj
Tstg
Conditions
Ratings
20
12
2
30
350
150
--55 to +150
Unit
V
V
V
mA
mW
°C
°C
Stresses exceeding Maximum Ratings may damage the device. Maximum Ratings are stress ratings only. Functional operation above the Recommended Operating
Conditions is not implied. Extended exposure to stresses above the Recommended Operating Conditions may affect device reliability.
Package Dimensions
unit : mm (typ)
7019A-004
MCH3007-TL-H
Product & Package Information
• Package
: MCPH3
• JEITA, JEDEC
: SC-70, SOT-323
• Minimum Packing Quantity : 3,000 pcs./reel
0.25
2.0
3
0.15
Packing Type : TL
Marking
2.1
1.6
0 to 0.02
TL
GM
LOT No.
LOT No.
0.25
1
0.65
2
0.3
Electrical Connection
0.85
3
0.07
1 : Base
2 : Emitter
3 : Collector
MCPH3
1
2
Semiconductor Components Industries, LLC, 2013
August, 2013
91912 TKIM/20211AB TKIM TC-00002542 No. A1925-1/12
MCH3007
Electrical Characteristics
at Ta=25°C
Parameter
Collector Cutoff Current
Emitter Cutoff Current
DC Current Gain
Gain-Bandwidth Product
Forward Transfer Gain
Noise Figure
Symbol
ICBO
IEBO
hFE
fT
|
S21e
|
NF
2
Conditions
VCB=5V, IE=0A
VEB=1V, IC=0A
VCE=5V, IC=5mA
VCE=5V, IC=10mA
VCE=5V, IC=10mA, f=1GHz
VCE=5V, IC=10mA, f=1GHz
Ratings
min
typ
max
1.0
1.0
60
6
9
8
12
1.2
1.8
150
Unit
μA
μA
GHz
dB
dB
Pay attention to handling since it is liable to be affected by static electricity due to the high-frequency process adopted.
Ordering Information
Device
MCH3007-TL-H
Package
MCPH3
Shipping
3,000pcs./reel
memo
Pb Free and Halogen Free
30
IC -- VCE
0
μ
45
A
400
μ
A
30
IC -- VBE
VCE=5V
Collector Current, IC -- mA
A
25
250
μ
A
200
μ
A
20
Collector Current, IC -- mA
12
50
0
μ
350
μ
A
300
μ
A
25
20
15
150
μ
A
100
μ
A
50
μ
A
IB=0μA
0
2
4
6
8
10
15
10
10
5
5
0
0
0
0.2
0.4
0.6
0.8
1.0
IT16311
Collector-to-Emitter Voltage, VCE -- V
1000
7
5
hFE -- IC
IT16310
10
7
Base-to-Emitter Voltage, VBE -- V
Cob -- VCB
VCE=5V
Output Capacitance, Cob -- pF
f=1MHz
5
3
2
DC Current Gain, hFE
3
2
100
7
5
3
2
10
0.1
1.0
7
5
3
2
0.1
0.1
2
3
5 7 1.0
2
3
5 7 10
2
3
Collector Current, IC -- mA
1.0
5 7 100
IT16312
2
3
5 7 1.0
2
3
5 7 10
2
3
Cre -- VCB
Collector-to-Base Voltage, VCB -- V
100
f T -- IC
5 7 100
IT16313
f=1MHz
Reverse Transfer Capacitance, Cre -- pF
7
Gain-Bandwidth Product, f T -- GHz
VCE=5V
f=1GHz
7
5
3
2
5
3
10
7
5
3
2
1.0
1.0
2
0.1
0.1
2
3
5 7 1.0
2
3
5 7 10
2
3
Collector-to-Base Voltage, VCB -- V
5 7 100
IT16314
2
3
5
7
10
2
3
5
Collector Current, IC -- mA
7 100
IT16315
No. A1925-2/12
MCH3007
25
|S21e|
2
-- IC
VCE=5V
f=1GHz
10
9
8
NF -- IC
VCE=5V
f=1GHz
Forward Transfer Gain,
|S21e|
2
-- dB
20
Noise Figure, NF -- dB
7
6
5
4
3
2
1
15
10
5
Zs=50Ω
Zs=Zsopt
2
3
5
7
10
2
3
5
0
1.0
2
3
5
7
10
2
3
5
Collector Current, IC -- mA
400
350
300
250
200
150
100
50
0
7 100
IT16316
0
1.0
PC -- Ta
Collector Current, IC -- mA
7 100
IT16317
Collector Dissipation, PC -- mW
0
20
40
60
80
100
120
140
160
Ambient Temperature, Ta --
°C
IT16309
S Parameters (Common emitter)
VCE=3V, IC=5mA
Freq(MHz)
100
200
300
400
500
600
700
800
900
1000
1200
1400
1600
1800
2000
2200
2400
2600
2800
3000
⏐
S11
⏐
0.889
0.872
0.802
0.784
0.687
0.651
0.591
0.535
0.498
0.450
0.389
0.352
0.322
0.300
0.282
0.266
0.258
0.246
0.243
0.250
∠
S11
-11.8
-18.1
-32.2
-37.9
-55.5
-64.3
-76.2
-85.9
266.2
258.0
244.7
234.1
224.9
216.6
208.5
200.9
193.5
186.5
180.9
174.2
⏐
S21
⏐
9.020
8.560
8.281
7.883
7.588
7.221
6.686
6.254
5.783
5.404
4.684
4.101
3.651
3.291
3.004
2.776
2.586
2.415
2.292
2.191
∠
S21
164.0
151.7
142.9
136.4
125.7
119.3
111.7
105.1
100.0
94.8
86.9
80.8
75.6
70.9
66.6
62.6
58.5
55.0
51.7
47.7
⏐
S12
⏐
0.011
0.026
0.037
0.046
0.057
0.065
0.073
0.080
0.086
0.093
0.105
0.118
0.131
0.146
0.161
0.177
0.194
0.211
0.231
0.252
∠
S12
87.1
81.8
77.5
74.5
71.6
70.4
69.0
68.2
67.7
67.9
68.1
68.7
69.4
70.1
70.5
70.7
70.6
70.5
70.4
69.3
⏐
S22
⏐
0.978
0.945
0.892
0.843
0.771
0.724
0.675
0.632
0.598
0.562
0.514
0.482
0.463
0.447
0.437
0.435
0.433
0.428
0.435
0.450
∠
S22
-9.1
-17.9
-25.3
-32.1
-39.3
-43.5
-48.4
-52.3
-55.7
-58.4
-63.0
-66.0
-68.3
-70.1
-71.9
-73.7
-76.6
-78.6
-80.0
-83.4
No. A1925-3/12
MCH3007
S Parameters (Common emitter)
VCE=3V, IC=10mA
Freq(MHz)
100
200
300
400
500
600
700
800
900
1000
1200
1400
1600
1800
2000
2200
2400
2600
2800
3000
⏐
S11
⏐
0.772
0.726
0.614
0.570
0.471
0.440
0.404
0.380
0.362
0.344
0.321
0.308
0.296
0.287
0.282
0.275
0.274
0.269
0.270
0.281
∠
S11
-19.6
-30.9
-53.6
-64.5
-86.8
262.6
251.3
242.5
235.0
228.3
216.8
207.2
199.1
191.6
184.3
177.4
171.5
165.4
160.9
155.9
⏐
S21
⏐
14.343
13.500
12.251
11.116
9.957
8.696
7.844
6.991
6.325
5.731
4.838
4.189
3.703
3.324
3.023
2.784
2.591
2.413
2.285
2.182
∠
S21
158.2
143.9
130.6
122.3
110.0
103.7
97.4
92.7
88.6
85.1
79.0
74.0
69.6
65.5
61.6
57.9
54.2
50.8
47.8
44.0
⏐
S12
⏐
0.013
0.022
0.031
0.038
0.046
0.053
0.061
0.068
0.075
0.083
0.098
0.113
0.129
0.146
0.164
0.182
0.201
0.220
0.242
0.266
∠
S12
80.2
77.5
75.2
74.7
74.0
74.4
74.8
75.3
75.7
76.0
76.7
77.0
77.2
77.2
76.9
76.5
75.7
75.1
74.3
72.7
⏐
S22
⏐
0.952
0.880
0.798
0.734
0.660
0.616
0.577
0.543
0.519
0.492
0.461
0.443
0.434
0.428
0.425
0.429
0.432
0.432
0.442
0.460
∠
S22
-12.0
-22.0
-28.8
-34.3
-40.2
-43.1
-46.7
-49.6
-52.1
-54.3
-58.0
-60.4
-62.6
-64.4
-66.3
-68.5
-71.7
-74.0
-75.8
-79.7
VCE=3V, IC=15mA
Freq(MHz)
100
200
300
400
500
600
700
800
900
1000
1200
1400
1600
1800
2000
2200
2400
2600
2800
3000
⏐
S11
⏐
0.655
0.578
0.473
0.432
0.403
0.395
0.390
0.387
0.386
0.381
0.379
0.380
0.378
0.378
0.380
0.379
0.383
0.383
0.386
0.398
∠
S11
-30.6
-51.1
-82.5
260.6
240.3
230.3
220.9
213.3
207.3
201.6
192.3
184.7
178.1
171.9
165.9
160.0
155.1
149.7
145.4
141.2
⏐
S21
⏐
16.942
14.095
12.741
11.464
9.665
7.746
6.764
5.958
5.331
4.798
4.009
3.460
3.047
2.733
2.482
2.282
2.118
1.968
1.860
1.771
∠
S21
153.3
136.7
120.1
110.2
100.5
94.9
89.7
85.7
81.9
78.8
73.0
68.0
63.5
59.3
55.2
51.4
47.5
44.0
40.8
36.9
⏐
S12
⏐
0.011
0.020
0.026
0.033
0.039
0.045
0.052
0.059
0.067
0.074
0.090
0.106
0.124
0.143
0.162
0.183
0.205
0.227
0.253
0.280
∠
S12
76.6
73.6
73.3
74.3
75.4
77.1
79.1
80.2
81.4
82.1
83.1
83.8
84.1
83.9
83.7
83.0
82.0
81.0
79.8
77.7
⏐
S22
⏐
0.912
0.814
0.735
0.682
0.624
0.595
0.570
0.547
0.533
0.515
0.498
0.491
0.491
0.491
0.493
0.502
0.508
0.510
0.523
0.544
∠
S22
-13.3
-22.0
-26.7
-30.1
-34.4
-36.4
-39.3
-41.8
-44.0
-46.2
-50.2
-53.3
-56.3
-59.2
-62.2
-65.4
-69.5
-72.8
-75.6
-80.4
No. A1925-4/12
MCH3007
S Parameters (Common emitter)
VCE=3V, IC=20mA
Freq(MHz)
100
200
300
400
500
600
700
800
900
1000
1200
1400
1600
1800
2000
2200
2400
2600
2800
3000
⏐
S11
⏐
0.542
0.472
0.442
0.437
0.458
0.464
0.475
0.480
0.486
0.487
0.492
0.497
0.500
0.503
0.508
0.510
0.515
0.517
0.520
0.529
∠
S11
-48.6
-85.2
241.9
225.3
210.5
203.4
196.8
191.5
187.1
183.0
176.0
170.0
164.4
159.0
153.8
148.4
143.7
138.5
134.0
129.8
⏐
S21
⏐
17.664
13.659
10.775
8.448
6.847
5.771
4.937
4.332
3.842
3.458
2.876
2.478
2.179
1.952
1.771
1.625
1.503
1.392
1.311
1.243
∠
S21
147.6
127.1
110.5
101.0
92.9
87.9
83.2
79.4
75.8
72.6
66.7
61.7
56.9
52.4
48.2
44.3
40.3
36.8
33.8
30.0
⏐
S12
⏐
0.011
0.018
0.023
0.028
0.033
0.039
0.046
0.053
0.060
0.068
0.084
0.102
0.121
0.142
0.165
0.189
0.214
0.240
0.270
0.301
∠
S12
72.1
65.7
68.0
72.9
76.5
80.6
82.9
84.9
86.7
87.8
89.4
90.4
90.6
90.4
89.7
88.6
87.2
85.6
83.8
81.0
⏐
S22
⏐
0.855
0.759
0.699
0.667
0.628
0.611
0.597
0.584
0.576
0.565
0.557
0.556
0.561
0.565
0.569
0.579
0.587
0.588
0.600
0.622
∠
S22
-13.7
-19.6
-22.4
-24.8
-28.3
-30.2
-33.1
-35.8
-38.3
-40.9
-45.7
-49.9
-53.9
-57.9
-61.9
-66.1
-71.0
-75.3
-78.9
-84.4
VCE=5V, IC=5mA
Freq(MHz)
100
200
300
400
500
600
700
800
900
1000
1200
1400
1600
1800
2000
2200
2400
2600
2800
3000
⏐
S11
⏐
0.893
0.878
0.809
0.792
0.696
0.659
0.599
0.542
0.504
0.455
0.392
0.353
0.323
0.299
0.281
0.263
0.255
0.242
0.239
0.246
∠
S11
-11.5
-17.5
-31.3
-36.9
-54.2
-62.9
-74.6
-84.3
268.0
259.8
246.7
236.1
227.1
218.7
210.6
203.0
195.6
188.7
183.0
176.1
⏐
S21
⏐
9.065
8.626
8.332
7.943
7.444
6.985
6.740
6.322
5.839
5.465
4.739
4.152
3.696
3.332
3.040
2.809
2.618
2.444
2.320
2.218
∠
S21
164.4
152.2
143.4
137.0
126.3
119.8
112.3
105.6
100.6
95.2
87.3
81.2
75.9
71.2
66.9
62.9
58.8
55.2
51.9
47.9
⏐
S12
⏐
0.013
0.025
0.036
0.045
0.055
0.063
0.071
0.078
0.084
0.090
0.103
0.116
0.129
0.143
0.158
0.174
0.191
0.208
0.228
0.250
∠
S12
88.3
80.9
79.1
75.9
72.7
71.1
69.9
69.2
68.6
68.4
68.8
69.6
70.3
70.8
71.4
71.7
71.6
71.5
71.4
70.3
⏐
S22
⏐
0.978
0.949
0.898
0.852
0.782
0.736
0.687
0.644
0.610
0.573
0.526
0.495
0.475
0.460
0.450
0.447
0.446
0.442
0.449
0.464
∠
S22
-8.8
-17.3
-24.4
-31.1
-38.2
-42.3
-47.1
-51.0
-54.3
-57.1
-61.6
-64.5
-66.7
-68.5
-70.3
-72.2
-75.1
-77.1
-78.4
-81.9
No. A1925-5/12
京公网安备 11010802033920号
EEWORLD
