SPDT Electromechanical Relay Switch DC to 12.4 GHz, N,
160 Watts, 12V Control with Indicators, Failsafe, TTL
TECHNICAL DATA SHEET
PE71S6160
The PE71S6160 is Single Pole Double Throw Switch that operates from DC to 12.4 GHz. The switch has a Failsafe actuator
and an indicator and 1M life cycles. The switch has an opating voltage of +12 Volts and has TTL control.
Features
• SPDT Switch
• DC to 12.4 GHz Operating Frequency Range
• 1 M Cycles min
• Latching Switch
• Indicator
• TTL Contol
Applications
• Test & Measurement
• Communications System
• Instrumentation
Electrical Specifications
Frequency Range
Impedance
Actuator
Actuating Current
Control Voltage
TTL Inputs (E): - High Level
- Low Level
TTL Control
Trigger
RF Input Power (Max CW)
RF Characteristic
Description
Frequency Range
VSWR, Max
Insertion Loss, Max
Isolation, Min
.
DC to 12.4 GHz
50 Ohms
Indicators, Failsafe, TTL Logic
130 mA
12 Volts
2.4 to 5 Volts / at 5 Volts
0 to 0.8 Volts / at 0.8 Volts
“1”: On, “0”: Off, Enable: 5V, Disable: 0V
“on” = 2.4 Volts
“off” = 0.8 Volts
160 Watts
Band 1
DC to 2
1.15:1
0.2
80
Band 2
2 to 4
1.2:1
0.25
80
Band 3
4 to 12.4
1.6:1
0.6
60
Band 4
Band 5
Units
GHz
dB
dB
Mechanical Specifications
Connector Type
Operating Life
Terminals
Switching Time (nominal voltage, 25°C)
N Female
1,000,000
Solder Pins
50 ms Max
Environmental Specifications
Temperature
Operating Range
-25 to +65 deg C
Click the following link (or enter part number in “SEARCH” on website) to obtain additional part information including price,
inventory and certifications:
SPDT Electromechanical Relay Switch DC to 12.4 GHz, N, 160 Watts, 12V Control with Indi-
cators, Failsafe, TTL PE71S6160
PE71S6160 REV 1.0
1
SPDT Electromechanical Relay Switch DC to 12.4 GHz, N,
160 Watts, 12V Control with Indicators, Failsafe, TTL
TECHNICAL DATA SHEET
Environment
.
PE71S6160
Designed to Meet MIL-DTL-3928
Compliance Certifications
(visit www.Pasternack.com for current document)
Not RoHS Compliant
Plotted and Other Data
Notes:
• Values at +25 °C, sea level
• ESD Sensitive Material, Transport material in Approved ESD bags. Handle only in approved ESD Workstation.
SPDT Electromechanical Relay Switch DC to 12.4 GHz, N, 160 Watts, 12V Control with Indicators, Failsafe, TTL from
Pasternack Enterprises has same day shipment for domestic and International orders. Our RF, microwave and millimeter
wave products maintain a 99% availability and are part of the broadest selection in the industry.
Click the following link (or enter part number in “SEARCH” on website) to obtain additional part information including price,
inventory and certifications:
SPDT Electromechanical Relay Switch DC to 12.4 GHz, N, 160 Watts, 12V Control with Indicators,
Failsafe, TTL PE71S6160
URL:
http://www.pasternack.com/n-spdt-electromechanical-relay-switch-12.4-ghz-indicators-failsafe-ttl-logic-pe71s6160-p.
aspx
PE71S6160 REV 1.0
2
PE71S6160

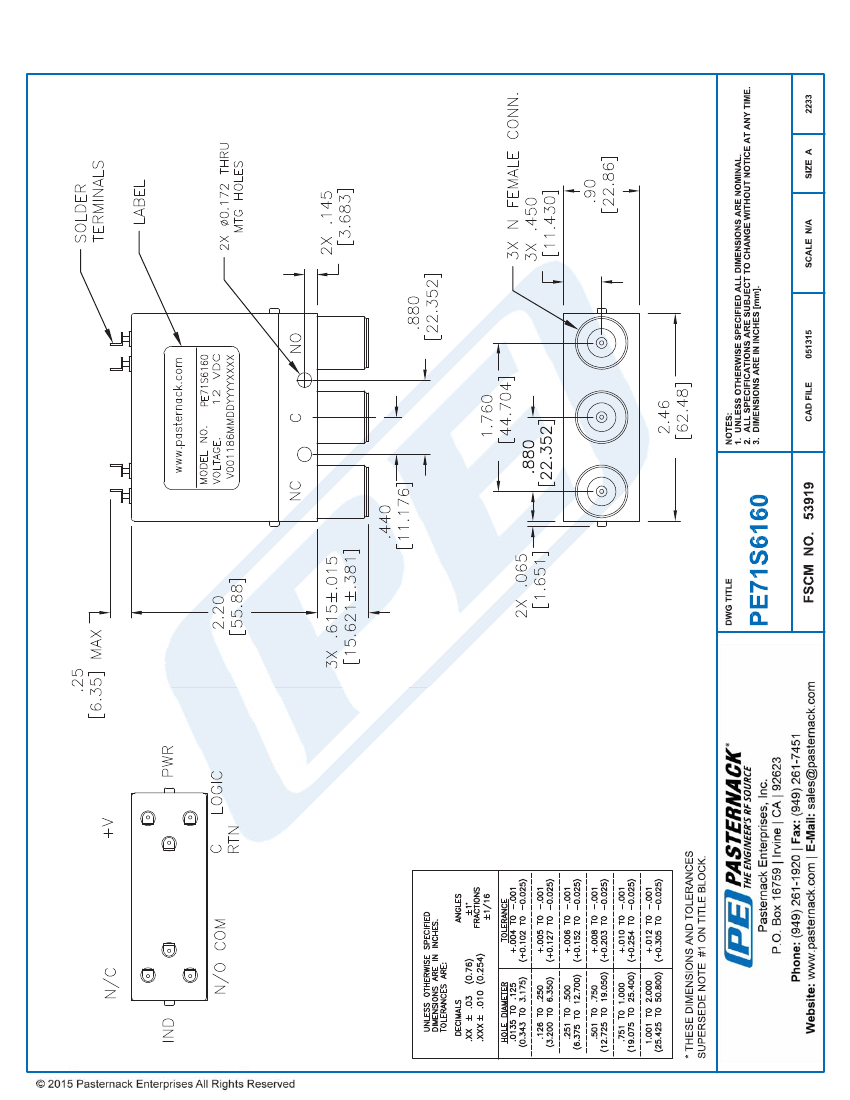

CAD Drawing
SPDT Electromechanical Relay Switch DC to 12.4 GHz, N,
160 Watts, 12V Control with Indicators, Failsafe, TTL
PE71S6160 REV 1.0
3
PE71S6160

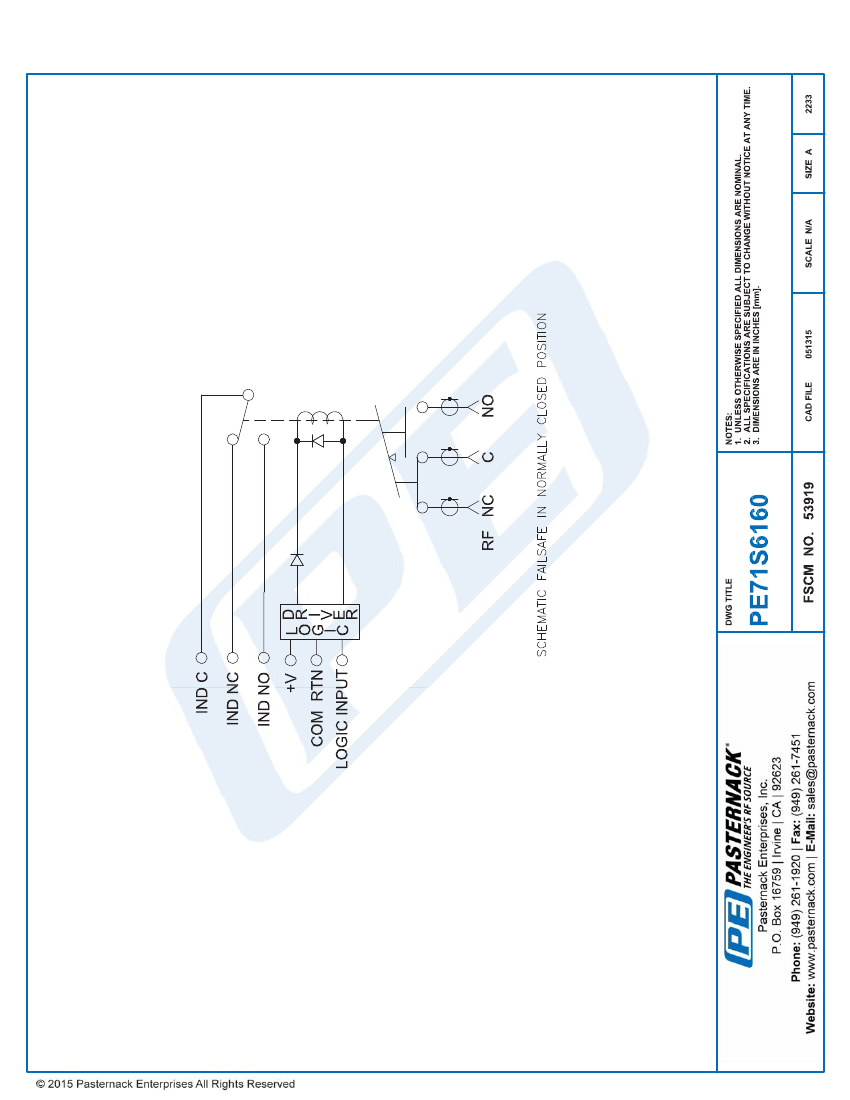

CAD Drawing
SPDT Electromechanical Relay Switch DC to 12.4 GHz, N,
160 Watts, 12V Control with Indicators, Failsafe, TTL
PE71S6160 REV 1.0
4
