Halogen and Antimony Free. “Green” Device (Note 3)
Qualified to AEC-Q101 standards for High Reliability
PPAP Capable (Note 4)
Description
This MOSFET has been designed to minimize the on-state resistance
(R
DS(on)
) and yet maintain superior switching performance, making it
ideal for high efficiency power management applications.
Mechanical Data
Case: SO-8
Case Material: Molded Plastic, "Green" Molding Compound.
UL Flammability Classification Rating 94V-0
Moisture Sensitivity: Level 1 per J-STD-020
Terminal Connections Indicator: See Diagram
Terminals: Finish
Matte Tin Annealed over Copper
Leadframe. Solderable per MIL-STD-202, Method 208
e3
Weight: 0.076 grams (approximate)
Applications
Backlighting
Power Management Functions
DC-DC Converters

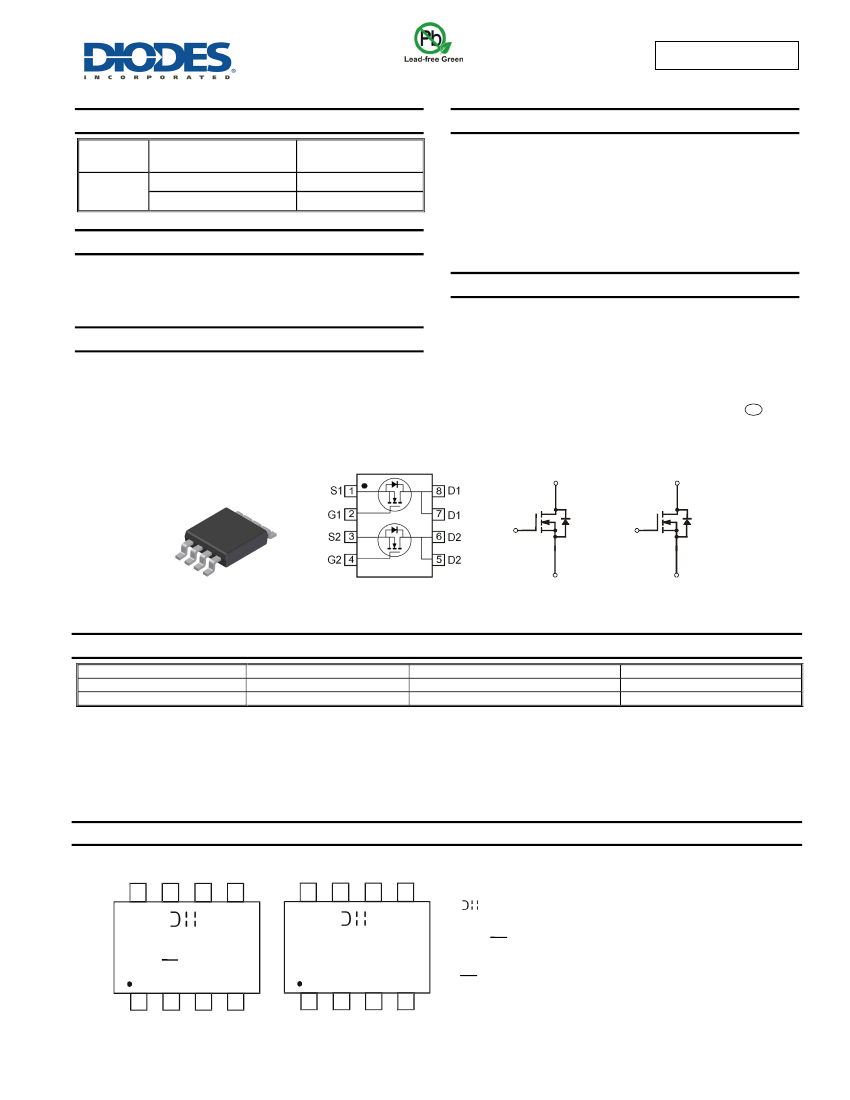

Top View
SO-8
D
1
D
2
G
1
G
2
Top View
Pin Configuration
Internal Schematic
S
1
N-Channel MOSFET
S
2
N-Channel MOSFET
Ordering Information
(Notes 4 & 5)
Part Number
DMG4800LSD-13
DMG4800LSDQ-13
Notes:
Compliance
Standard
Automotive
Case
SO-8
SO-8
Packaging
2,500 / Tape & Reel
2,500 / Tape & Reel
1. No purposely added lead. Fully EU Directive 2002/95/EC (RoHS) & 2011/65/EU (RoHS 2) compliant.
2. See http://www.diodes.com/quality/lead_free.html for more information about Diodes Incorporated’s definitions of Halogen- and Antimony-free, "Green"
and Lead-free.
3. Halogen- and Antimony-free "Green” products are defined as those which contain <900ppm bromine, <900ppm chlorine (<1500ppm total Br + Cl) and
<1000ppm antimony compounds.
4. Automotive products are AEC-Q101 qualified and are PPAP capable. Automotive, AEC-Q10x and standard products are electrically and thermally
the same, except where specified. For more information, please refer to http://www.diodes.com/quality/product_compliance_definitions/.
5. For packaging details, go to our website at http://www.diodes.com/products/packages.html.
Marking Information
8
5
8
5
G4800LD
YY WW
1
4
1
G4800LD
YY WW
4
= Manufacturer’s Marking
G4800LD = Product Type Marking Code
YYWW = Date Code Marking
YY or YY = Year (ex: 14 = 2014)
WW = Week (01 - 53)
YY = Date Code Marking for SAT (Shanghai Assembly/ Test site)
YY = Date Code Marking for CAT (Chengdu Assembly/ Test site)
