ZXTP26020DMF_15

Description
20V LOW VCE(SAT ) PNP SURFACE MOUNTED TRANSISTOR
File Size109KB,6 Pages
ManufacturerDiodes
Websitehttp://www.diodes.com/
Download Datasheet View All

ZXTP26020DMF_15 Overview

20V LOW VCE(SAT ) PNP SURFACE MOUNTED TRANSISTOR

A Product Line of
Diodes Incorporated

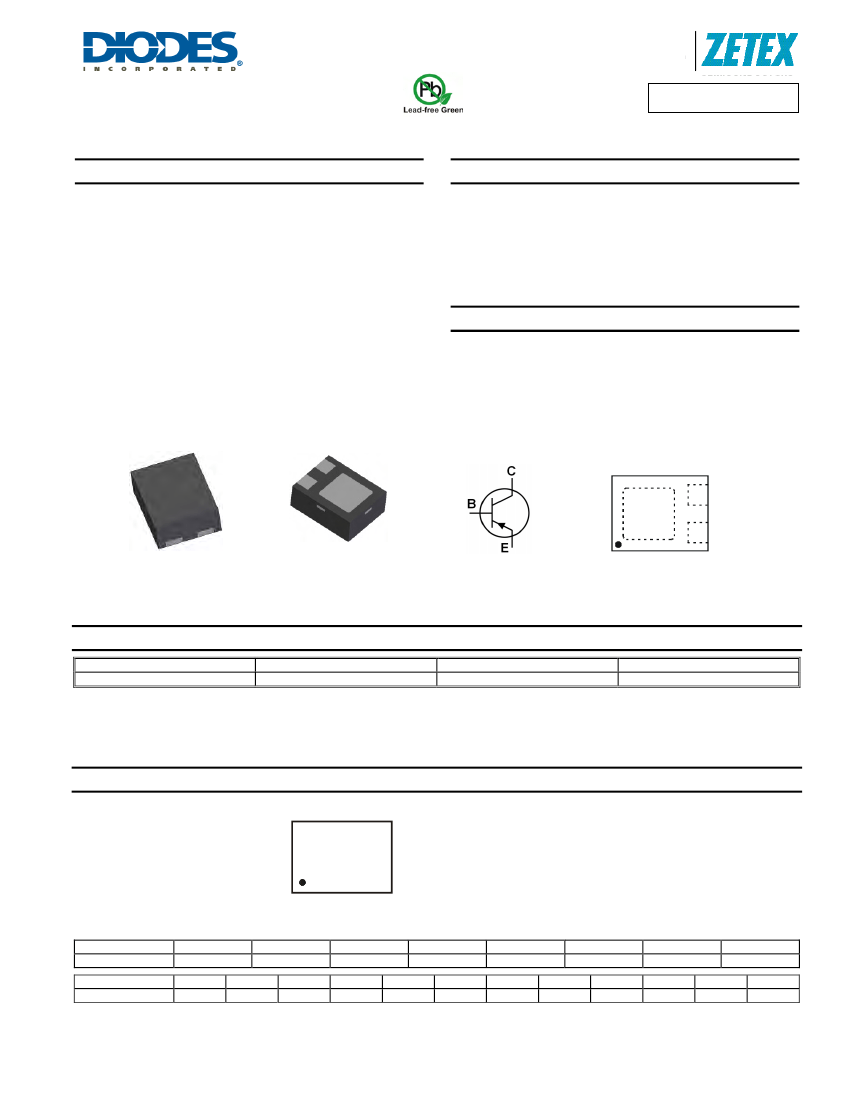

ZXTP26020DMF
2 0 V LOW V
C E ( S A T )
PN P SURFACE MOUNTED TR ANSISTOR
Features
Epitaxial Planar Die Construction
Complementary NPN Type Available (ZXTN26020DMF)
Low Collector-Emitter Saturation Voltage, V
CE(SAT)
High Current Gain (h
FE
) at High I
C
Surface Mount Package Suited for Automated Assembly
Ultra-Small Surface Mount Package
Qualified to AEC-Q101 Standards for High Reliability
Lead, Halogen and Antimony Free, RoHS Compliant (Note 1)
“Green” Device (Note 2)
ESD rating: 400V-MM, 8KV-HBM
Mechanical Data
Case: DFN1411-3
Case Material: Molded Plastic, “Green” Molding Compound.
UL Flammability Classification Rating 94V-0
Moisture Sensitivity: Level 1 per J-STD-020
Terminals: Finish – NiPdAu over Copper lead frame. Solderable
per MIL-STD-202, Method 208
Weight: 0.003 grams (approximate)
Applications
MOSFET and IGBT gate driving
DC-DC conversion
Interface between low voltage IC and Load
Load disconnect switch
E
C
B
Top view
Bottom view
Device Symbol
Pin-Out Top view
Ordering Information
Product
ZXTP26020DMFTA
Notes:
Reel size (inches)
7
Tape width (mm)
8
Quantity per reel
3000
1. No purposefully added lead. Halogen and Antimony Free.
2. Diodes Inc’s “Green” Policy can be found on our website at http://www.diodes.com
Marking Information
Z2
Z2= Product Type Marking Code
YM = Date Code Marking
Y = Year (ex: W = 2009)
M = Month (ex: 9 = September)
Date Code Key
Year
Code
Month
Code
2009
W
Jan
1
Feb
2
2010
X
Mar
3
2011
Y
Apr
4
May
5
YM
2012
Z
Jun
6
2013
A
Jul
7
Aug
8
2014
B
Sep
9
2015
C
Oct
O
Nov
N
2016
D
Dec
D
ZXTP26020DMF
Document number: DS32101 Rev. 1 - 2
1 of 6
www.diodes.com
May 2010
© Diodes Incorporated
