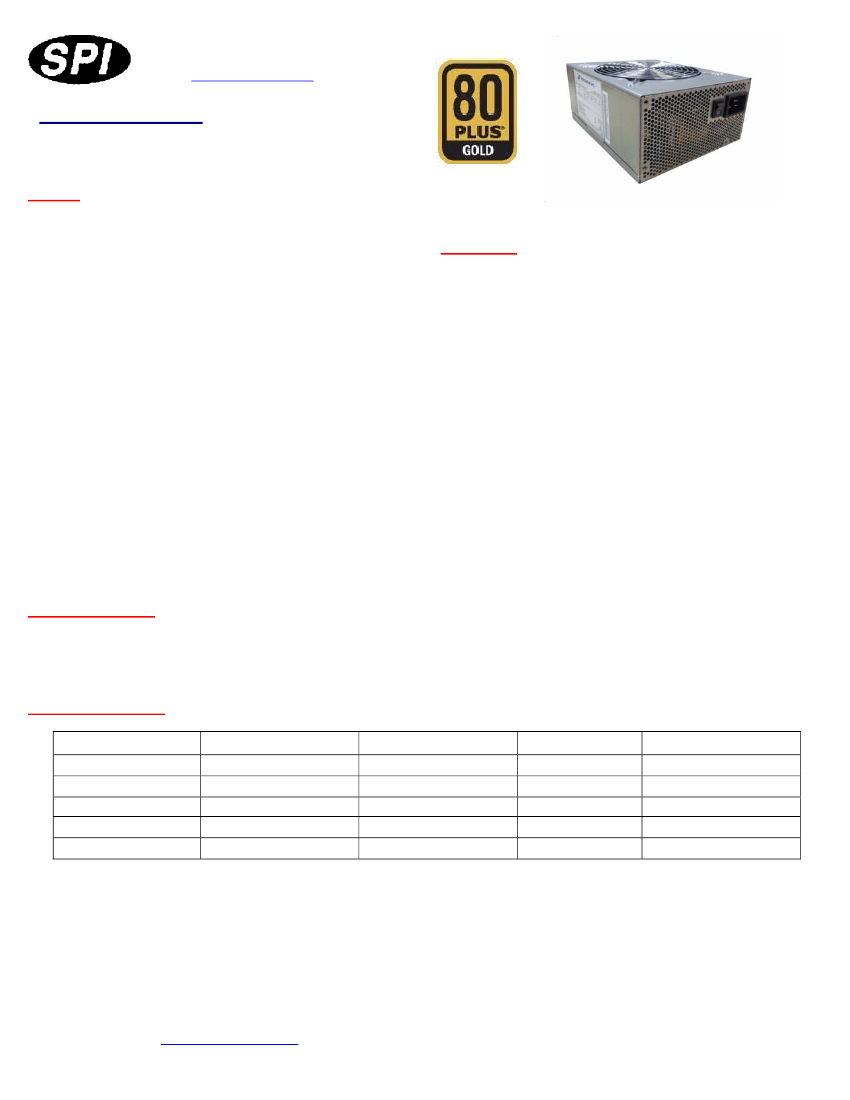

Sparkle Power Inc.
A Leading Power Supply Manufacturer
Web site:
www.sparklepower.com
FSP1000-50AAG
(80PLUS Gold, RoHS Compliant)
1000 Watts ATX12V Switching Power Supply
Features
Complied with ATX12V standard
Active Power Factor Correction (PFC) meet EN61000-3-2
High efficiency and reliability
Compatible with European Union Directive 2011/65/EU
(Restriction on Hazardous Substances).
Specification
Temperature Range:
Operating: 0°C ~ +50°C on full load;
storage & shipping: -20°C ~ +80°C
Remote ON/OFF function
Internal 12V DC fan included
Noise Killer
Low noise and ripple
Output over voltage, short circuit, and over current protection
100% Hi-pot, ATE, and burn-in tested
Re-settable power shut down
Complies with FCC part 15 subpart J class B 115Vac operation,
and CISPR 22 class B at 230Vac operation
Approved by CUL/UL60950-1 2
nd
TUV EN60950-1 2
nd
, CB
60950-1 2
nd
report, FCC, EMC
Humidity:
Operation : 10~90% RH, Non-condensing.
Storage : 95% RH, Non-condensing.
Dielectric Withstand:
Primary frame ground 1800V AC for
2 second
Efficiency:
Typical > 90%
Meet ErP:
5Vsb power is less than 1W input at power off
mode (PS_ON input at high state)
Rise time:
Less than 20ms
Hold-up Time:
17ms minimum at nominal input voltage
Power Good Signal:
Power on delay time 100 ~ 500ms, off
delay 1ms minimum (TTL and CMOS compatible)
Leakage Current:
Less than 3.5mA at 264Vac, 50Hz
MTBF:
100,000 hours on maximum load at +25°C
Dimensions (LxWxH):
190x150x86mm / 7.48x5.9x3.4inch
Input Characteristics
Input Range:
90 ~ 264Vac (RMS), Full Range Input
Frequency:
47 ~ 63Hz
Input Current:
Max 14.0A(RMS) @ 115Vac, 7.0A(RMS) @ 230Vac
Inrush Current:
No damage at cold start
Output Characteristics
Output Voltage
+3.3V
+5V
+12V
-12V
+5Vsb
Minimum Load
0A
0.1A
0.2A
0A
0A
Maximum Load
30A
30A
83A
0.8A
4.0A
Load Reg.
± 5%
± 5%
± 5%
± 10%
± 5%
Ripple & Noise
50mV P-P
50mV P-P
120mV P-P
120mV P-P
50mV P-P
*+3.3V and +5V total output not exceed 150W
* Total output for this subject power supply is 1000W
