Ceramic DUPLEXER IDD08169
815 MHz / 898.5 MHz
Features
Ceramic Duplexer
Usable bandwidth 18 MHz Rx. And 5MHz Tx. band
No matching / Antenna & Transmitter & Receiver Impedance 50Ω
Surface Mounted Module Package ( 31.5mm
×
11mm
×
7.5mm )

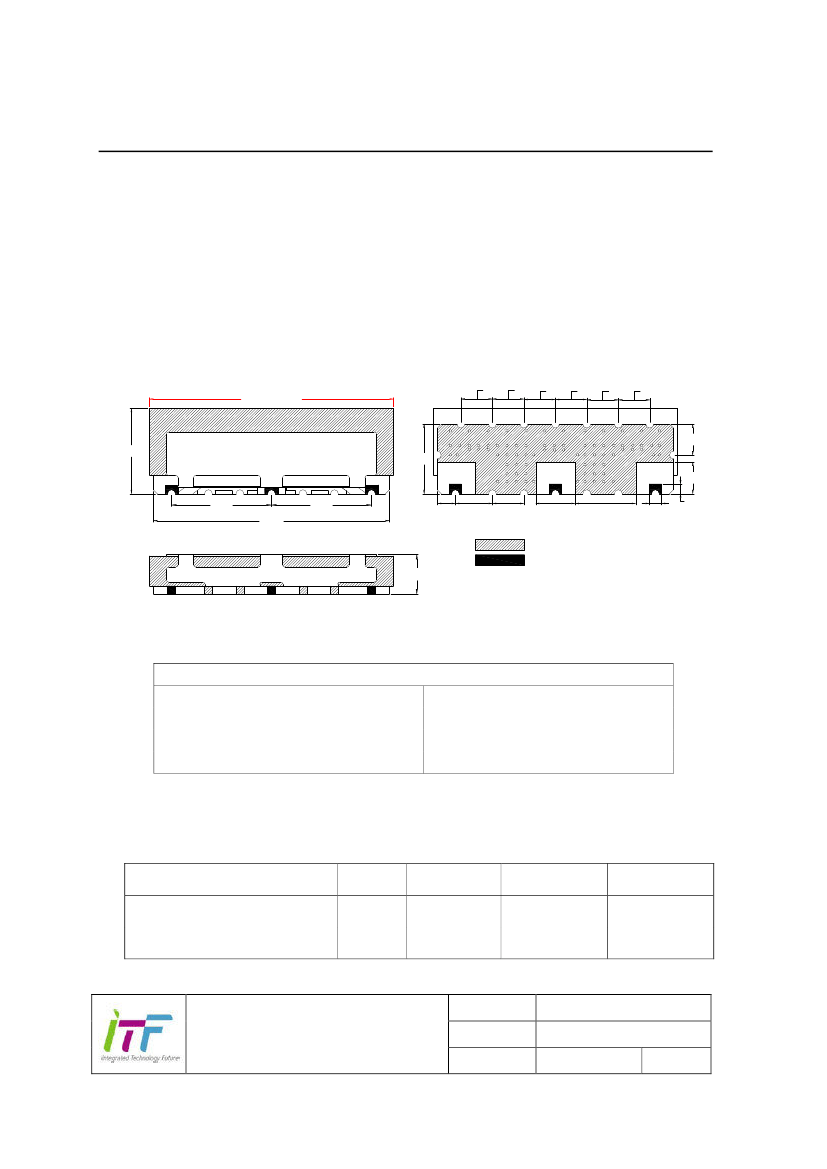

Package Dimension
TOP VIEW
4.00
31.00[31.5max.]
BOTTOM VIEW
4.00
4.00
4.00
4.00
4.00
RF Devices,Inc.
11.0max.
RMD6J898A815B18PB
898
ANT
815
PART NO
3.91
8.80
4.0
1.2
2.3
4.7
4.0
5.0
7.7
1.5
12.7
30.00
12.7
FRONT VIEW
7.5 max.
GROUND
I/O PORT
TOLERANCE : ±0.20
UNIT : mm
Pin Configuration
Description
RX (806 ~ 824MHz)
ANT
TX (896 ~ 901MHz)
Function
RECEIVER
ANTENNA
TRANSMITTER
Maximum Ratings
Parameter
Operating Temperature Range
Storage Temperature Range
Electrostatics Sensitive Device (ESD)
Unit
°C
°C
Minimum
-40
-40
Typical
25
-
Maximum
+85
+85
I T F Co., Ltd.
102-901, Bucheon Technopark 364,
Samjeong-Dong, Ojeong-Gu, Bucheon-City,
Gyounggi-Do, Korea 421-809
Part No.
Rev. Date
Rev.
IDD08169
2014-9-16
AS01
1/3
Ceramic DUPLEXER IDD08169
815 MHz / 898.5 MHz
Specification
Fo = 815 MHz / 898.5 MHz
ANT to Rx
Insertion loss (815 MHz +/-9 MHz)
Amplitude Ripple (815 MHz +/-9 MHz)
Return Loss (815 MHz +/-9 MHz)
Input power (815 MHz +/-9 MHz)
dB
dB
dB
Watt
Minimum
-
-
17
Typical
1.8
0.3
20
Maximum
2.0
0.5
-
3W > 50000 Hours, CW tone (Ta=+50°C)
Relative Attenuation
@ 865 MHz
896 ~ 901 MHz
dB
35
50
40
55
-
Tx to ANT
Insertion loss (898.5 MHz +/-2.5 MHz)
Amplitude Ripple (898.5 MHz +/-2.5 MHz)
Return Loss (898.5 MHz +/-2.5 MHz)
Input power (898.5 MHz +/-2.5 MHz)
Relative Attenuation
806 ~ 824 MHz
@ 865 MHz
dB
dB
dB
Watt
Minimum
-
-
18
Typical
1.8
0.3
20
Maximum
2.0
0.5
-
3W > 50000 Hours, CW tone (Ta=+50°C)
dB
50
35
55
35
-
Notes :
1) All specifications are based on the matching schematic shown below, measured by Agilent Network analyzer and
full 3 port calibration.
2) Electrical margin has been built into the design to account for the variations due to temperature drift and manufacturing
tolerances
3) All attenuation measurements are measured absolute to insertion loss
I T F Co., Ltd.
102-901, Bucheon Technopark 364,
Samjeong-Dong, Ojeong-Gu, Bucheon-City,
Gyounggi-Do, Korea 421-809
Part No.
Rev. Date
Rev.
IDD08169
2014-9-16
AS01
2/3
Ceramic DUPLEXER IDD08169
815 MHz / 898.5 MHz

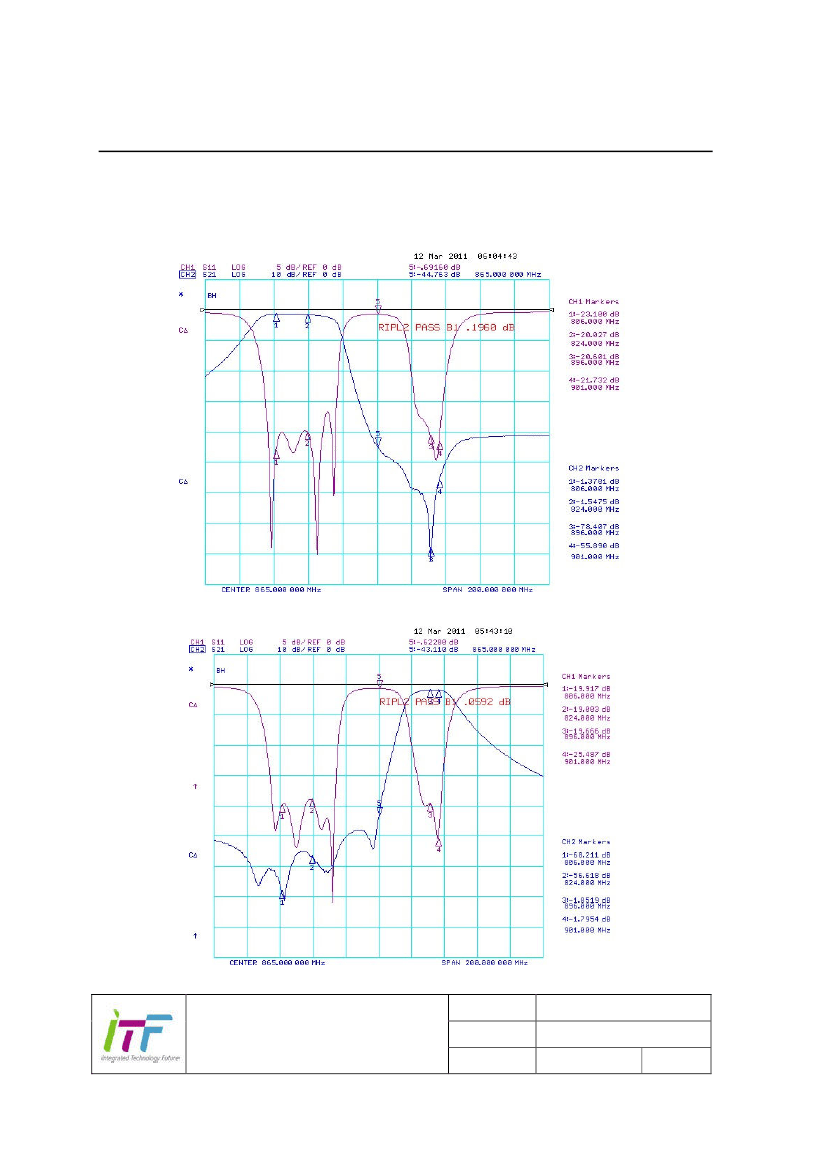

Frequency Response
Ant to Rx
Tx to Ant
I T F Co., Ltd.
102-901, Bucheon Technopark 364,
Samjeong-Dong, Ojeong-Gu, Bucheon-City,
Gyounggi-Do, Korea 421-809
Part No.
Rev. Date
Rev.
IDD08169
2014-9-16
AS01
3/3
