Ceramic DUPLEXER IDD09074

902.5 MHz / 947.5 MHz

Features

Ceramic Duplexer

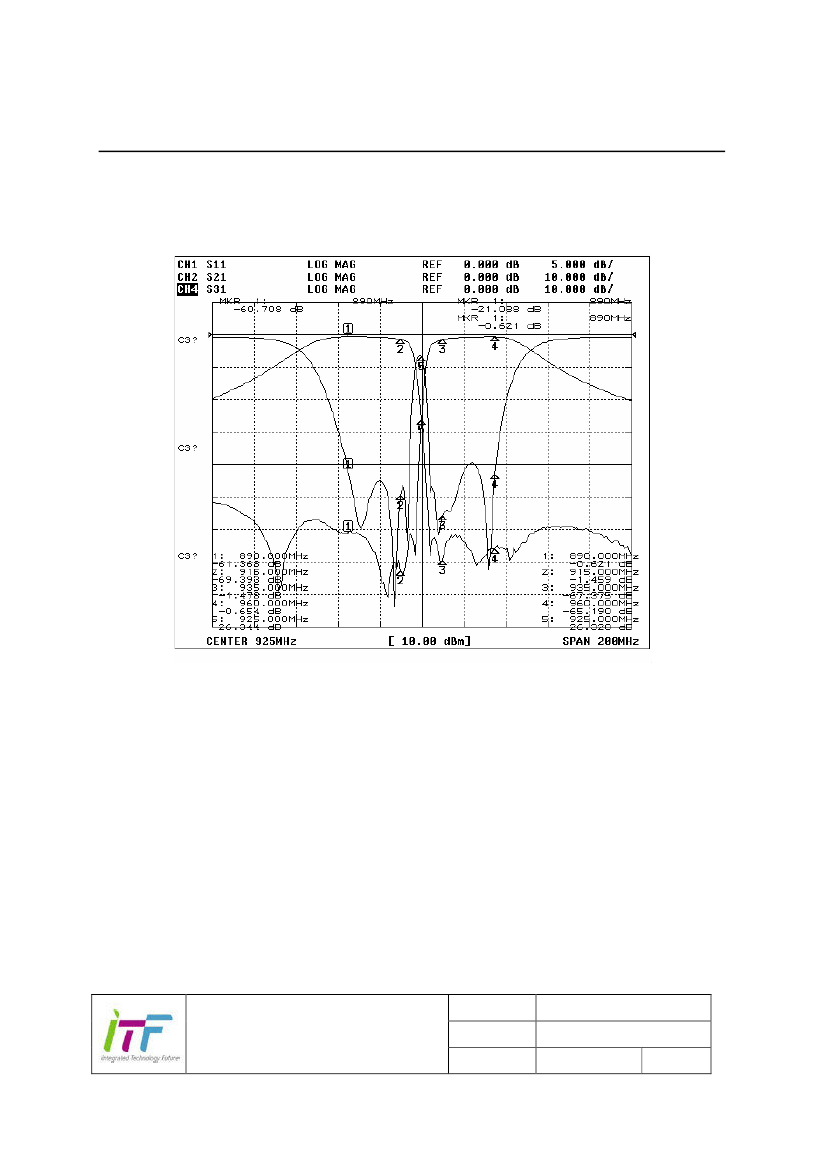

Usable bandwidth 25 MHz each Rx And Tx. band

No matching / Antenna & Transmitter & Receiver Impedance 50Ω

Surface Mounted Module Package ( 67.15mm

18.28mm

14.5mm )

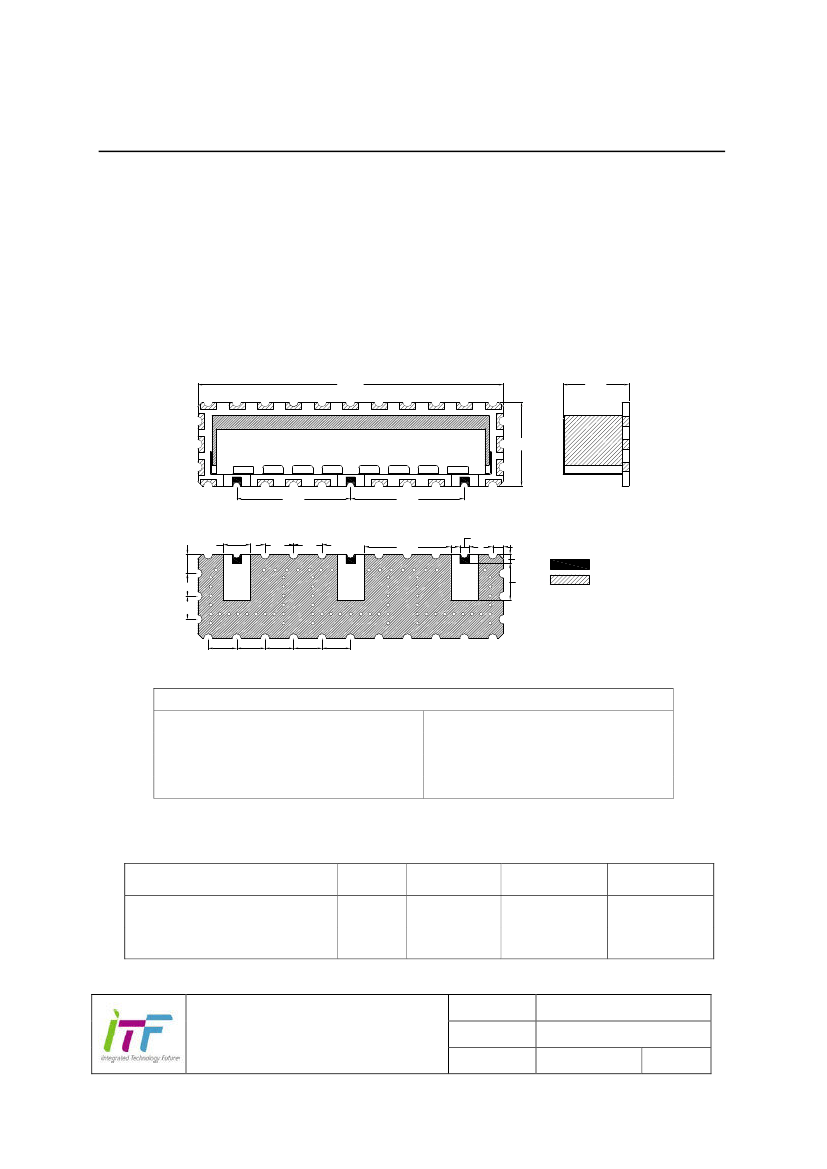

Package Dimension

TOP VIEW

67.15

SIDE VIEW

14.5

PART NUMBER

LOW

ANT

HIGH

18.28

25.0

BOTTOM VIEW

X3-2.0

X3-6.0

4.1

5.0

6.3

19.0

2.3

2.0

8.0

I/O PORT

GROUND

TOLERANCE : ÷0.30

UNIT : mm

6.3

Pin Configuration

Description

RX (890 ~ 915MHz)

ANT

TX (935 ~ 960MHz)

Function

RECEIVER

ANTENNA

TRANSMITTER

Maximum Ratings

Parameter

Operating Temperature Range

Storage Temperature Range

Electrostatics Sensitive Device (ESD)

Unit

°C

Minimum

-40

Typical

Maximum

+85

I T F Co., Ltd.

102-901, Bucheon Technopark 364,

Samjeong-Dong, Ojeong-Gu, Bucheon-City,

Gyounggi-Do, Korea 421-809

Part No.

Rev. Date

Rev.

IDD09074

2014-9-16

AS01

1/3
