Cavity Bandpass Filter IFC23579
Features
Cavity bandpass filter
50Ω single-ended operation
Surface Mounted Module Package ( 30mm
×
14mm
×
14mm )

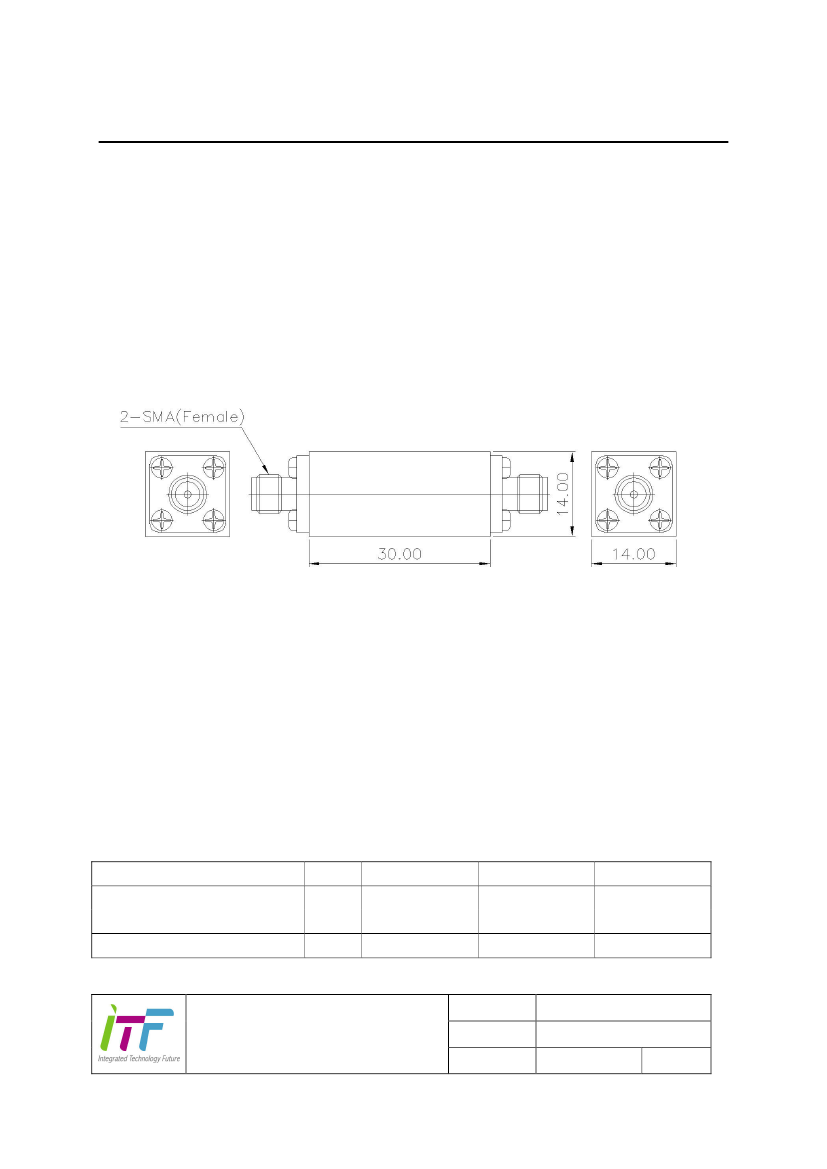

Package Dimensions
Maximum Ratings
Parameter
Operating Temperature Range
Storage Temperature Range
Power Handling Capability
Electrostatics Sensitive Device (ESD)
Unit
℃
℃
Watt
Minimum
-20
-40
-
Typical
25
25
-
Maximum
70
85
40
I T F Co., Ltd.
102-901, Bucheon Technopark 364,
Samjeong-Dong, Ojeong-Gu, Bucheon-City,
Gyounggi-Do, Korea 421-809
Part No.
Rev. Date
Rev.
IFC23579
2014-10-01
AS 01
1/4
Cavity Bandpass Filter IFC23579
Preliminary Specifications
Fo = 2350 MHz
Minimum
Center Frequency (
Fo
)
-
-
-
15
Typical
2350
0.5
0.5
18
Maximum
-
0.8
0.8
-
Unit
MHz
dB
dB
dB
Insertion Loss (2330 ~ 2370 MHz)
Amplitude Ripple (2330 ~ 2370 MHz)
Return Loss (2330 ~ 2370 MHz)
Relative Attenuation
4600~ 4740 MHz
10
15
-
dB
Input/Output Impedance
50
Ohm
Notes :
1) All specifications are based on the matching schematic shown below, measured by Agilent Network analyzer and
full 2 port calibration.
2) Electrical margin has been built into the design to account for the variations due to temperature drift and manufacturing
tolerances
3) All attenuation measurements are measured relative to insertion loss
I T F Co., Ltd.
102-901, Bucheon Technopark 364,
Samjeong-Dong, Ojeong-Gu, Bucheon-City,
Gyounggi-Do, Korea 421-809
Part No.
Rev. Date
Rev.
IFC23579
2014-10-01
AS 01
2/4
Cavity Bandpass Filter IFC23579
Matching Schematic
( Actual matching values may vary due to PCB layout and parasitics )
Input
50
Ω
Output
50
Ω
I T F Co., Ltd.
102-901, Bucheon Technopark 364,
Samjeong-Dong, Ojeong-Gu, Bucheon-City,
Gyounggi-Do, Korea 421-809
Part No.
Rev. Date
Rev.
IFC23579
2014-10-01
AS 01
3/4
Cavity Bandpass Filter IFC23579
Typical Performance ( at 25℃ )
℃
I T F Co., Ltd.
102-901, Bucheon Technopark 364,
Samjeong-Dong, Ojeong-Gu, Bucheon-City,
Gyounggi-Do, Korea 421-809
Part No.
Rev. Date
Rev.
IFC23579
2014-10-01
AS 01
4/4
