Ceramic Bandpass Filter IFD06003
Features
Ceramic bandpass filter
50Ω single-ended operation
Surface Mounted Module Package ( 10mm
×
20mm
×
4.5mm )
Package Dimensions
TOP VIEW
10
SIDE VIEW
BOTTOM VIEW
1 1
1.5
7-7Ÿ
7¡
DC xxxx
20.0 max.
4
2
PART NO.
12.5
12.5
7
4.5 max.
TOLERANCE UNLESS
OTHERWISE SPECIFIED : ±0.3
DIMENSIONS : mm
GROUND
I/O PORT
Maximum Ratings
Parameter
Operating Temperature Range
Storage Temperature Range
Power Handling Capability
Electrostatics Sensitive Device (ESD)
Unit
℃
℃
Watt
Minimum
-30
-40
-
Typical
25
25
-
Maximum
70
85
2
I T F Co., Ltd.
102-901, Bucheon Technopark 364,
Samjeong-Dong, Ojeong-Gu, Bucheon-City,
Gyounggi-Do, Korea 421-809
Part No.
Rev. Date
Rev.
IFD06003
2014-08-26
AS 01
1/4
Ceramic Bandpass Filter IFD06003
Specifications
Fo = 605.75MHz
Minimum
Center Frequency (
Fo
)
-
-
-
15
Typical
605.75
2.0
0.3
18
Maximum
-
2.5
0.5
-
Unit
MHz
dB
dB
dB
Insertion Loss (605.5 ~ 606.0MHz)
Amplitude Ripple (605.5 ~ 606.0MHz)
Return Loss (605.5 ~ 606.0MHz)
Relative Attenuation
@1210 MHz
@ 1815 MHz
40.0
30.0
45.0
35.0
-
-
dB
Input/Output Impedance
50
Ohm
Notes :
1) All specifications are based on the matching schematic shown below, measured by Agilent Network analyzer and
full 2 port calibration.
2) Electrical margin has been built into the design to account for the variations due to temperature drift and manufacturing
tolerances
3) All attenuation measurements are measured relative to insertion loss
I T F Co., Ltd.
102-901, Bucheon Technopark 364,
Samjeong-Dong, Ojeong-Gu, Bucheon-City,
Gyounggi-Do, Korea 421-809
Part No.
Rev. Date
Rev.
IFD06003
2014-08-26
AS 01
2/4
Ceramic Bandpass Filter IFD06003
Matching Schematic
( Actual matching values may vary due to PCB layout and parasitics )
Input
50
Ω
Output
50
Ω
Marking Configuration
Part No.
1)
1) Part Number
* Ink or Laser Marking available
I T F Co., Ltd.
102-901, Bucheon Technopark 364,
Samjeong-Dong, Ojeong-Gu, Bucheon-City,
Gyounggi-Do, Korea 421-809
Part No.
Rev. Date
Rev.
IFD06003
2014-08-26
AS 01
3/4
Ceramic Bandpass Filter IFD06003

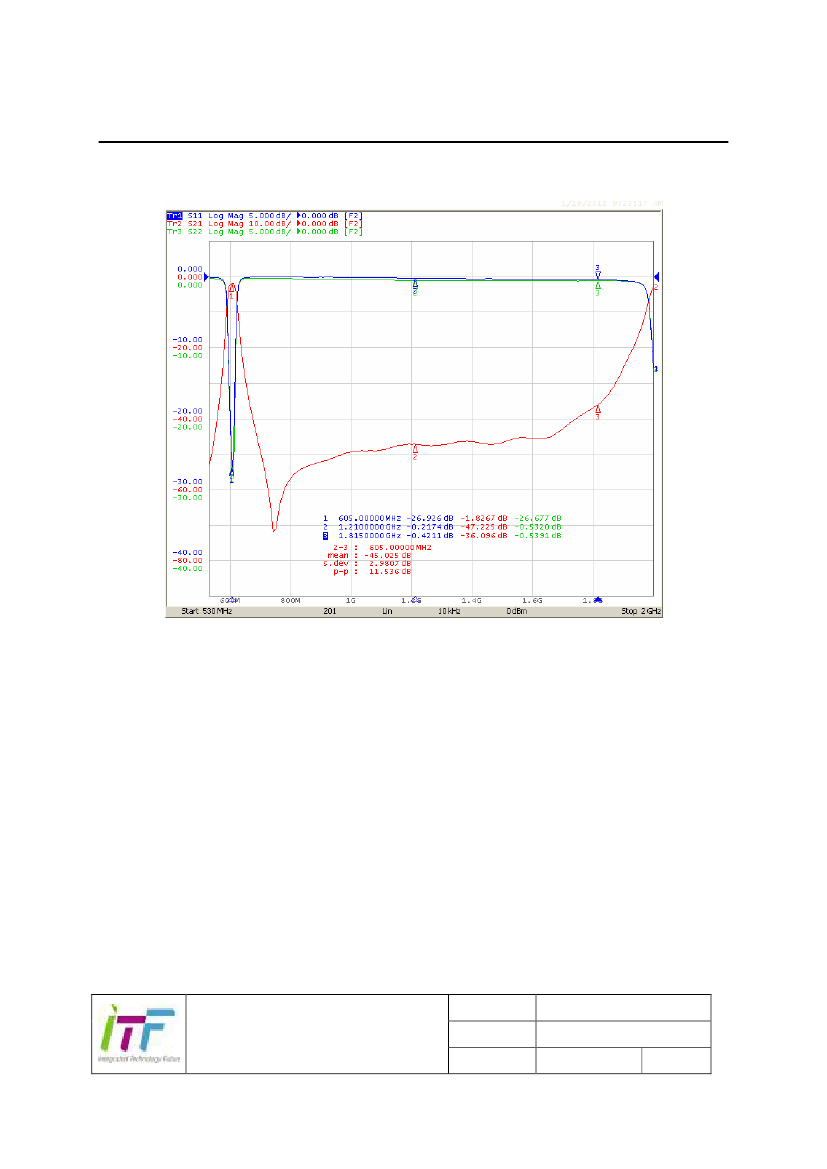

Typical Performance ( at 25℃ )
℃
I T F Co., Ltd.
102-901, Bucheon Technopark 364,
Samjeong-Dong, Ojeong-Gu, Bucheon-City,
Gyounggi-Do, Korea 421-809
Part No.
Rev. Date
Rev.
IFD06003
2014-08-26
AS 01
4/4
