LCE40E3 datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > Discrete semiconductor> diode> LCE40E3

LCE40E3: DescriptionTrans Voltage Suppressor Diode; CategoryDiscrete semiconductor diode; File Size282KB，6 Pages; ManufacturerMicrosemi; Websitehttps://www.microsemi.com; Environmental Compliance

Download Datasheet Parametric View All

LCE40E3 Overview

Trans Voltage Suppressor Diode

LCE40E3 Parametric

Parameter Name	Attribute value
Is it Rohs certified?	conform to
Reach Compliance Code	compliant
ECCN code	EAR99
Diode type	TRANS VOLTAGE SUPPRESSOR DIODE

Preview

Download Datasheet

View All

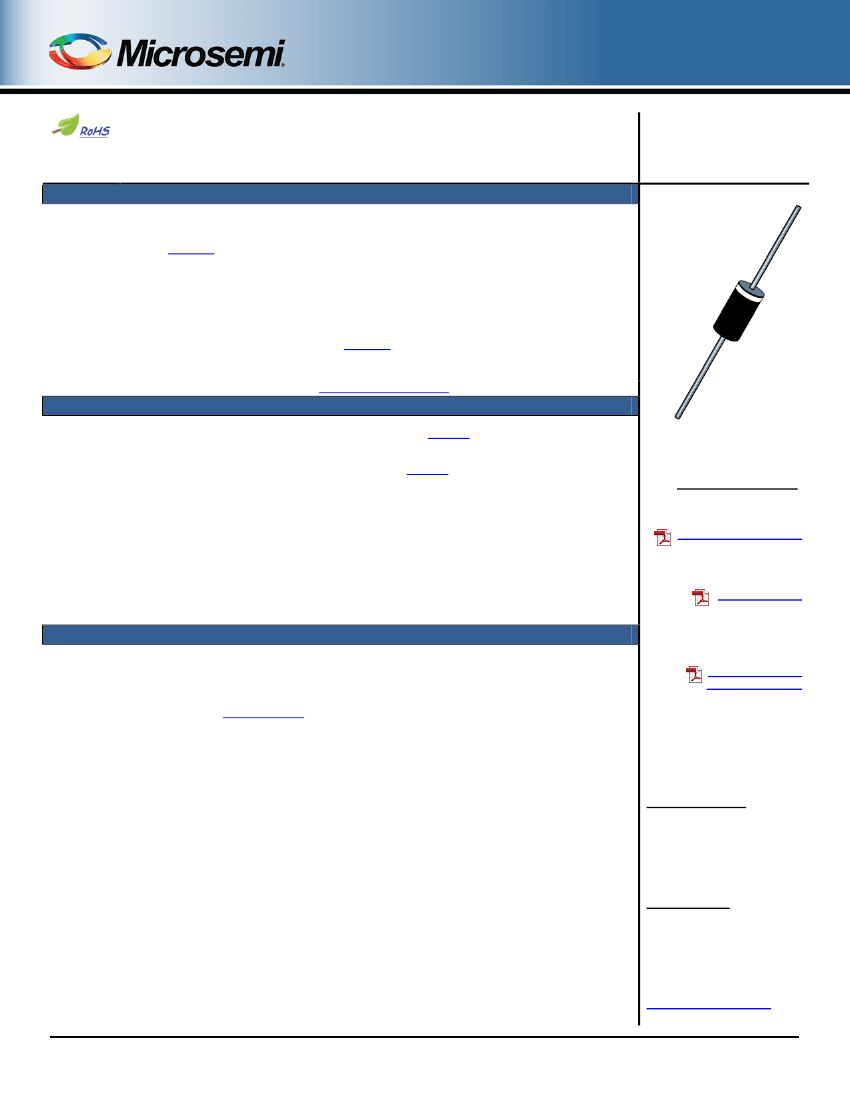

LCE6.5 – LCE170A

Available

1500 Watt Low Capacitance

Transient Voltage Suppressor

DESCRIPTION

This Transient Voltage Suppressor (TVS) product family includes a rectifier diode element in

series and in an opposite direction. This allows it to achieve low capacitance performance

below 100 pF (see

figure 2).

The low level of TVS capacitance may be used for protecting

higher frequency applications in inductive switching environments or electrical systems

involving secondary lightning effects per IEC61000-4-5 as well as RTCA/DO-160 or ARINC

429 for airborne avionics. With virtually instantaneous response, they also protect from ESD

and EFT per IEC61000-4-2 and IEC61000-4-4. If bipolar transient capability is required, two

of these low capacitance TVS devices may be used in parallel in opposite directions (anti-

parallel) for complete ac protection as shown in

figure 4.

Important:

For the latest information, visit our website

http://www.microsemi.com.

FEATURES

•

Unidirectional low-capacitance TVS series (for bidirectional see

figure 4).

Economical plastic encapsulated TVS series for thru-hole mounting.

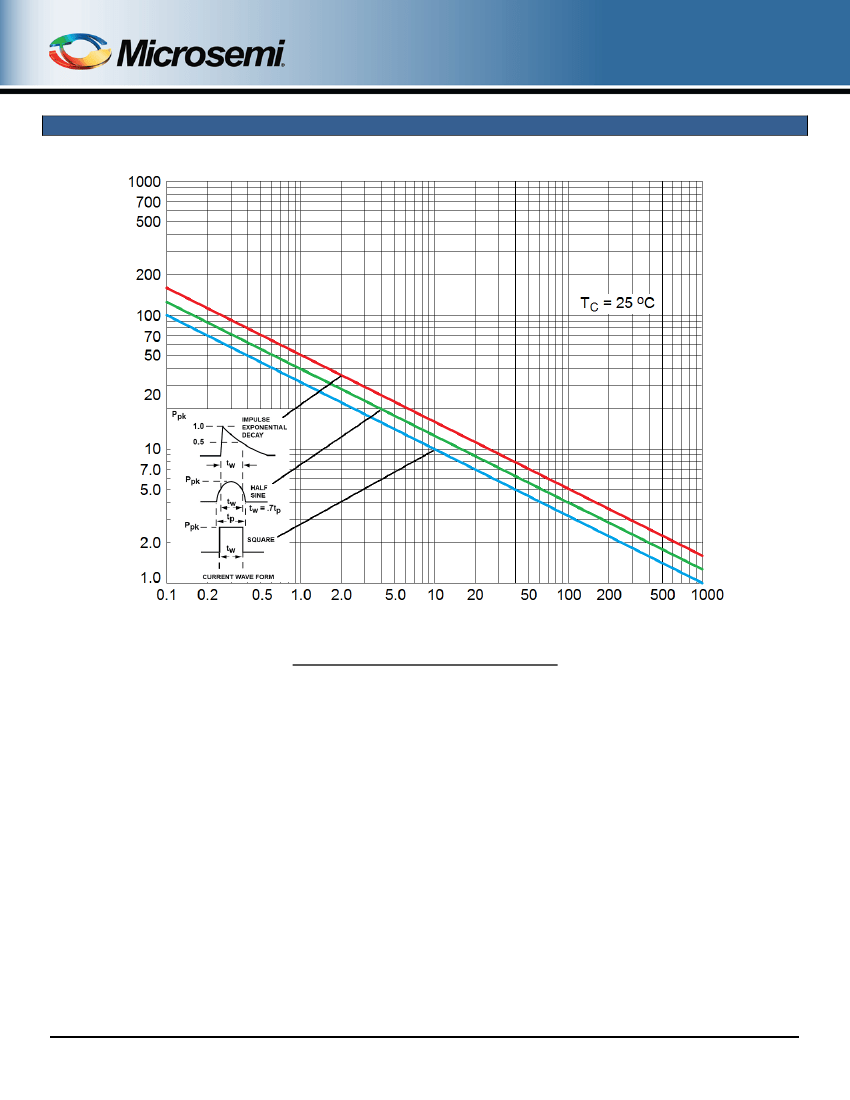

Suppresses transients up to 1500 watts @ 10/1000 µs (see

figure 1)*.

Clamps transient in less than 100 pico seconds.

Working voltage (V

) range 6.5 V to 170 V.

RoHS compliant versions available.

Case 1 Package

Also available in:

HiRel

Case 1 package

(axial-lead)

MLCE6.5 – MXLCE170A

DO-13 (metal) package

(axial-lead)

LC6.5 – LC170A

APPLICATIONS / BENEFITS

•

Protection from switching transients and induced RF.

Low capacitance for data line protection up to 1 MHz.

Protection for aircraft fast data rate lines up to Level 5 Waveform 4 and Level 2 Waveform 5A in

RTCA/DO-160D (also see

MicroNote 130)

& ARINC 429 with bit rates of 100 kb/s (per ARINC 429,

Part 1, par 2.4.1.1).

ESD & EFT protection per IEC 61000-4-2 and -4-4.

Secondary lightning protection per IEC61000-4-5 with 42 ohms source impedance:

Class 1: LCE6.5 to LC170A

Class 2: LCE6.5 to LC150A

Class 3: LCE6.5 to LC70A

Class 4: LCE6.5 to LC36A

Secondary lightning protection per IEC61000-4-5 with 12 ohms source impedance:

Class 1 : LCE6.5 to LC90A

Class 2: LCE6.5 to LC45A

Class 3: LCE6.5 to LC22A

Class 4: LCE6.5 to LC11A

Secondary lightning protection per IEC61000-4-5 with 2 ohms source impedance:

Class 2: LCE6.5 to LC20A

Class 3: LCE6.5 to LC10A

DO-215AB and

DO-214AB package

(surface mounts)

SMCG(J)LCE6.5 –

SMCG(J)LCE170A

•

MSC – Lawrence

6 Lake Street,

Lawrence, MA 01841

Tel: 1-800-446-1158 or

(978) 620-2600

Fax: (978) 689-0803

MSC – Ireland

Gort Road Business Park,

Ennis, Co. Clare, Ireland

Tel: +353 (0) 65 6840044

Fax: +353 (0) 65 6822298

Website:

www.microsemi.com

•

RF01122, Rev. A (4/9/13)

Page 1 of 6
