120V DUAL NPN MEDIUM POWER HIGH GAIN TRANSISTOR IN SM-8
Features
•
•
•
•
•
•
•
BV
CEO
> 120V
I
C
= 0.5A High Continuous Current
High Gain > 400 @ 200mA
Lead-Free Finish; RoHS Compliant (Notes 1 & 2)
Halogen and Antimony Free. “Green” Device (Note 3)
Qualified to AEC-Q101 Standards for High Reliability
PPAP Capable (Note 4)
Mechanical Data
•
•
•
•
•
Case: SM-8 (8 LEAD SOT223)
Case Material: Molded Plastic, “Green” Molding Compound.
UL Flammability Classification Rating 94V-0
Moisture Sensitivity: Level 1 per J-STD-020
Terminals: Finish - Matte Tin Plated Leads, Solderable per
MIL-STD-202, Method 208
Weight: 0.117 grams (Approximate)

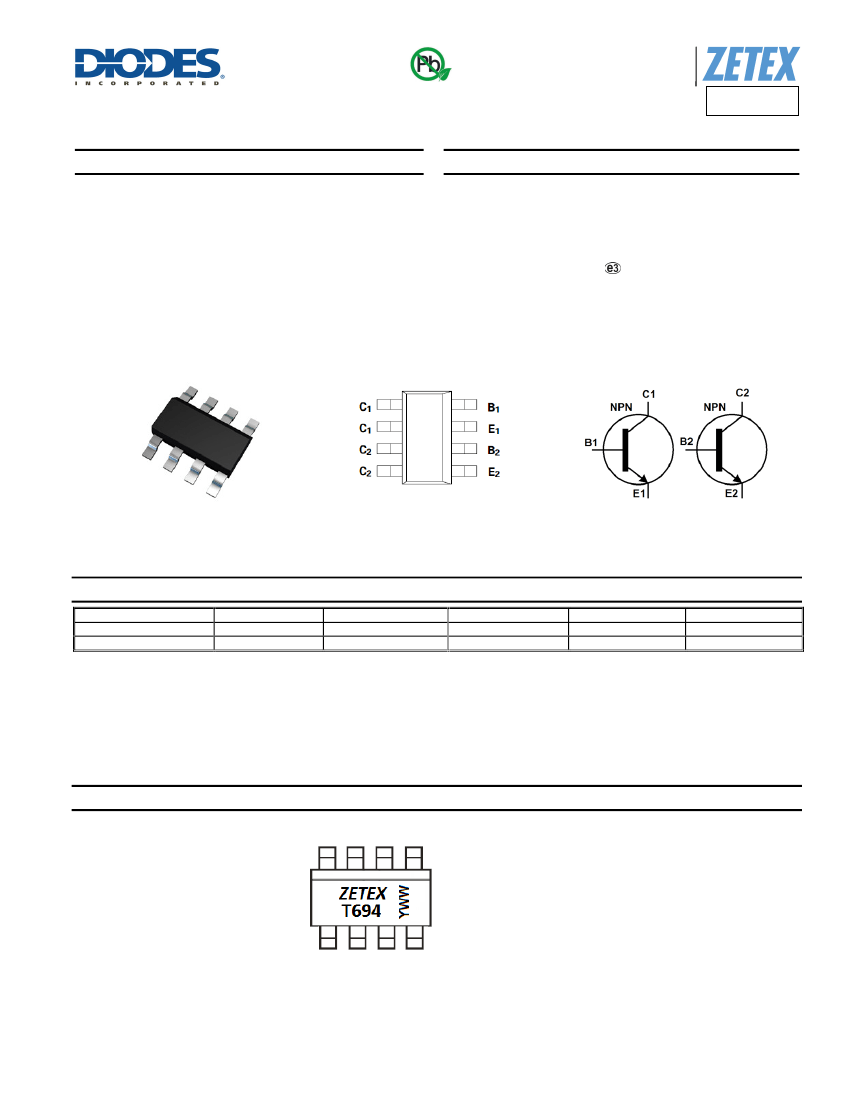

SM-8
Top View
Top View
Pin Out
Equivalent Circuit
Ordering Information
(Notes 4 and 5)
Part Number
ZDT694TA
ZDT694QTA
Notes:
Compliance
AEC-Q101
Automotive
Marking
T694
T694
Reel size (inches)
7
7
Tape width (mm)
12
12
Quantity per reel
1,000
1,000
1. EU Directive 2002/95/EC (RoHS) & 2011/65/EU (RoHS 2) compliant. All applicable RoHS exemptions applied.
2. See http://www.diodes.com/quality/lead_free.html for more information about Diodes Incorporated’s definitions of Halogen- and Antimony-free, "Green"
and Lead-free.
3. Halogen- and Antimony-free "Green” products are defined as those which contain <900ppm bromine, <900ppm chlorine (<1500ppm total Br + Cl) and
<1000ppm antimony compounds.
4. Automotive products are AEC-Q101 qualified and are PPAP capable. Automotive, AEC-Q101 and standard products are electrically and thermally
the same, except where specified.
5. For packaging details, go to our website at http://www.diodes.com/products/packages.html.
