Ceramic Bandpass Filter IFD35001
Features
Ceramic bandpass filter
50Ω single-ended operation
Surface Mounted Module Package ( 34mm
×
14mm
×
5.5mm )

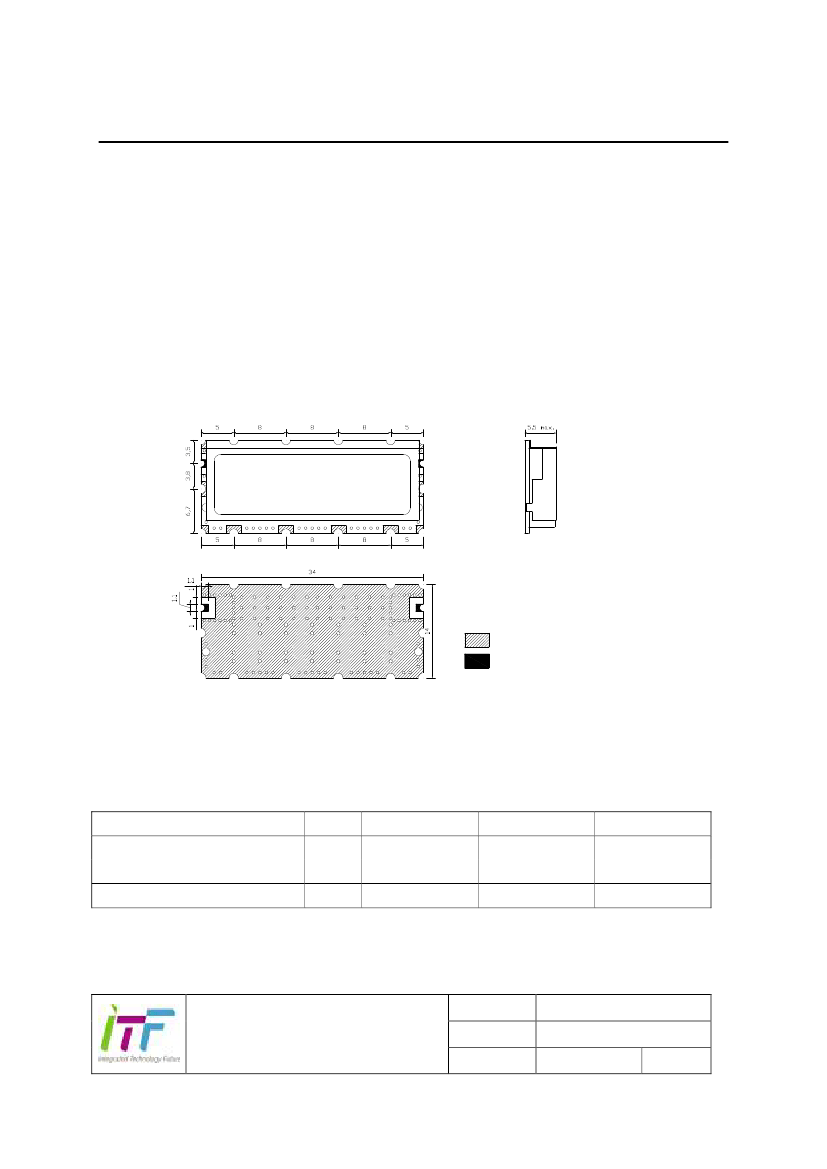

Package Dimensions
TOP VIEW
SIDE VIEW
Part Name.
TOLERANCE UNLESS
OTHERWISE SPECIFICATION :±0.2
DIMENSION : mm
GROUND
I/O PORT
Maximum Ratings
Parameter
Operating Temperature Range
Storage Temperature Range
Power Handling Capability
Electrostatics Sensitive Device (ESD)
Unit
℃
℃
dBm
Minimum
-40
-40
-
Typical
25
25
-
Maximum
85
85
30
I T F Co., Ltd.
102-901, Bucheon Technopark 364,
Samjeong-Dong, Ojeong-Gu, Bucheon-City,
Gyounggi-Do, Korea 421-809
Part No.
Rev. Date
Rev.
IFD35001
2014-08-06
AS 01
1/4
Ceramic Bandpass Filter IFD35001
Preliminary Specifications
Fo = 3500 MHz
Minimum
Center Frequency (
Fo
)
-
-
-
12
Typical
3500
2.0
0.5
15
Maximum
-
3.0
1.0
-
Unit
MHz
dB
dB
dB
Insertion Loss (3350 ~ 3650 MHz)
Amplitude Ripple (3350 ~ 3650 MHz)
Return Loss (3350 ~ 3650 MHz)
Relative Attenuation
0.3 ~ 3100 MHz
@ 3150 MHz
@ 3750 MHz
@ 3850 MHz
@ 3950 MHz
4500 ~ 6400 MHz
Input/Output Impedance
60.0
50.0
30.0
50.0
60.0
70.0
62.0
55.0
35.0
55.0
65.0
72.0
50
-
-
-
-
-
-
Ohm
dB
Notes :
1) All specifications are based on the matching schematic shown below, measured by Agilent Network analyzer and
full 2 port calibration.
2) Electrical margin has been built into the design to account for the variations due to temperature drift and manufacturing
tolerances
3) All attenuation measurements are measured relative to insertion loss
I T F Co., Ltd.
102-901, Bucheon Technopark 364,
Samjeong-Dong, Ojeong-Gu, Bucheon-City,
Gyounggi-Do, Korea 421-809
Part No.
Rev. Date
Rev.
IFD35001
2014-08-06
AS 01
2/4
Ceramic Bandpass Filter IFD35001
Matching Schematic
( Actual matching values may vary due to PCB layout and parasitics )
Input
50
Ω
Output
50
Ω
Marking Configuration
Part Name.
1)
1) Part Number
* Ink or Laser Marking available
I T F Co., Ltd.
102-901, Bucheon Technopark 364,
Samjeong-Dong, Ojeong-Gu, Bucheon-City,
Gyounggi-Do, Korea 421-809
Part No.
Rev. Date
Rev.
IFD35001
2014-08-06
AS 01
3/4
Ceramic Bandpass Filter IFD35001

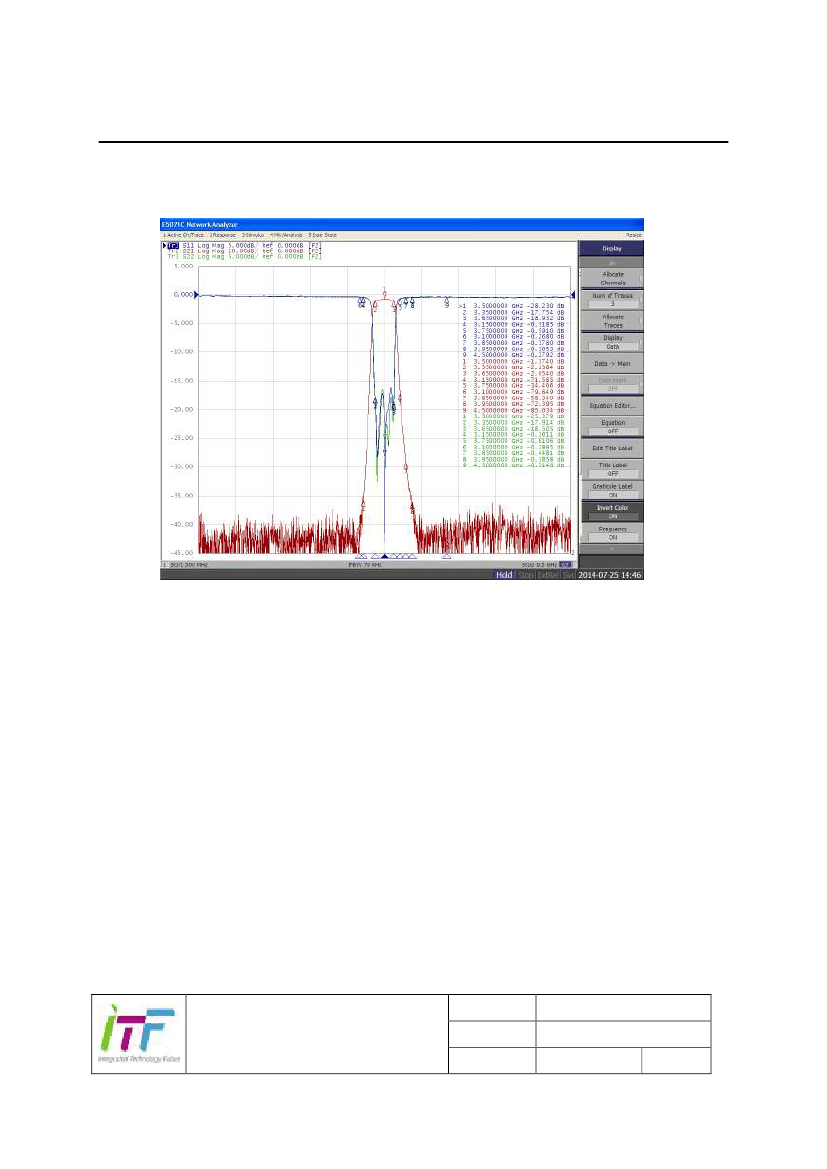

Typical Performance ( at 25℃ )
℃
