LC Bandpass Filter IFL00513
Features
LC bandpass filter
50Ω single-ended operation
Surface Mounted Package ( 20mm
×
12mm
×
8.0mm )
Package Dimensions
TOP VIEW
10
10
SIDE VIEW
IN
6
RFD
Part No
TOLERANCE UNLESS
OTHERWISE SPECIFIED : ±0.3
DIMENSIONS : mm
GROUND
I/O PORT
6
8 max.
1.5
1
Maximum Ratings
Parameter
Operating Temperature Range
Storage Temperature Range
Power Handling Capability
Electrostatics Sensitive Device (ESD)
Unit
℃
℃
Watt
Minimum
-30
-40
-
Typical
25
25
-
Maximum
70
85
2
1.8
1.1
1.1
I T F Co., Ltd.
102-901, Bucheon Technopark 364,
Samjeong-Dong, Ojeong-Gu, Bucheon-City,
Gyounggi-Do, Korea 421-809
Part No.
Rev. Date
Rev.
IFL00513
2014-08-26
AS 01
1/4
LC Bandpass Filter IFL00513
Specifications
Fo = 57.6 MHz
Minimum
Center Frequency (
Fo
)
-
-
-
15
Typical
57.6
1.8
0.3
20
Maximum
-
2.0
0.5
-
Unit
MHz
dB
dB
dB
Insertion Loss (47.6~ 67.6MHz)
Amplitude Ripple (47.6~ 67.6MHz)
Return Loss (47.6~ 67.6MHz)
Relative Attenuation
@ 115.2 MHz
40.0
43.0
-
dB
Input/Output Impedance
50
Ohm
Notes :
1) All specifications are based on the matching schematic shown below, measured by Agilent Network analyzer and
full 2 port calibration.
2) Electrical margin has been built into the design to account for the variations due to temperature drift and manufacturing
tolerances
3) All attenuation measurements are measured relative to insertion loss
I T F Co., Ltd.
102-901, Bucheon Technopark 364,
Samjeong-Dong, Ojeong-Gu, Bucheon-City,
Gyounggi-Do, Korea 421-809
Part No.
Rev. Date
Rev.
IFL00513
2014-08-26
AS 01
2/4
LC Bandpass Filter IFL00513
Matching Schematic
( Actual matching values may vary due to PCB layout and parasitics )
Input
50
Ω
Output
50
Ω
Marking Configuration
Part No
1)
1) Part Number
* Ink or Laser Marking available
I T F Co., Ltd.
102-901, Bucheon Technopark 364,
Samjeong-Dong, Ojeong-Gu, Bucheon-City,
Gyounggi-Do, Korea 421-809
Part No.
Rev. Date
Rev.
IFL00513
2014-08-26
AS 01
3/4
LC Bandpass Filter IFL00513

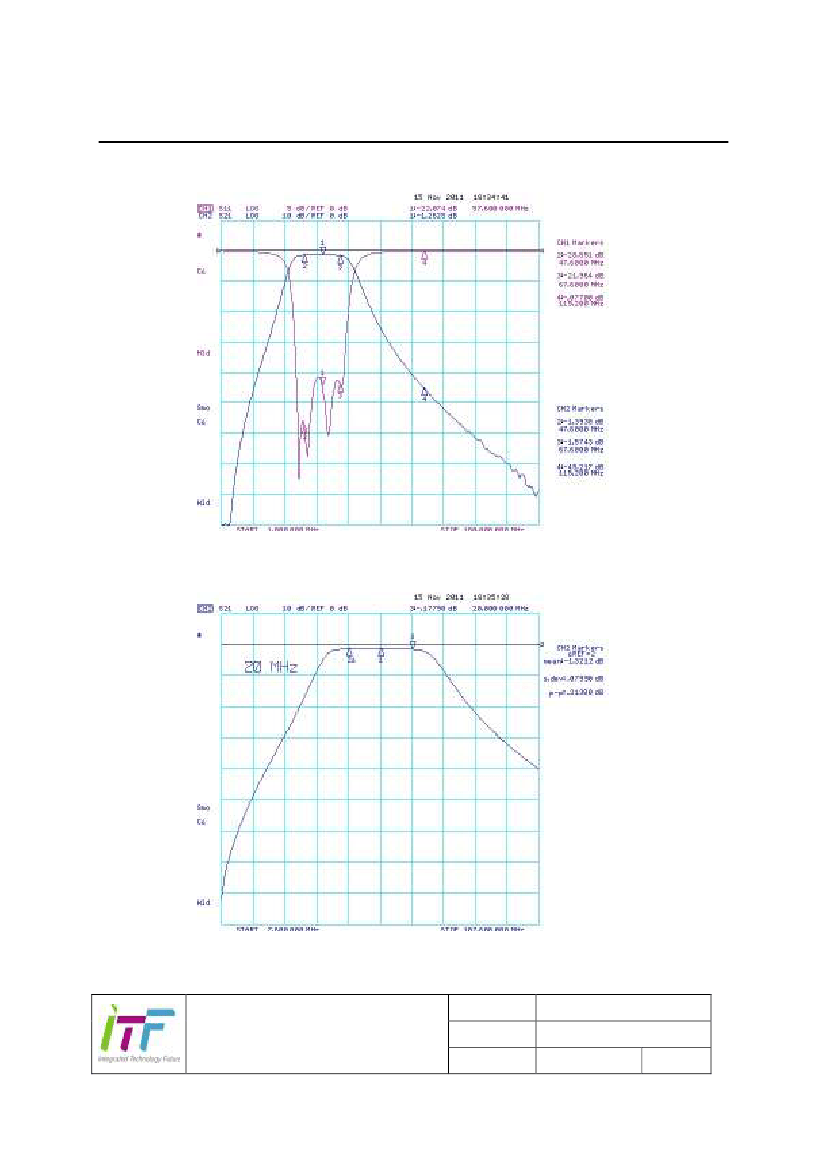

Typical Performance ( at 25℃ )
℃
