LC Bandpass Filter IFL00736
Features
LC bandpass filter
50Ω single-ended operation
Surface Mounted Package ( 50.8mm
×
12.7mm
×
5mm )

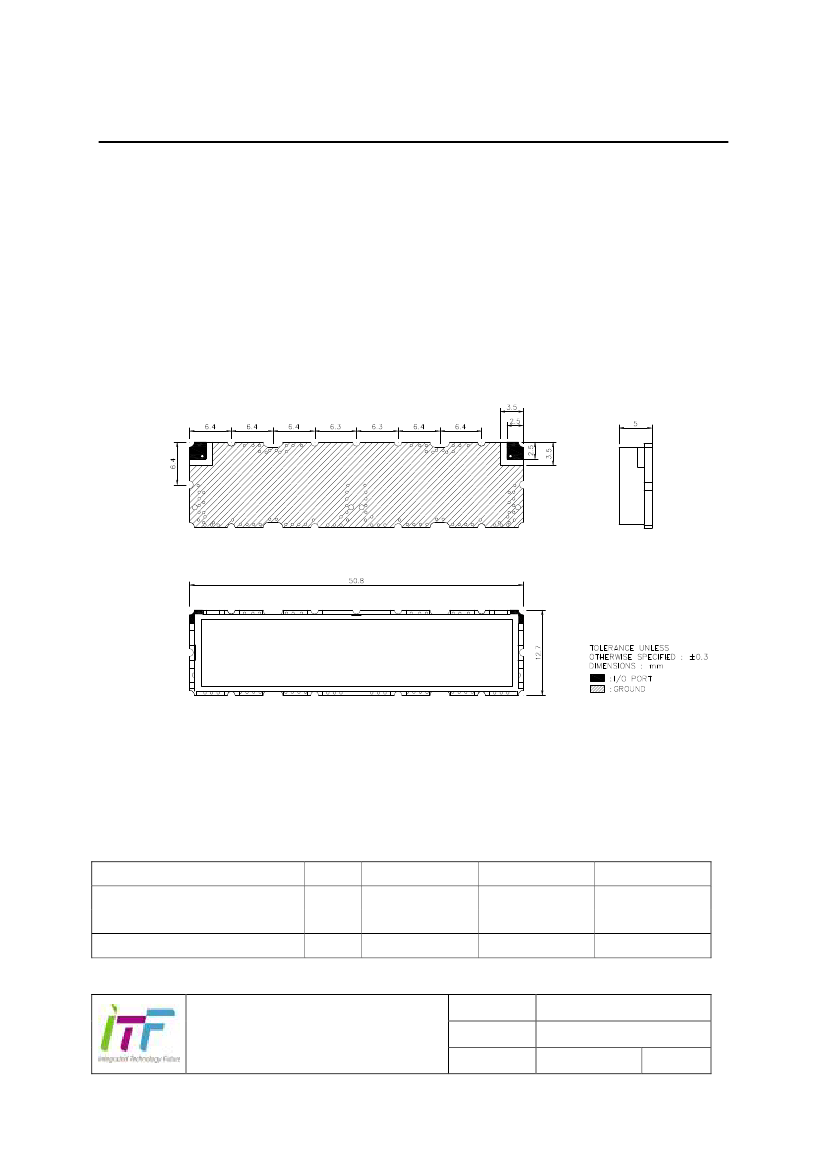

Package Dimensions
BOTTOM VIEW
SIDE VIEW
IN
TOP VIEW
IN
RF Devices,Inc.
PART NUMBER.
Maximum Ratings
Parameter
Operating Temperature Range
Storage Temperature Range
Power Handling Capability
Electrostatics Sensitive Device (ESD)
Unit
℃
℃
Watt
Minimum
-40
-40
-
Typical
25
25
-
Maximum
85
85
3
I T F Co., Ltd.
102-901, Bucheon Technopark 364,
Samjeong-Dong, Ojeong-Gu, Bucheon-City,
Gyounggi-Do, Korea 421-809
Part No.
Rev. Date
Rev.
IFL00736
2014-08-29
AS 01
1/4
LC Bandpass Filter IFL00736
Specifications
Fo = 76.8 MHz
Minimum
Center Frequency (
Fo
)
-
-
-
-
Typical
76.8
6.7
1.2
1.7
Maximum
-
7.0
1.5
2.0
Unit
MHz
dB
dB
-
Insertion Loss (66.8~ 86.8MHz)
Amplitude Ripple (66.8~ 86.8MHz)
VSWR (66.8~ 86.8MHz)
Relative Attenuation
@ 46.1 MHz
@ 52 MHz
@ 107.5 MHz
@ 120 MHz
70.0
60.0
60.0
70.0
73.0
63.0
63.0
73.0
-
-
-
-
dB
Input/Output Impedance
50
Ohm
Notes :
1) All specifications are based on the matching schematic shown below, measured by Agilent Network analyzer and
full 2 port calibration.
2) Electrical margin has been built into the design to account for the variations due to temperature drift and manufacturing
tolerances
3) All attenuation measurements are measured relative to insertion loss
I T F Co., Ltd.
102-901, Bucheon Technopark 364,
Samjeong-Dong, Ojeong-Gu, Bucheon-City,
Gyounggi-Do, Korea 421-809
Part No.
Rev. Date
Rev.
IFL00736
2014-08-29
AS 01
2/4
LC Bandpass Filter IFL00736
Matching Schematic
( Actual matching values may vary due to PCB layout and parasitics )
Input
50
Ω
Output
50
Ω
Marking Configuration
Part Number.
1)
1) Part Number
* Ink or Laser Marking available
I T F Co., Ltd.
102-901, Bucheon Technopark 364,
Samjeong-Dong, Ojeong-Gu, Bucheon-City,
Gyounggi-Do, Korea 421-809
Part No.
Rev. Date
Rev.
IFL00736
2014-08-29
AS 01
3/4
LC Bandpass Filter IFL00736

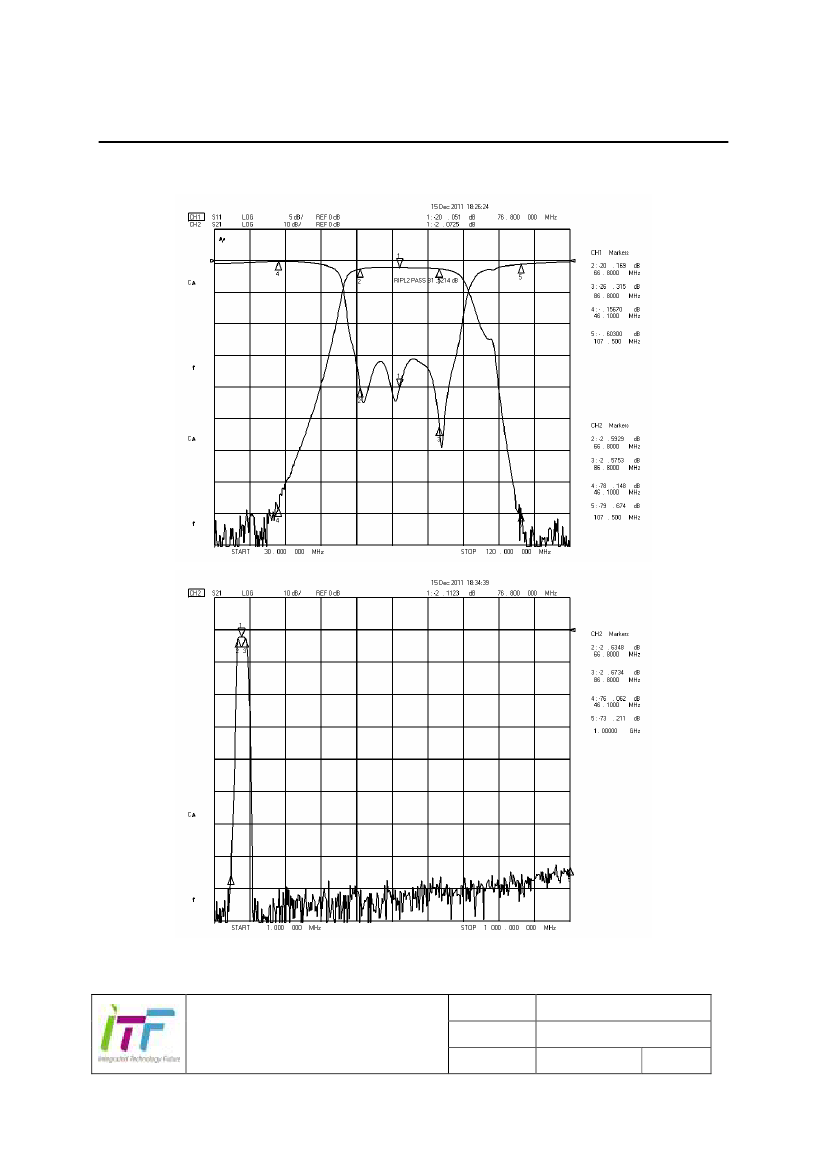

Typical Performance ( at 25℃ )
℃
