LC Bandpass Filter IFL01178
Features
LC bandpass filter
50Ω single-ended operation
Surface Mounted Package ( 16.5mm
×
11.5mm
×
6.0mm )
Package Dimensions
Maximum Ratings
Parameter
Operating Temperature Range
Storage Temperature Range
Power Handling Capability
Electrostatics Sensitive Device (ESD)
Unit
℃
℃
Watt
Minimum
-40
-40
-
Typical
25
25
-
Maximum
85
85
3.0
I T F Co., Ltd.
102-901, Bucheon Technopark 364,
Samjeong-Dong, Ojeong-Gu, Bucheon-City,
Gyounggi-Do, Korea 421-809
ITF
IN
PART NO.
DC XXXX
I/O PORT
GROUND
TOLERANCE: ± 0.2
UNIT: mm
Part No.
Rev. Date
Rev.
IFL01178
2014-10-01
AS 01
1/4
LC Bandpass Filter IFL01178
Specifications
Fo = 115.2 MHz
Minimum
Center Frequency (
Fo
)
-
-
-
-
Typical
115.2
2.2
0.3
1.2
Maximum
-
2.5
0.5
1.4
Unit
MHz
dB
dB
-
Insertion Loss (90.2~ 140.2MHz)
Amplitude Ripple (90.2~ 140.2MHz)
VSWR (90.2~ 140.2MHz)
Relative Attenuation
@ 250 MHz
30.0
35.0
-
dB
Input/Output Impedance
50
Ohm
Notes :
1) All specifications are based on the matching schematic shown below, measured by Agilent Network analyzer and
full 2 port calibration.
2) Electrical margin has been built into the design to account for the variations due to temperature drift and manufacturing
tolerances
3) All attenuation measurements are measured relative to insertion loss
I T F Co., Ltd.
102-901, Bucheon Technopark 364,
Samjeong-Dong, Ojeong-Gu, Bucheon-City,
Gyounggi-Do, Korea 421-809
Part No.
Rev. Date
Rev.
IFL01178
2014-10-01
AS 01
2/4
LC Bandpass Filter IFL01178
Matching Schematic
( Actual matching values may vary due to PCB layout and parasitics )
Input
50
Ω
Output
50
Ω
Marking Configuration
Part No.
1)
1) Part Number
* Ink or Laser Marking available
I T F Co., Ltd.
102-901, Bucheon Technopark 364,
Samjeong-Dong, Ojeong-Gu, Bucheon-City,
Gyounggi-Do, Korea 421-809
Part No.
Rev. Date
Rev.
IFL01178
2014-10-01
AS 01
3/4
LC Bandpass Filter IFL01178

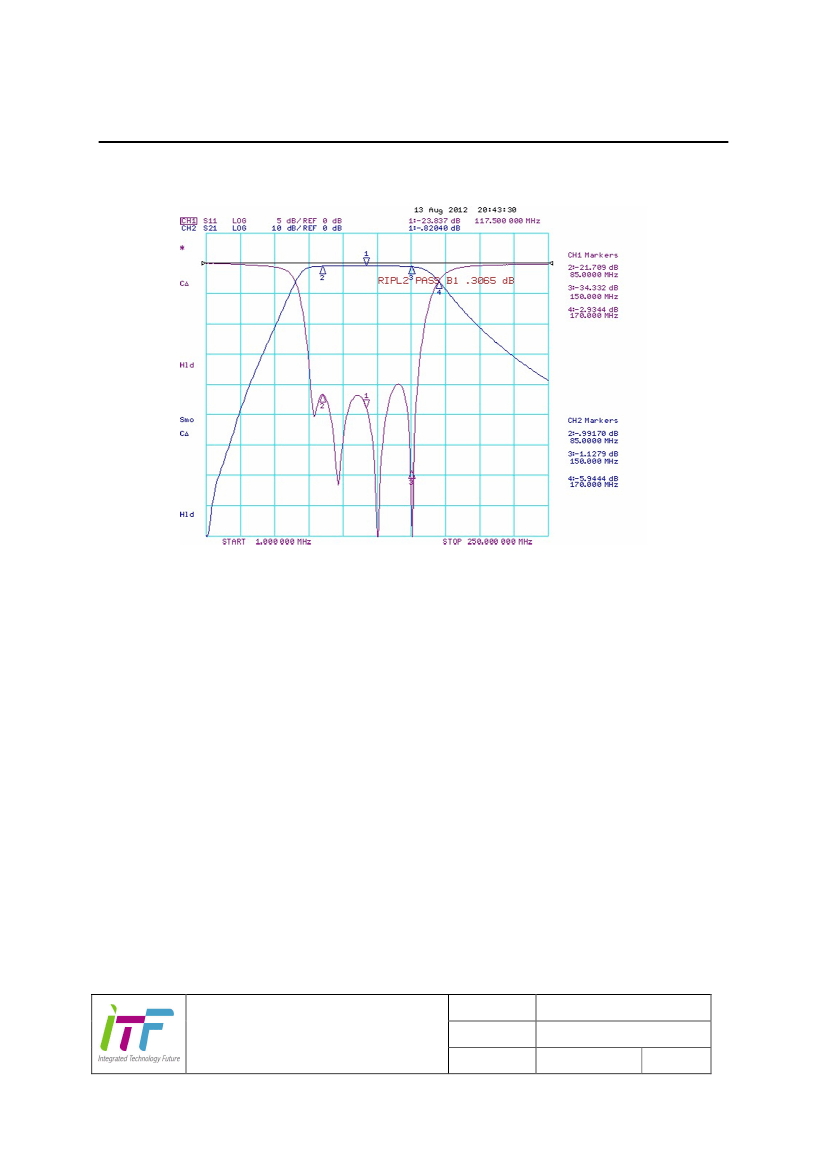

Typical Performance ( at 25℃ )
℃
I T F Co., Ltd.
102-901, Bucheon Technopark 364,
Samjeong-Dong, Ojeong-Gu, Bucheon-City,
Gyounggi-Do, Korea 421-809
Part No.
Rev. Date
Rev.
